【Plug & Play Diagnosis】No battery or charger needed; device powers directly from vehicle's OBDII data link connector for quick and convenient diagnostics.

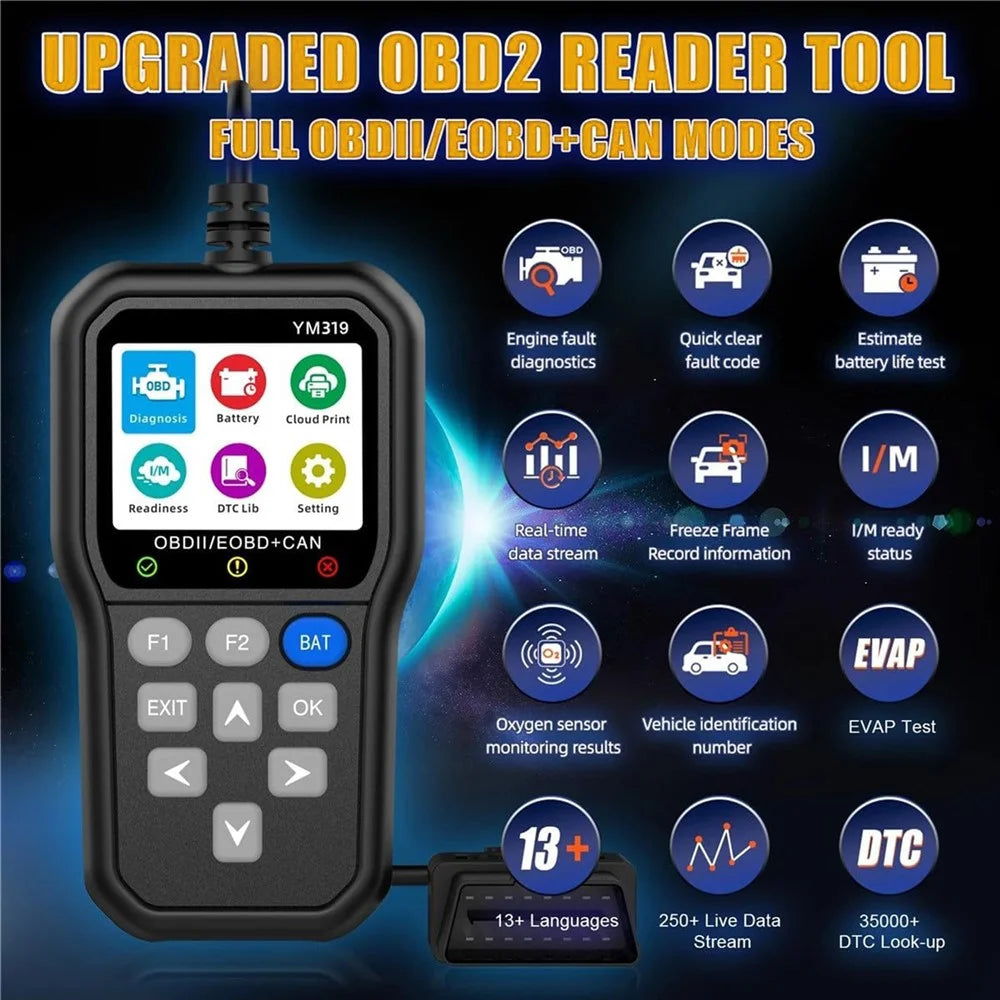

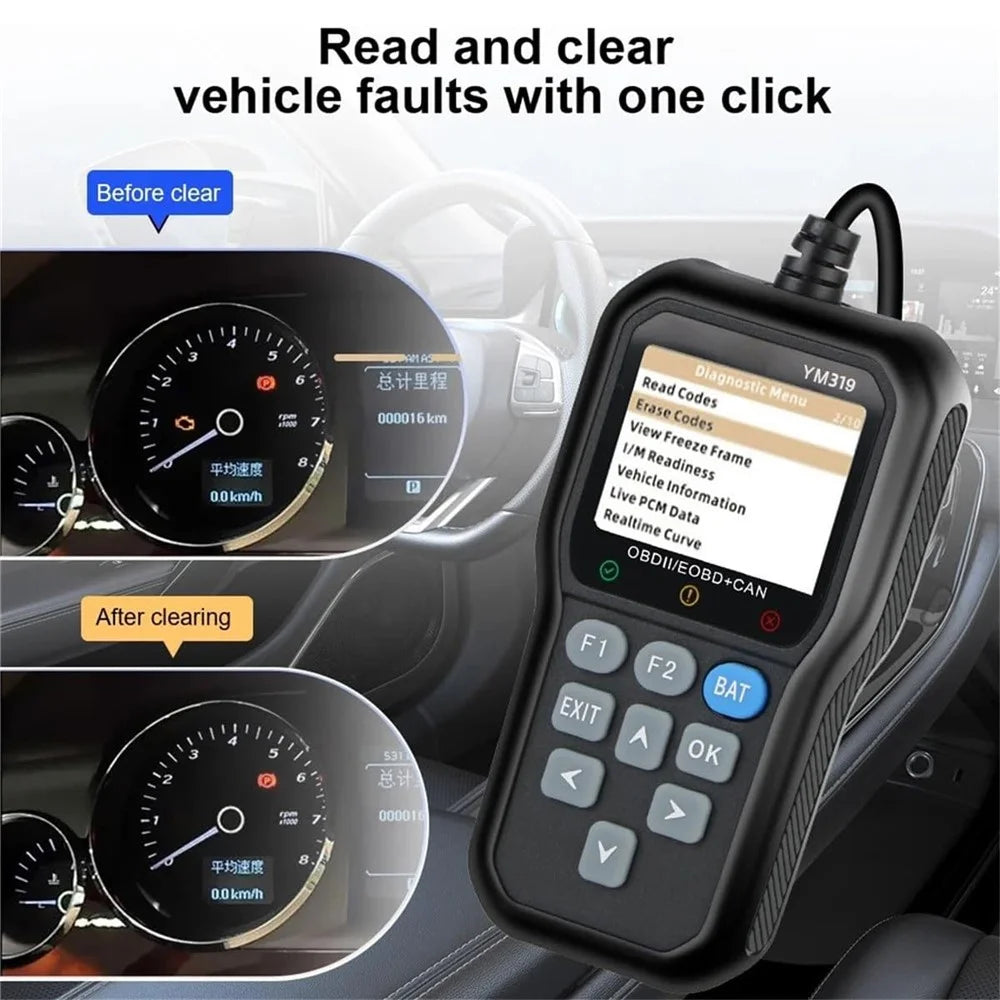

【Extend Engine Life】Quickly detects major engine faults including MIL warnings to help troubleshoot early and prevent noise and temperature issues.
【Enhanced Performance】Get accurate real-time sensor data with faster GPU Turbo response for clear display and smoother operation on the 2.8-inch full color HD screen.

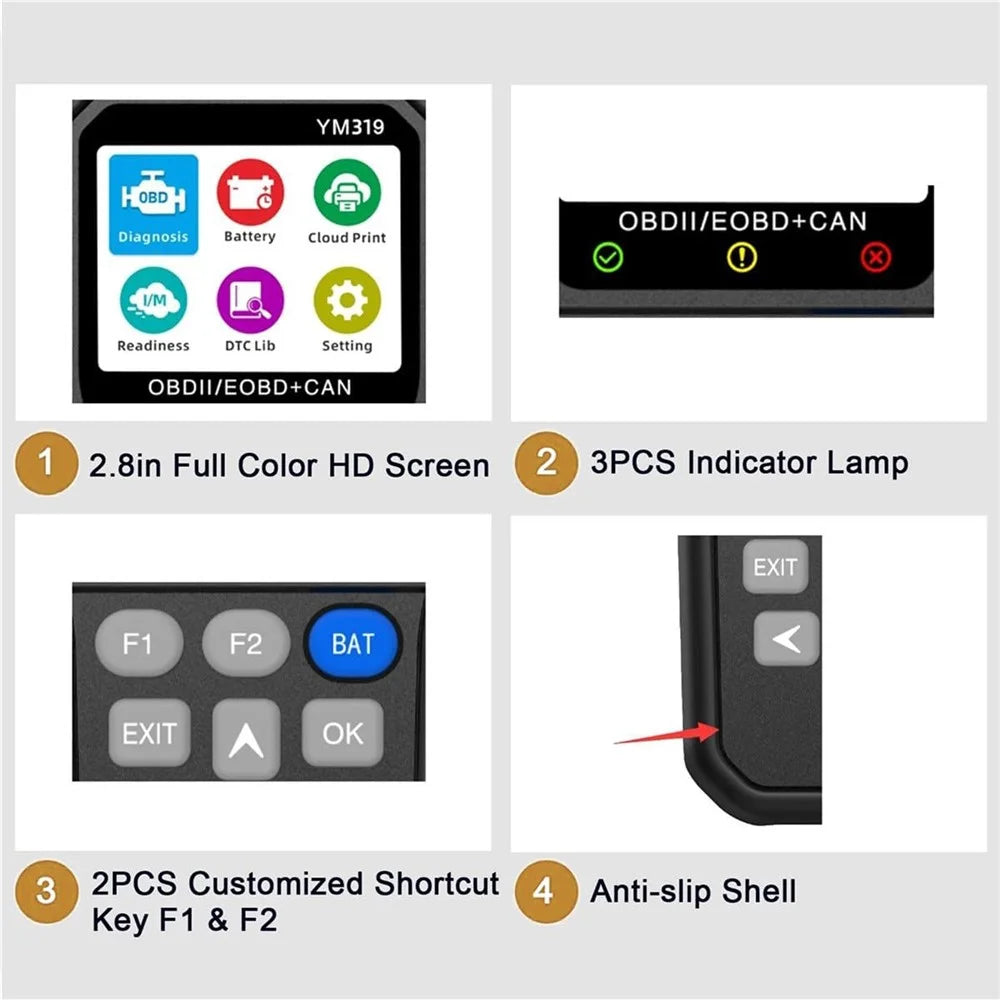

【Portable Design】Compact handheld design with anti-slip shell, TPU protective case, customizable F1/F2 shortcuts, and adjustable buzzer volume and backlight brightness.
【Multi-Language Support】Auto-detects and translates 25 languages via mobile scanning; supports cloud printing of real-time data, freeze frames, and DTC analysis with QR code generation.
Specifications:
Model: YM319
Screen Size: 2.8 inch TFT Full Color Display
Interface: 16PIN Heavy-Duty Standard OBD2 Plug

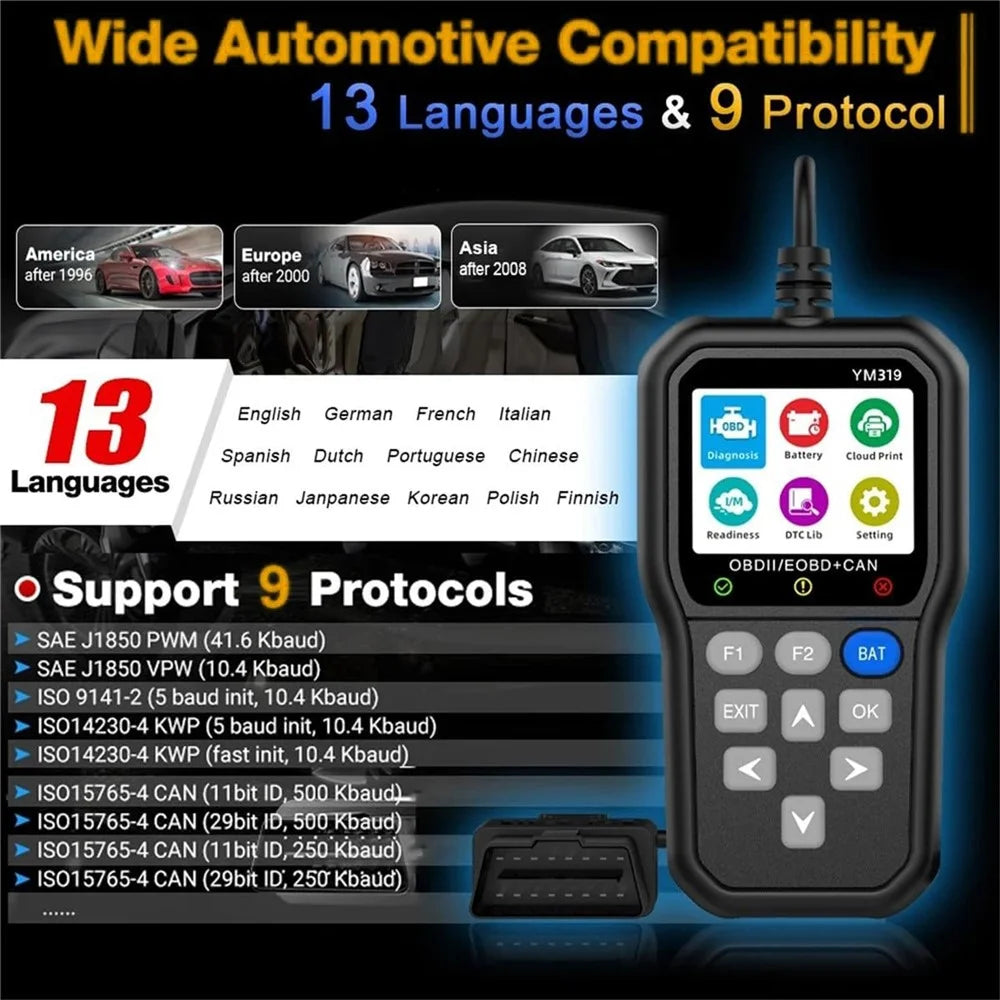

Protocol Support: OBDII/EOBD+CAN (9 Standards)
SAE J1850 PWM: 41.6 Kbaud
SAE J1850 VPW: 10.4 Kbaud
ISO 9141-2: 5 baud init, 10.4 Kbaud
ISO14230-4 KWP: 5 baud init, 10.4 Kbaud
ISO14230-4 KWP: Fast Init, 10.4 Kbaud
ISO15765-4 CAN: 11bit ID, 500 Kbaud
ISO15765-4 CAN: 29bit ID, 500 Kbaud
ISO15765-4 CAN: 11bit ID, 250 Kbaud
ISO15765-4 CAN: 29bit ID, 250/251 Kbaud
Language Support: 13 Languages (English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese, Russian, Japanese, Korean, Polish, Finnish)
Data Capabilities: 250+ Live Data Stream, 35000+ DTC Look-up

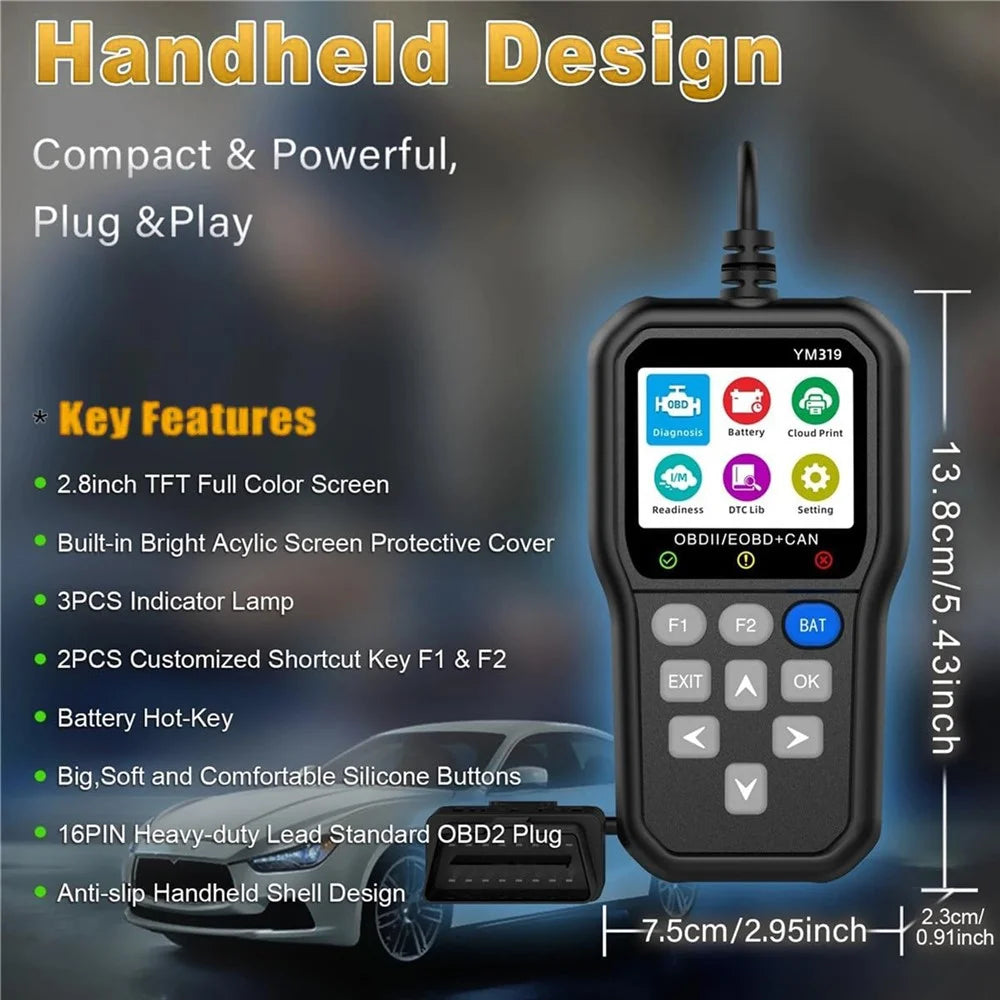

Dimensions: 13.70 x 7.50 cm (5.39 x 2.95 inch)
Vehicle Compatibility: American vehicles (1996 and newer), European vehicles (2000 and newer), and Asian vehicles (2008 and newer).
