Description
- 【Multi-Display Support】This WAVLINK Universal Dual 8K/Quintuple 4K Docking Station supports up to dual 8K or five 4K displays, perfect for professional graphics, video editing, financial analysis, and other multi-screen needs. It features 2 DisplayPort 1.4 and 3 HD ports for maximum display flexibility.
- 【Integrated GPU】Built-in dedicated GPU reduces CPU load and enhances multi-screen rendering performance, ensuring smooth operation across all connected displays.

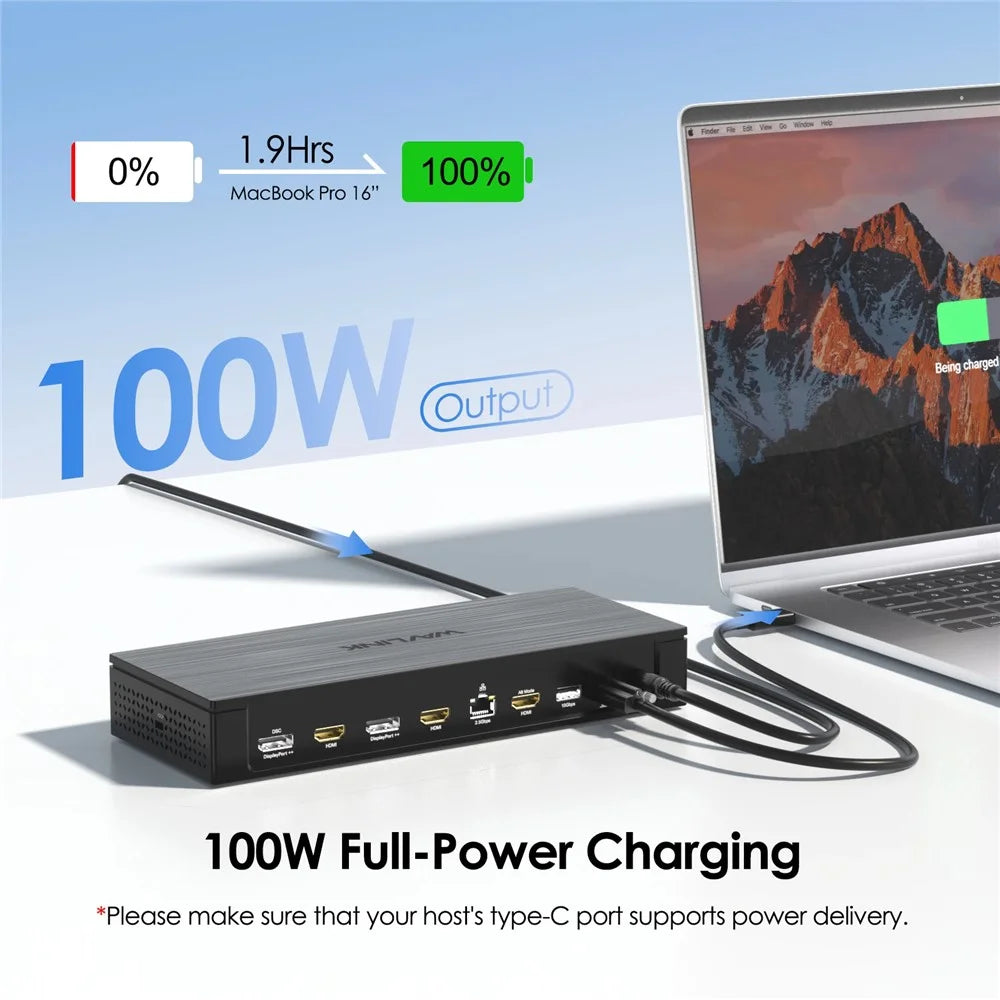

- 【Power Delivery】Equipped with a 100W PD fast charging USB-C port, capable of rapidly charging high-power laptops like the MacBook Pro 16" in approximately 1.9 hours.

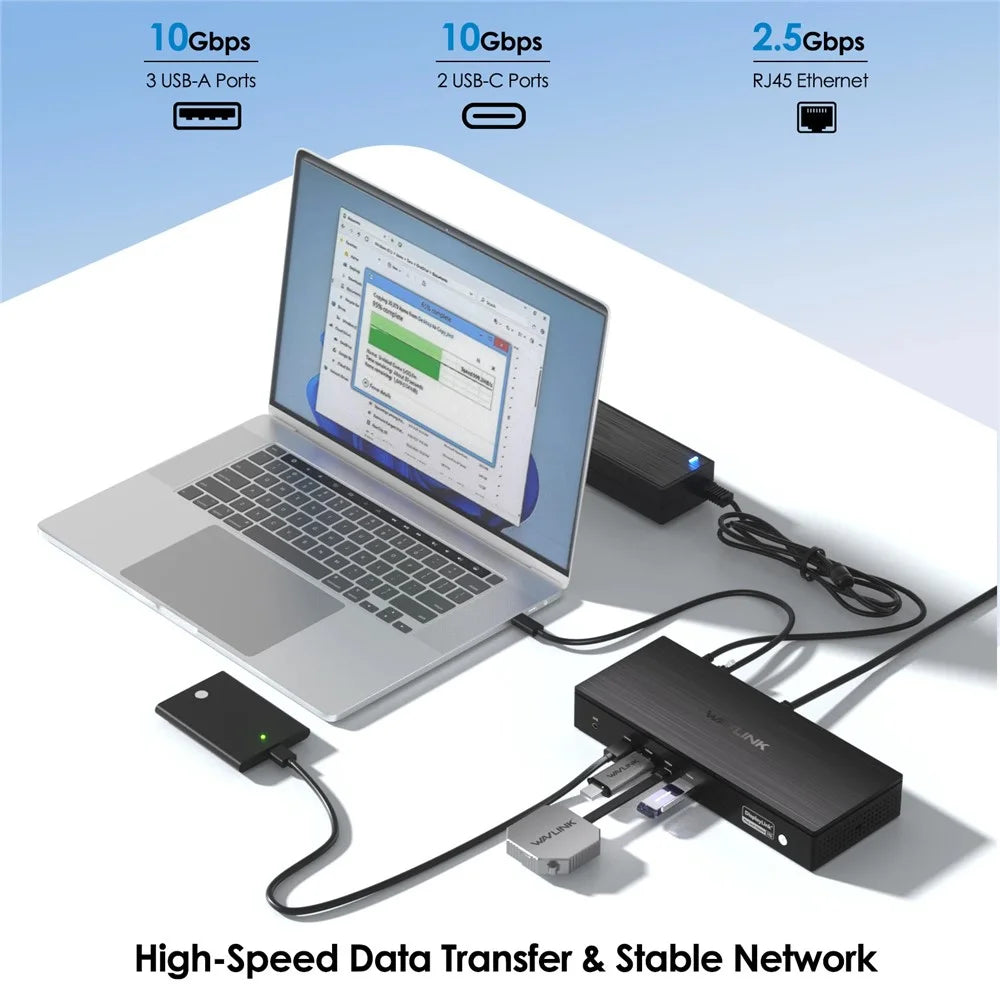

- 【High-Speed Data Transfer】All USB ports support 10Gbps high-speed data transfer, guaranteeing efficient data throughput for external SSDs, portable hard drives, and other devices.
- 【Advanced Networking】Features a 2.5Gbps Ethernet port, providing faster wired network experience compared to traditional Gigabit Ethernet.
- 【Wide Compatibility】Supports multiple interface protocols including Thunderbolt 3/4 and USB-C with DisplayPort Alt Mode. Compatible with Windows 10/11, Mac OS 11.x-15.x and later, Chrome OS, Ubuntu, Android, and HarmonyOS.
Specifications:
- Model: WL-UG75PD5-3H2D2
- Ports:

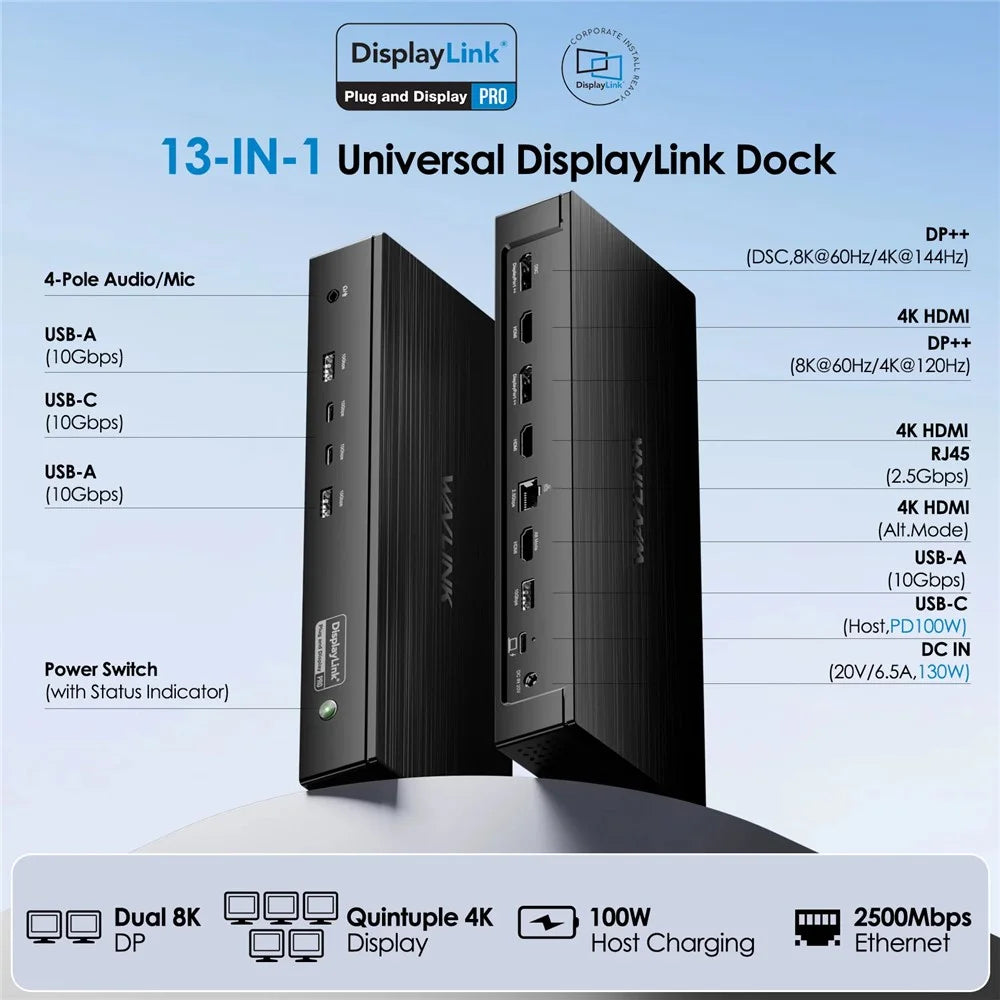

- Side 1: 1 × 4-pole audio/microphone, 2 × USB-A 10Gbps, 2 × USB-C 10Gbps
- Side 2: 1 x DisplayPort++ (DSC, 8K@60Hz/4K@144Hz), 1 x DisplayPort++ (8K@60Hz/4K@120Hz), 2 x HD (4K@60Hz), 1 x HD (Alt. Mode, 4K@60Hz), 1 x RJ45 (2.5Gbps), 1 x USB-A 10Gbps, 1 x USB-C (Host, PD100W), 1 x DC IN (20V/6.5A, 130W)
- Button: 1x power switch (with status indicator)
- Dimensions: 24.5 x 9.7 x 3.7cm / 9.6 x 3.8 x 1.4in (L x W x H)
- Cable Length:
- USB-C to C cable: 100cm / 39.4in
- Power adapter cable (plug end): 150cm / 59in
- Power adapter cable (round port end): 110cm / 43in
- Weight: 504g / 17.8oz
- Material: ABS plastic
- Power LED: Green/Red
Usage Instructions:
- The docking station requires connection to the power adapter for normal operation.
- Driver installation is necessary; it's not plug-and-play. Download the latest drivers from displaylink.com.
- Ensure your laptop's Type-C port supports charging and video output for full functionality.
- For Mac users, grant screen recording permission to the DisplayLink manager.
- To achieve 4K@60Hz on HD (Alt. Mode), the laptop's USB-C port must support DP1.4; DP1.2 support limits output to 4K@30Hz.
- Some Mac computers may not support 8K display due to hardware limitations.

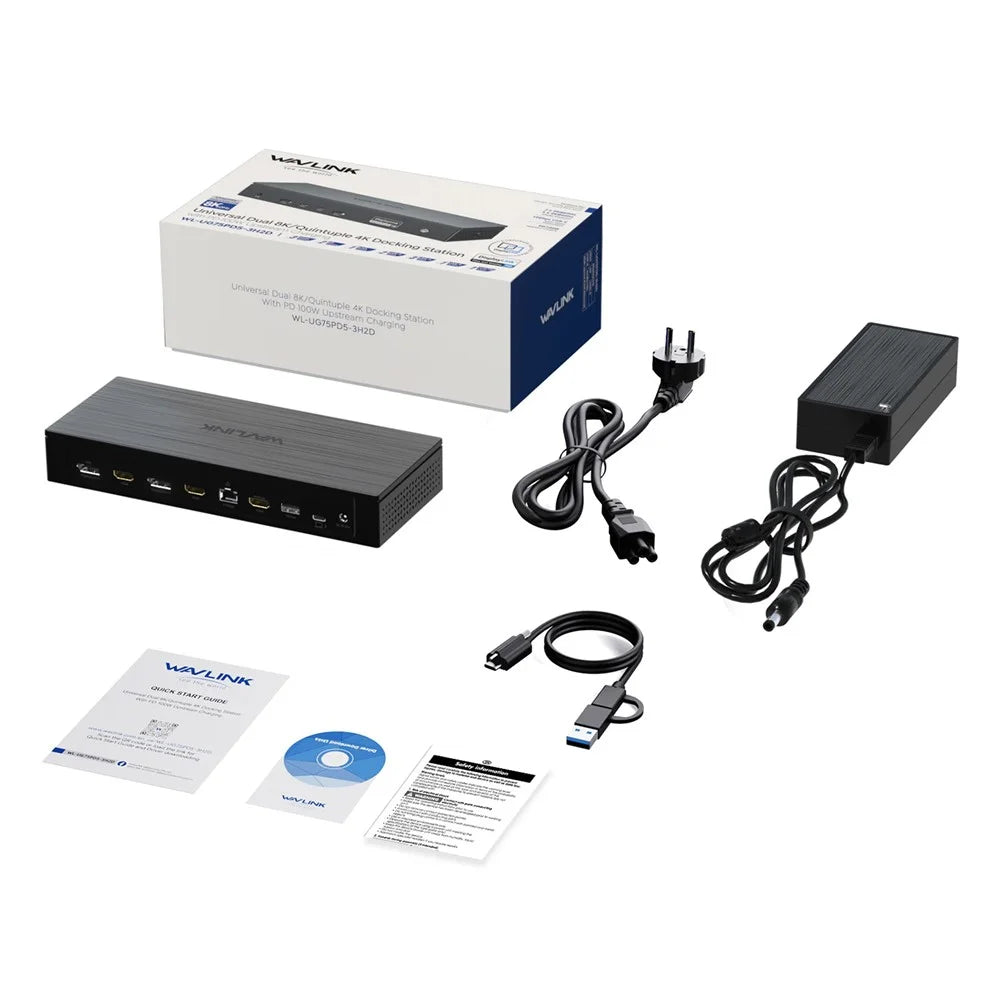

In the box
- 1 x Hub Adapter
- 1 x Power Charger
- 1 x Cable
- 1 x English User Manual
