Description

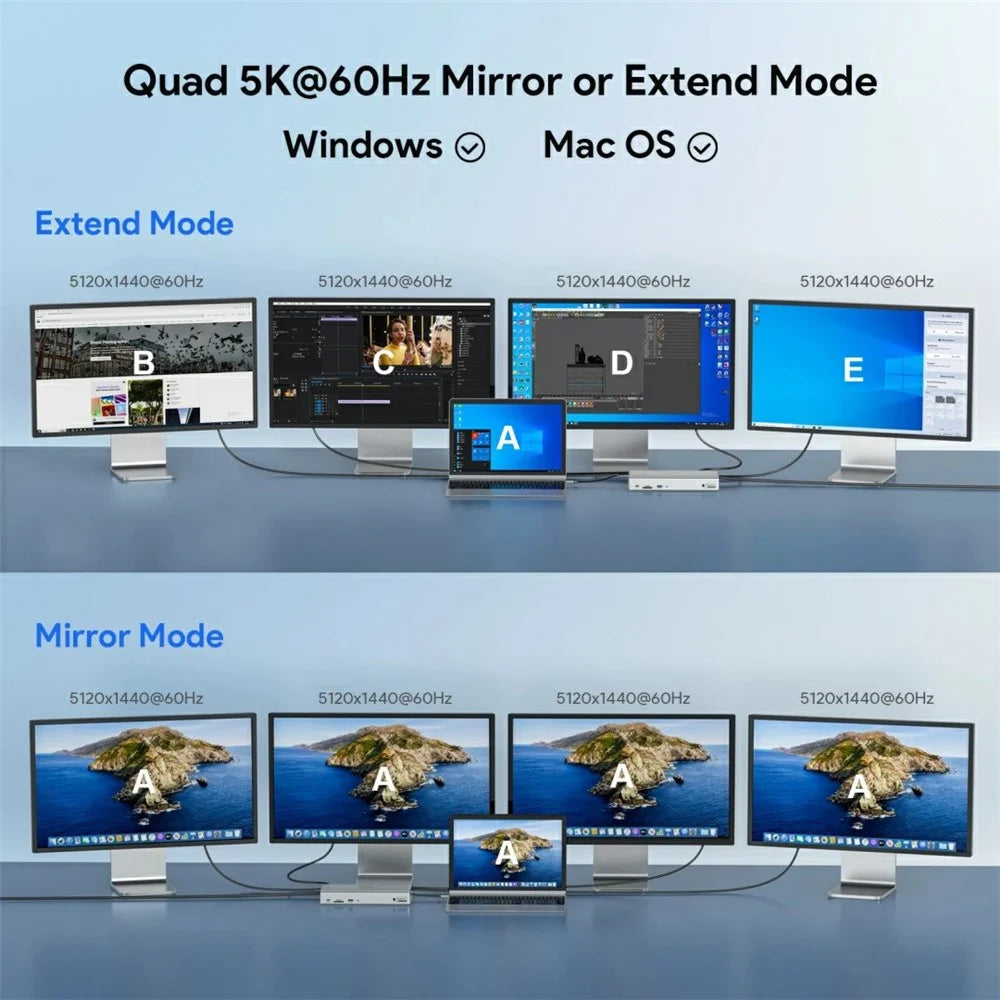

- 【Quad Display Support】Powered by the DisplayLink DL-6910 chipset, this dock enables mirroring or extending to four displays simultaneously, ideal for multitasking and expanding workspace.
- 【M1/M2 Mac Compatible】Specially designed for Macbook users with M1/M2 chips, allowing connection to 4 external displays with different content, enhancing productivity.
- 【Versatile Display Modes】Supports rotation and flip-over modes on Windows, with for Mac OS 12.0+ required for display rotation and flip-over on Mac systems.

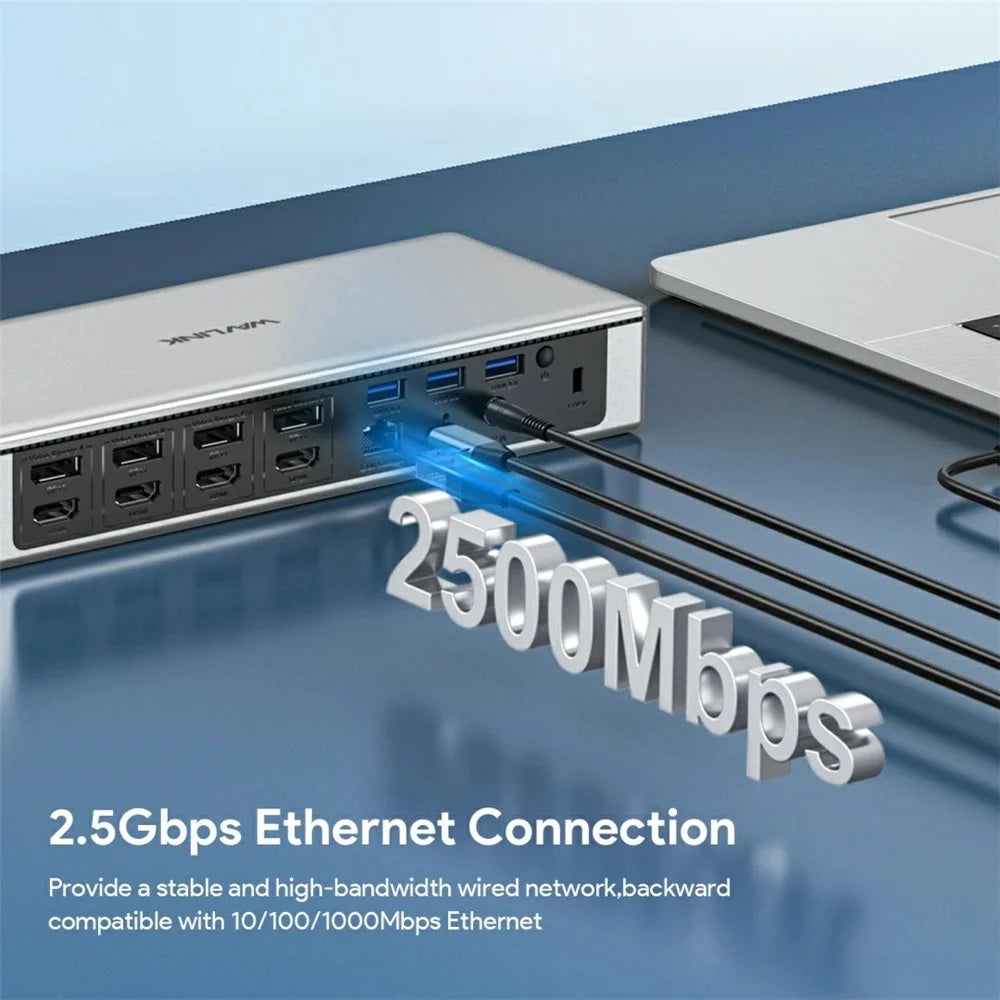

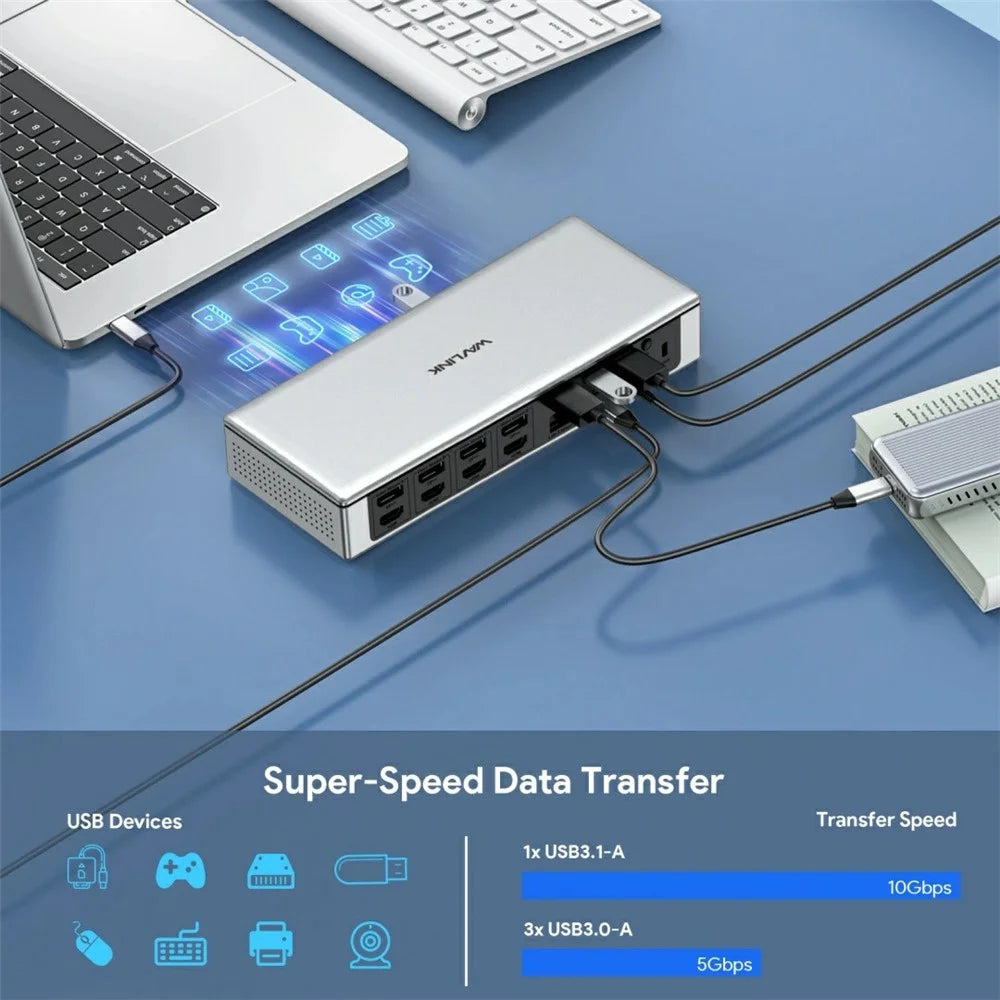

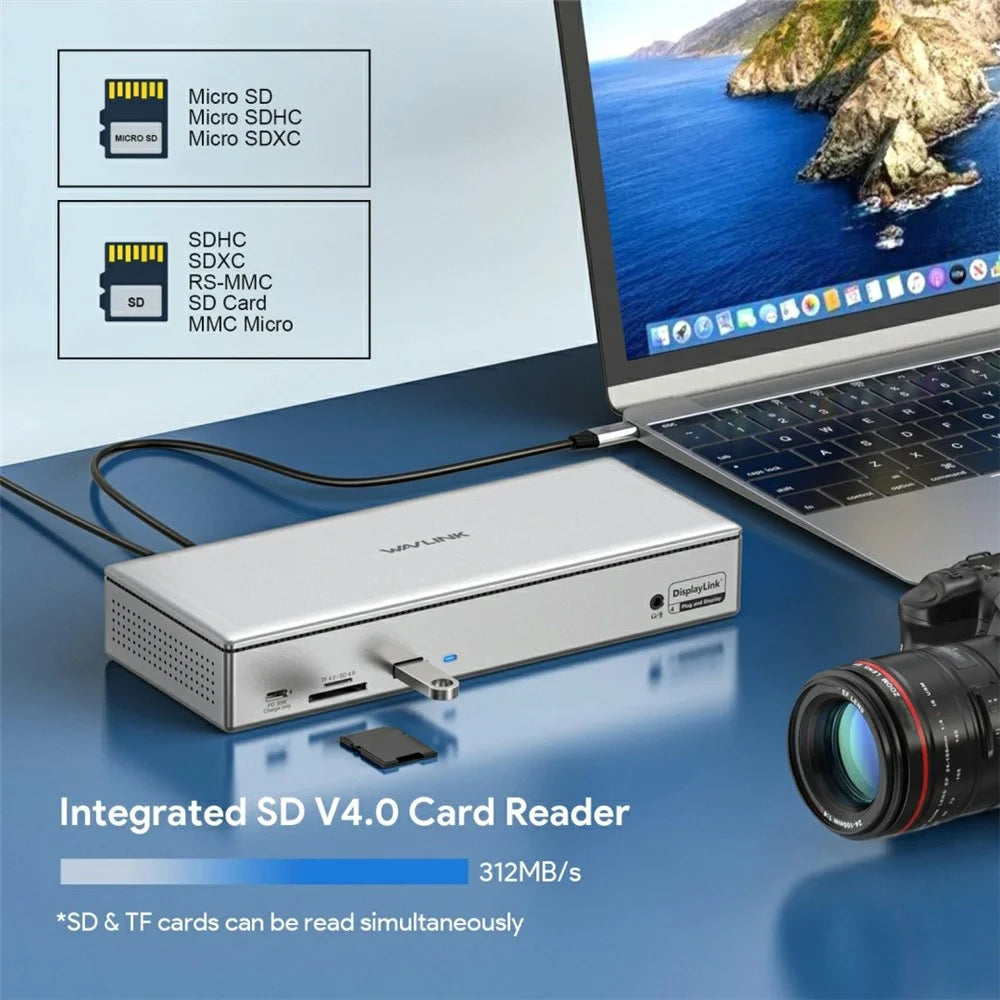

- 【Advanced Connectivity】Features a 2-in-1 audio and microphone jack, multiple USB ports, SD/TF card slots, and 2.5G Ethernet for comprehensive connectivity options.
- 【Security and Cooling】Includes a Kensington lock slot for physical security and efficient heat dissipation with built-in heatsinks and dual-sided ventilation holes.

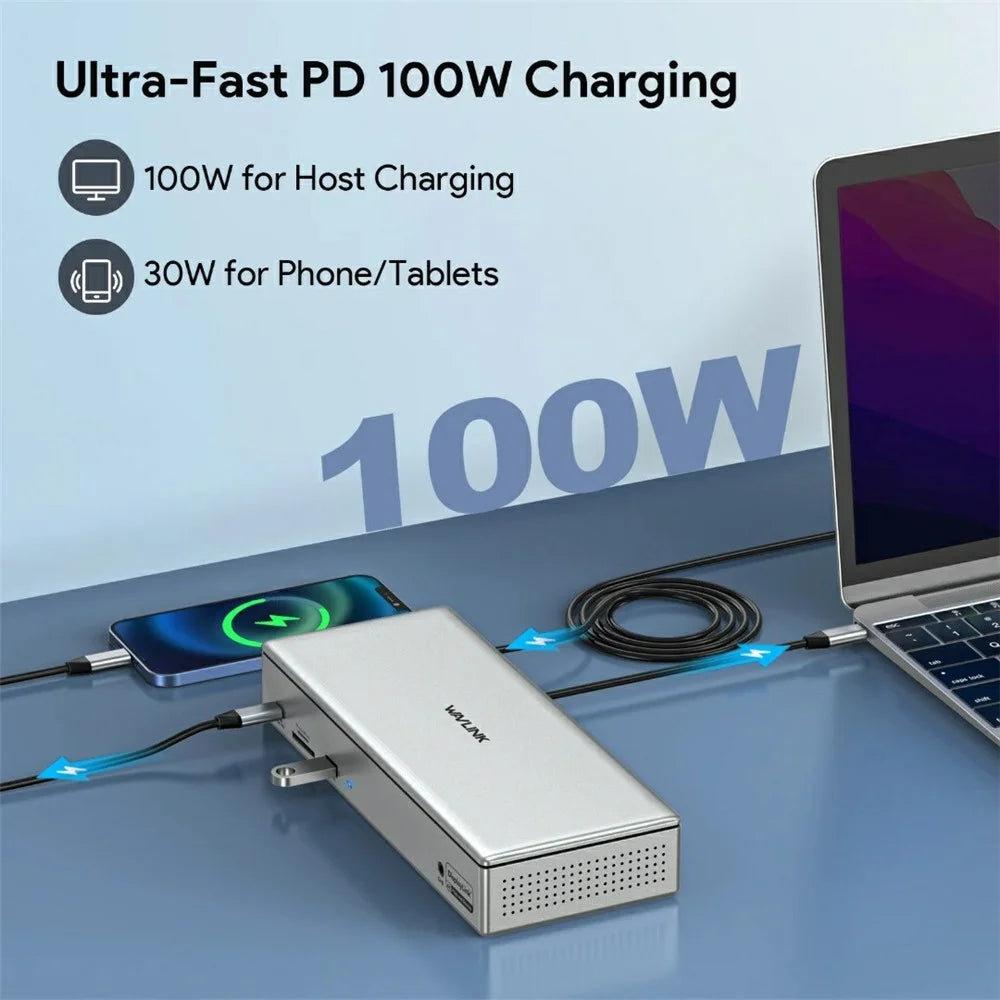

- 【High-Power Delivery】Offers up to 100W Power Delivery through the host USB-C port, ensuring your device stays charged while connected.
Specifications:
- Model: WL-UG69PD12

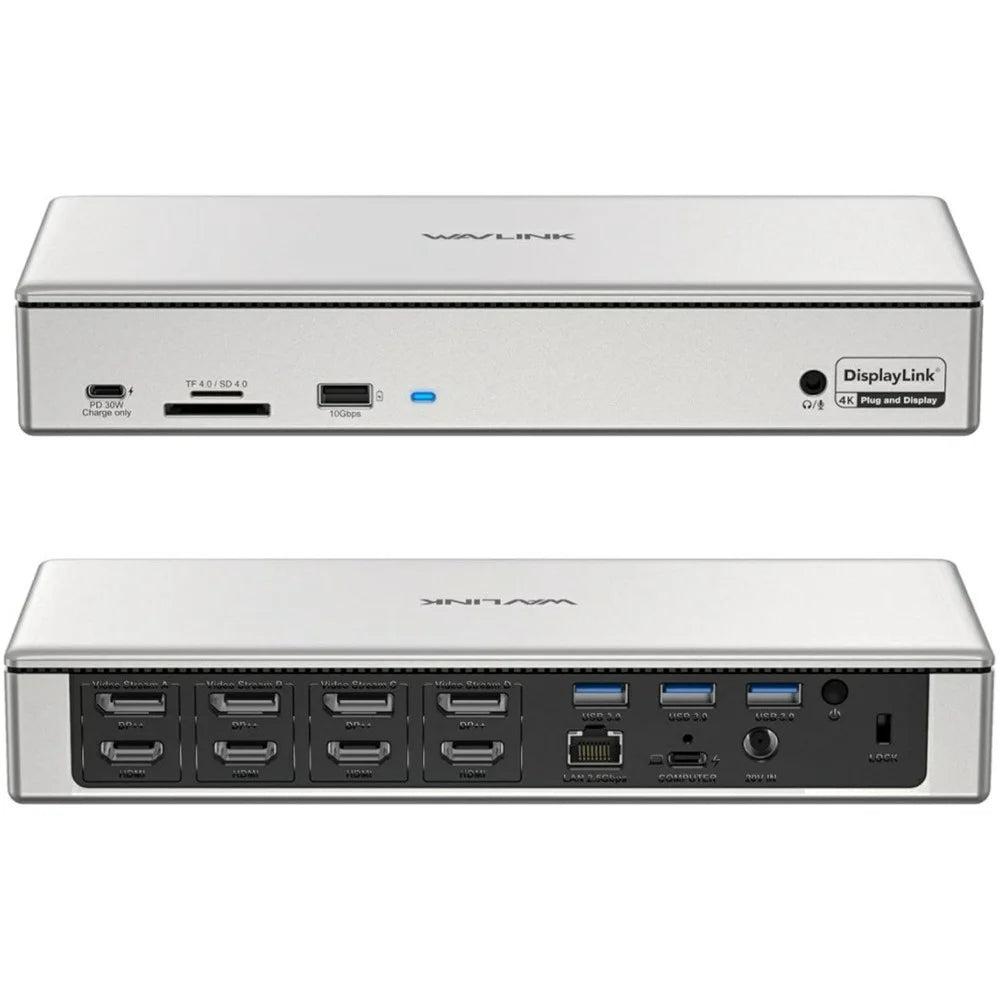

- Interfaces: 1x DC IN (20V/9A, 180W), 1x USB-C (Host, PD100W), 1x USB-C (PD 30W), 4x DisplayPort, 4x HD, 1x RJ45 (2.5G), 1x USB3.1-A (10Gbps), 3x USB3.0-A (5Gbps), 1x SD 4.0 card slot, 1x TF card slot, 1x Audio/Mic jack
- Dimensions: 24 x 9.5 x 4cm (9.4 x 3.7 x 1.6in)
- Weight: 813g (28.7oz)
- Material: ABS plastic
- Compatible Systems: Windows Vista 11/10/8.1/8/7, Mac OS 10.14-13.X, Android 5.0+, Ubuntu 20.04/22.04, Chrome OS, Harmony OS
- Power Adapter: DC 20V/9A 180W
- Cable Lengths: USB-C to C/A cable - 100cm, Power adapter cable - 150cm (plug end), 120cm (round port end)
Note:
- Please follow the instructions to download the latest DisplayLink driver from the official website before use.
- Please keep the power supply connected (including the power adapter) when using this docking station.
- Only one video port can be used in the same video stream, either "DP++" or "HD".
- Please confirm whether the type-c port of your laptop supports charging (Power Delivery), otherwise the host charging function of the docking station may not work properly.
- Recommended for use with network and productivity software; not recommended for games, video playback, 2D/3D graphics tools.
- HDCP (copyright protection) content playback from Blu-ray/Netflix/Prime/iTunes/Hulu, etc. is not supported.
- For iPad OS/Linux/Unix systems are not supported.
- On for Mac, display rotation and clamshell mode require support for Mac OS 12.0 or above.
- The USB-C (PD30W) charging port is for charging only (no data transfer).
In the box
- 1 x Docking Station
- 1 x 2-in-1 USB-C to C Cable with USB-A Connector
- 1 x DC 20V/9A 180W Power Adapter
- 1 x Cable Clip
- 1 x English Manual
- 1 x Drive Link Card
