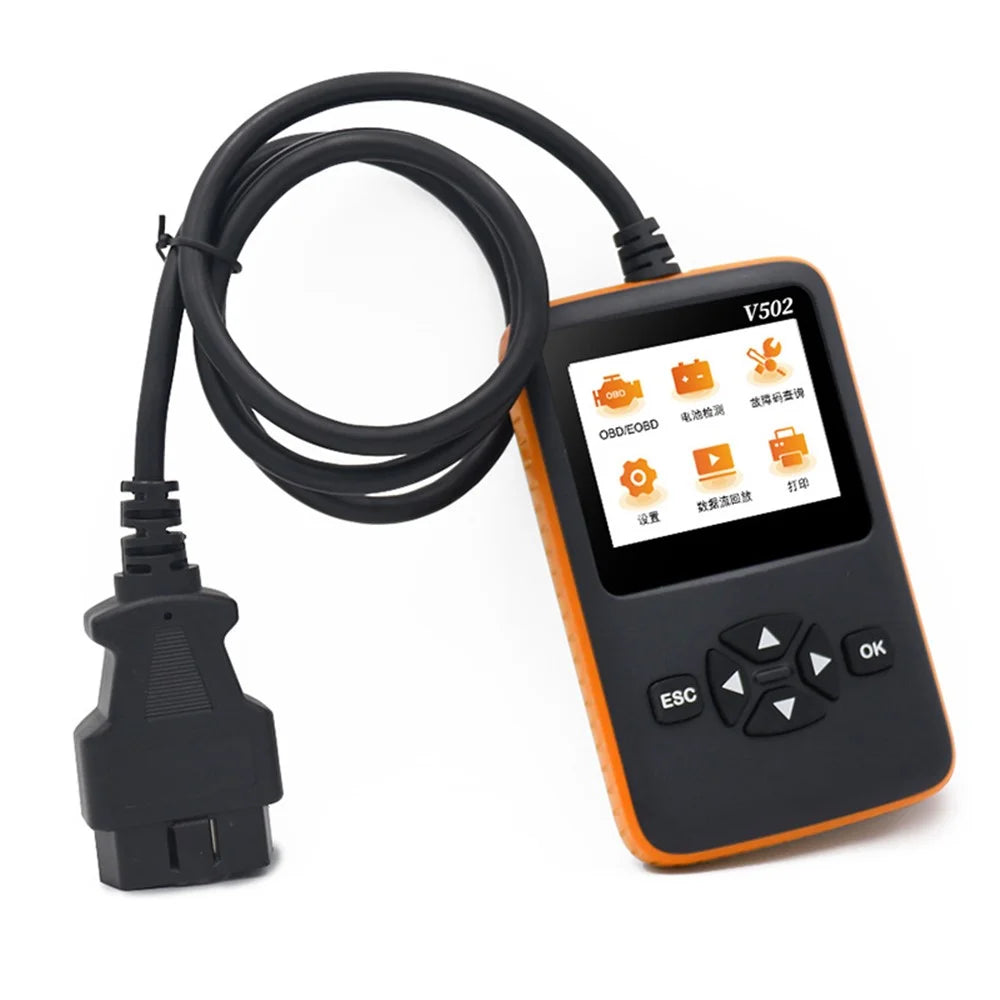

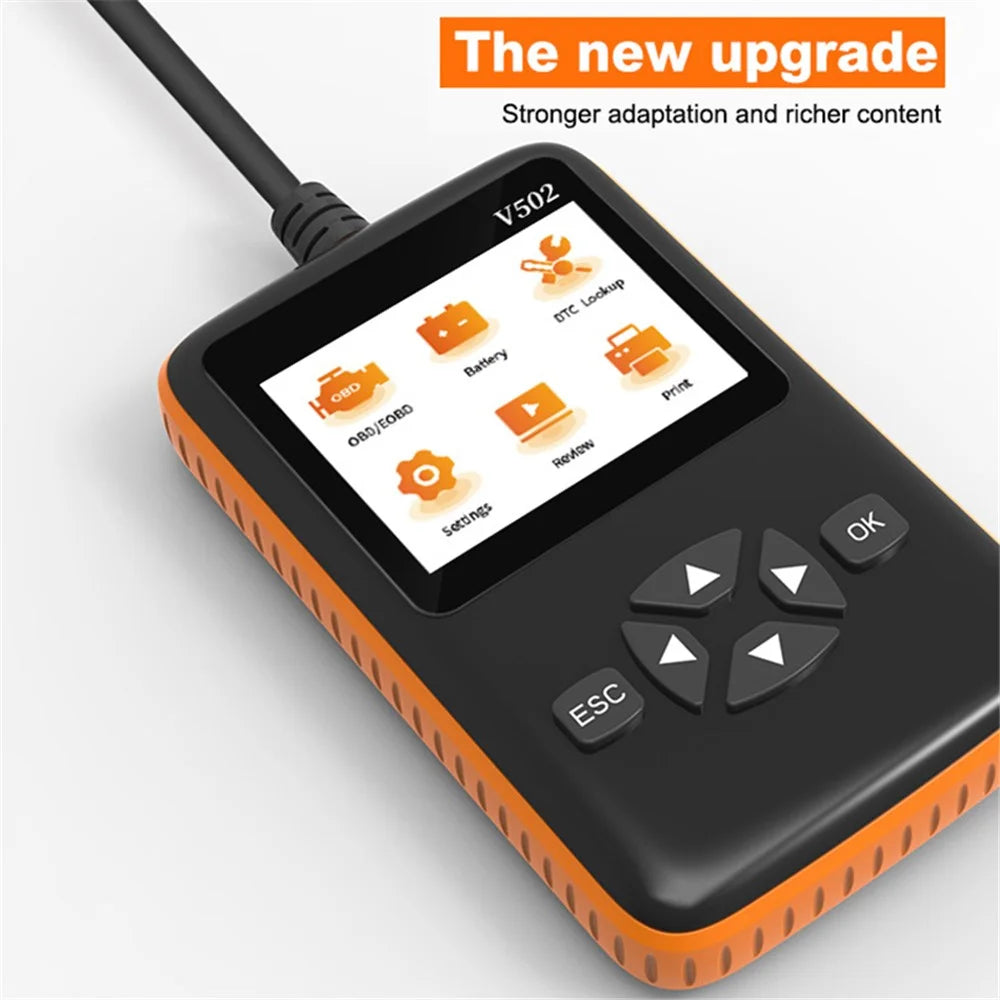

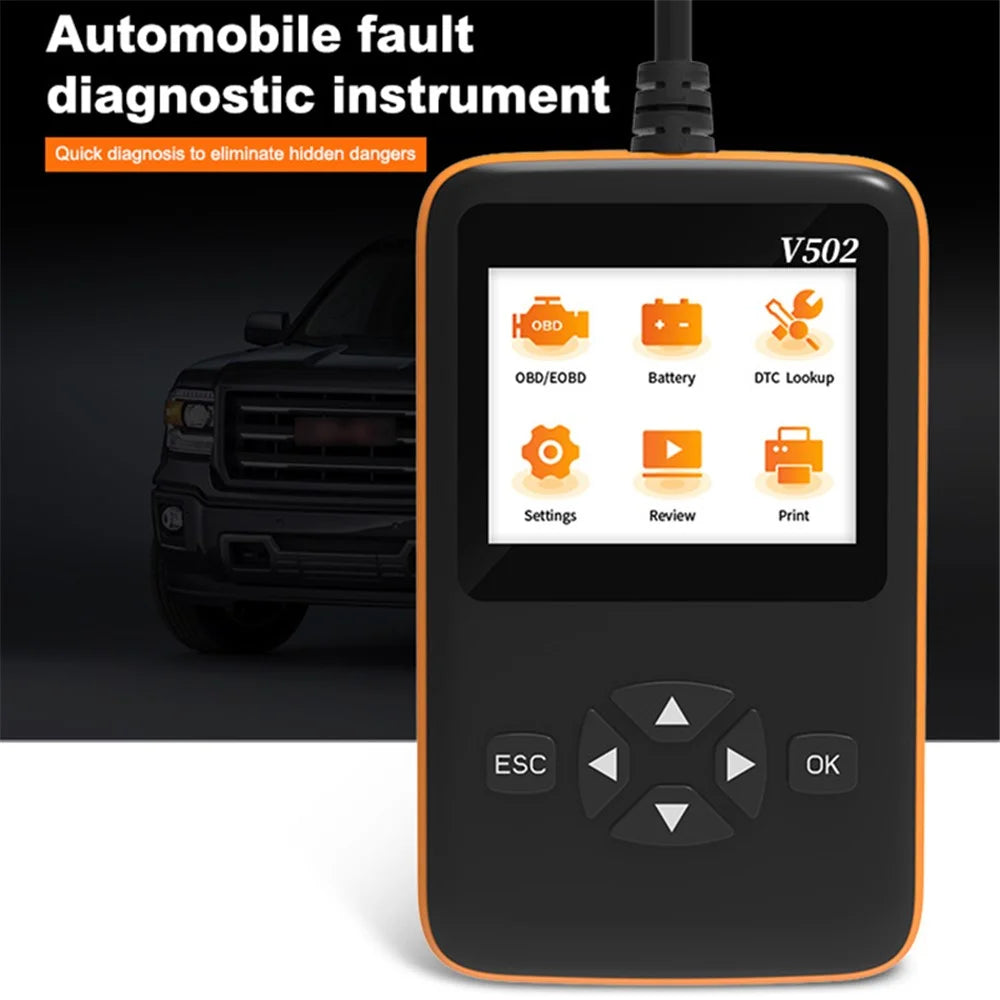

V502 9V-36V Car Fault Code Reader ELM327 OBD2 Automobile Vehicle Engine Diagnostic Tool

• Support 9 standard protocols (OBD2/EOBD)
• Support car battery voltage test
• Support gasoline model reading, clear vehicle fault codes, read data stream, freeze frame information, check MIL status, read vehicle information, oxygen sensor test, vehicle monitoring (mode 6), evaporation system (mode 8) test

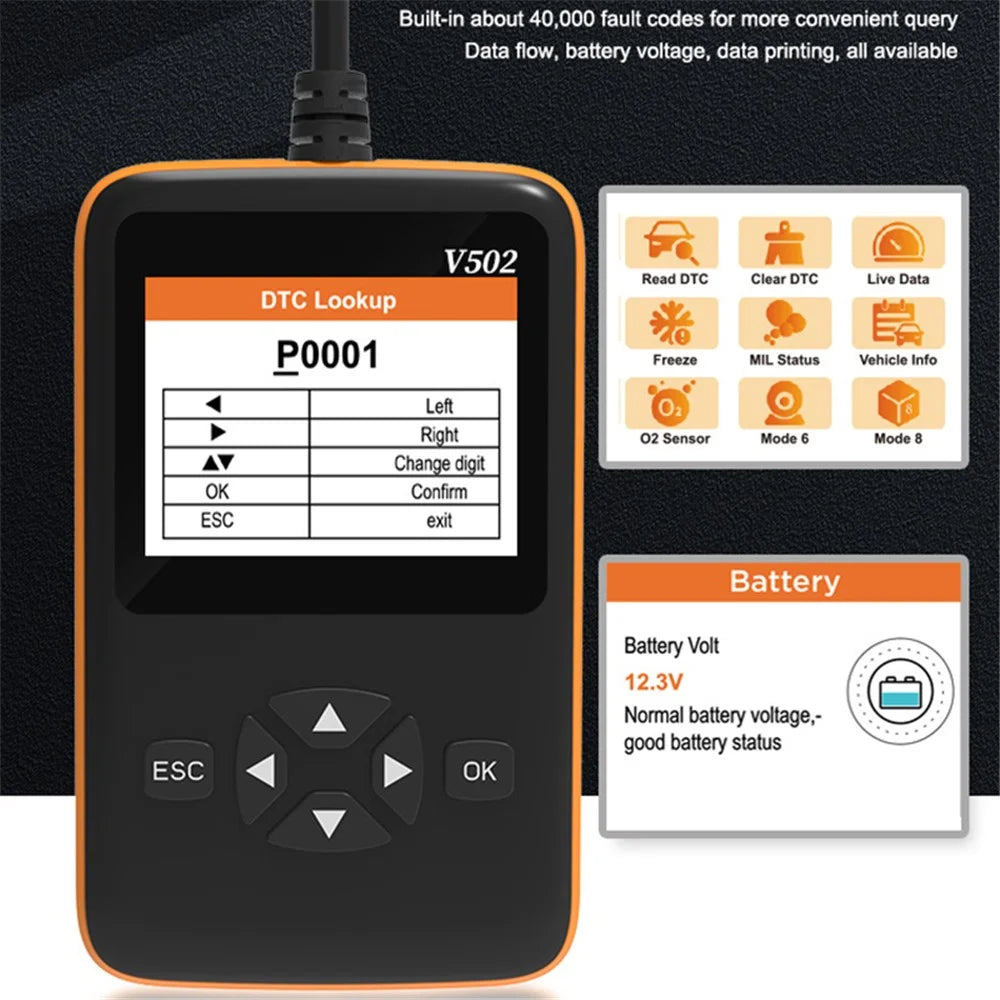

• Support fault code information query, built-in about 40000 fault code database information
• Support data stream playback function, view/delete fault code, data stream, freeze frame information
• Support USB printing function, can print fault code, data stream, freeze frame information
• Support 7 languages: English, Chinese, Italian, French, Spanish, German, Russian

Specification:

• Main control chip: STM32F103VCT6/APM32F103VCT6
• Working voltage: 9~36V
• Working current: 70-90mA
• Operating environment: -20℃~65℃
• Storage temperature: -30℃~80℃
• Size: 138.9*85*22mm
• Protocol:
• SAE J1850 PWM (41.6Kbaud)
• SAE J1850 VPW (10.4Kbaud)
• ISO9141-2(5 baud init, 10.4Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11bit ID, 500 Kbaud)
• ISO15765-4 CAN (29bit ID, 500 Kbaud)
• ISO15765-4 CAN (11bit ID, 250 Kbaud)
• ISO15765-4 CAN (29bit ID, 250 Kbaud)
