Description

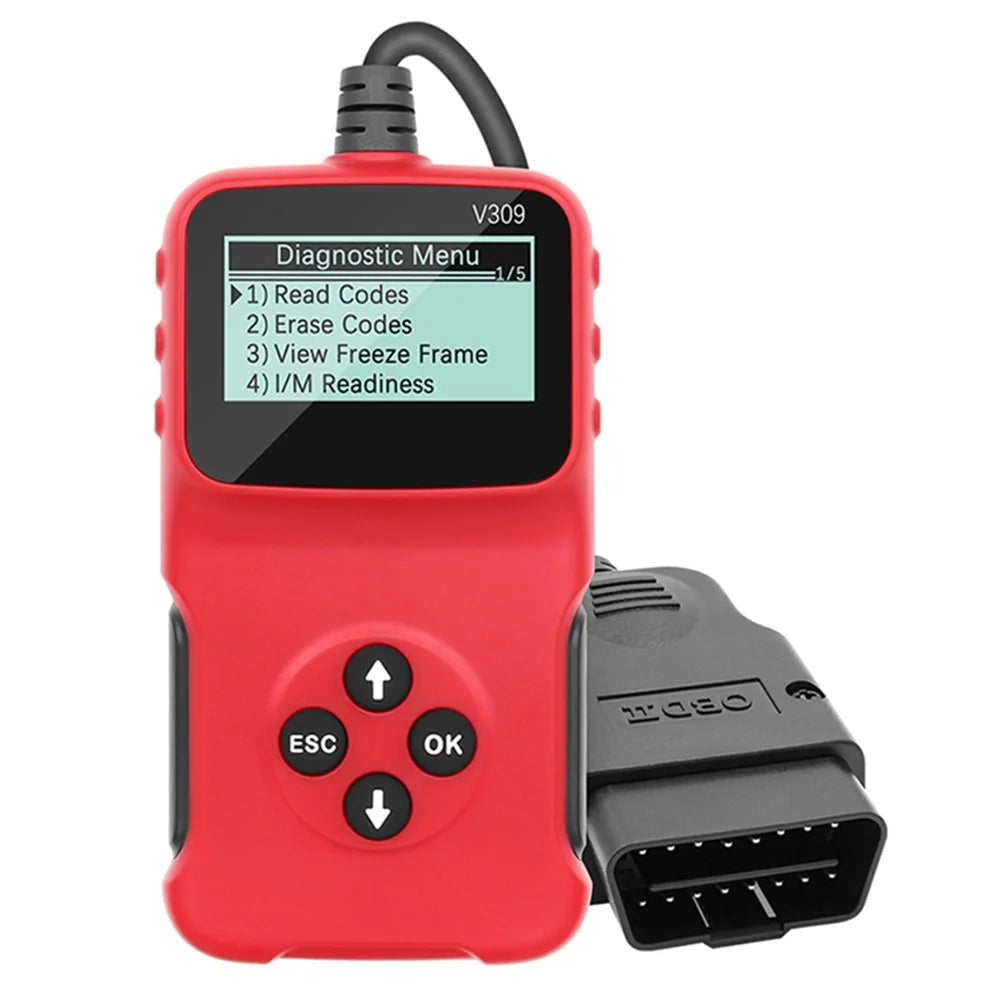

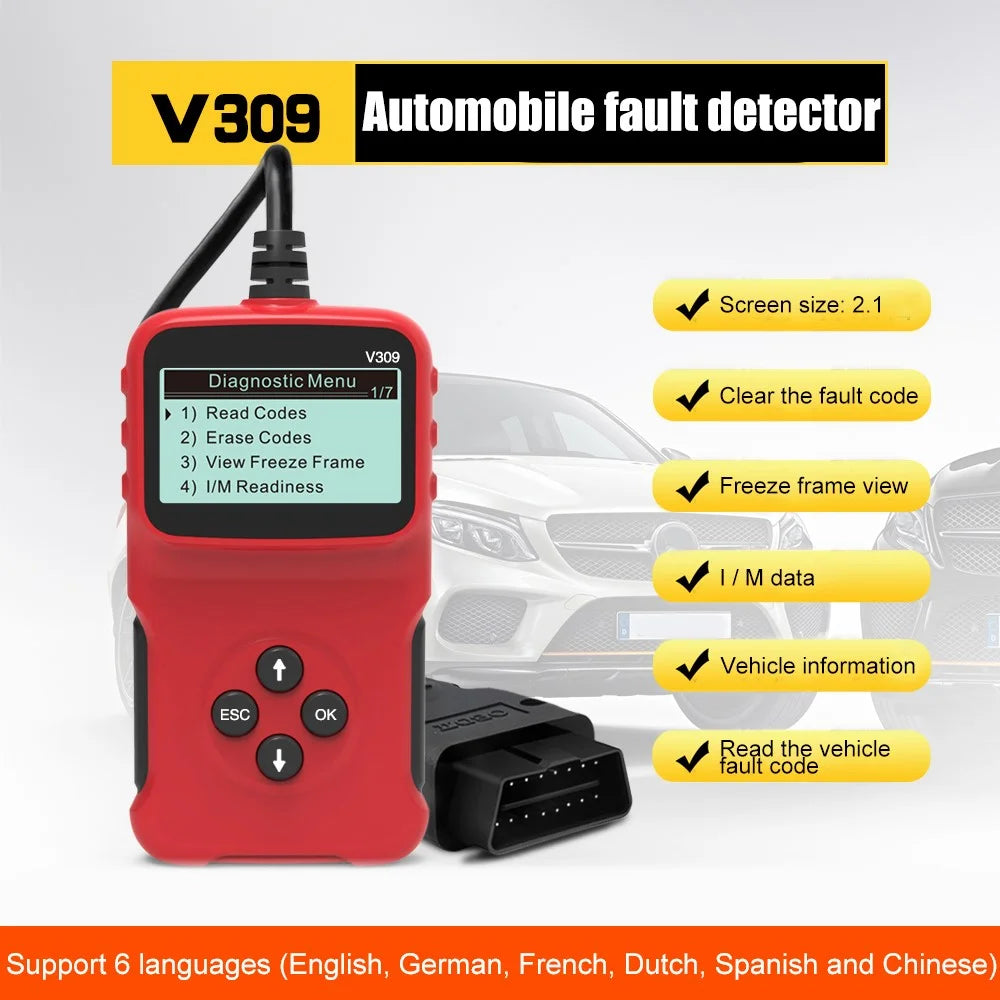

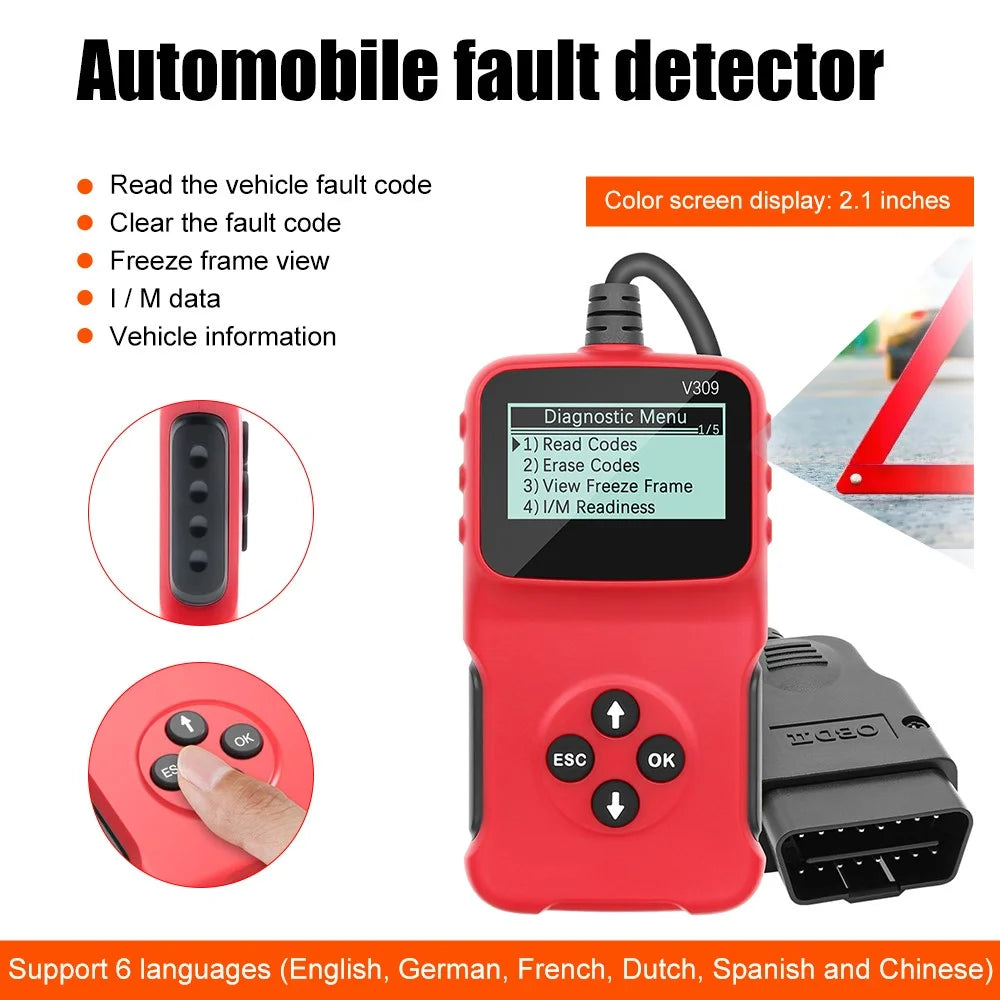

- Easily read car fault codes
- Clear car fault codes
- Freeze frame viewing
- Support I/M data
- View vehicle information
- Support 6 languages: English, German, French, Dutch, Spanish, Chinese
- 2.1'' screen for high-definition display
Specification:
- Main control chip: Epistar
- Working voltage: 9V~16V
- Working current: 80mA
- Standby current: 25mA
- Working temperature: -30℃~70℃
- Product size: 95.5*72.1*22.2mm
- Protocol:
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2(5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)
In the box
- 1 x Car Engine Diagnostic Tool
- 1 x Engine User Manual
