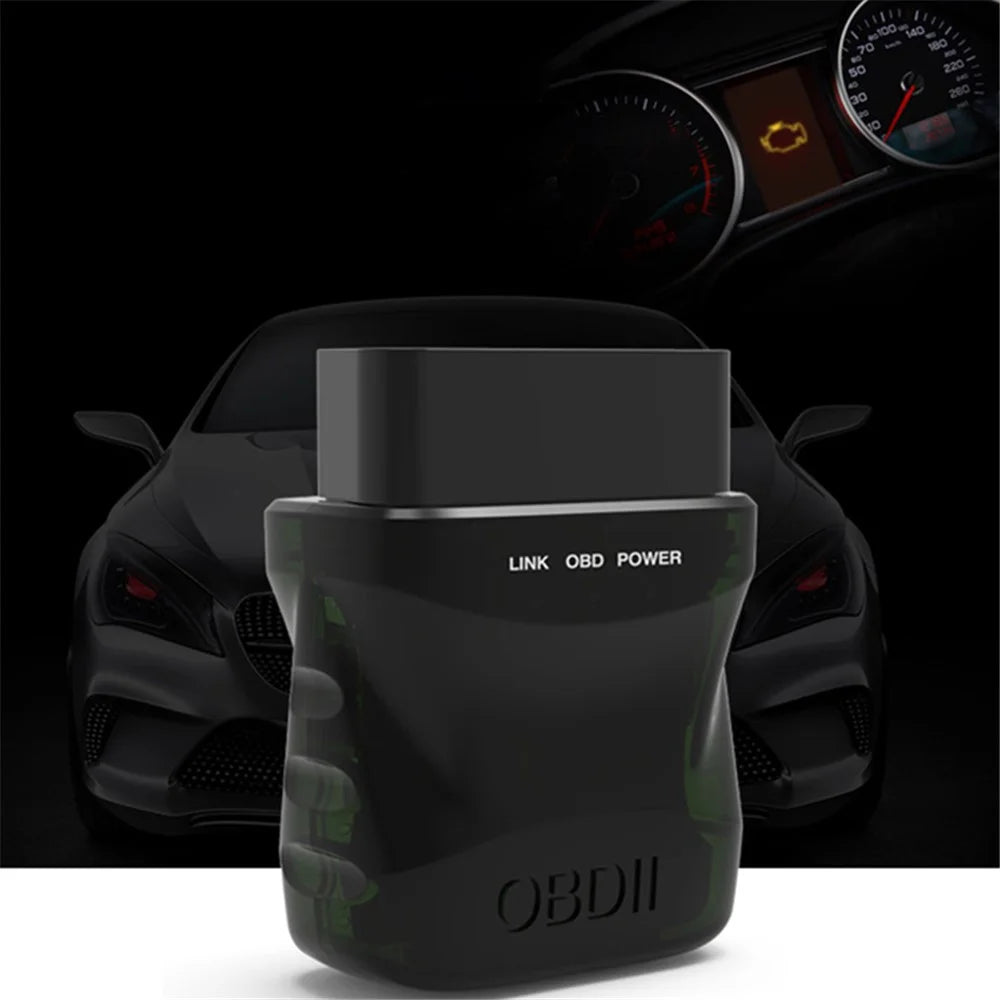

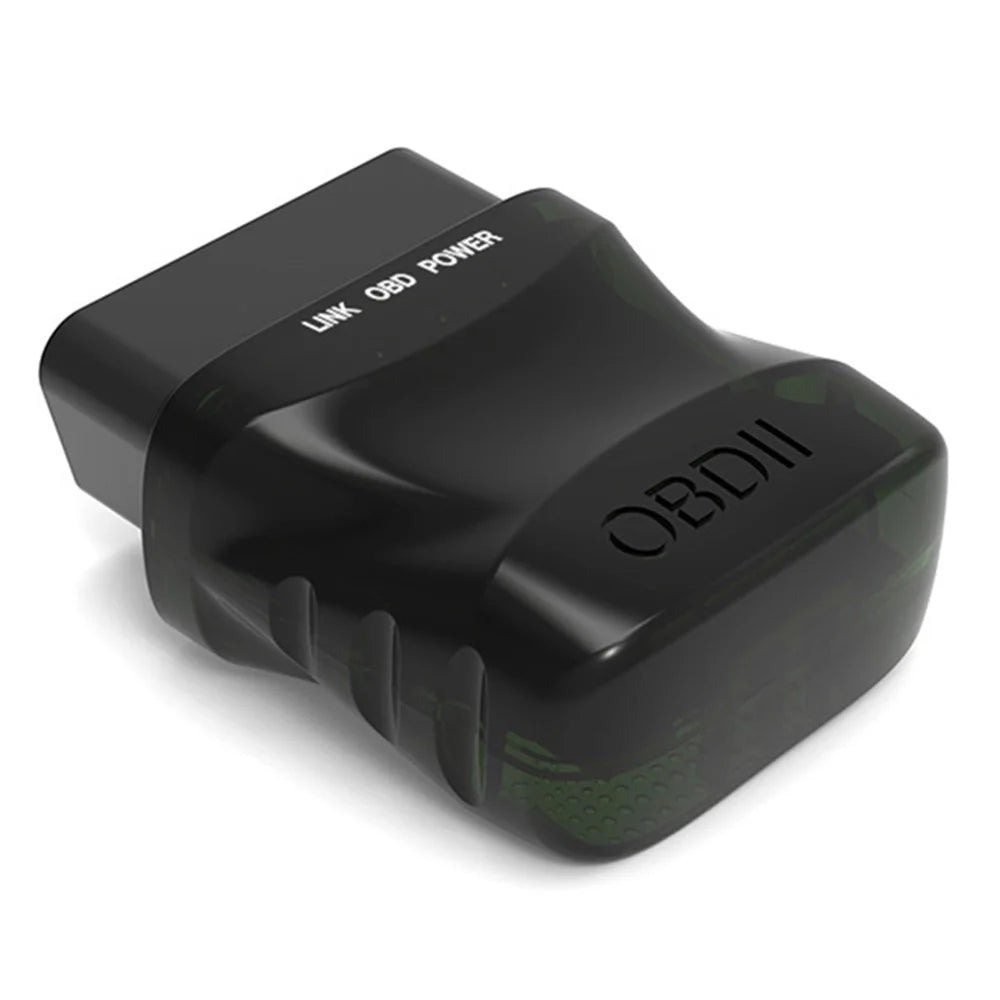

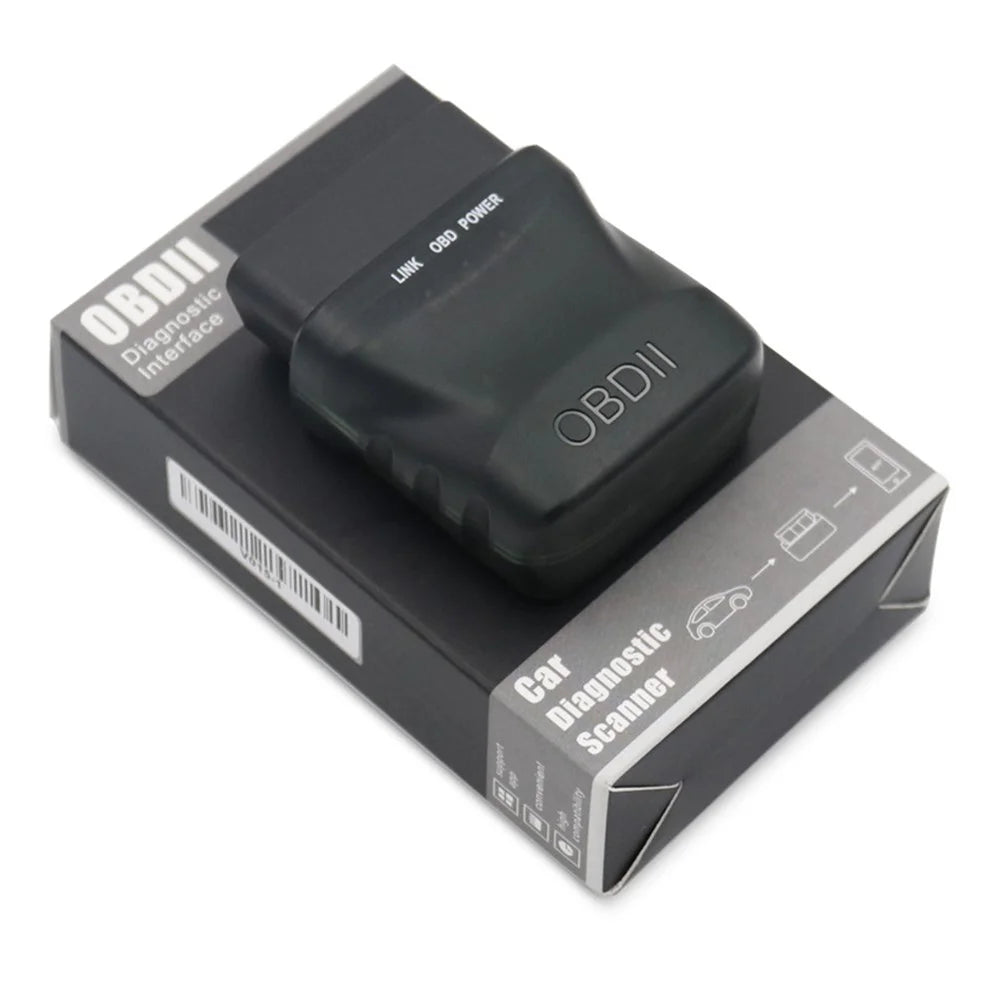

V015 OBD2 Car Fault Diagnostic Scanner Bluetooth-compatible elm327 Universal Car Reader Code Engine Tester Tool

• Car engine system diagnosis
• Engine fault light clearing
• Auto Data Flow
• Conventional OBD functions can be realized

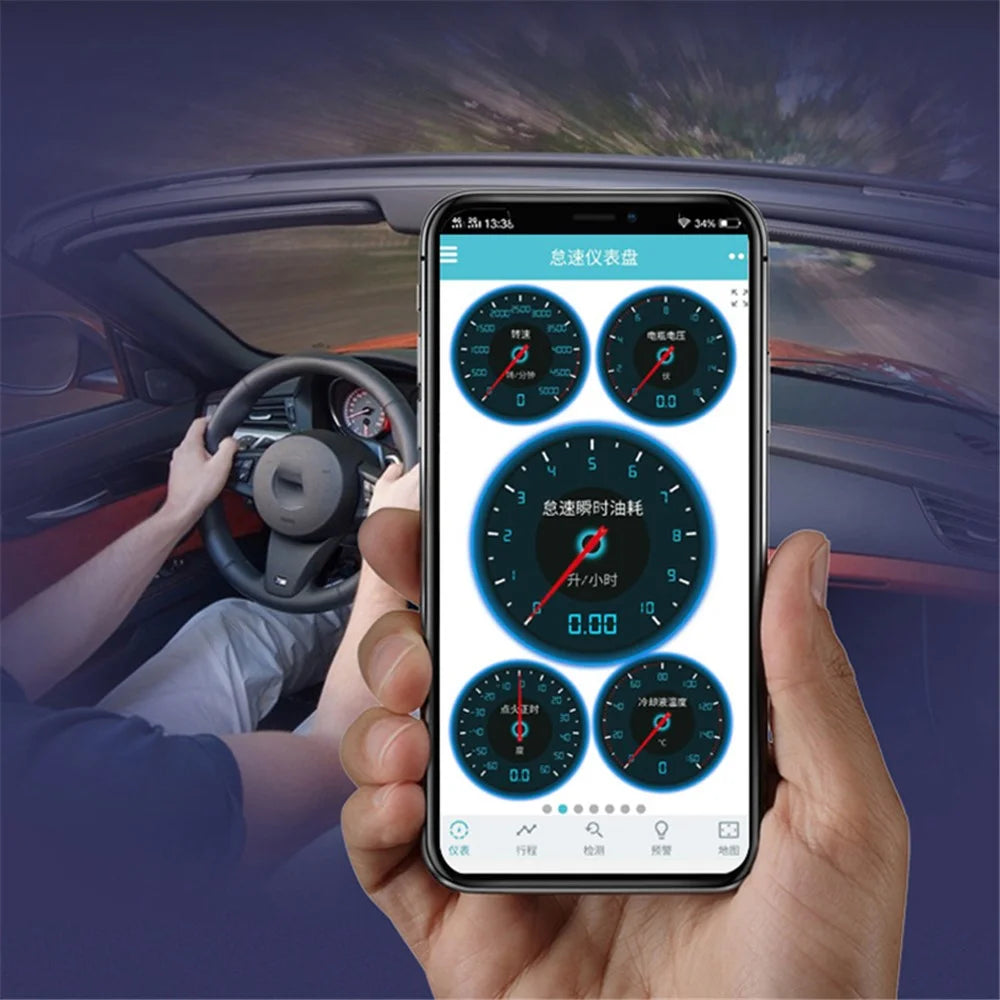

• Self-developed APP
• Small size, high chip integration

Specifications:

• Connection mode: Bluetooth-compatible 4.0
• Main control chip: Epistar
• Support system: Android / Windows / iOS
• Operating voltage: 9V~16V
• Operating current: 35mA
• Working temperature: -40℃~85℃
• Product Size: 57 x 46.2 x 24.2mm

Protocol:

• SAE J1850 PWM (41.6Kbaud)
• SAE J1850 VPW (10.4Kbaud)
• ISO9141-2 (5 baud init, 10.4Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11bit ID, 500 Kbaud)
• ISO15765-4 CAN (29bit ID, 500 Kbaud)
• ISO15765-4 CAN (11bit ID, 250 Kbaud)
• ISO15765-4 CAN (29bit ID, 250 Kbaud)
