Description
Easy to use, rugged enough to pass IP54 and 2m drop tests

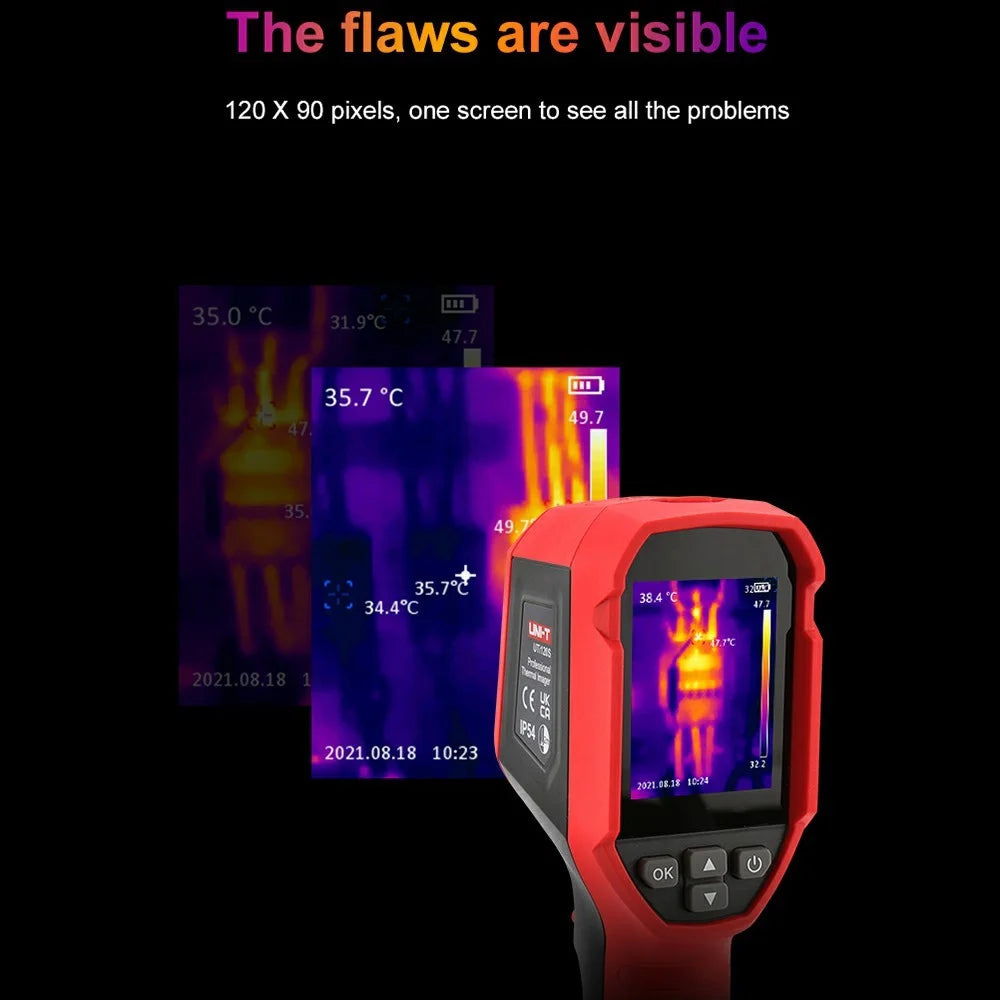

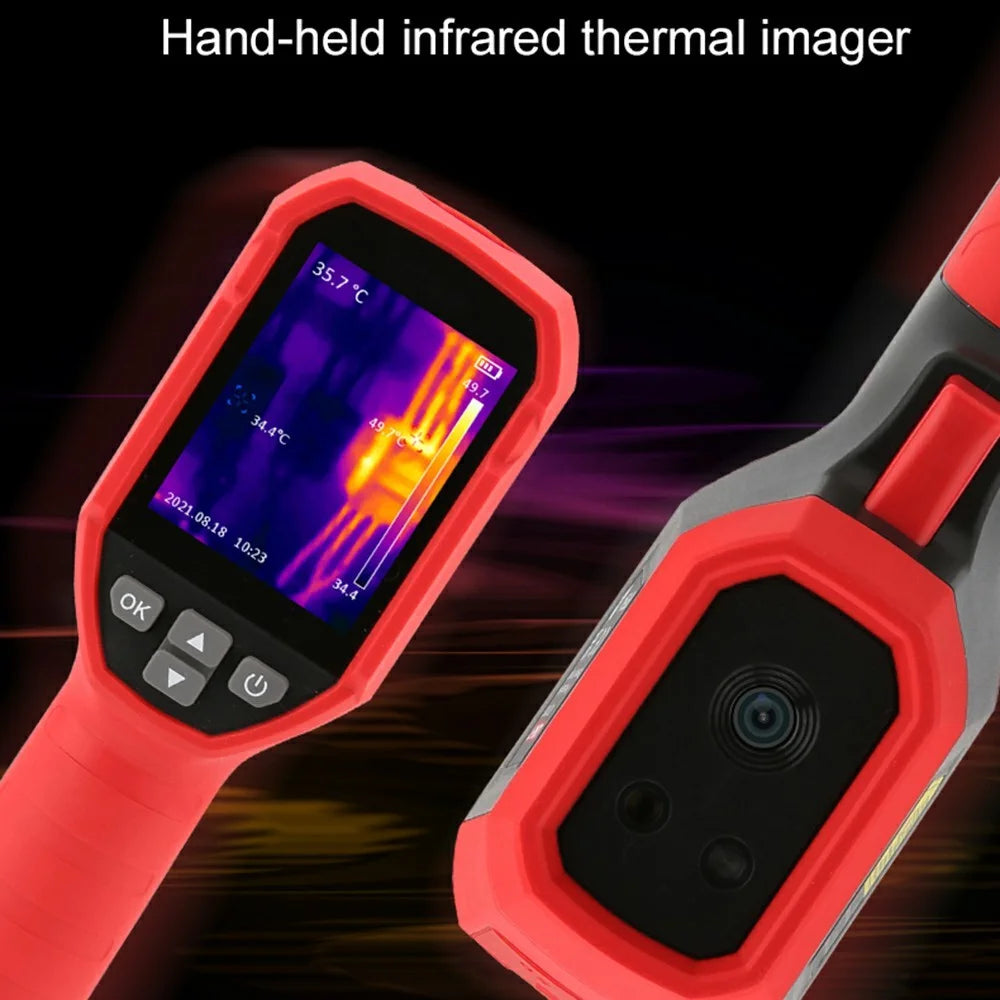

120x90 pixels hand-held infrared thermal imager
With high and low temperature alarm
Measuring range from -20 to 400℃
Specification:
| General Characteristics | |
| IR resolution | 120x90 pixels |
| Screen Display | 2.4" TFT |
| Field of view (FOV) | 50°x38° |
| Thermal sensitivity (NETD) | 60mk |
| Spatial resolution (IFOV) | 7.3mrad |
| Focus | Focus free |
| Frame rate | 25Hz |
| Object Temperature range | -20~400℃ |
| Measurement accuracy | ±2℃ or ±2% whichever is greater |
| Battery operating time | 8hours |
| Functions | |
| Palettes | 6 |
| Emissivity | Adjustable (0.01-0.99) |
| Image Model | Thermal |
| LED | Yes |
| Auto tracking for Lo/Hi temperature | Yes |
| Alarm | Yes |
| Storage | 16G TF Card |
| PC software | Analysis |
| Protection | IP54/2m |
| Communication interface | Type-C |
| Package | |
| Product net size | 196 x 63 x 75mm |
| Product net weight | 310g |
In the box
- 1 x Infrared Thermal Imager
- 1 x Memory Card
- 1 x Cable
- 1 x Certificate
- 1 x English and Chinese User Manual
