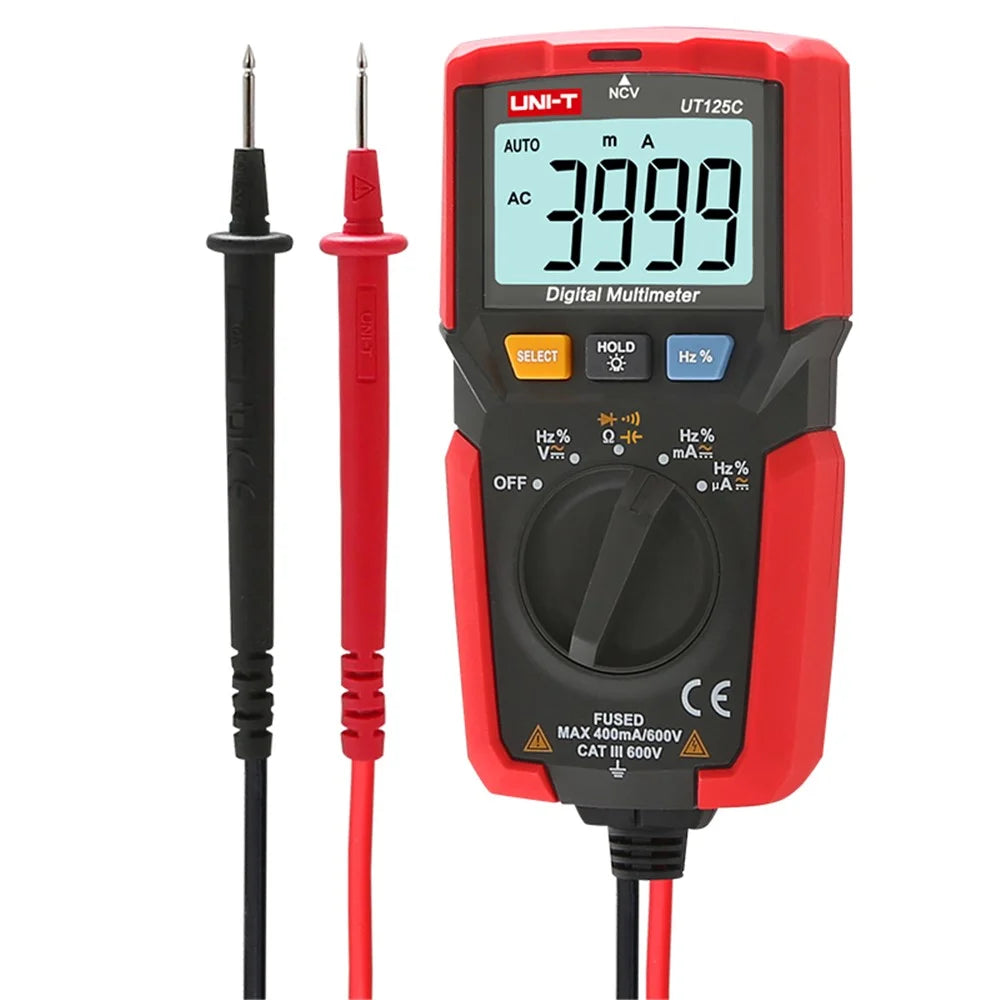

UNI-T UT125C Mini LCD Digital Multimeter DC/AC Voltage Current Meter NCV Capacitance Resistance Diode Tester Voltmeter Ammeter

• Max. display value: 4000

• Compact size and light weight for easy operation

• LCD display with backlight for clear reading

• Can measure DC/AC voltage/current, frequency, diode, triode, resistance, capacitance, and continuity test

• Includes NCV test, duty cycle test, data hold and auto power off function

• With overload protection on all ranges

• Low battery indication and warning alarm function

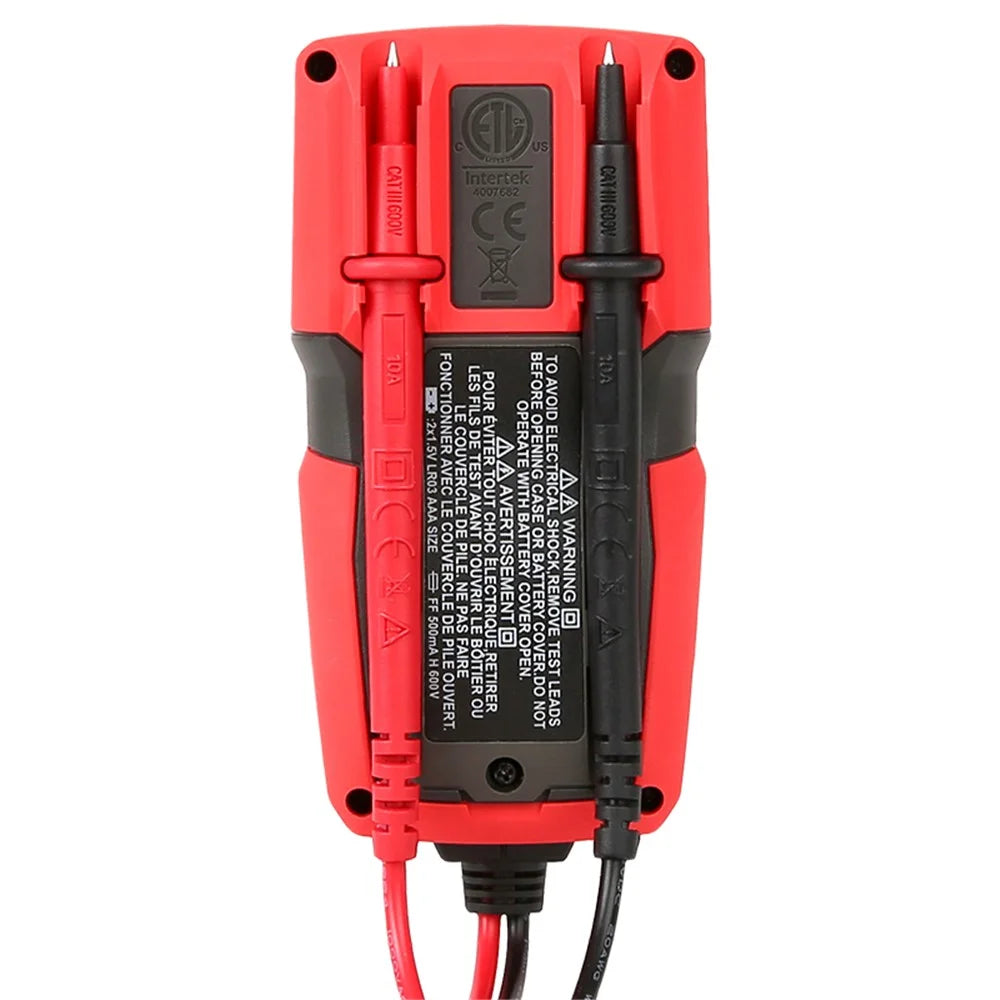

• Equipped with a back bracket for supporting multimeter, and also can collect test probe for your convenience

• Protected by rubber for drop protection

• Great for troubleshooting automotive and household electrical problems

Specifications:

• Material: ABS

• Maximum Display: 4000

• DC Voltage: 0.1mV~600V

• AC Voltage: 1mV~600V

• DC Current: 0.1μA~400mA

• AC Current: 0.1μA~400mA

• Resistance: 0.1Ω~40MΩ

• Capacitance: 0.01nF~100μF

• Frequency: 10~60KHz

• Duty Cycle: 20%~80%

• NCV Test: Yes

• Duty Cycle Test: Yes

• Diode Test: Yes

• Continuity Buzzer: Yes

• Transistor hFE Test: Yes

• Auto Power Off: about 15mins

• Safety Level: CAT Ⅲ 600V

• Power Supply: 2 x 1.5V AAA Batteries (batteries not ncluded)

• Operating Temperature: 0~40°C(32~104°F)

• Storage Temperature: -10~50°C(14~122°F)

• Item Size: Approx. 11.2 x 5.8 x 3.5cm

• Item Weight: Approx. 163g (without battery)
