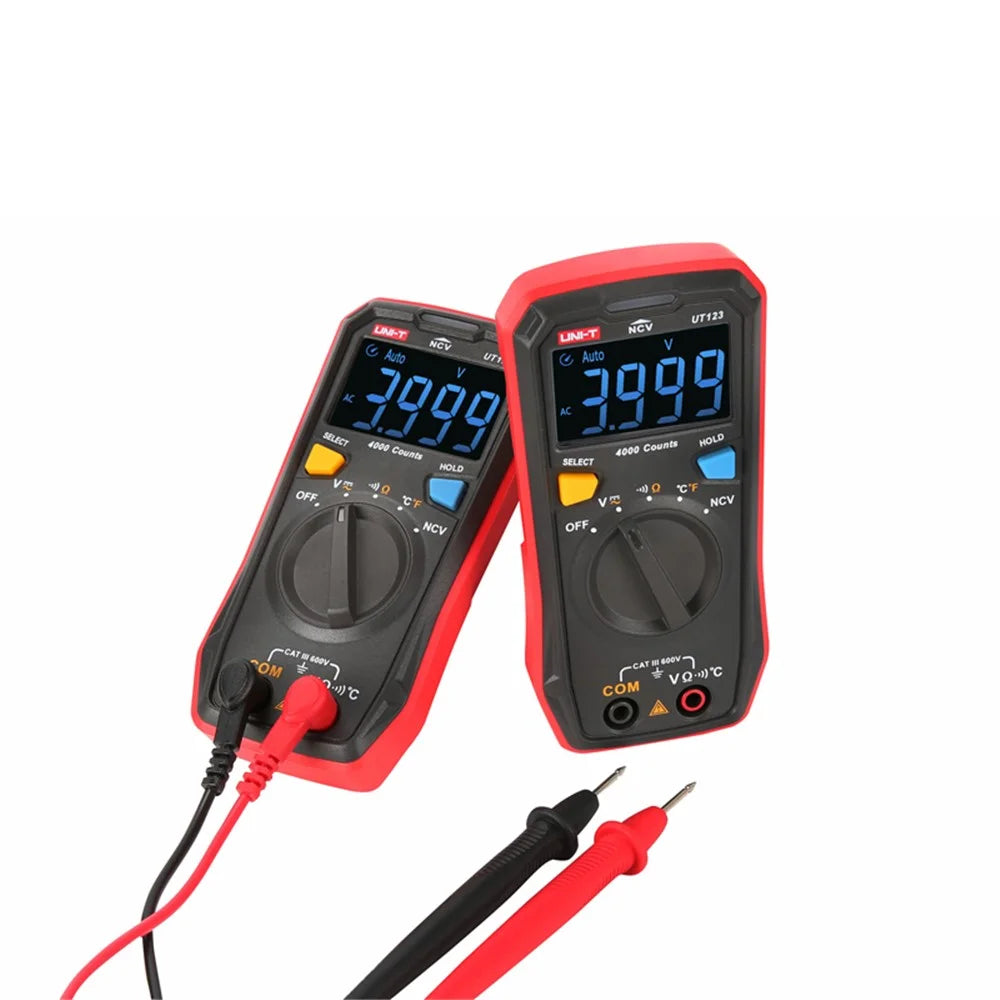

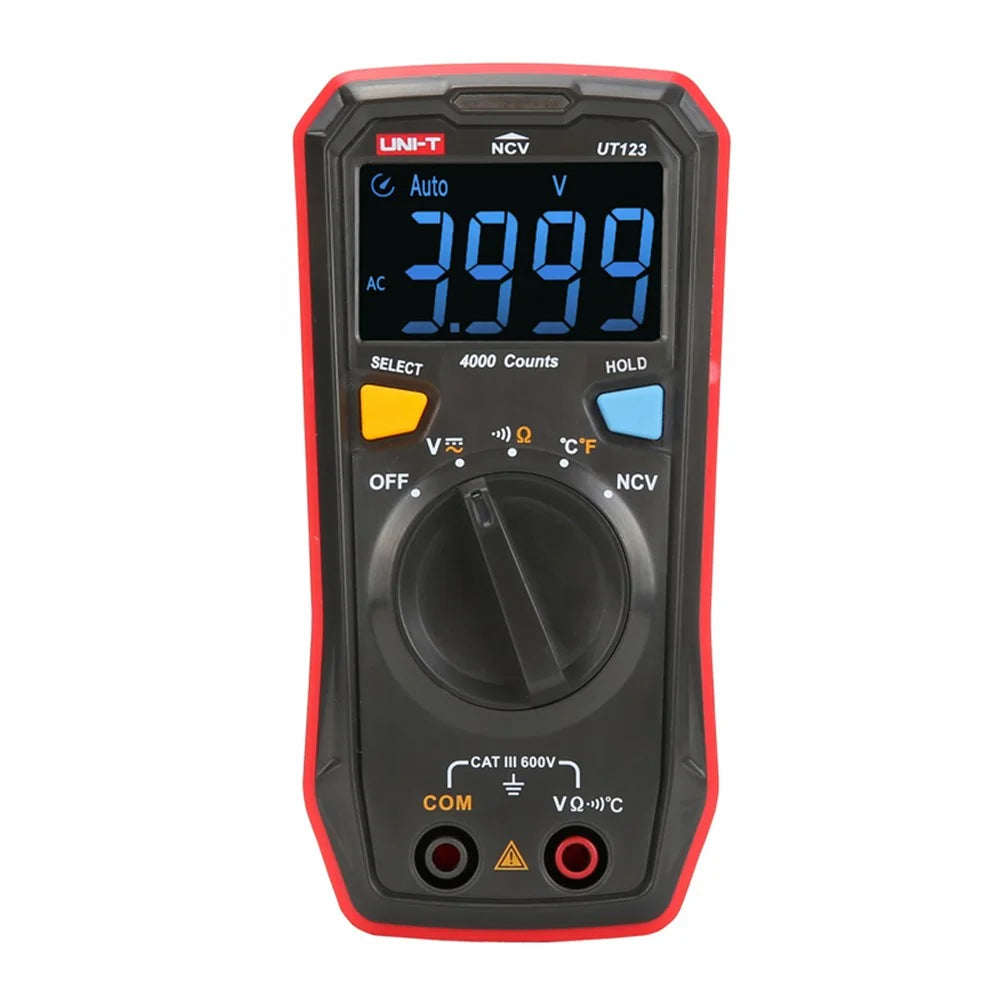

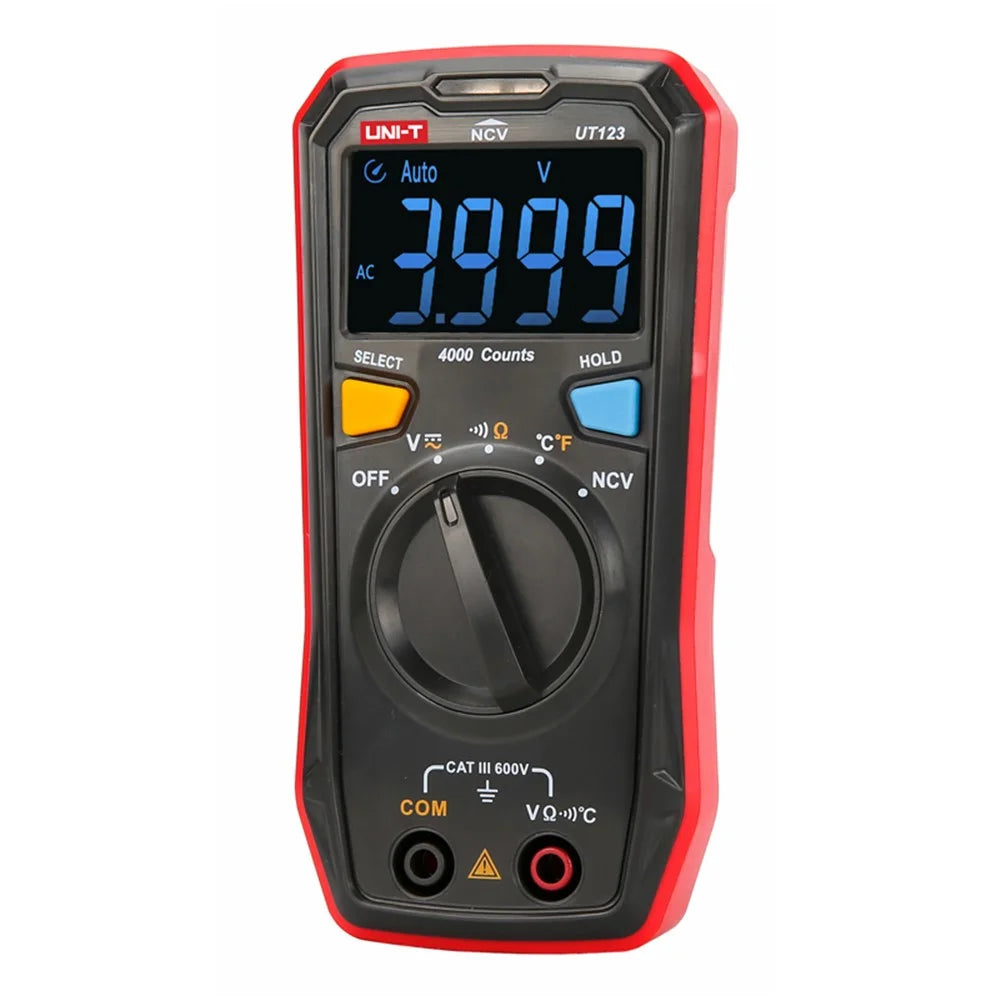

UNI-T UT123 Professional Residential Multimeter Intelligent Battery Detection Function

• The UT123 is a pocket-sized residential multimeter designed for home use

• The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle, it is also great for working in dark environments

• NCV voltage values above are tested at contact distance (0cm) from the test object, it is used for reference only, when meter is at some distance away from test object, NCV indication light may change to the weaker voltage color

Specifications:

• DC Voltage (V): 4V/40V/400V/600V ±(0.5%＋2)

• AC Voltage (V): 4V/40V/400V/600V ±(1%＋3)

• Resistance (Ω): 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/20MΩ ±(0.8%+2)

• Temperature: –40℃～ 300℃/–40℉～ 572℉ ±4 Celsius degree

• Display Count: 4000


• Low Battery Indication: ≤2.7V


• Auto Power Off: 15min

• Autol Range: Support

• NCV: Support

• Continuity Test: Support

• Acousto-optic indication(NCV/continuity/battery power): Support

• Data Hold: Support

• Safety Rating: CAT III 600V

• Power: 1.5V battery (R03) x 2

• Display: 44mm x 26mm

• Product Size: 130mm x 65m x 28mm
