Description
- 【Dual CS43131 DAC Chips】Featuring two high-performance CS43131 DAC chips for exceptional audio decoding and processing.

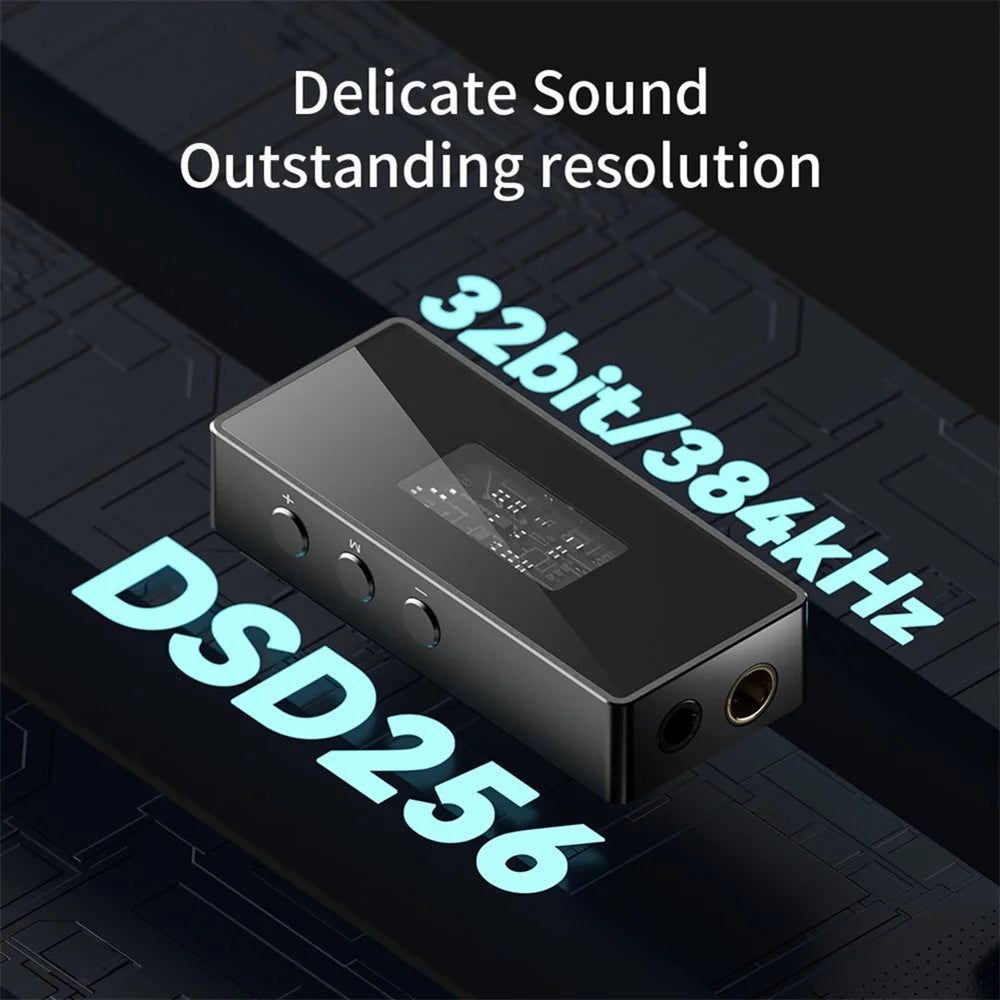

- 【High-Resolution Audio Support】Supports up to 32bit/384kHz and DSD256 for audiophile-grade sound quality.

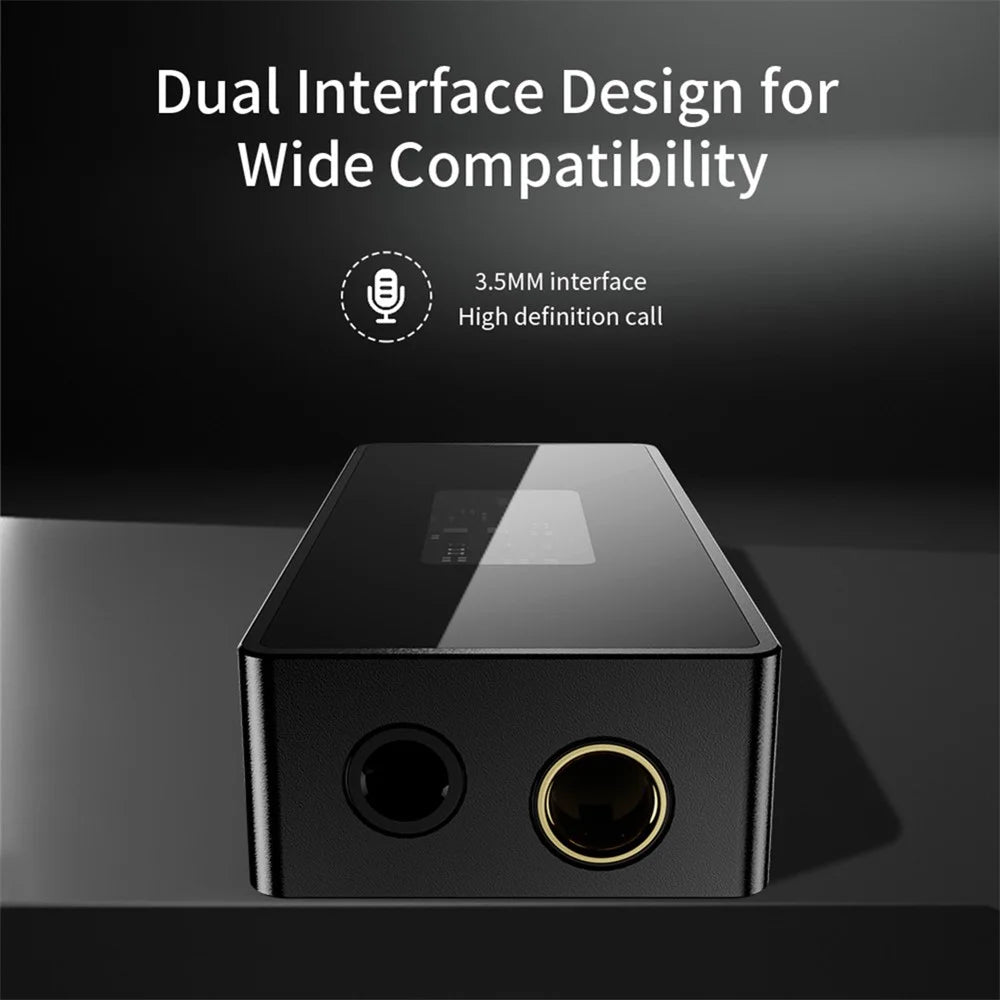

- 【Versatile Connectivity】Equipped with both 4.4mm balanced and 3.5mm single-ended outputs for wide device compatibility.
- 【Powerful Output】Delivers up to 320mW through the 4.4mm balanced output and 125mW through the 3.5mm single-ended output at 32ohm load.
- 【Exceptional Dynamic Range】Boasts a 130dB dynamic range for the 4.4mm output and 125dB for the 3.5mm output, ensuring detailed and immersive audio.
- 【Ultra-Low Distortion】Achieves remarkably low THD+N levels of -110dB, providing crystal-clear audio reproduction.
Specifications:
- DAC Chip: Dual CS43131
- USB Type: Type-C USB 2.0
- Audio Support: Up to 32bit/384kHz, DSD256
- Dimensions: 57mm x 23mm x 13mm
- Weight: 25g (without cable)

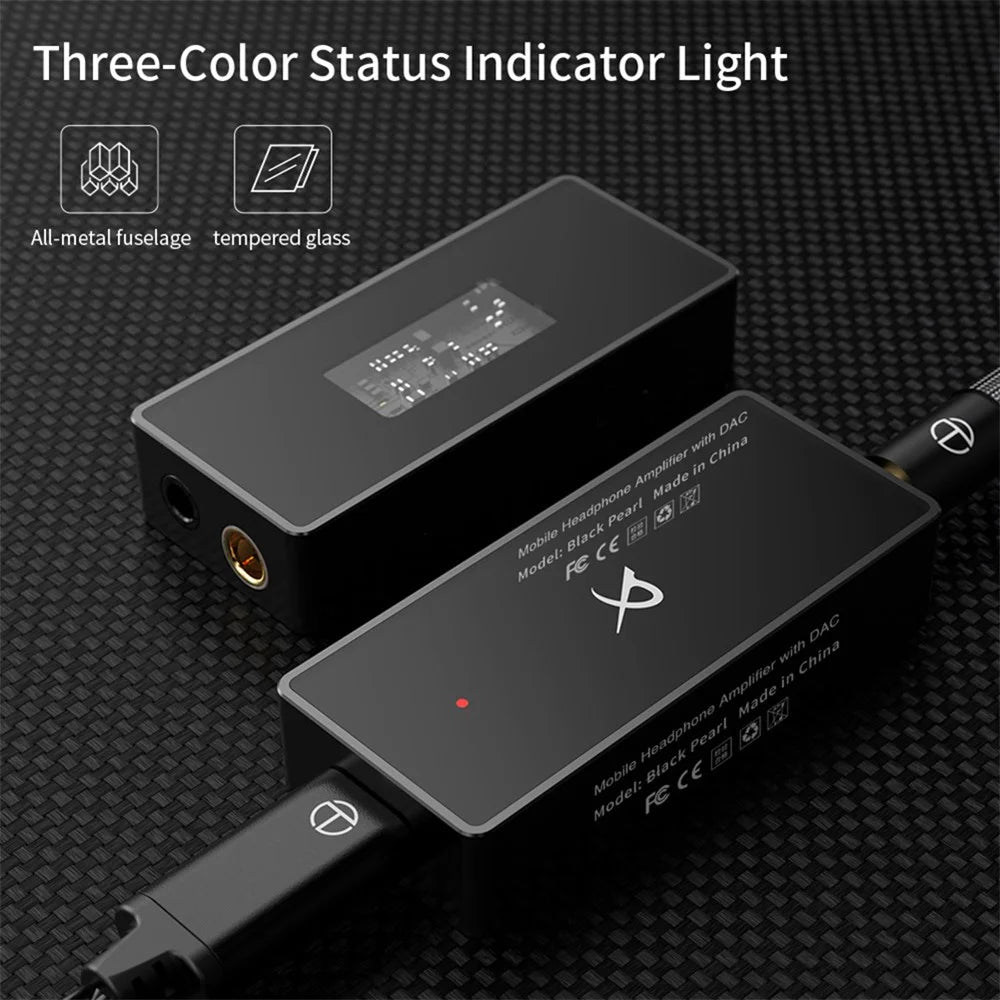

- LED Indicators: Blue, Green, Red
- Output Power (32ohm): 4.4mm - 320mW, 3.5mm - 125mW
- Dynamic Range (600ohm/32ohm): 130dB@4.4mm/4Vrms, 125dB@3.5mm/2Vrms
- Signal-to-Noise Ratio (600ohm/32ohm): 130dB@4.4mm/4Vrms, 125dB@3.5mm/2Vrms
- THD+N (600ohm): -110dB@4.4mm/2Vrms, -110dB@3.5mm/1Vrms
- THD+N (32ohm): -110dB@4.4mm/2Vrms, -105dB@3.5mm/1Vrms
- Operating Voltage: 4.5V - 5.25V
- Total Harmonic Distortion: -108dB (RL=32Ω, single-ended, 100mW)
In the box
- 1 x HiFi Digital Audio Decoder
- 1 x English and Chinese User Manual
