Description
-

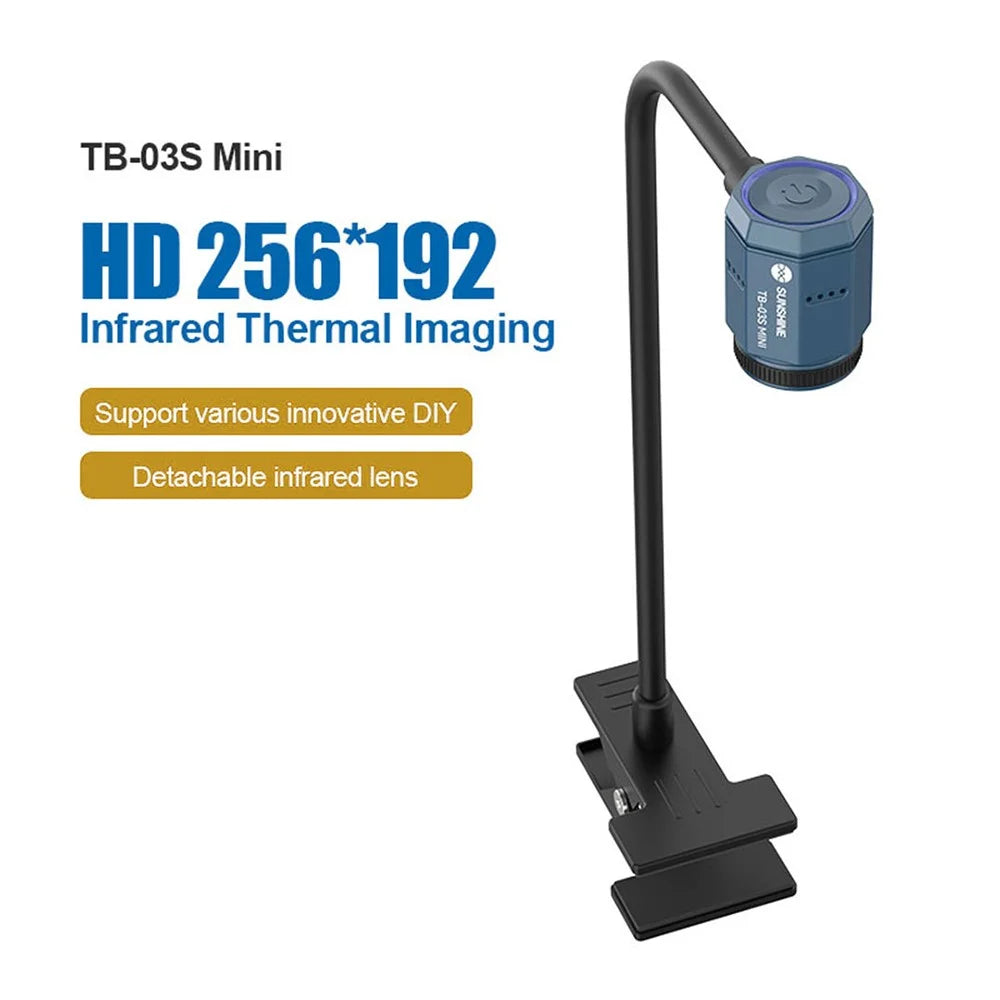

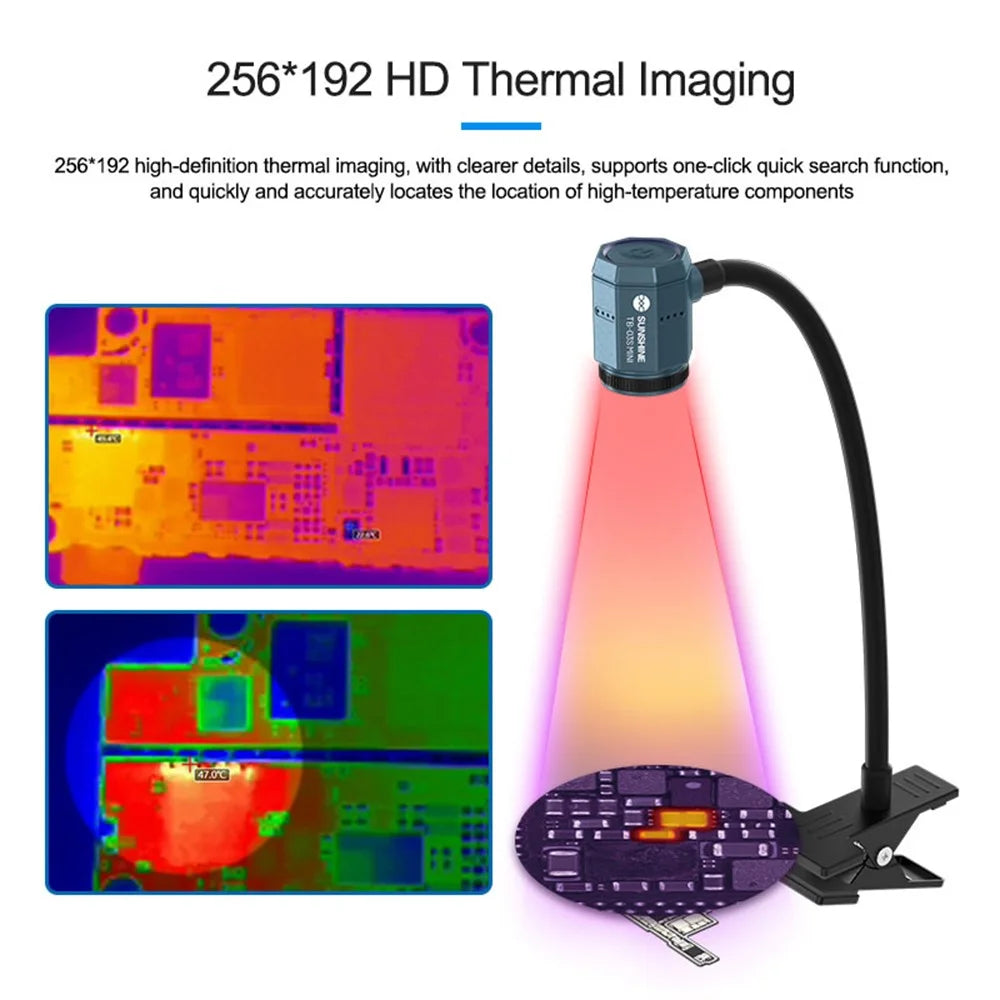

【256×192 HD Thermal Imaging】High-definition thermal imaging with 256×192 resolution provides clear details and supports one-click quick search function for rapid and precise location of high-temperature components.
-

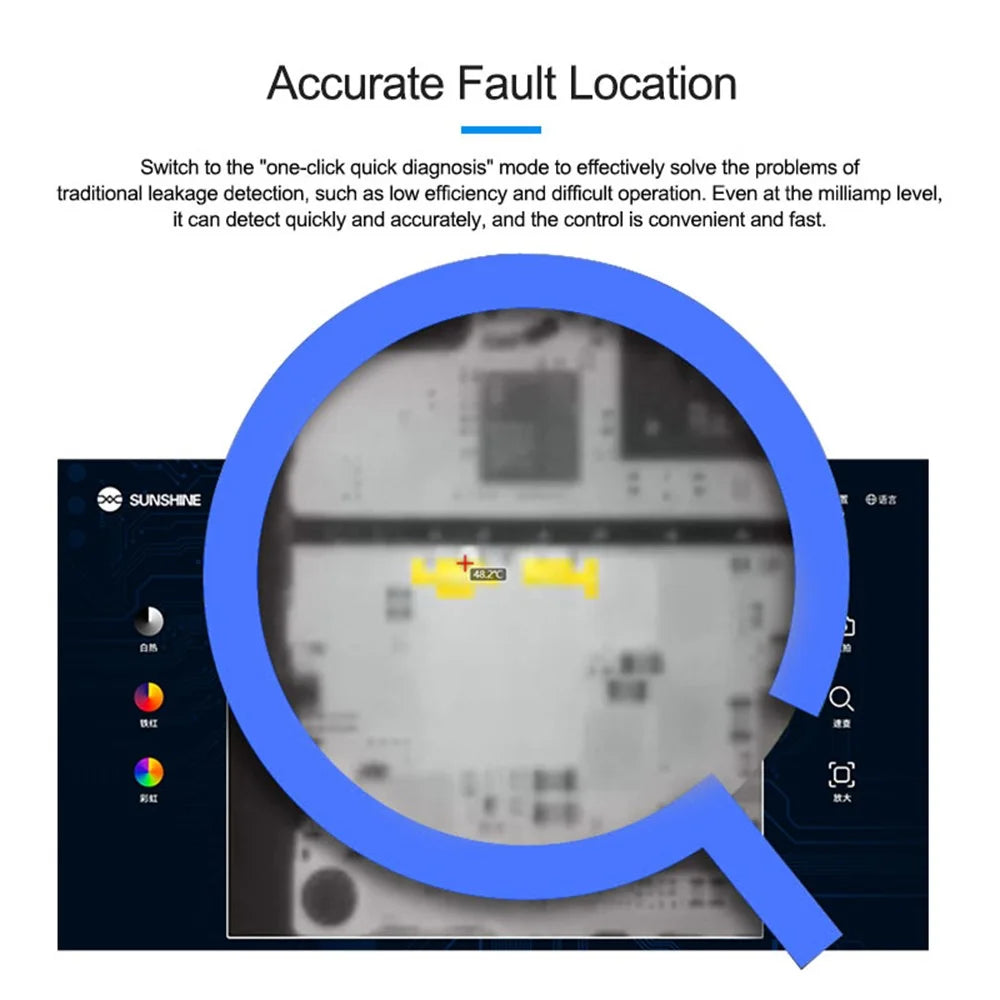

【One-Click Quick Diagnosis】Features innovative one-click quick diagnosis mode that effectively solves traditional leakage detection problems with high efficiency and accurate detection even at milliamp levels.
-

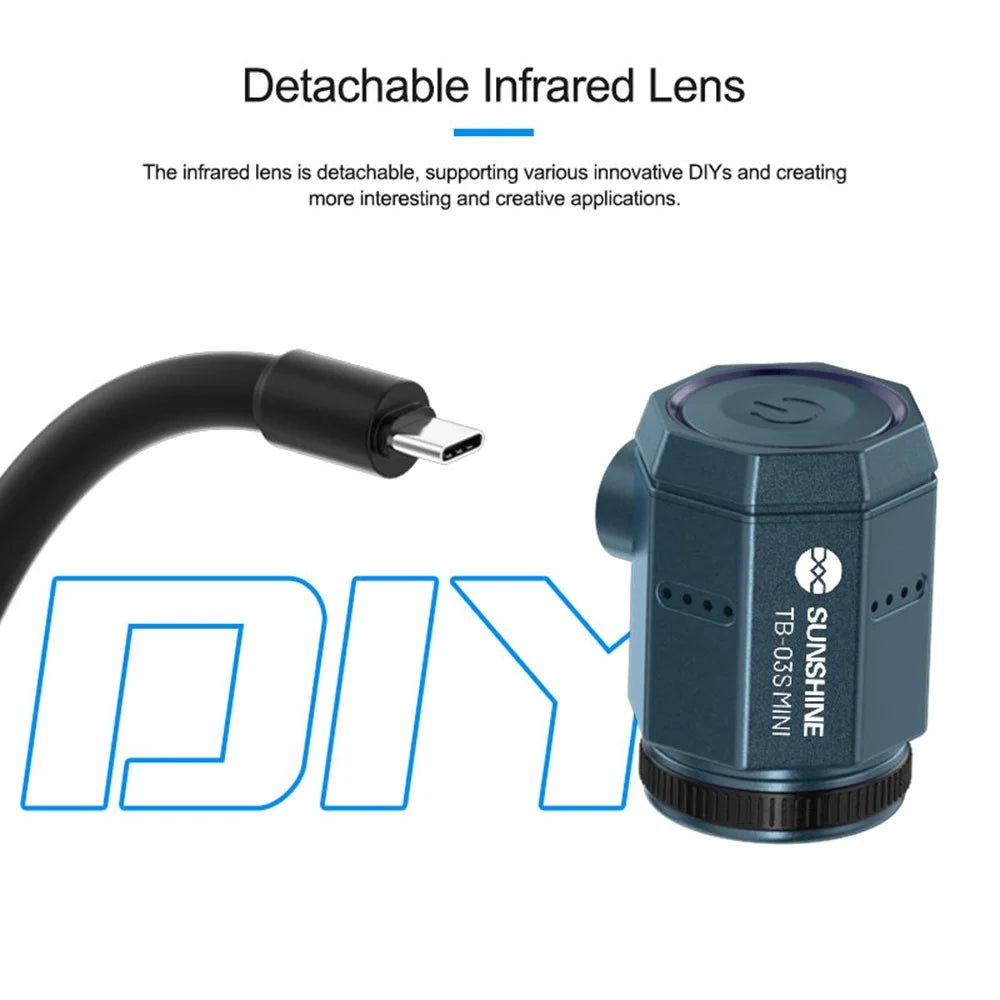

【Detachable Infrared Lens】Removable infrared lens design supports various innovative DIY applications and creative uses, including microscope compatibility for dual thermal and optical observation.
-

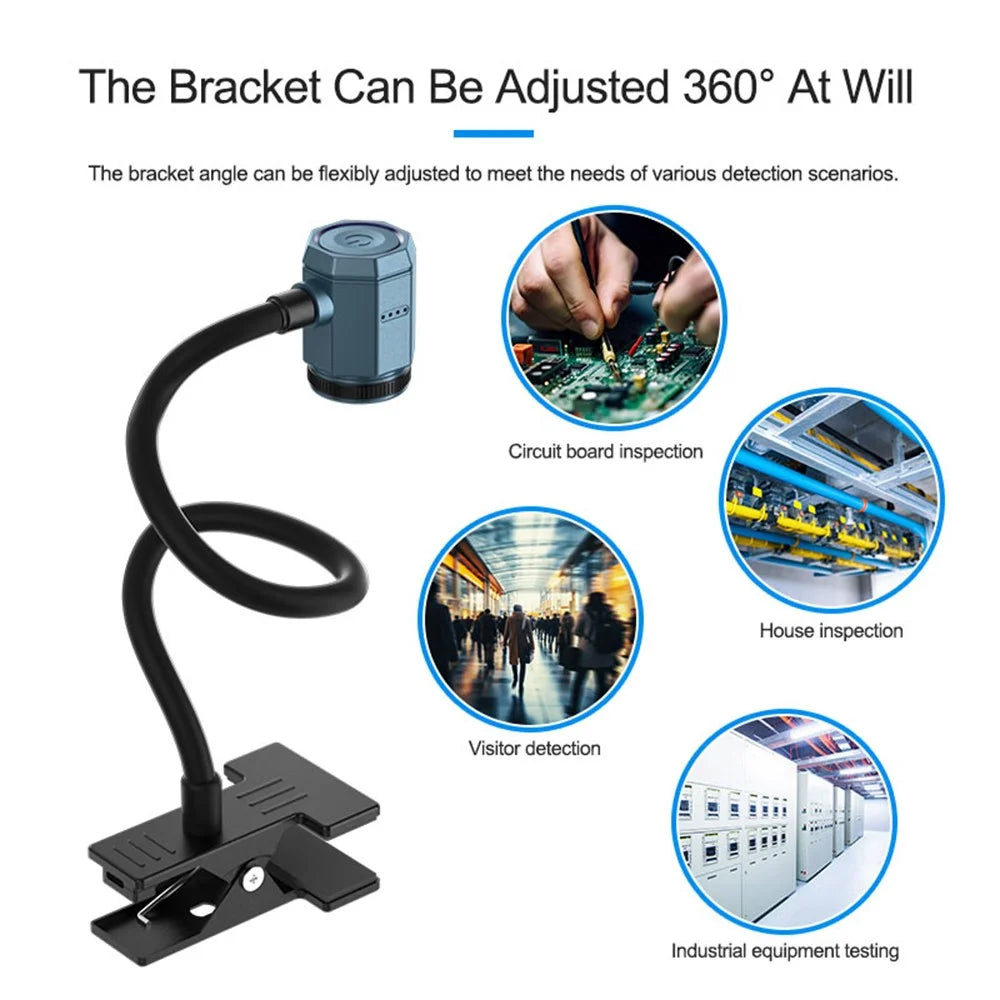

【360° Adjustable Bracket】Flexible bracket angle adjustment accommodates multiple detection scenarios including circuit board inspection, house inspection, industrial equipment testing, and visitor monitoring.
-

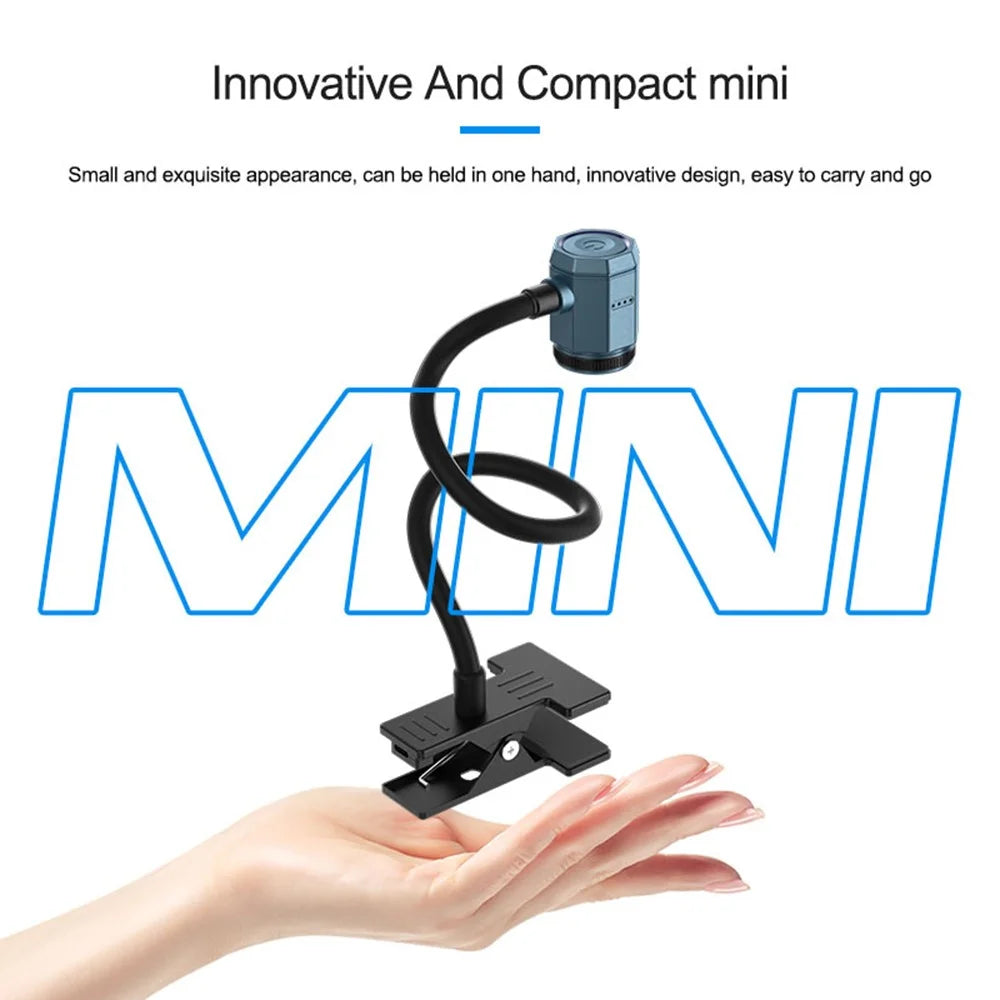

【Compact & Portable Design】Ultra-compact size with clamp-type bracket design eliminates the need for separate base, saving space and enabling easy positioning in confined areas.
Specifications:
- Model: TB-03S Mini
- Resolution: 256×192
- Lens Size: 32×37×48mm
- Wire Length: 310mm (Hose Length)
- Lens Viewing Angle: 25°×18°
- Operating Temperature: -20°C ～ 550°C (Temperature Measurement Range)
- Power Interface: Type-C, USB 2.0
- Wavelength Range: 7.5μm～13.5μm
- Temperature Measurement Distance: 5cm ～ 25cm
- Supported Platforms: Desktop/laptop Windows 7/10/11
- Net Weight: Approximately 150g (Lens Approximately 38g / Bracket Approximately 112g)
In the box
- 1 x Lens
- 1 x USB Cable
- 1 x Integrated Bracket
- 1 x Adapter Bracket
- 1 x English and Chinese User Manual
- 1 x Certificate of Conformity
