Description
- Automatically detect channel configuration at startup
- Support L1 sub-state deep power saving mode
- Support wakeup function in S3/S4
- The operating temperature range is 0~85 degrees Celsius
- Support hot swap, drive-free, plug and play
- Suitable system: Windows 7/8/8.1/10 (32 or 64 bit), for Linux Kernel 3.17 or later
- Built-in one available PCI Express x16 slot
- Compliant with PCI Express Specification Revision v3.0
- Backward compatible with PCIe 2.0 and PCIe 1.0
- Support for NVM Express (NVMe), M.2 Specification Revision 0.9
- Supports quad-port x4-lane M.2 Key M NVMe SSD devices
- Support M.2 SSD module size: 2230, 2242, 2260, 2280
- Supports M.2 "M" keys and "B+M" keys via PCIe protocol
Specification:

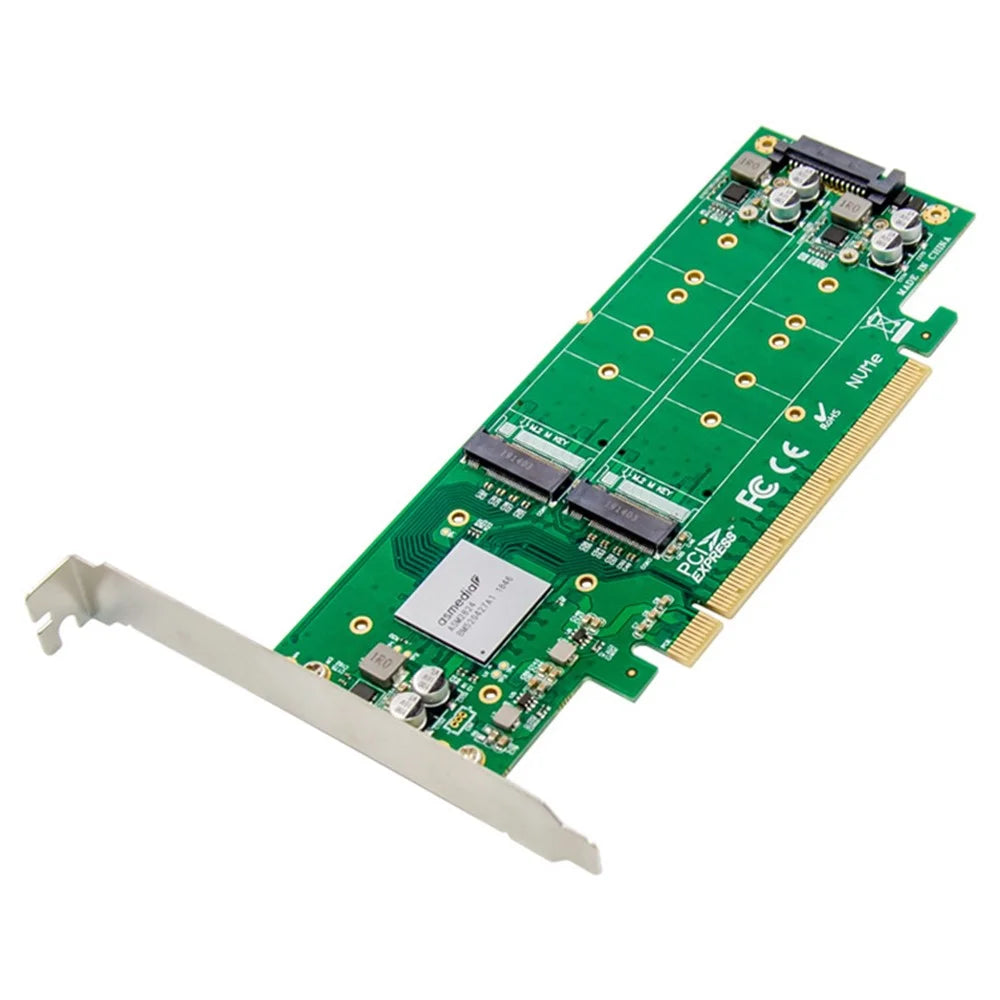

- Chipset: ASMedia/ASM2824
- Bus Type: PCIe 3.0 x16
- Media Interface: 4 x M.2 M KEY NVMe SSD
- Module size: M.2 Key M NVMe SSD devices supporting 2230, 2242, 2260, 2280

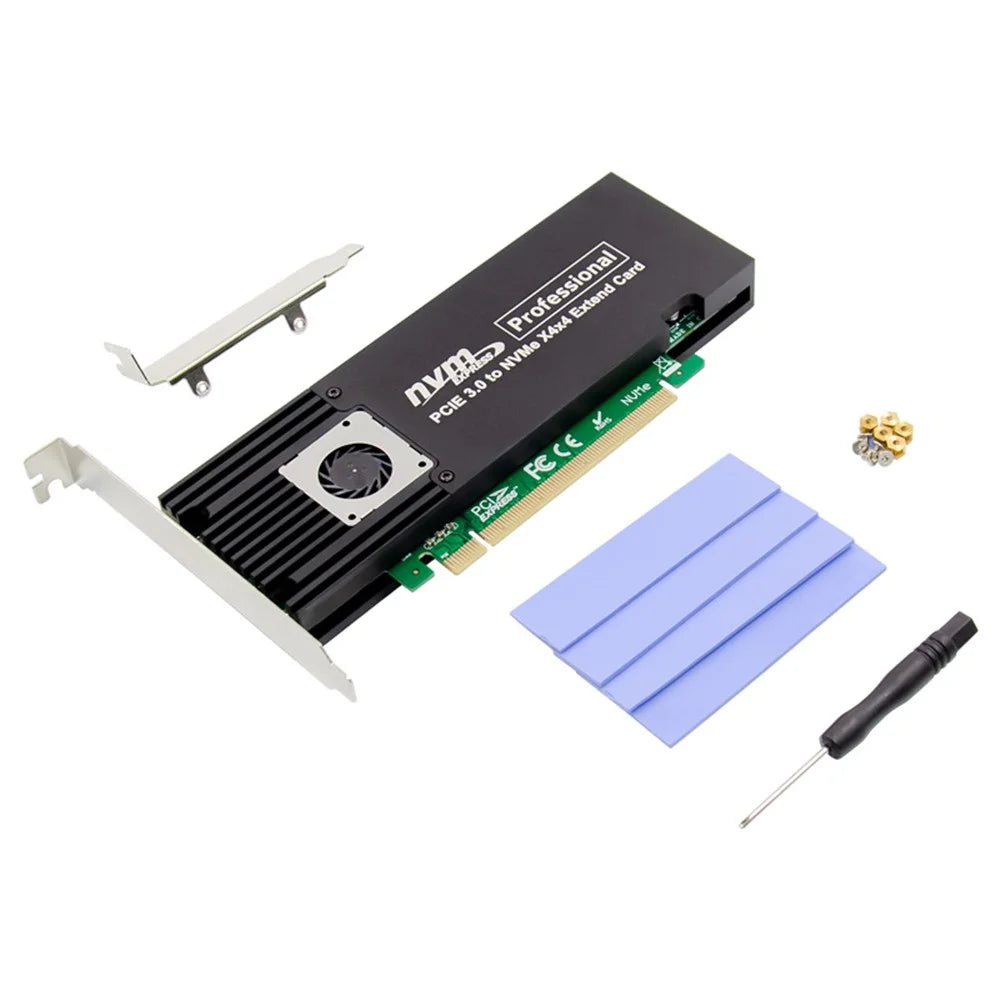

In the box
- 1 x SSD Solid State Drive Adapter Expansion Card
- 1 x English User Manual
- 1 x Low Profile Bracket
- 3 x Screws/Set
- 1 x Screwdriver
- 1 x Heatsink (with Fan)
- Other things not included
