Description

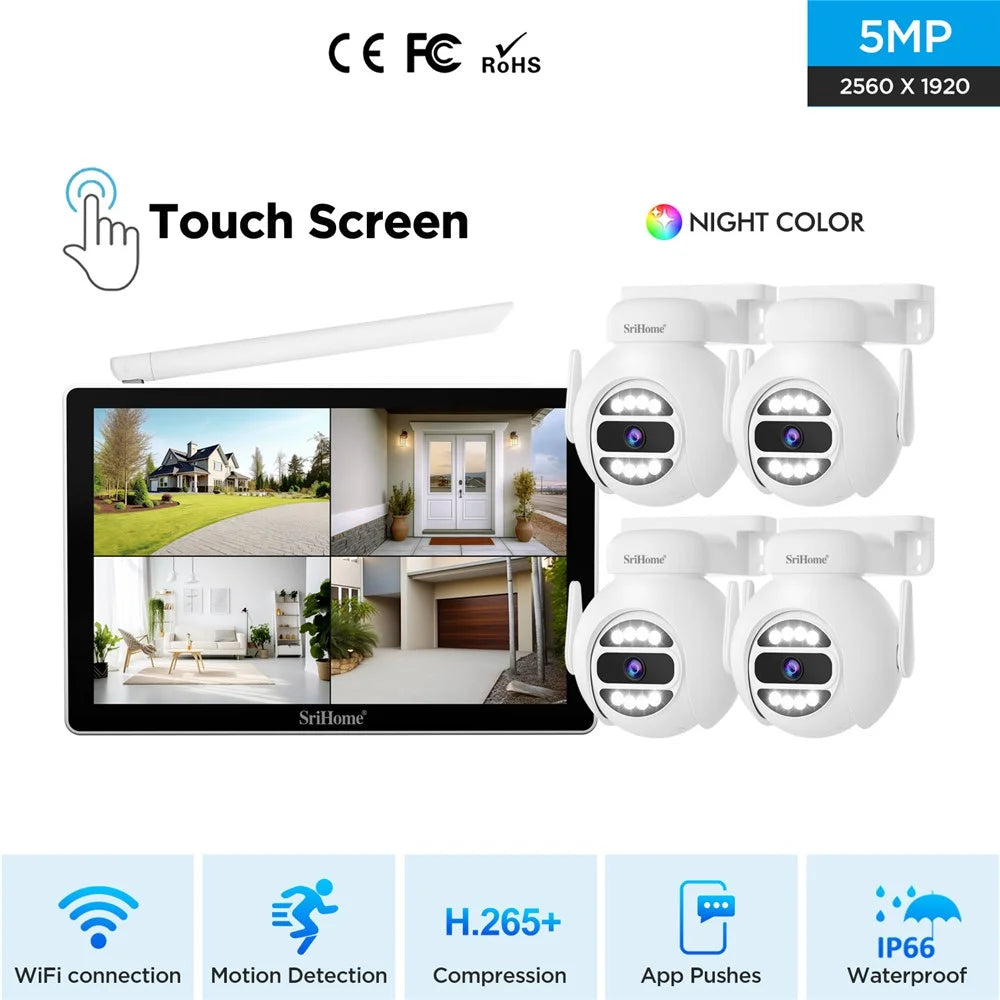

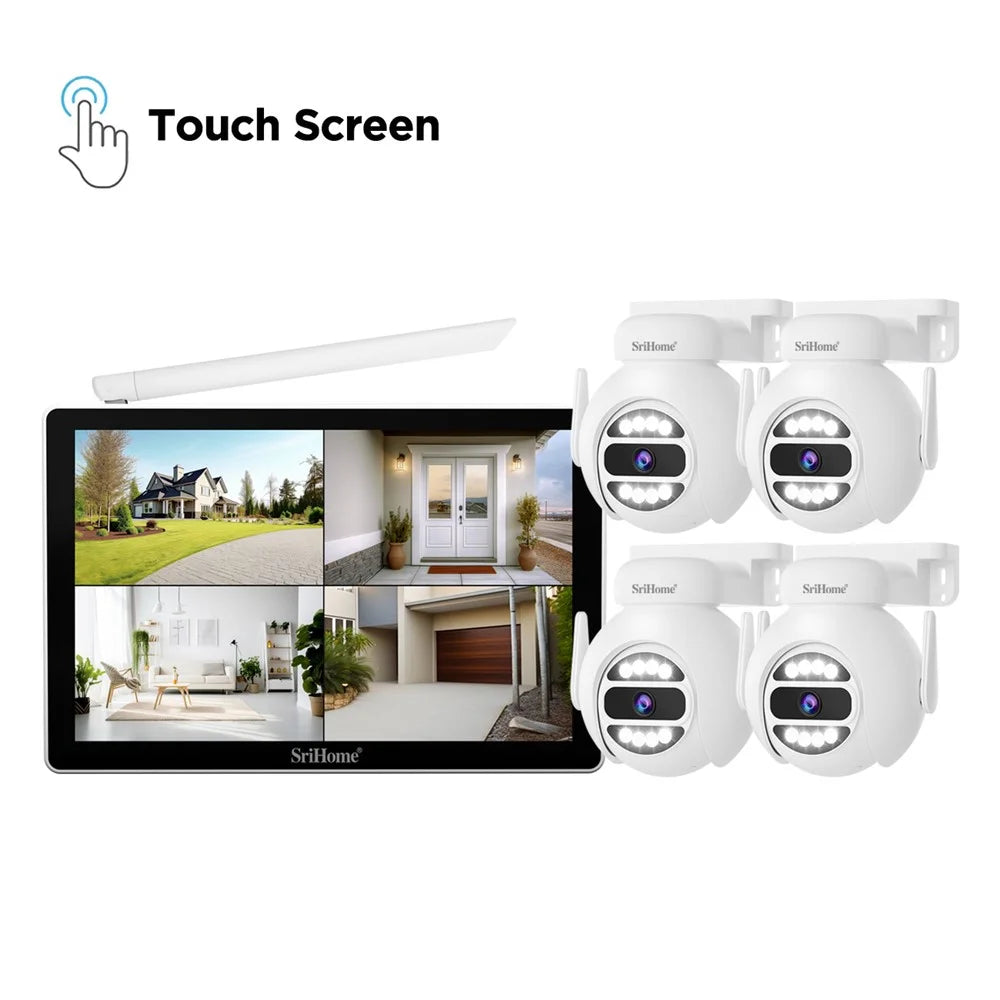

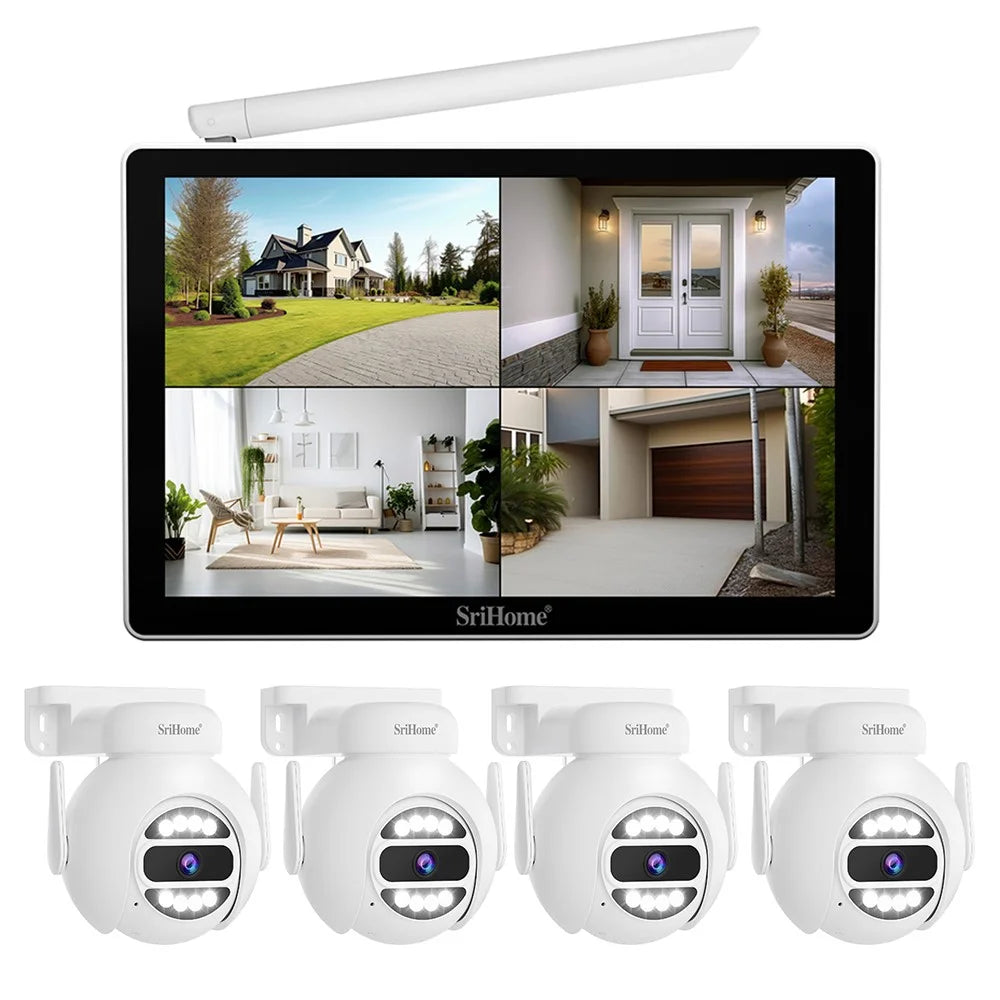

WiFi NVR:
- Comes with 10.1-inch LCD screen, supports multi-touch
- Supports up to 8 wireless cameras
- Support SriHome cloud platform
- Supports up to 16TB hard drive (2.5-inch) storage and playback
- Support wireless bridge mode - WiFi range up to 60 meters
- HD and VGA can be set up, built-in omnidirectional microphone and speakers
Camera:
- Pixels: 5 million pixels (2560*1920P), H265 compression format Compression format
- Audio: two-way voice, built-in microphone and speaker, supports monitoring and intercom
- Sensor: Digital wide dynamic
- Lens: 4mm lens, supports 3x electronic zoom
- Night vision: supports dual light sources, supports full-color night vision
- Ultra-long distance Wifi: only connected to the NVS010 host, the distance in the open air can reach 100 meters
- Wifi bridge: supported, the bridge distance is about 15 meters
Specification:
- Model: NVS010 (WiFi version)
- Display parameters:
- Screen size: 10.1-inch LCD screen
- Display resolution: 800xRGB(3)x1280
- Touch: Support multi-touch
- Video parameters:
- Video input: 8ch
- Video output interface: 1 HD, 1 VGA
- Compression format: H265/H264/Smart264
- Coding capability: 8*5M/25fps
- Decoding capability: 1*5M/25fps (main stream); 8*D1/25fps (auxiliary stream)
- Video decoding format: H265; H.264
- Audio parameters:
- Audio: two-way voice
- Audio output: HD and 1-way AUX interface audio output, built-in speaker
- Audio decoding format: G.711U; AAC
- Hard disk parameters:
- Hard drive interface: 1 SATA interface (only supports 2.5-inch hard drives), SSD&HDD
- Hard drive capacity: maximum support 16TB
- Recording/playback: recording mode, scheduled recording, alarm recording
- Playback mode: regular playback and APP playback
- Backup mode: regular backup
- Network management: WiFi 2.4G, only for standard camera connection
- WAN: RJ45 wired connection
- Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc.
- Alarm:
- Alarm mode: motion detection alarm, humanoid detection alarm
- Alarm reminder: APP push, alarm whistle
- External interface:
- Network interface: one RJ45 network interface
- USB interface: 1 USB2.0
- HD interface: 1
- VGA interface: 1
- Audio interface: 1 AUX audio output interface
- Power interface: 1 DC 12V 2A (5.5*2.1*10)
- Others:
- Working temperature: -10°C ~50°C
- Working humidity: 10%~90% RH
- APP: Support SriHome APP, IOS and Android remote access
- Camera:
- System:
- Main processor: multi-core high-speed processor
- Sensor: 1/3 inch, 5 million high-definition color CMOS sensor
- Compression format: H.265
- Lens parameters:
- Focal length: 4mm, 5 million pixels
- Field of view: D 110 H 80 V 58
- Video:
- Resolution: 1920P(2560*1920), VGA(480*360)
- Frame frequency: 15 frames
- Auto Exposure: Auto Exposure White Balance
- Lighting settings:
- Alarm mode: The default is black and white night vision. When a human figure is detected, the white light will be automatically turned on and switched to full color night vision.
- White light mode: The white light will be on from 18:00 to 7:00, the brightness is adjustable, and the night vision is full color
- Infrared mode: Turn off the white light and switch to normal night vision
- IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect
- Audio:
- Audio: Built-in microphone and speaker, supports two-way voice
- Protocol: G711
- PTZ: tracking, does not support humanoid tracking

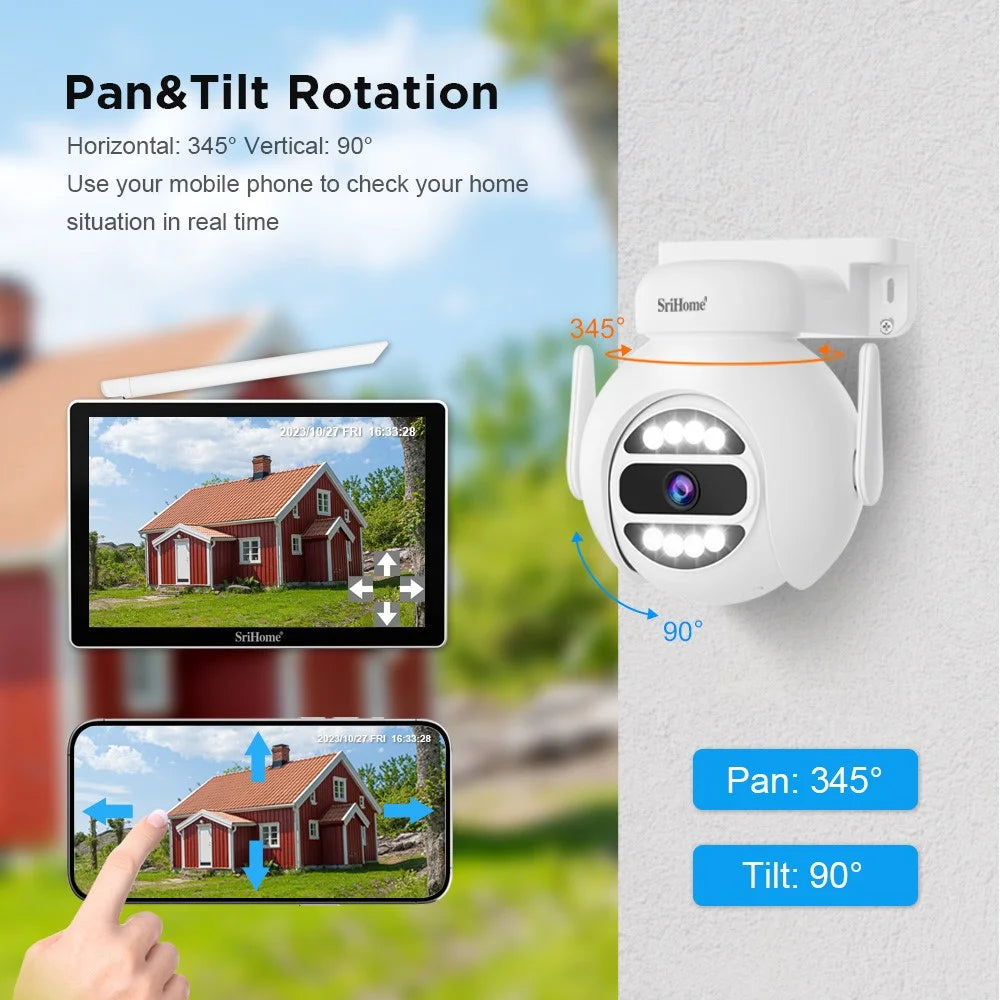

- Rotation angle: horizontal: 355°, vertical: 90°
- Alarm:
- Alarm: motion detection alarm, humanoid alarm
- Siren: Alarm whistle can be set
- Advanced area detection: supports customized motion detection alarm areas to improve alarm accuracy
- Wireless: 2.4G (only connected to NVS010 host, cannot be connected to network distribution mode, QR code network distribution, button network distribution)
- Wired: not supported
- Recording mode: scheduled recording, alarm recording
- Resolution: HD (1920P), SD (360P)
- Playback: Support remote video playback
- Other:
- Power adapter: input AC: 100~240V, output DC: 12/500mA
- Working temperature: -10℃ ~50℃
- Working humidity: 10%~90% RH
- Net weight: 375g
- Dimensions: Body size: 130 * 110 * 125 mm (length x width x height)
In the box
- 1 x WiFi NVR
- 4 x WiFi Camera
- 1 x English User Manual
- 1 x NVR Power Adapter
- 4 x Camera Power Adapter
- 1 x 1m Network Cable
- 2 x Hard Drive Screw
- 1 x Camera Screw Pack
- 1 x Reset Pin
