Description

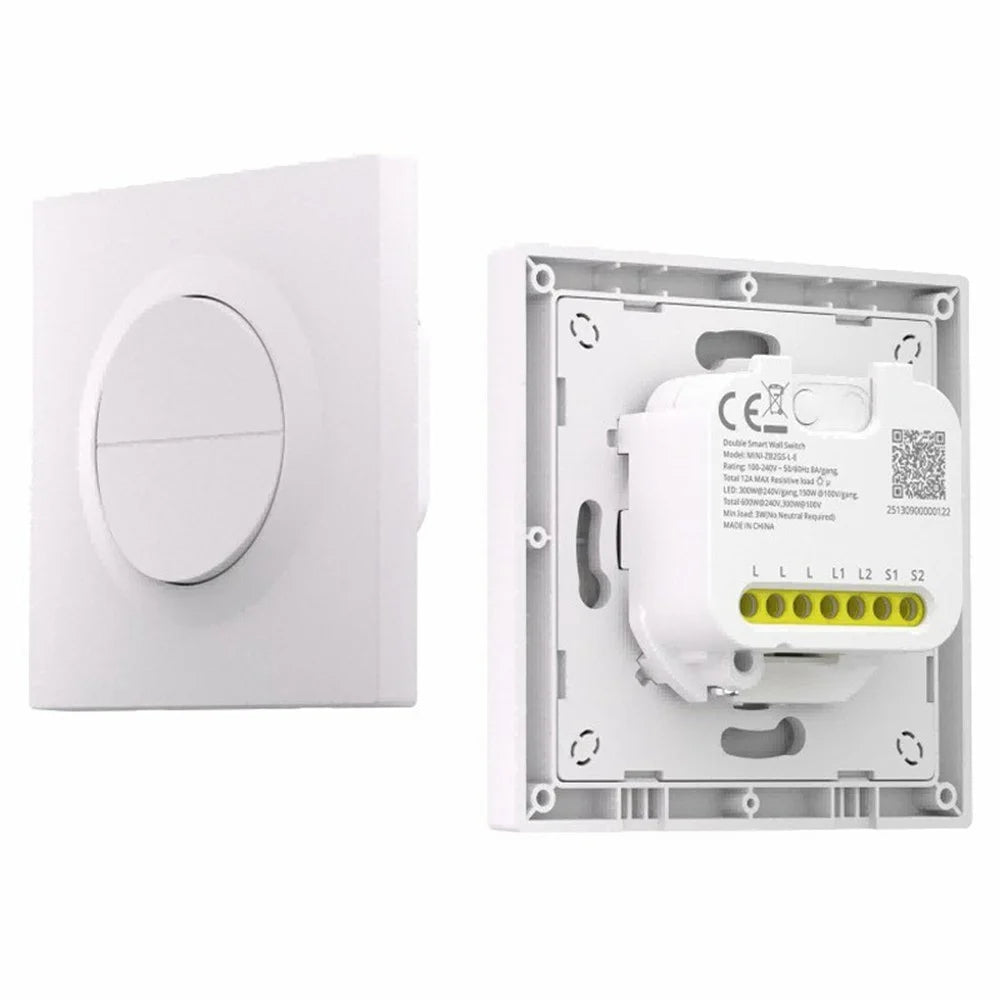

- 【Easy Installation Without Neutral Wire】Designed specifically for homes without neutral wires, eliminating the need for bypass at the load end. A simple modification saves time, effort, and installation costs.
- 【Flexible Dual Channel Control】Innovative dual-channel design supports a total load of up to 12A, with 8A per channel, allowing flexible allocation of current for lighting fixtures.

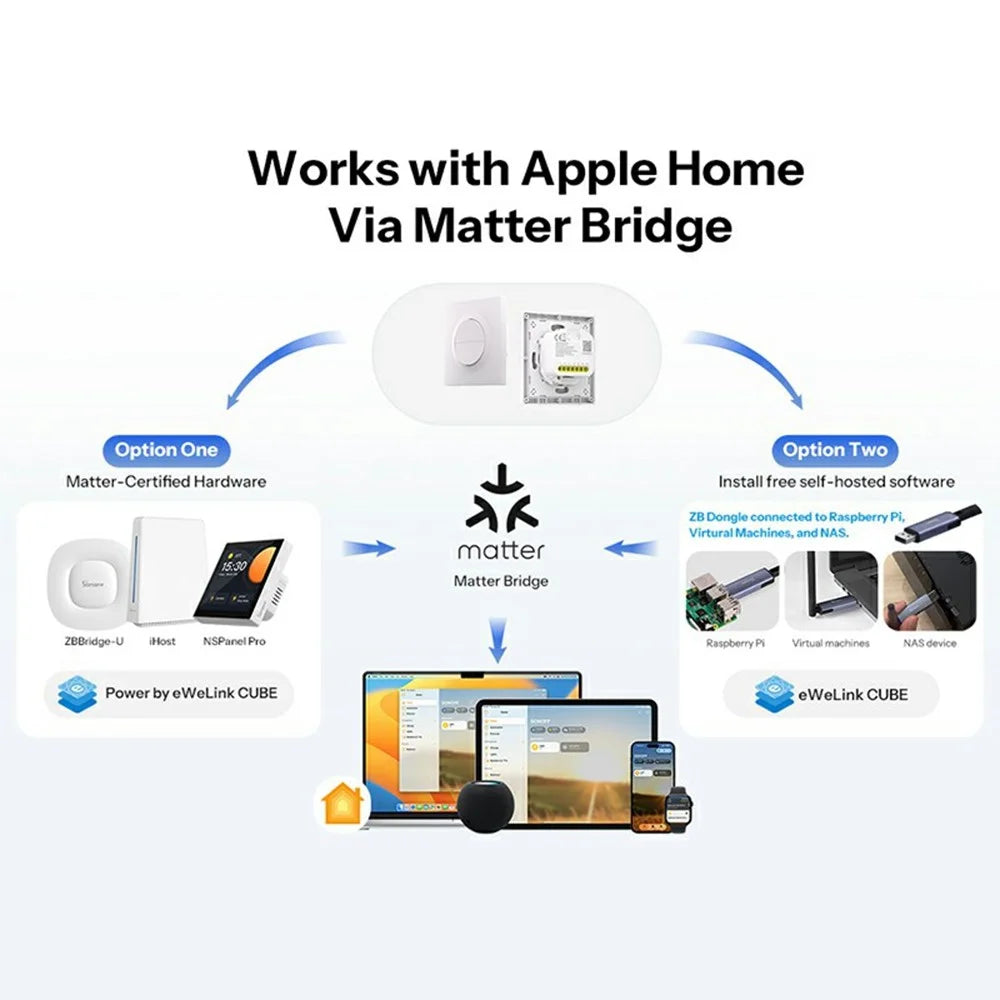

- 【Reliable Zigbee 3.0 Connection】Built on the global Zigbee 3.0 standard, ensuring seamless integration with mainstream Zigbee ecosystems, stable connectivity, and low power consumption.

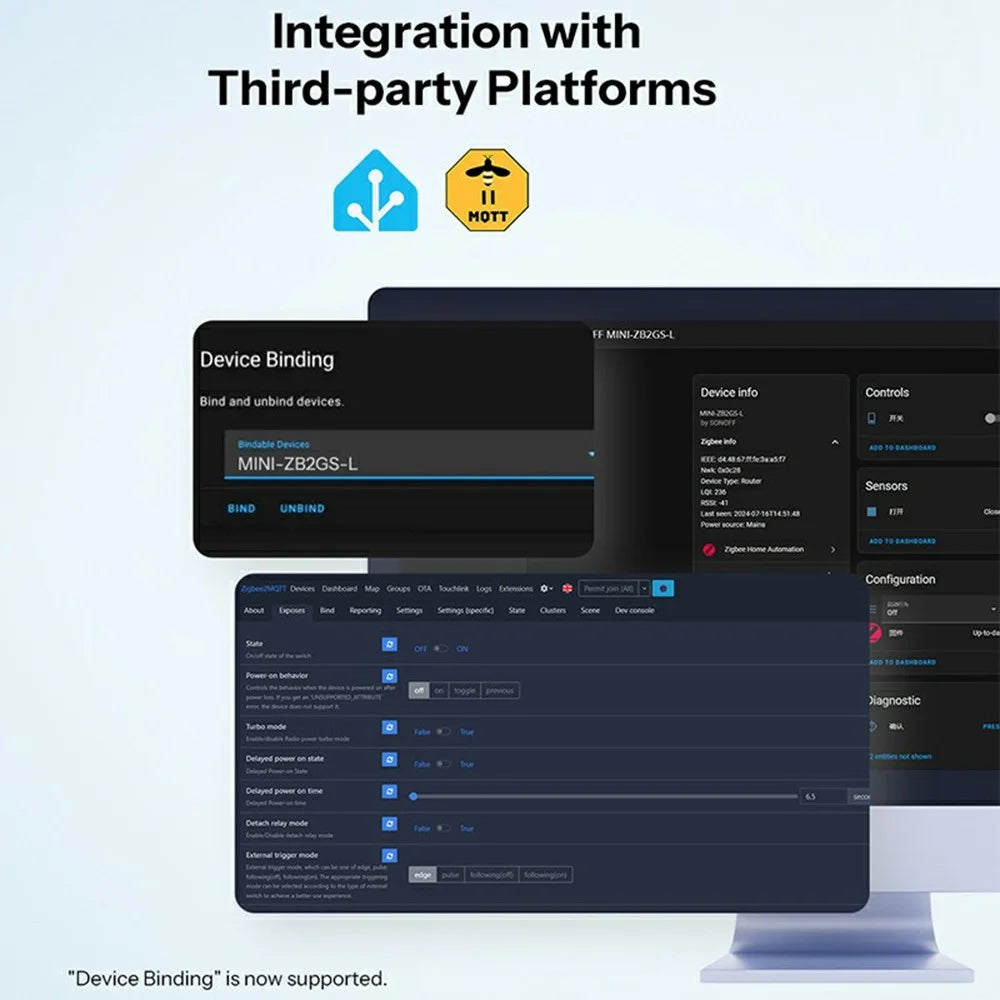

- 【Enhanced Smart Experience】Supports Zigbee Simple Setup (ZSS) and Zigbee binding, enabling one-click pairing and automatic device synchronization. Devices maintain local connectivity even when the network or hub is offline.
- 【Safe, Reliable, and Durable】Features a flame-retardant casing, surge and overload protection, and a long-life relay with a 100,000 cycle lifespan, ensuring lasting, stable, and continuous operation.
Specifications:
- Product Name: Orb-ZBW2L
- Internal Model: MINI-ZB2GS-L-E
- MCU: EFR32MG22

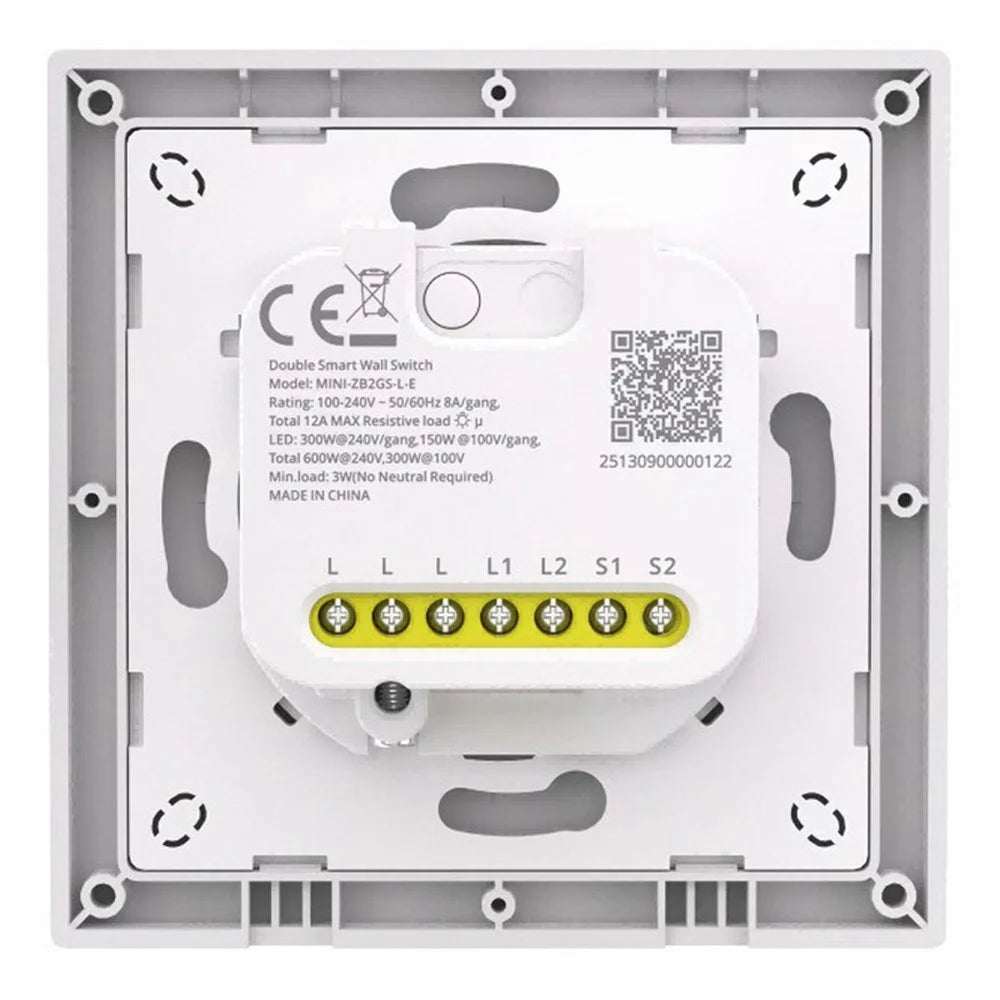

- Rated Specifications: 110-240V~ 50/60Hz, 8A/channel, 12A max total current, resistive load
- Load Capacity: 300W@240V per group, 150W@100V per group, total 600W@240V, 300W@100V
- Product Dimensions: 86 x 86 x 33.7mm
- Working Temperature: -10℃~40℃
- Casing Material: PC
- Wireless Protocol: Zigbee
- Wireless Connection: Wi-Fi IEEE 802.11b/g/n 2.4GHz
In the box
- 1 x Switch
- 1 x English Manual
- 1 x Screw Pack
