Description

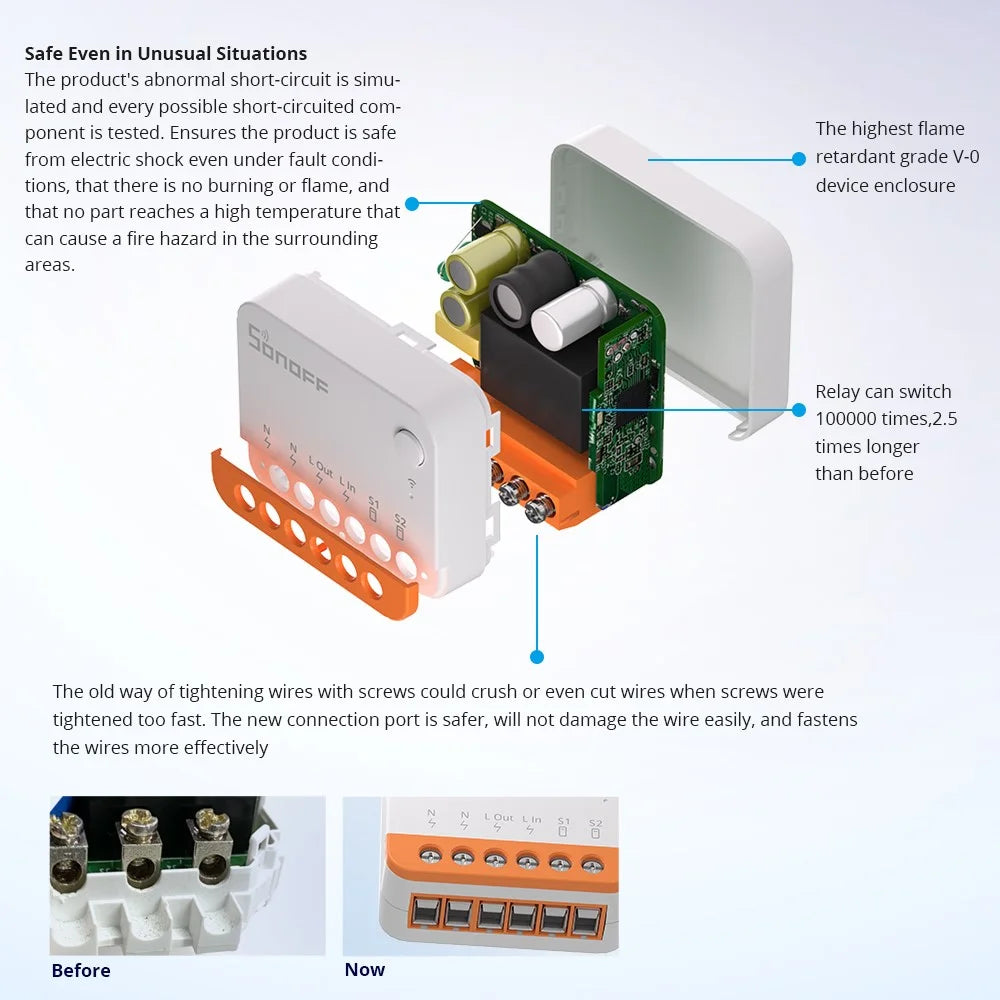

- Ultra-Tiny Size: 39.5mm * 33mm * 16.8mm, mini European standard concealed box can be installed
- External Switch Control: Easily connect momentary switches, door switches, SPDT switches, latching switches, and even dry contact sensors.
- Separate Relay Mode: MINIR4 has a "Separate Relay" mode, where the status of the external switch and relay are separated, so operating the external switch button will not affect the status of the relay.
- eWeLink-Remote Control: MINIR4 is a smart switch with "eWeLink-Remote" gateway function. You can add "eWeLink-Remote" sub-devices R5 and S-MATE, and after pairing with MINIR4, both R5 and S-MATE can be used as a remote control to control MINIR4 locally via eWeLink-Remote signal.
- Others: APP and voice control, timer, cycle timer, time delay, smart scene, and other functions
Specifications:

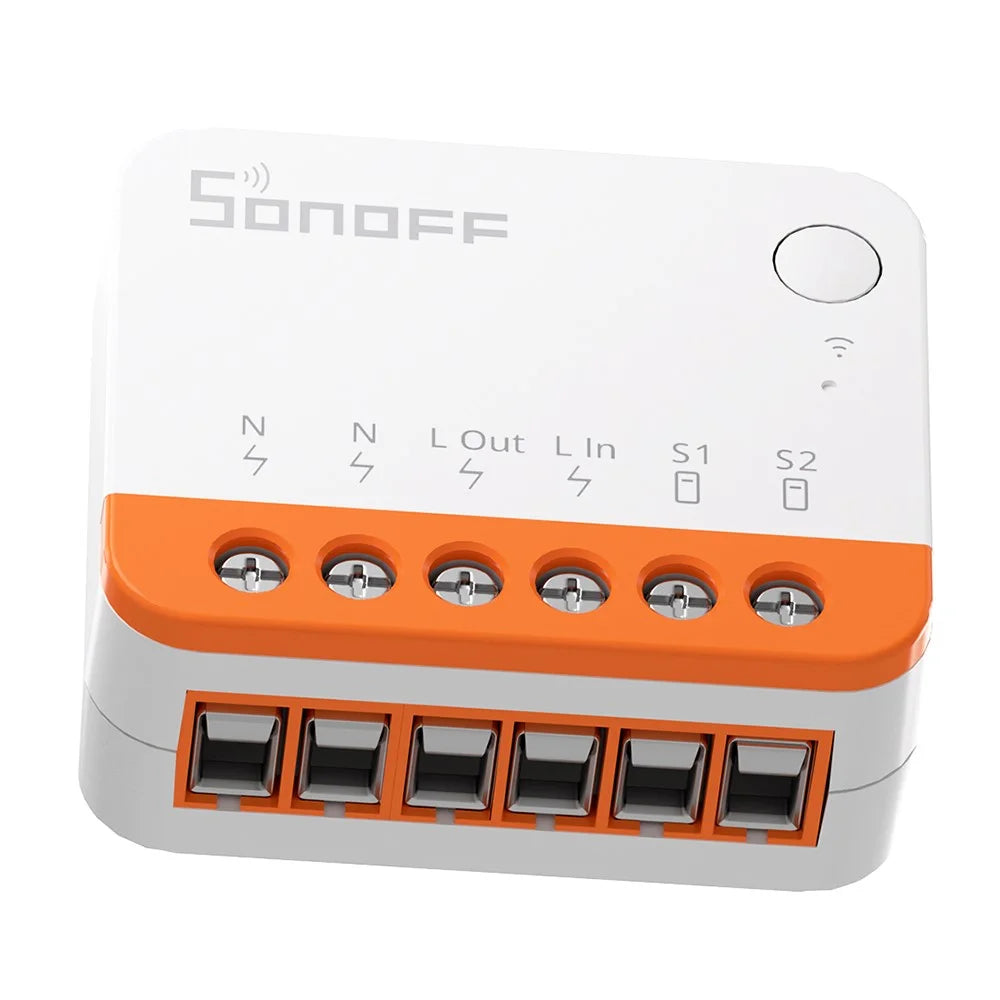

- Model: MINIR4
- Chip: ESP32
- Casing material: PC V0
- Wi-Fi: IEEE 802.11b/g/n 2.4GHz
- Input: 100-240V ~ 50/60Hz 10A Max
- Output: 100-240V ~ 50/60Hz 10A Max
- Maximum load current: 10A
- Dimension: 39.5x33x16.8 mm
- Support: eWeLink Web, Home Assistant, IFTTT
- Certificate: CE, FCC
In the box
- 1 x Smart Switch Module
- 1 x English and Chinese Manual
- Other items not included
