Description

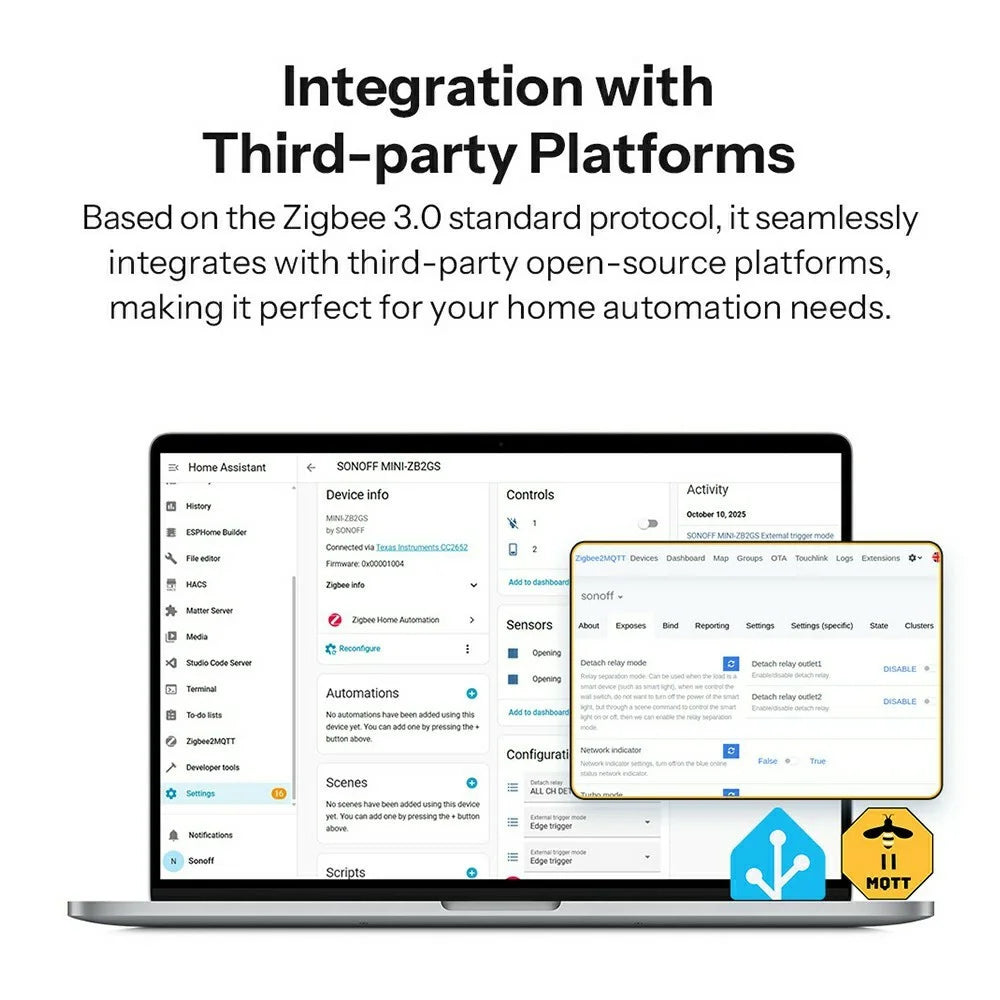

- 【Zigbee 3.0 Compatibility】Based on the Zigbee 3.0 standard protocol, this device seamlessly integrates with third-party open-source platforms, enabling cross-device automation and intelligent scene control.

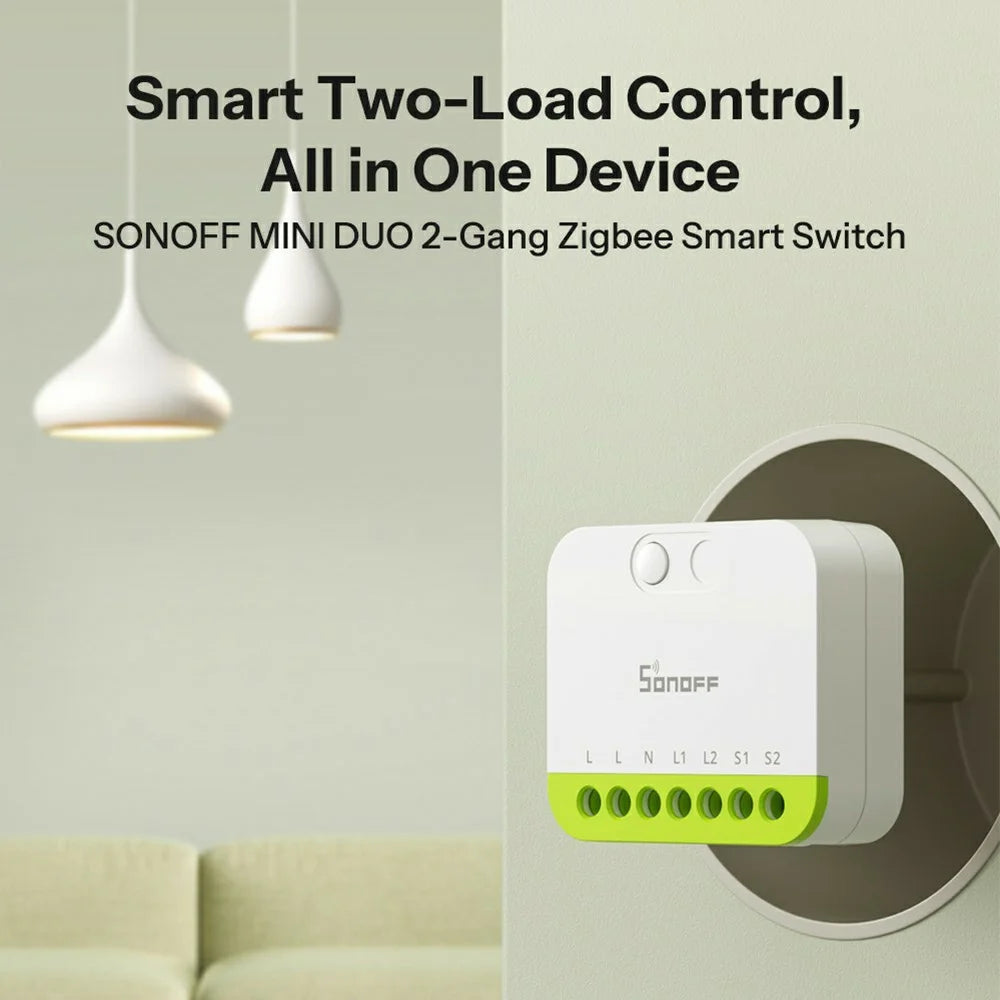

- 【Dual Load Control】Supports independent control of two loads and connection to external switches with a maximum resistive load of 16A. This maintains classic switch operation while achieving automation and convenience.
- 【Zigbee Signal Booster】Functions as a Zigbee router with Turbo mode to enhance signal strength and expand coverage, resulting in more stable device communication.
- 【Smart Control】Transforms traditional switches into smart switches, supporting app or voice control. Easily set timers for intelligent automated operations.
- 【Compact and Safe】Its small form factor allows easy installation behind wall switches, while comprehensive safety features like overheat and surge protection ensure reliable daily operation.
Specifications:

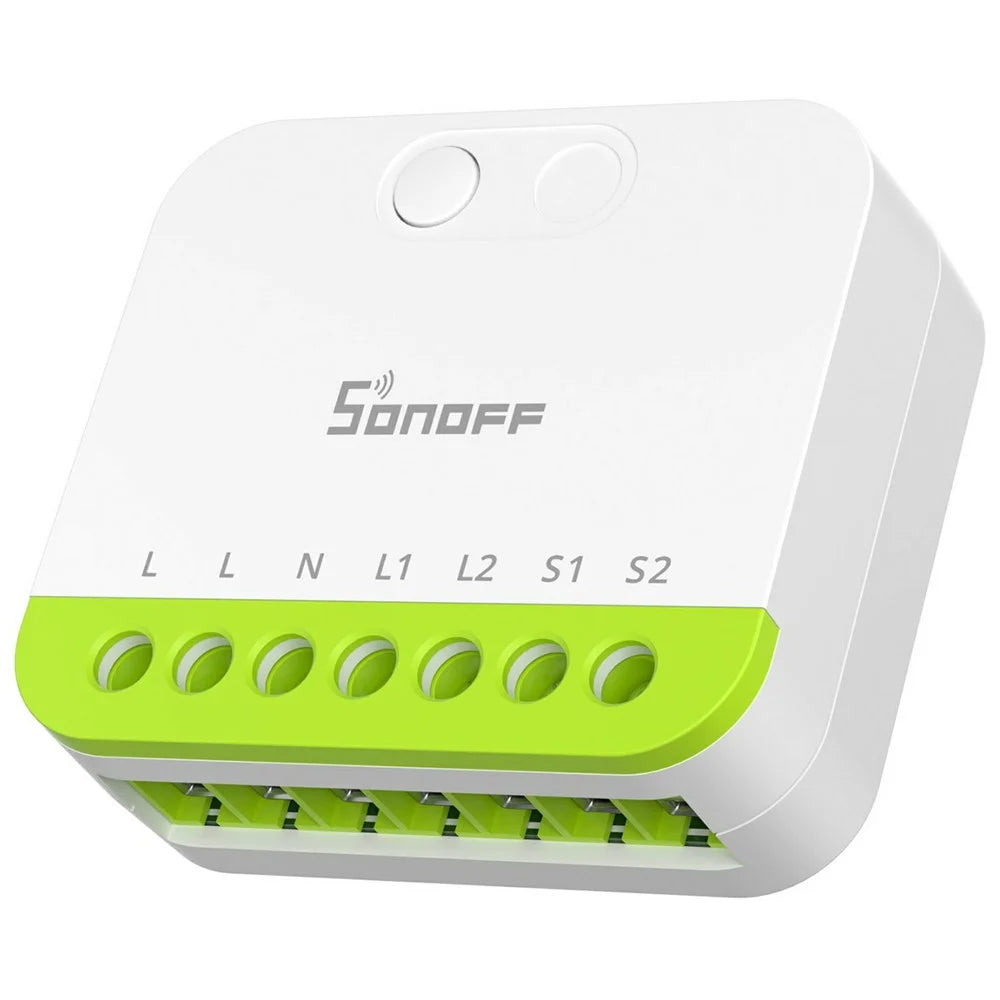

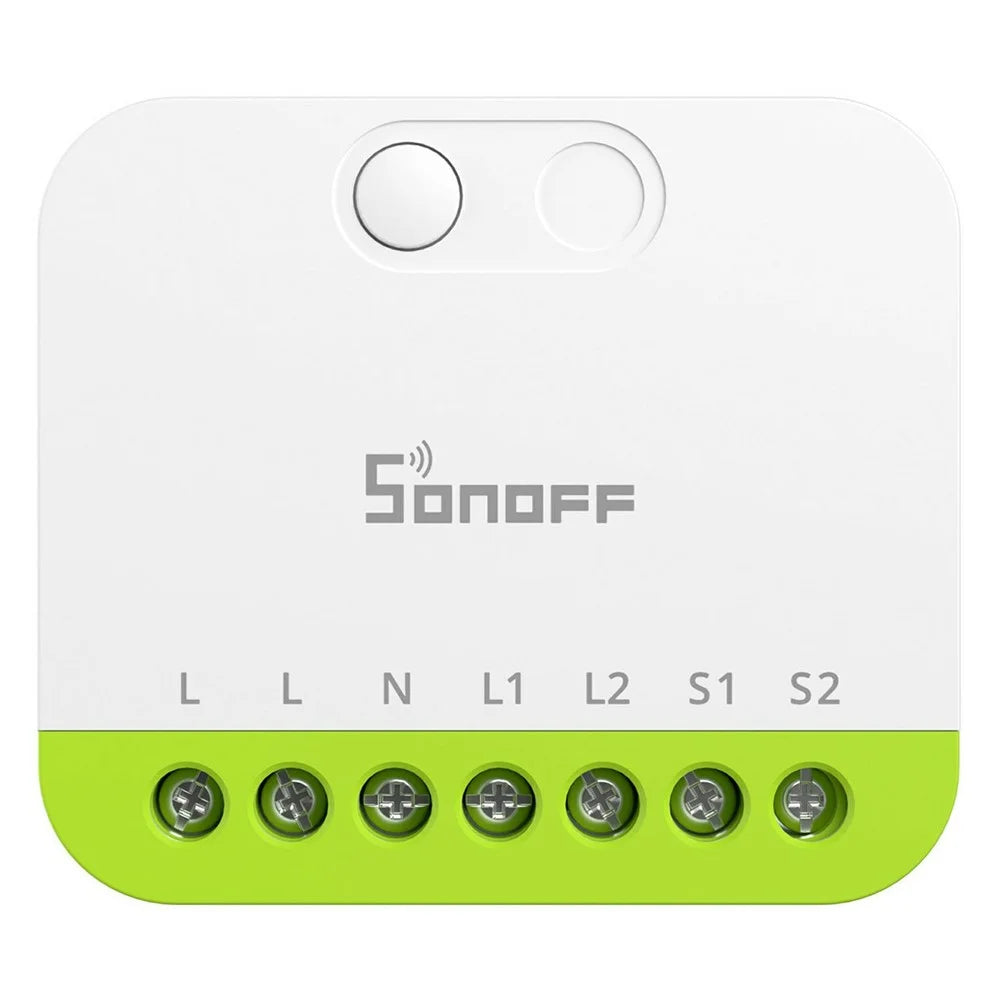

- Model: MINI-ZB2GS
- Product Series: MINI Extreme series
- MCU: EFR32MG21
- Rated Specifications: 110-240V~ 50/60Hz, 10A/channel, max total current 16A, resistive load
- Zigbee Standard: IEEE 802.15.4
- Net Weight: 36.2g
- Product Dimensions: 45 x 39.4 x 16.8mm
- Operating Temperature: -10℃~40℃
- Operating Humidity: 5%~95% relative humidity, non-condensing
- Casing Material: ABS
- Installation Requirements: Mounting box diameter at least 60mm, depth at least 60mm
In the box
- 1 x Switch
- 1 x English Instruction Manual
