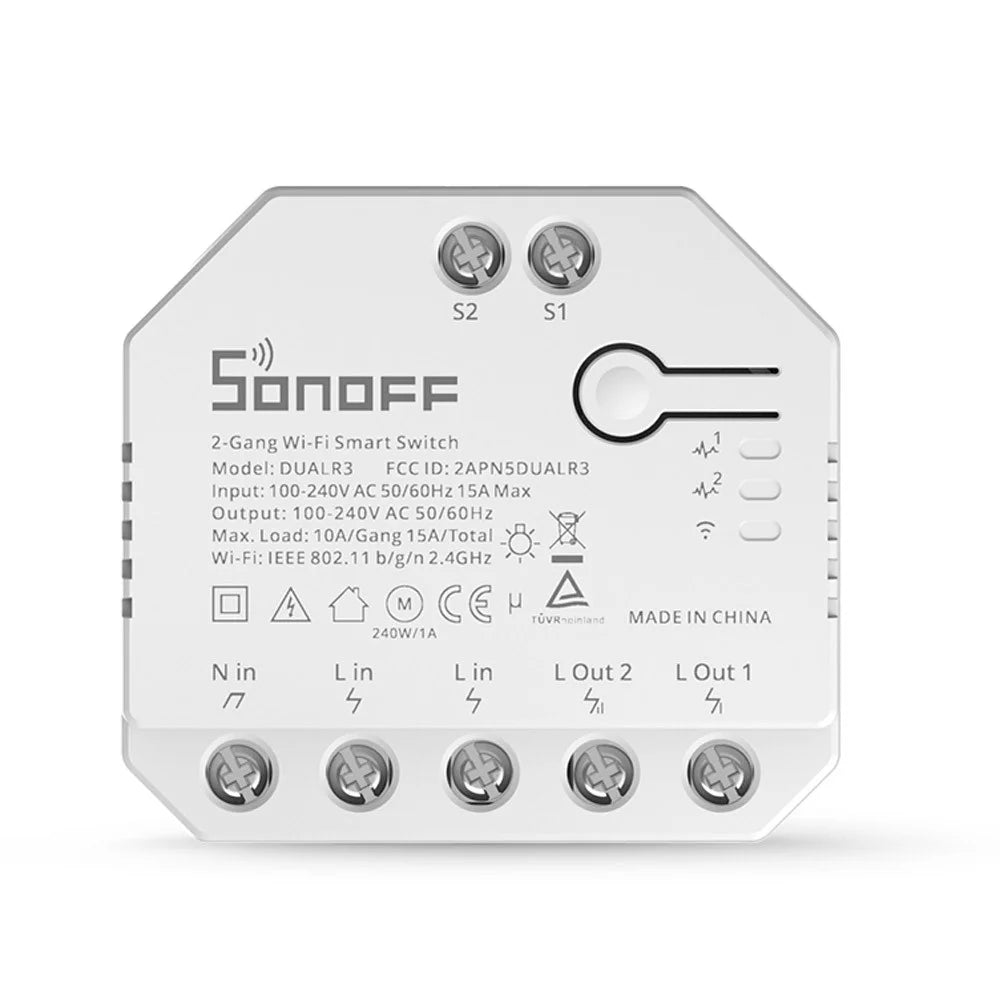

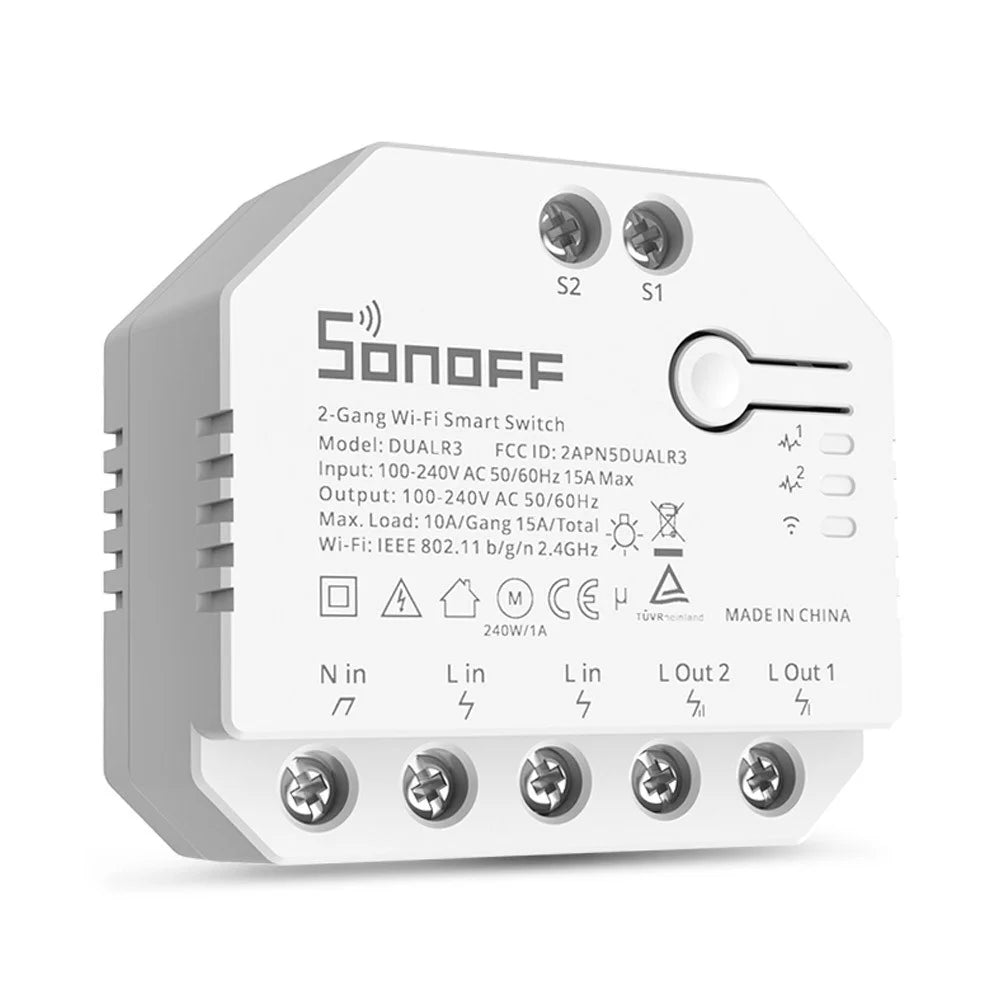

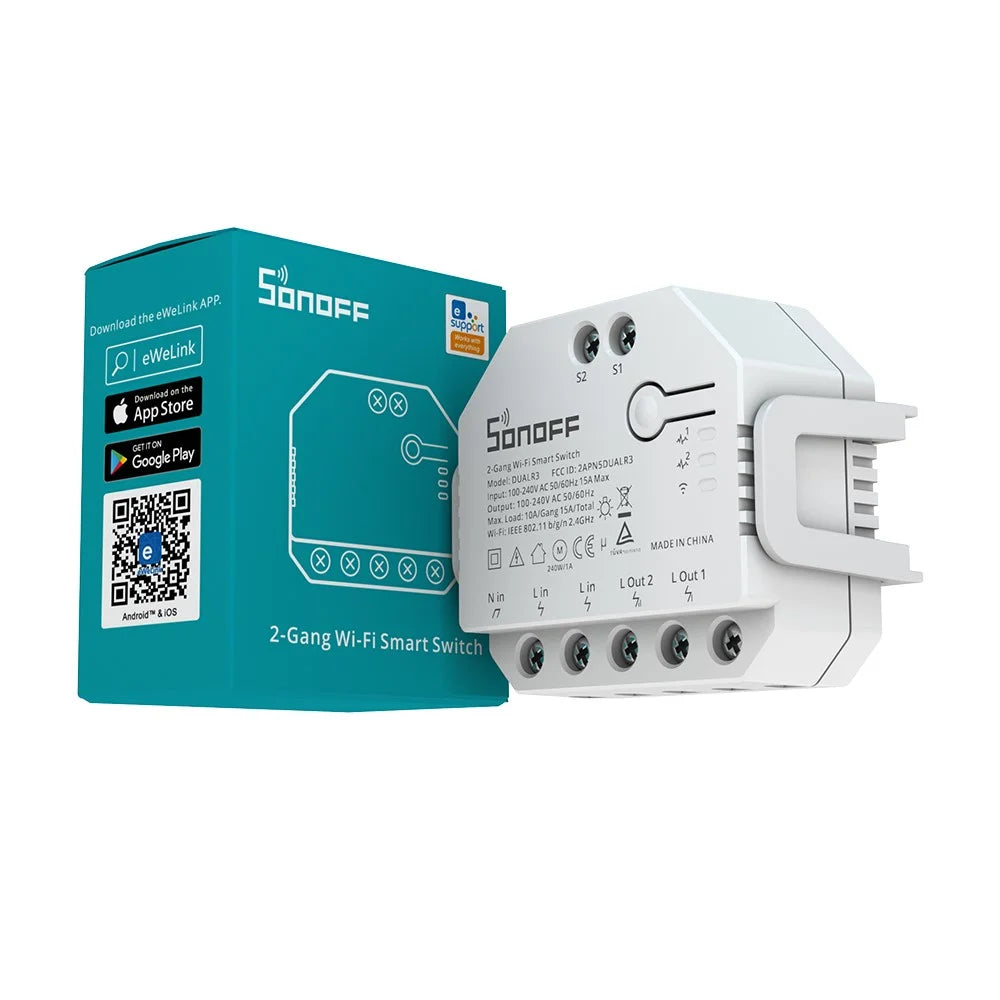

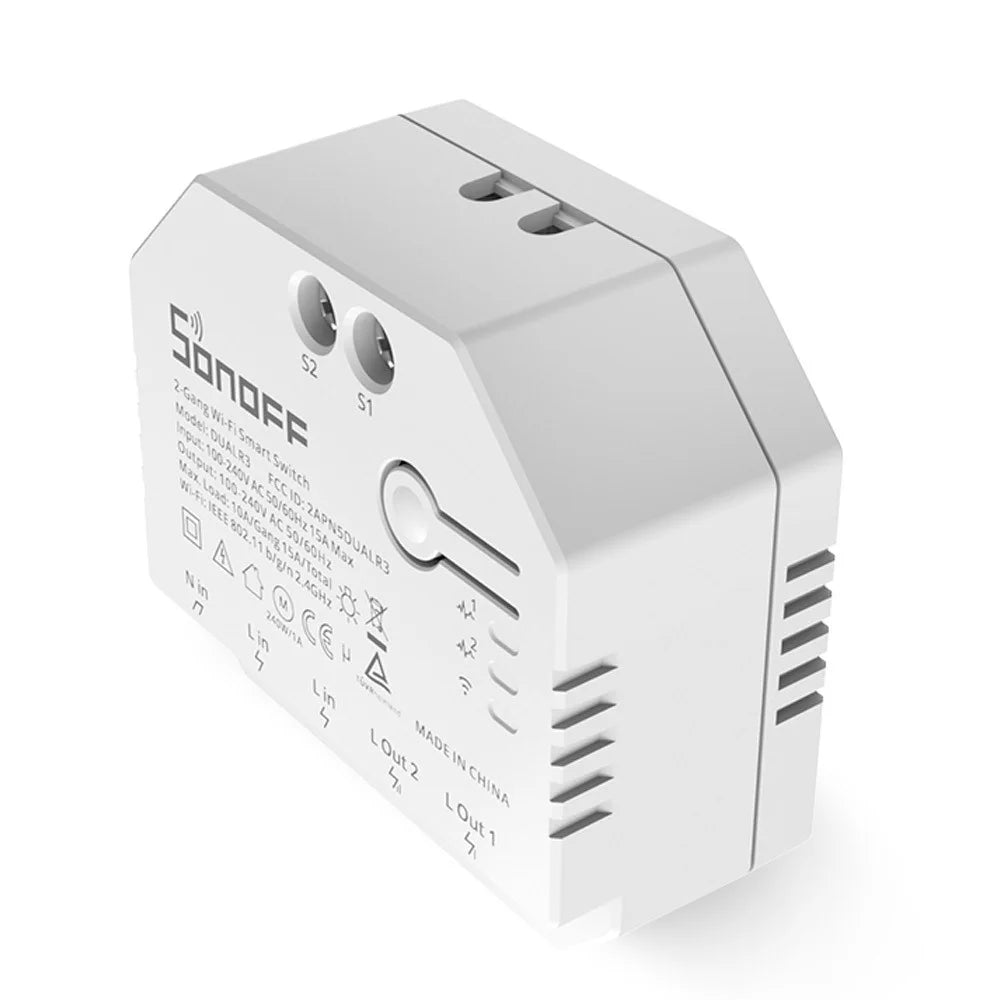

SONOFF DUALR3 2 Gang WiFi Smart Light Switch 2 Way DIY Breaker Module Remote Control with Power Meter

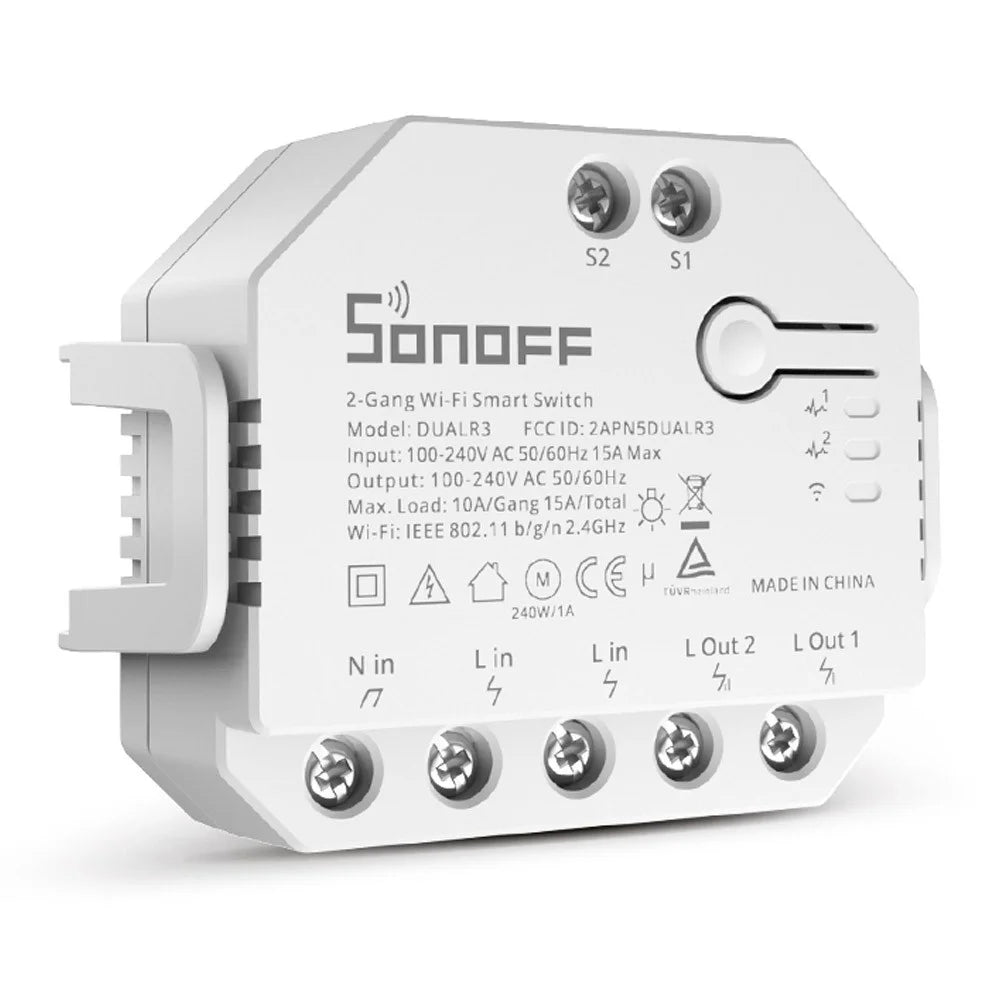

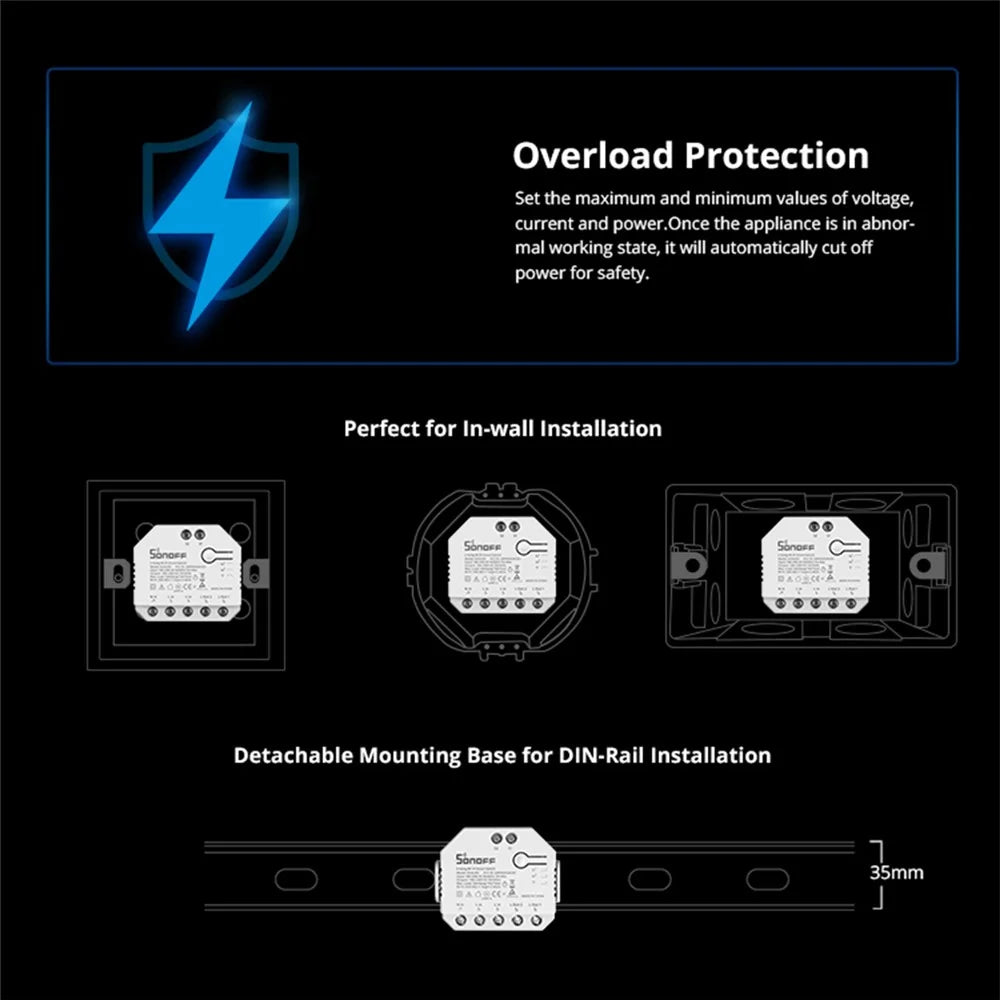

• Shape and material: Small size, can be put in 86 boxes. Detachable rail adapter device, suitable for rail installation

• PC V0: PC flame retardant material, the highest flame retardant grade V0

• Powerful function: Three working modes are optional. The two loads are controlled separately and have the same function. Single power consumption statistics, 180-day historical power consumption graph statistics

• Threshold protection: three parameters of voltage, current, and power, five threshold conditions can be set for threshold protection. External switch application (equivalent to MINI with two loads), support external ordinary switch, there are three switch trigger modes, adapt to various types of switches, such as momentary switch, single-pole double-throw switch, dry contact sensor, etc.

• Motor control: One-key automatic stroke calibration, accurate control and display of the motor position, suitable for one-button instantaneous switch, two-button instantaneous switch, three-button rocker switch, electric meter, two-way simultaneous power parameter monitoring

Specification:

• Input: 100-240VAC 50/60Hz

• Output: 100-240VAC 50/60Hz

• Max.Load: 10A/2200W/gang 15A/3300W

• Total Motor Load: 1A/10-240W

• Gang: 2-Gang

• Wi-Fi wireless standard: IEEE802.11b/g/n 2.4GHz

• Material: PC VO

• Weight: 75g
