Description
-

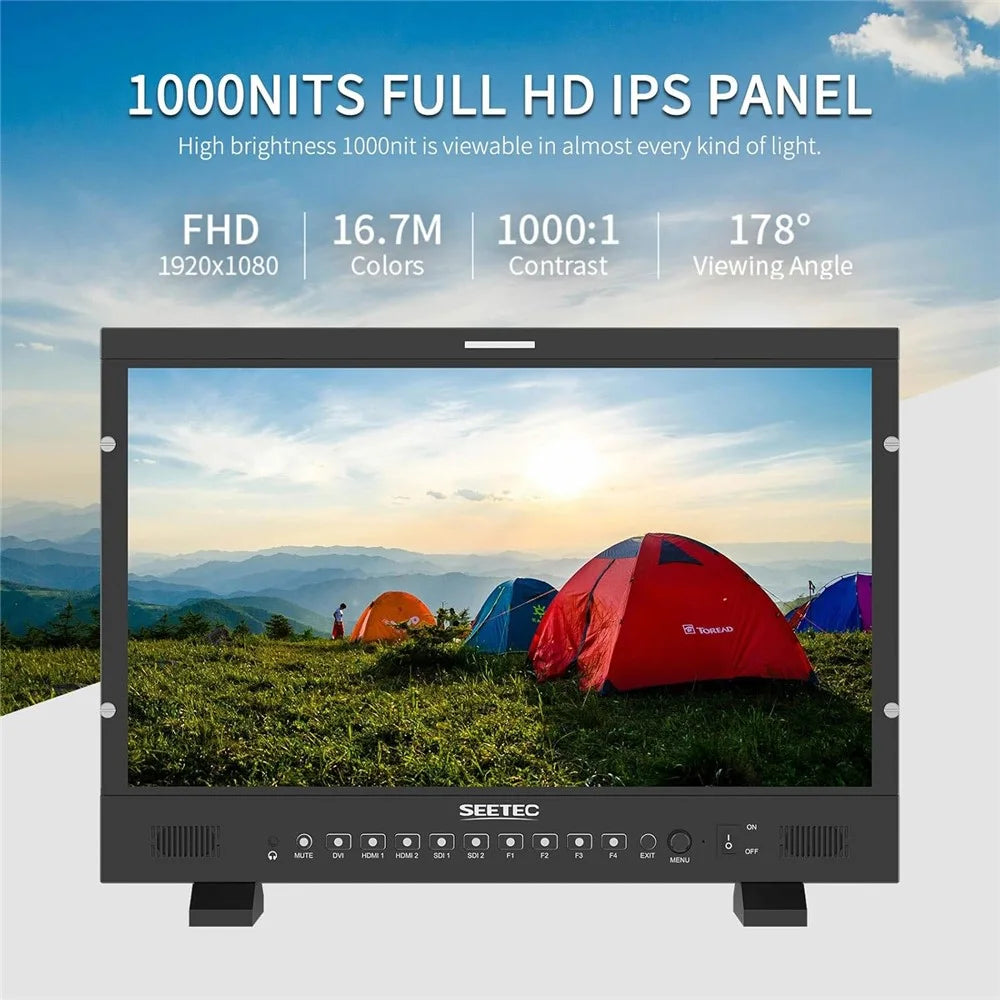

【Full HD IPS Display】21.5-inch 1920x1080 resolution screen with 1000nits high brightness, perfect for outdoor shooting and detailed image viewing.
-
【Versatile Input/Output】Equipped with 3G-SDI, HD, and DVI inputs, supporting 4K 60Hz HD input/output for high-quality signal processing.
-

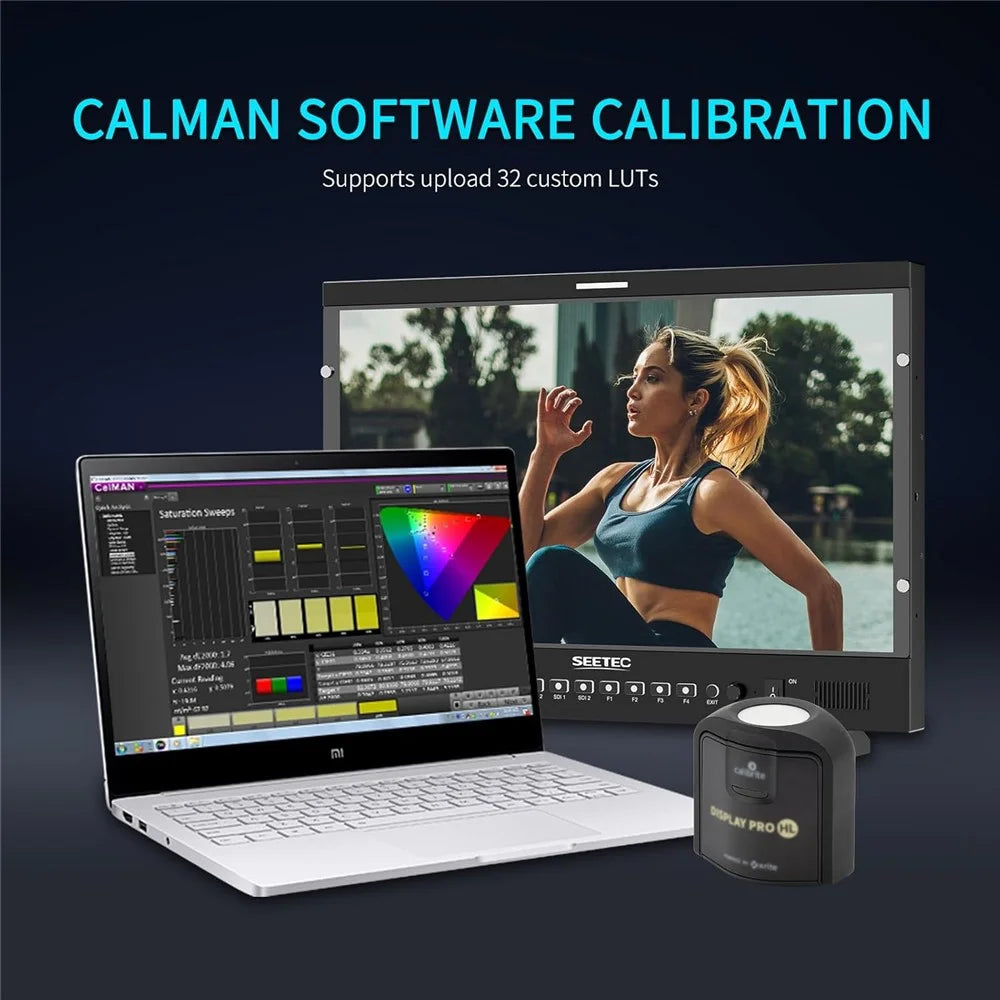

【Advanced Color Management】Features 3D-LUT support with pre-installed SLOG2, SLOG3, and LOGC profiles, plus the ability to upload up to 32 custom LUTs for accurate color grading.
-

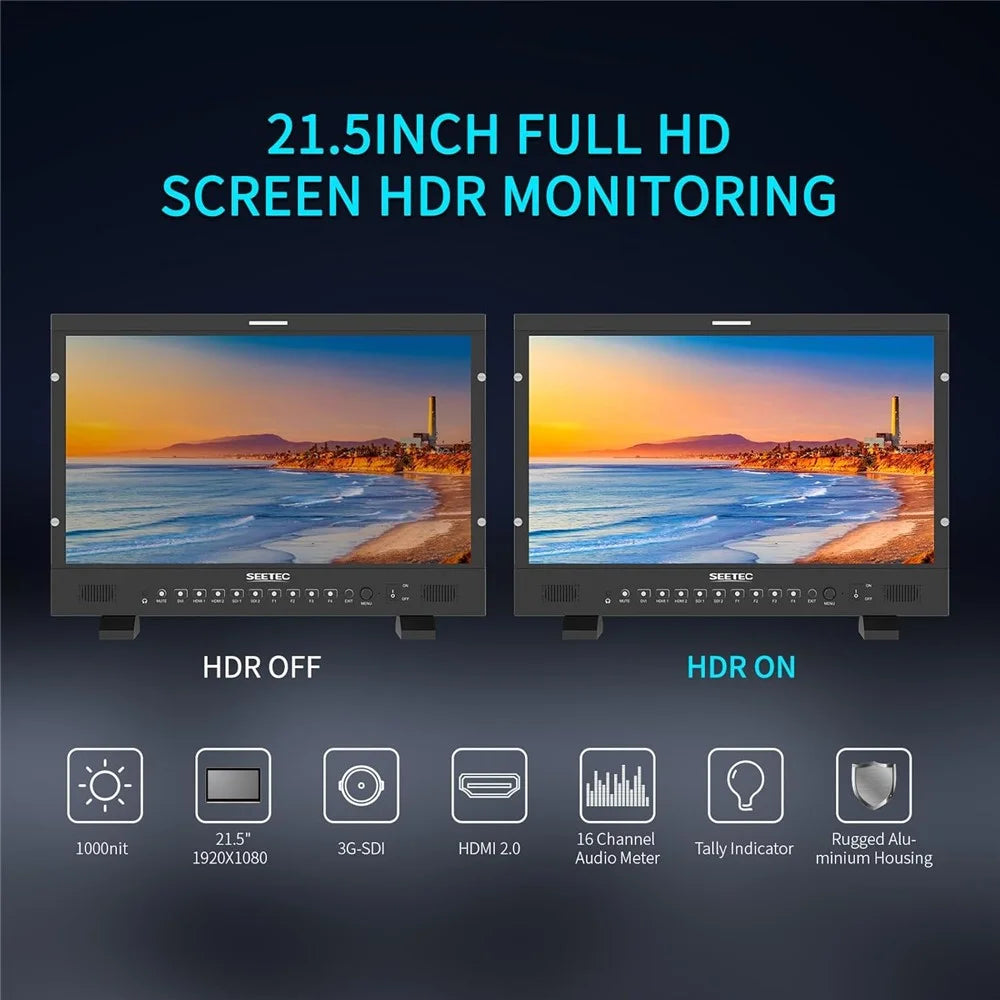

【HDR Monitoring】Supports HLG1, HLG2, and HLG3 for true-to-life High Dynamic Range viewing.
-
【Flexible Mounting Options】1/4-inch and 3/8-inch threads on top, left, and right sides of the protective case for attaching video transmission or other equipment.
Specifications:
- Screen Size: 21.5 inch IPS
- Resolution: 1920 x 1080 pixels
- Color Depth: 16.7M
- Brightness: 1000cd/m2
- Contrast Ratio: 1000:1
- Viewing Angle: 89°/89° (L/R) 89°/89° (U/D)

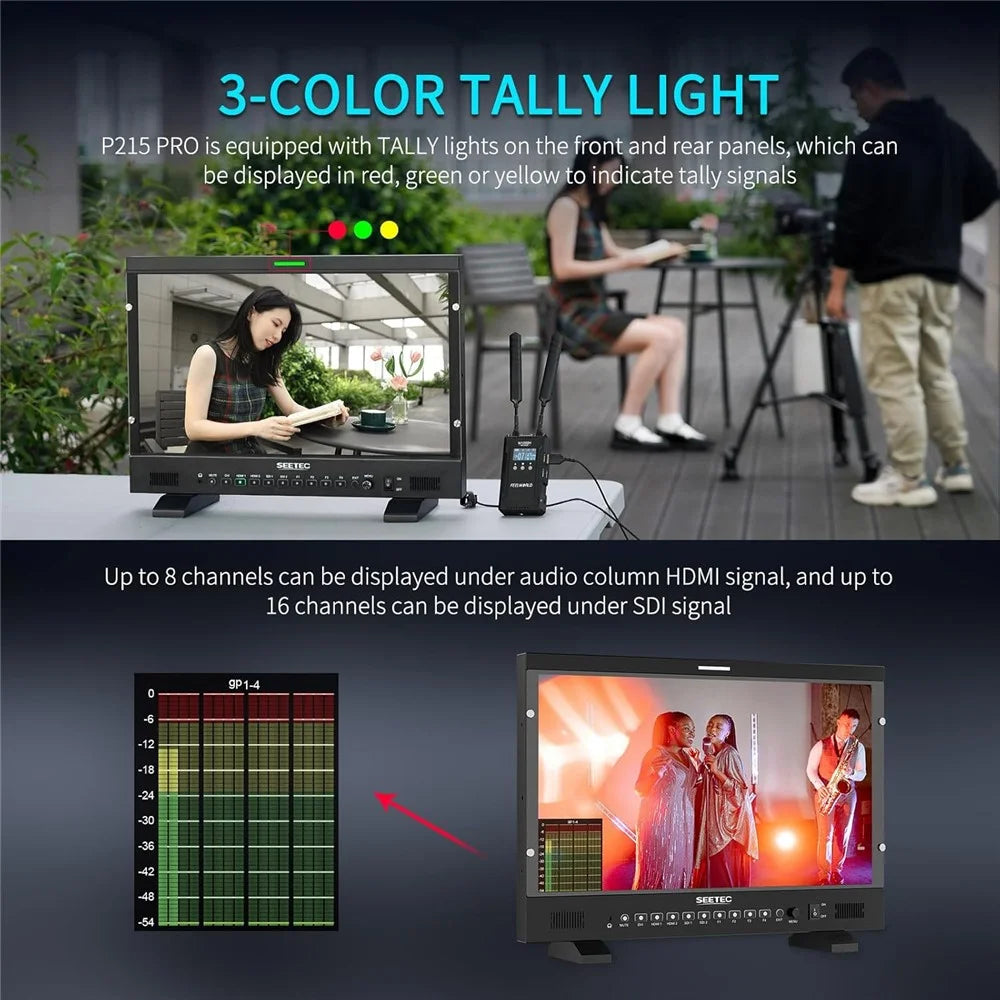

- Inputs: 2 x 3G-SDI, 2 x HD, 1 x DVI, 1 x Tally, 1 x USB
- Outputs: 2 x 3G-SDI, 1 x HD
- Audio: Stereo headphone output
- SDI Support: 720p, 1080i, 1080p (various frame rates)
- HD Support: 720p, 1080i, 1080p, 4K 3840x2160p, 4K 4096x2160p (various frame rates)
- Power Input: DC 12V
- Power Consumption: ≤44W
- Operating Temperature: 0°C to 50°C
- Dimensions: 511.5 x 355.5 x 34.8mm
- Weight: 4.16kg
In the box
- 1 x Monitor
- 1 x 4A Power Adapter
- 1 x Tally Kit

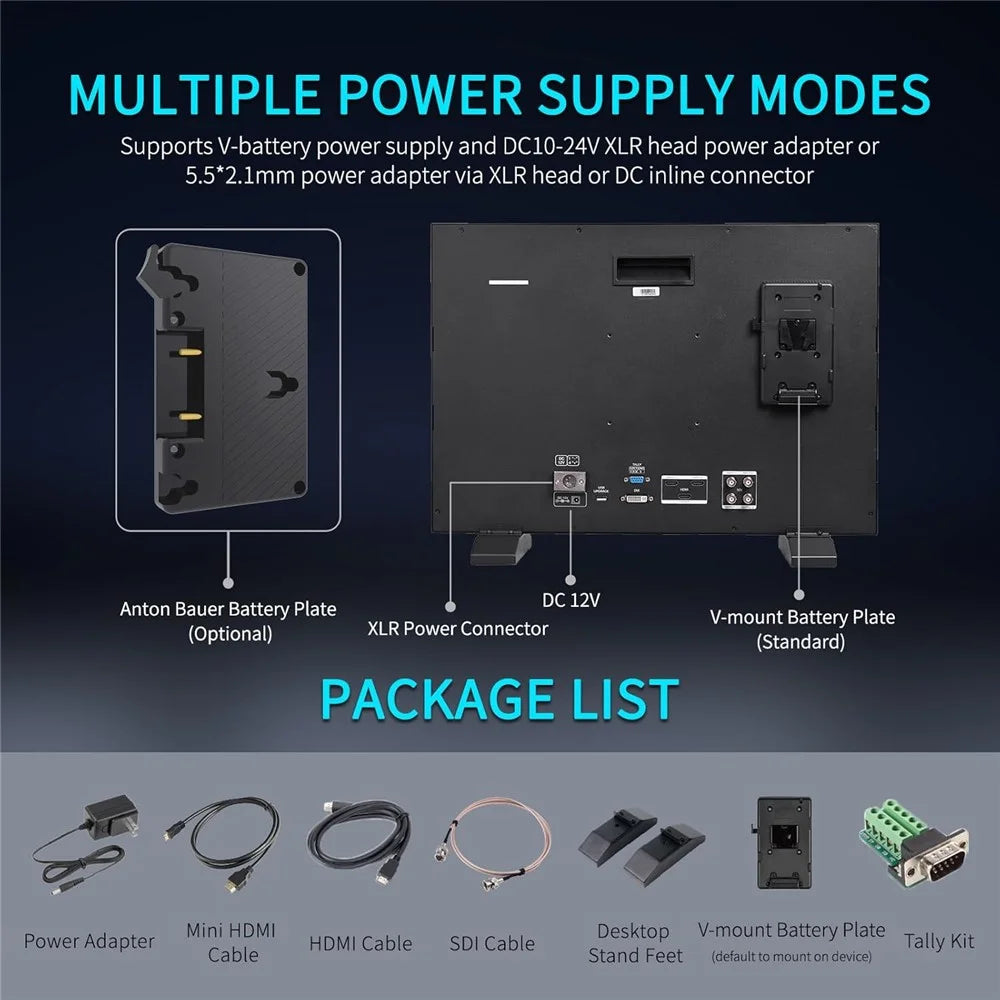

- 1 x V-Mount Battery Plate (Pre-installed on Device)
- 1 x Mini HD Cable
- 1 x HD Cable
- 1 x SDI Cable
- 1 x English Manual
