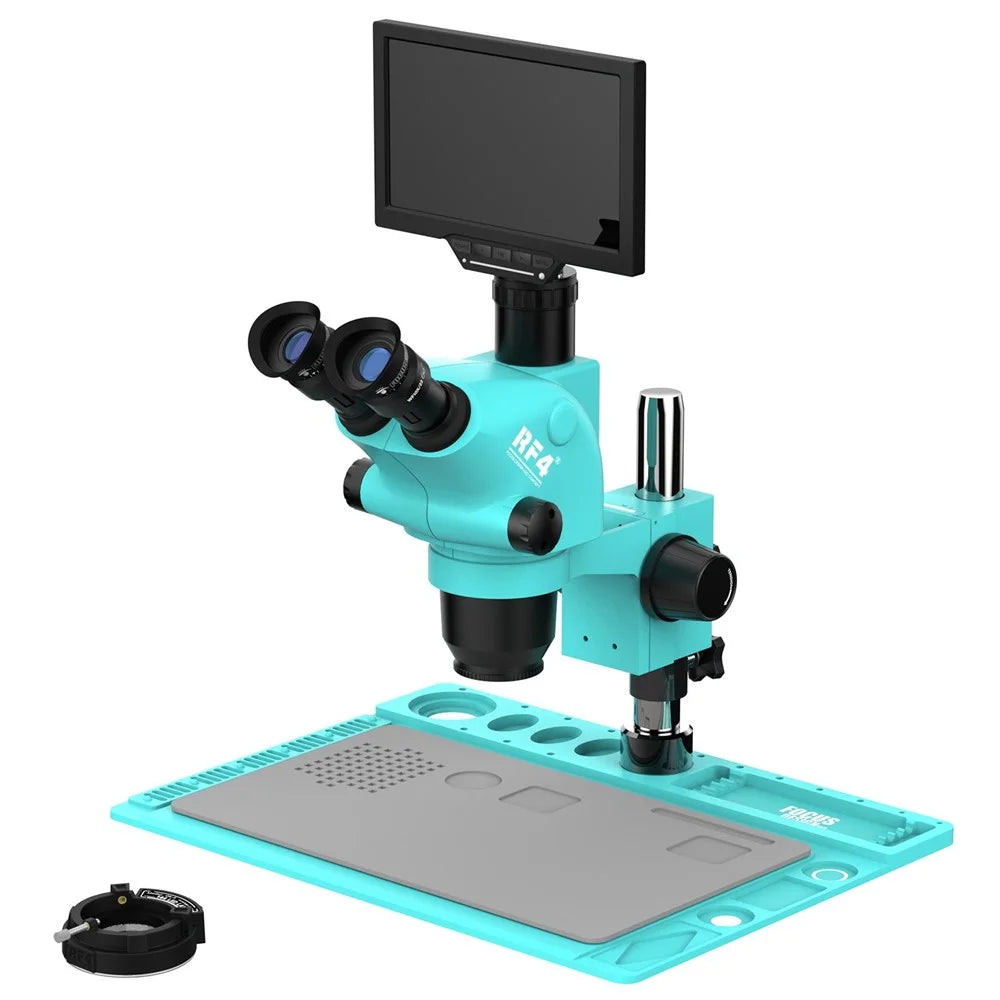

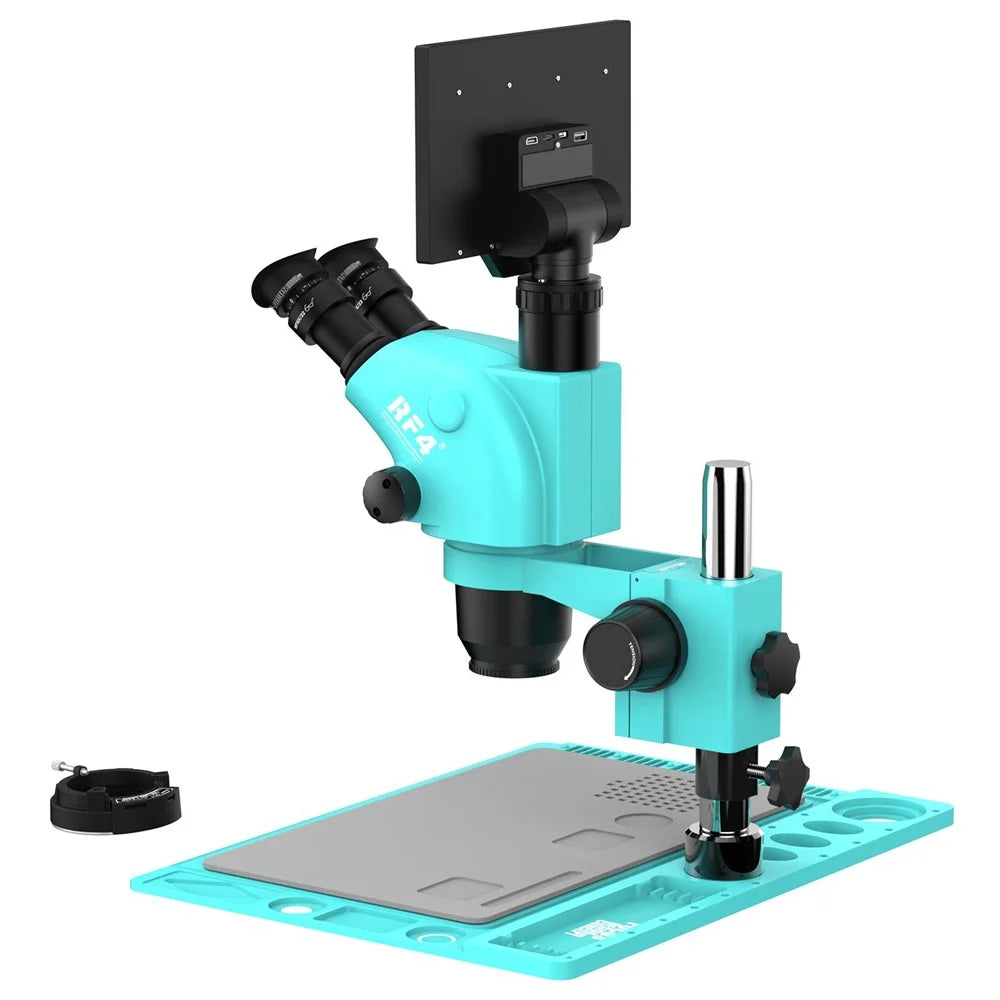

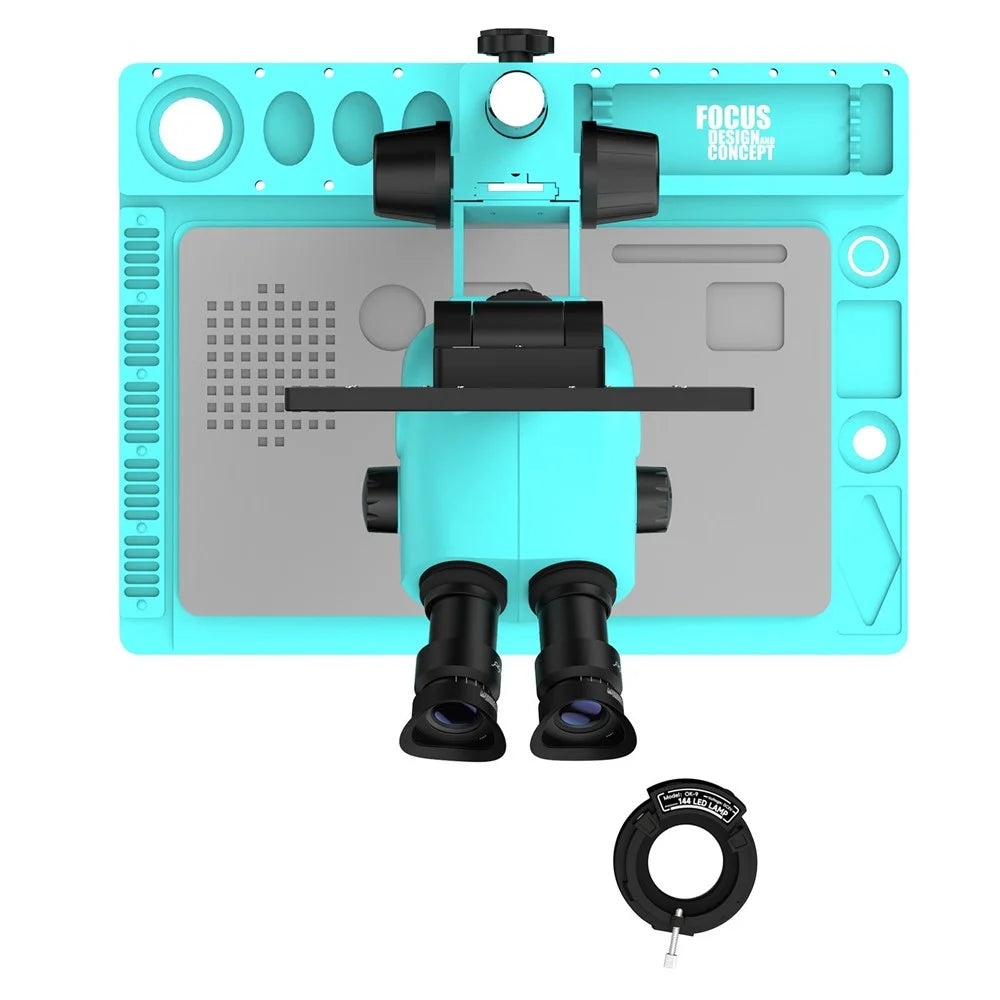

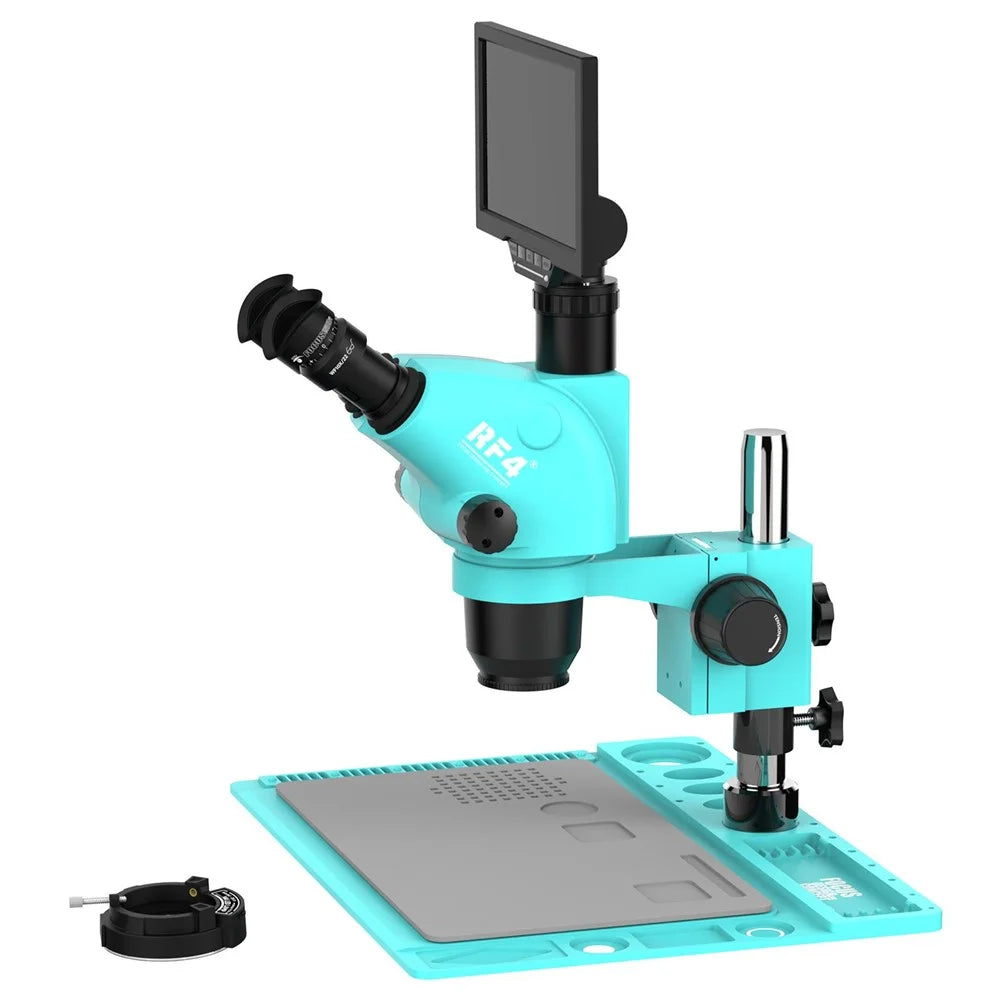

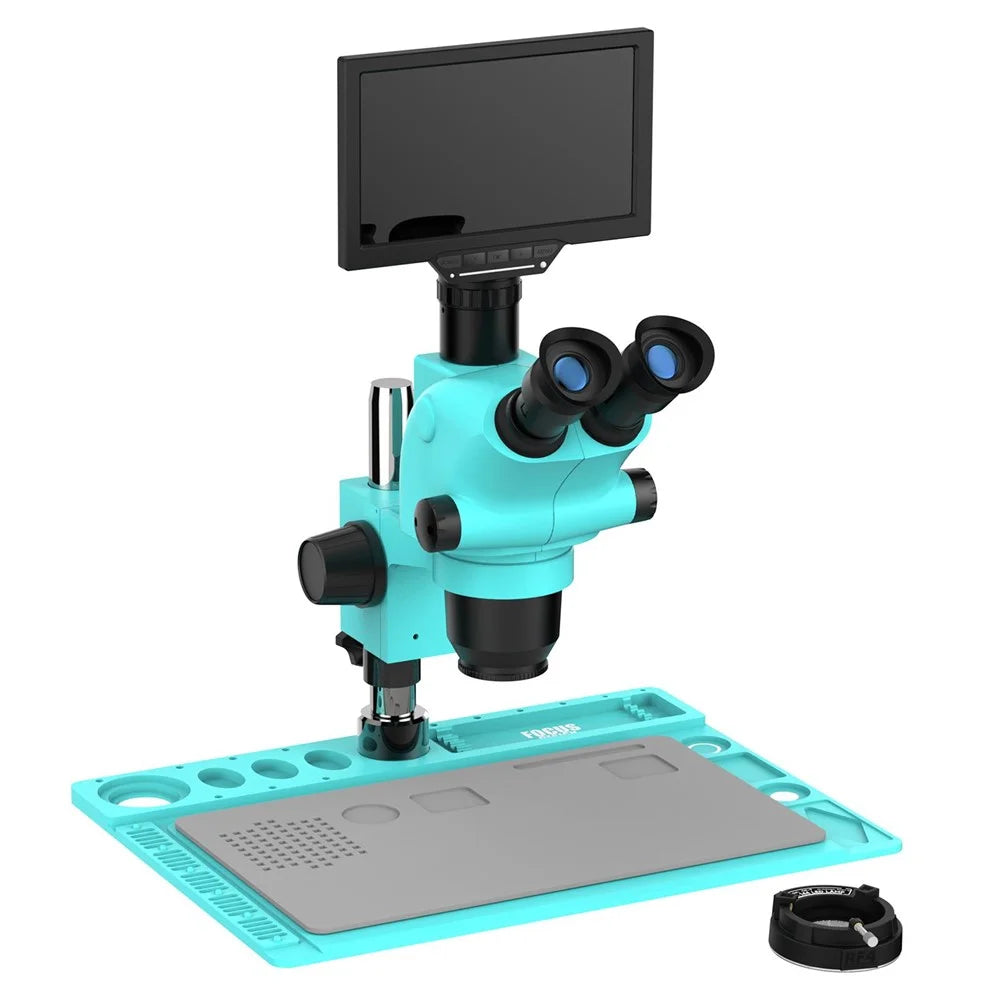

RF4 RF-6565TVD2-YS010W 6.5X-65X Trinocular Stereo Microscope with 10 inch HD Monitor for Electronics Repair

• 【6.5X-65X Continuous Zoom】Professional trinocular stereo microscope with big continuous zoom range from 6.5X to 65X magnification for versatile observation needs.
• 【10 inch HD Monitor with 16MP Camera】Built-in 16MP HD camera with 10-inch monitor display enables real-time viewing and synchronous zoom with eyepiece observation.
• 【45-Degree Ergonomic Design】Features 45-degree inclined 360-degree swiveling trinocular head for comfortable extended use and flexible viewing angles.
• 【Professional LED Ring Light】144 adjustable LED ring light provides uniform illumination with white light color for optimal specimen visibility and detail clarity.
• 【Multifunctional Aluminum Base】Robust aluminum alloy repair base with specialized grooves, anti-slip silicone pad, and precision adjustment capabilities for stable operation.
• 【Synchronous Zoom Technology】Monitor and eyepiece synchronous zoom function allows seamless switching between visual observation and digital display without refocusing.

Specifications:

• Magnification Range: 6.5X to 65X Continuous Zoom
• Head Type: 45-degree Inclined 360-degree Swiveling Trinocular
• Eyepiece: WF10X/22MM Adjustable Focus
• Objective Lens: 0.65-6.5X
• Camera Connector: 1/2 CTV
• Barlow Lens Options: 0.5X & 0.7X & 2.0X (Optional)
• Monitor Size: 10 inch
• Camera Resolution: 16MP
• Stand Dimensions: 410 x 300mm
• Column Specifications: 240mm φ32mm Pillar
• Base Size: 410 x 300mm
• Silicone Pad Size: 330 x 198mm
• Column Aperture: 32mm
• Lens Aperture: 76mm
• Center Distance: 155mm
• Lifting Range: 50mm
• Eyepiece Magnification: 10X
• Eyepiece Field of View: 22mm
• Eyepiece Matching Size: 30mm
• LED Light Count: 144 LEDs
• LED Light Input: AC 100~240V 50/60Hz
• LED Light Output: DC 12V, Max 700mA
• LED Light Inside Diameter: 60mm
• Light Type: White LED
• CTV Adapter Material: All Metal (Aluminum Alloy and Copper Chrome-plated)
