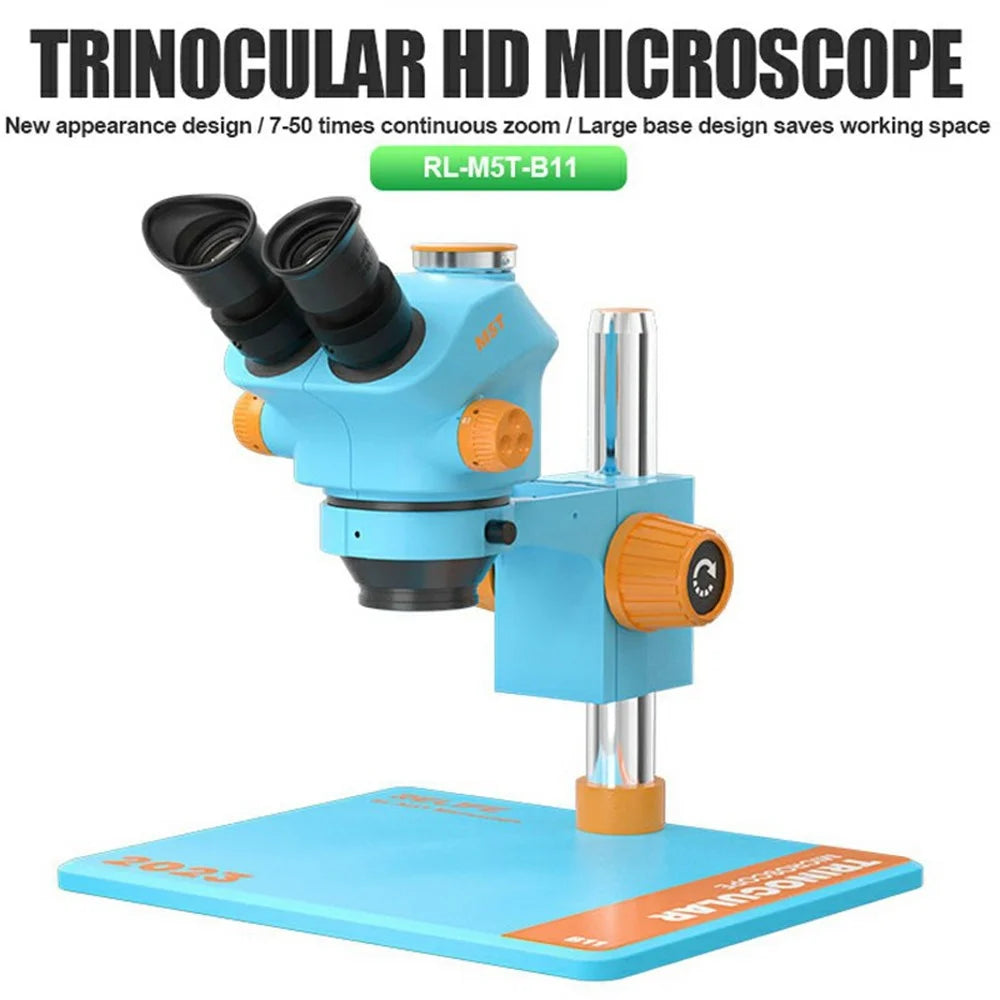

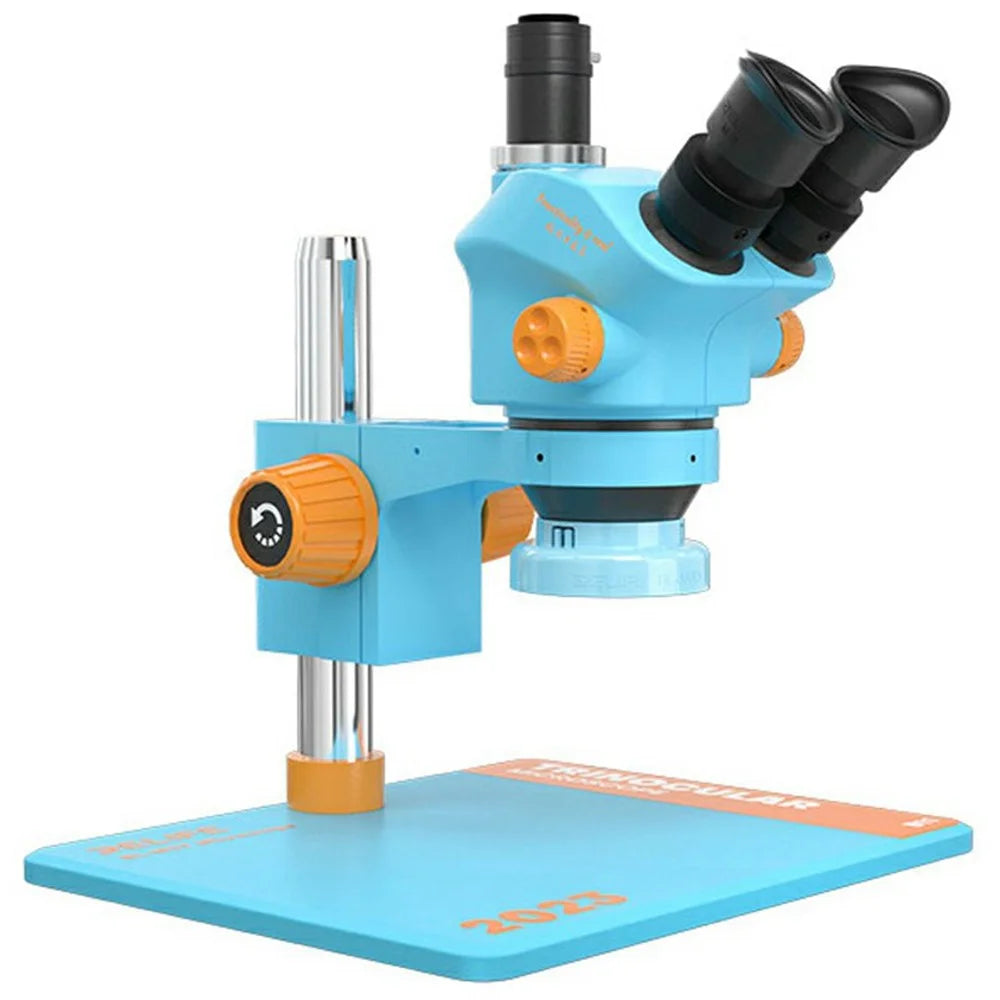

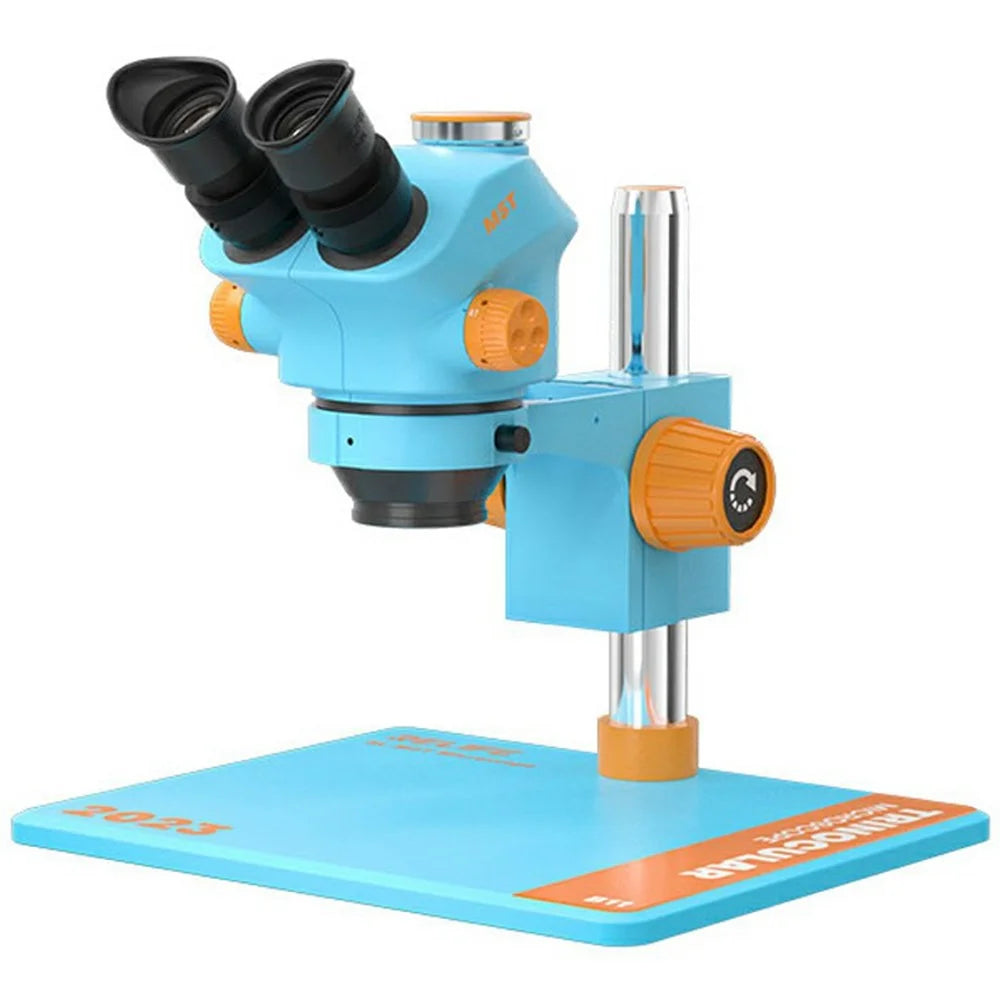

RELIFE RL-M5T-B11 Trinocular HD Microscope 7-50X Zoom Microscope for Phone Repair

• 【Professional Trinocular Design】Features a three-eyepiece system with photography/video output port, enabling simultaneous observation and image capture for documentation and analysis.

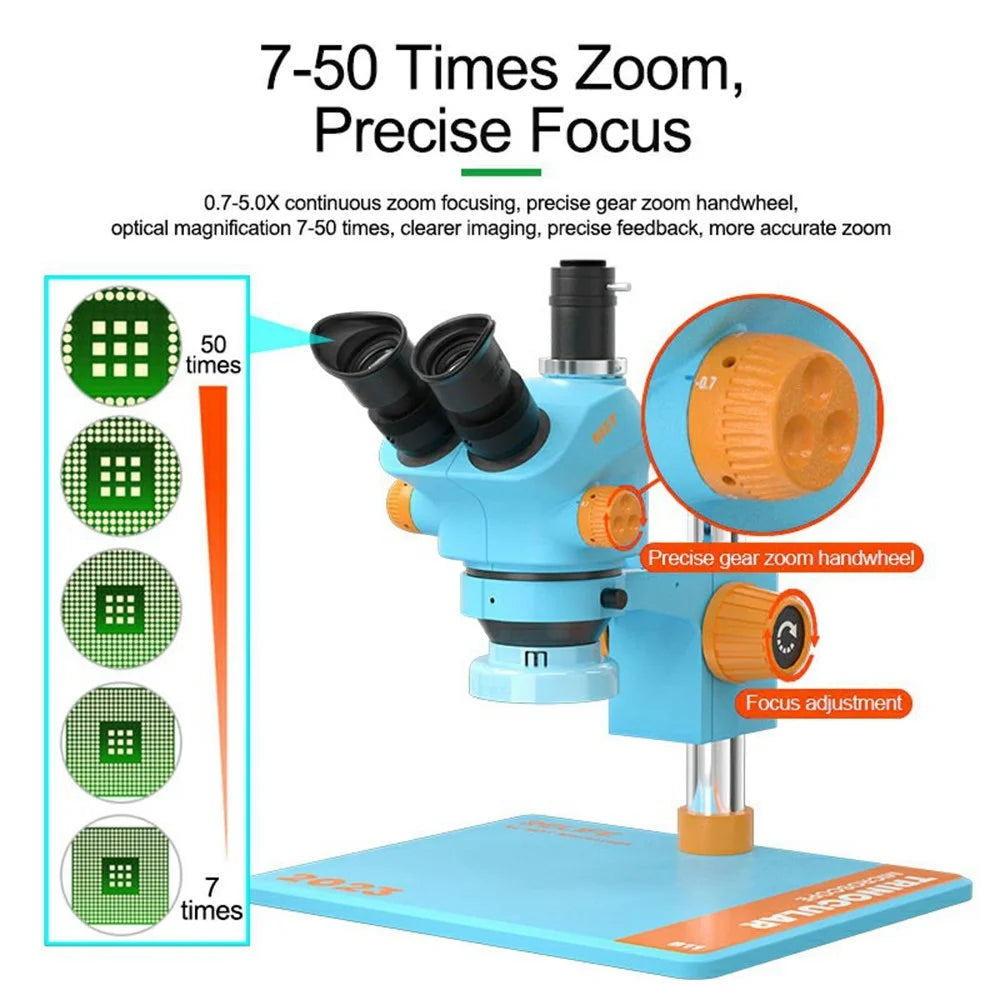

• 【Continuous 7-50x Zoom】Advanced 0.7-5.0x continuous zoom optical system with precision gear zoom handwheel delivers optical magnification from 7x to 50x for detailed inspection work.

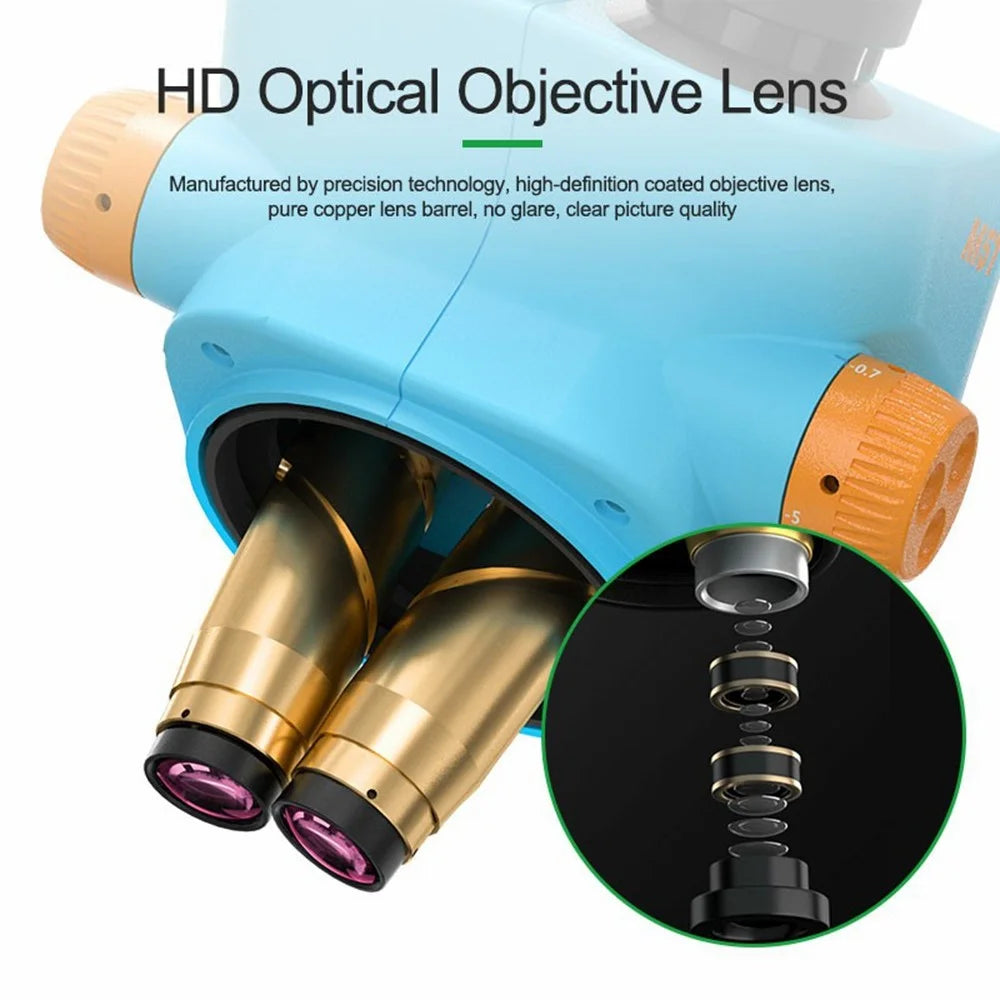

• 【HD Optical Imaging】High-definition coated objective lens with pure copper lens barrel eliminates glare and provides crystal-clear, sharp imaging for precise observation.

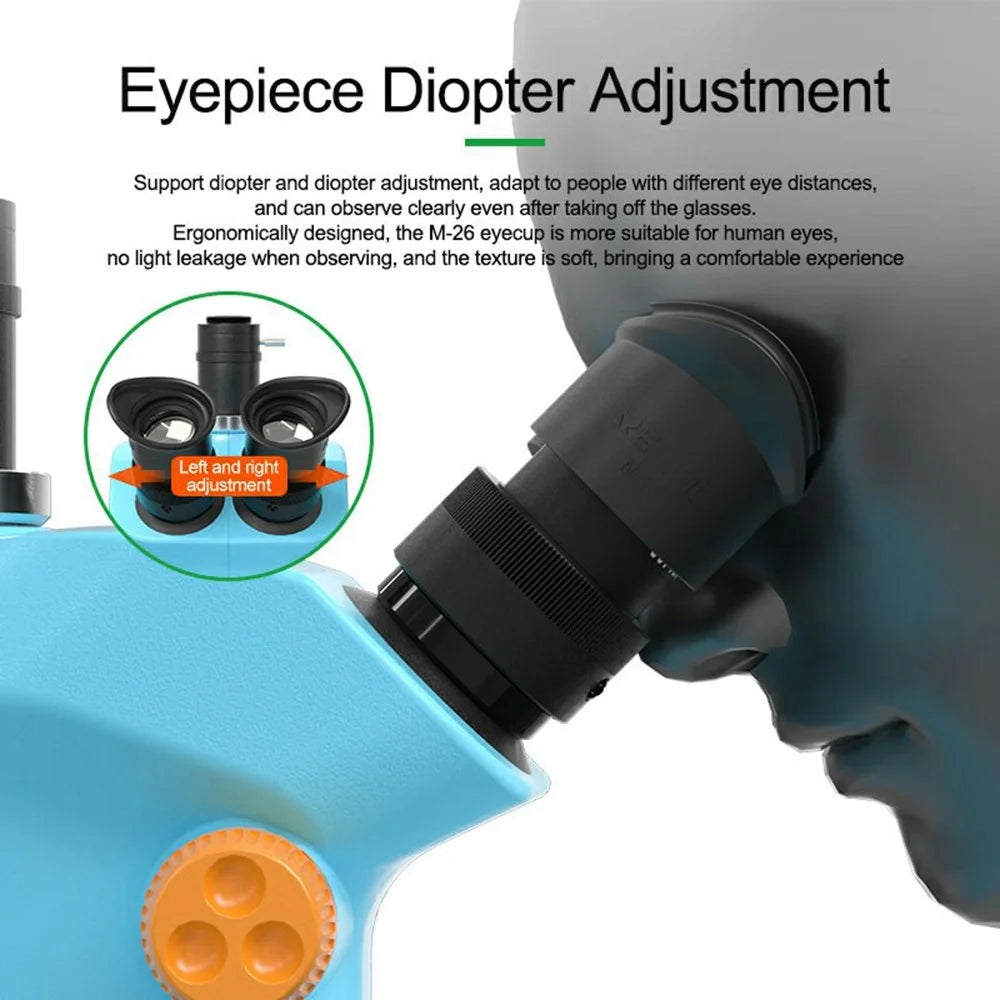

• 【Ergonomic Eye Comfort】M-26 eyecups with diopter adjustment support different eye distances, allowing clear observation even without glasses, featuring soft texture for comfortable extended use.
• 【Large Working Space】Oversized B11 aluminum alloy base (260×320mm) with guaranteed 100mm working distance provides ample space for handling large components and samples.
• 【Adjustable LED Ring Light】RL-033D LED ring light source with quick-mount design offers adjustable brightness and focused illumination without occupying operation space.

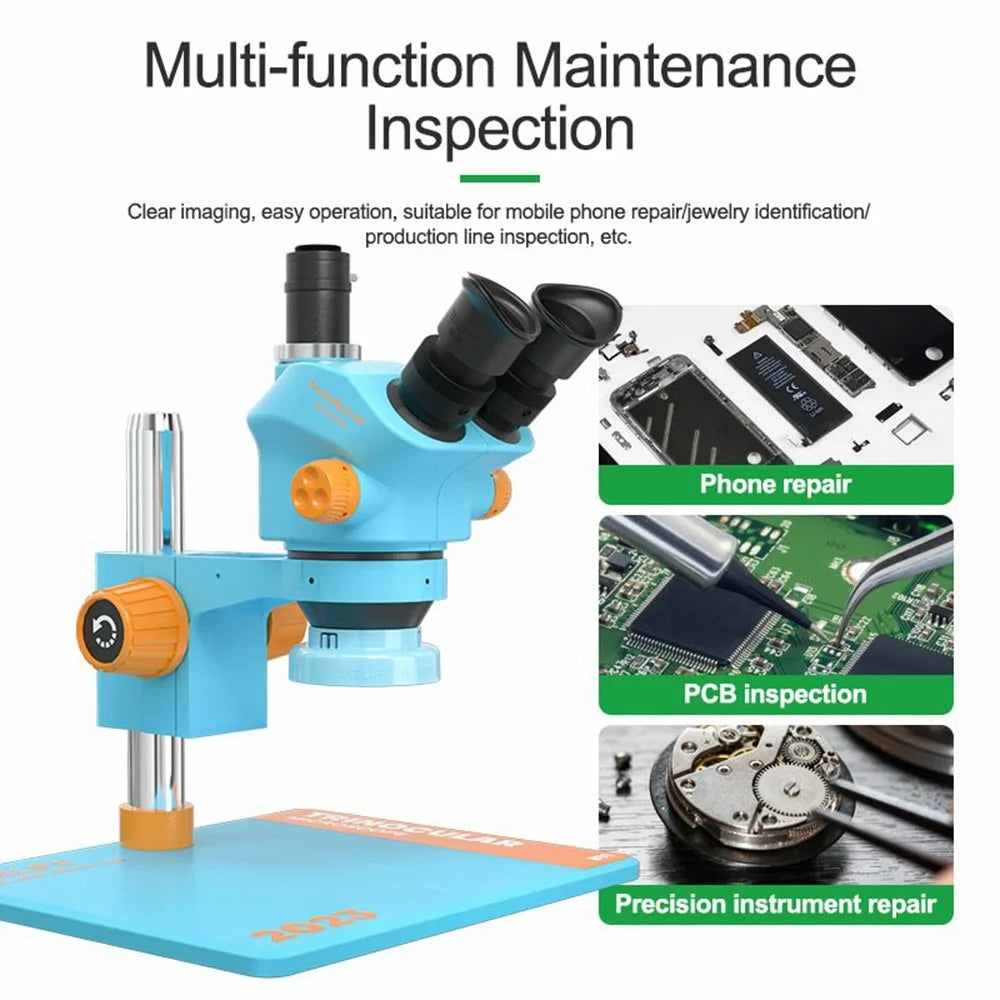

• 【Versatile Applications】Ideal for mobile phone repair, PCB inspection, precision instrument maintenance, jewelry identification, and production line quality control.

Specifications:

• Magnification Range: 7x - 50x (with 10x eyepieces)
• Zoom System: 0.7x - 5.0x continuous zoom
• Working Distance: ≥100mm
• Eyepieces: WF10x22 wide-angle with diopter adjustment
• Objective Lens: HD coated optical lens with pure copper barrel
• Base Material: B11 aluminum alloy
• Base Dimensions: 260 x 320 x 17 mm
• Column Dimensions: 245 x 32 mm
• Overall Dimensions: 385 × 248 × 370 mm
• Net Weight: 3 kg
• Illumination: RL-033D LED ring light with adjustable brightness
• Output Port: CTV adapter compatible (C-mount interface)
• Focus System: Precision coarse and fine adjustment wheels
