Description

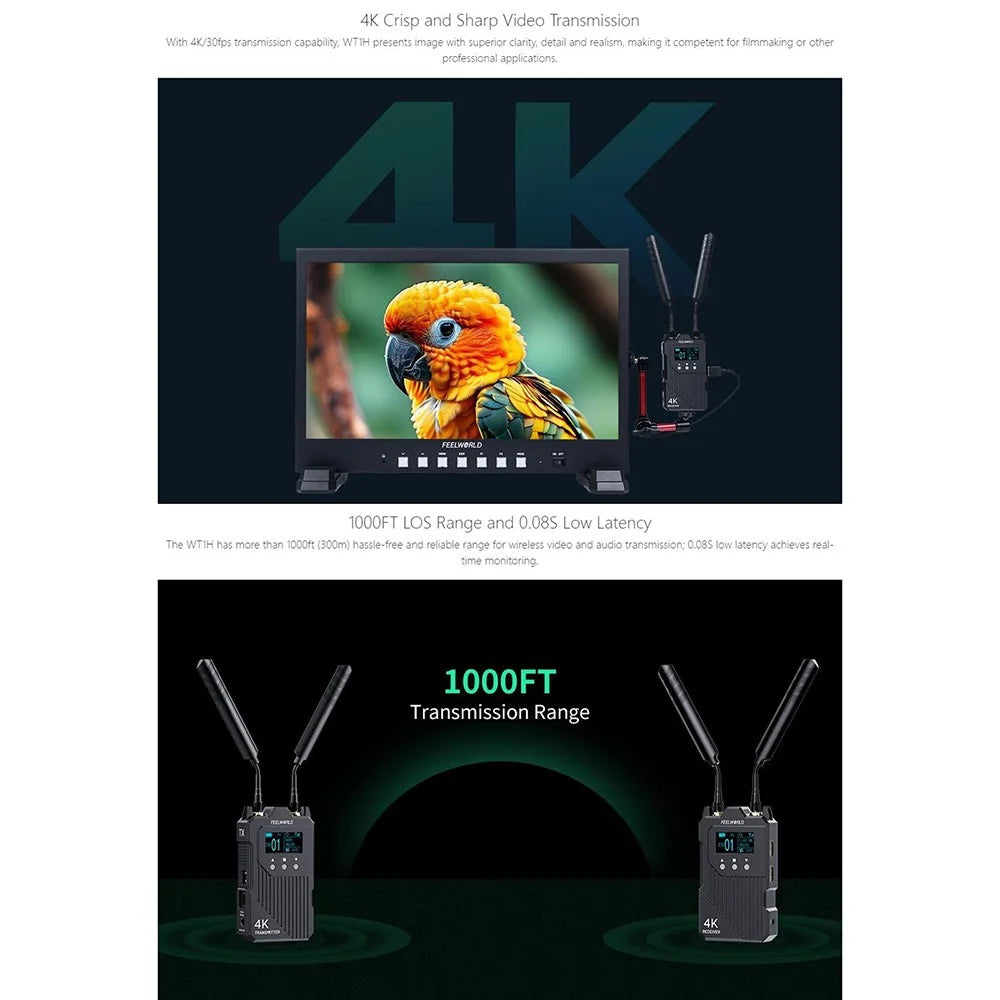

- 【Ultra-Low Latency Transmission】 Experience exceptional performance with 0.08-second ultra-low latency and a transmission range of over 1000 feet.

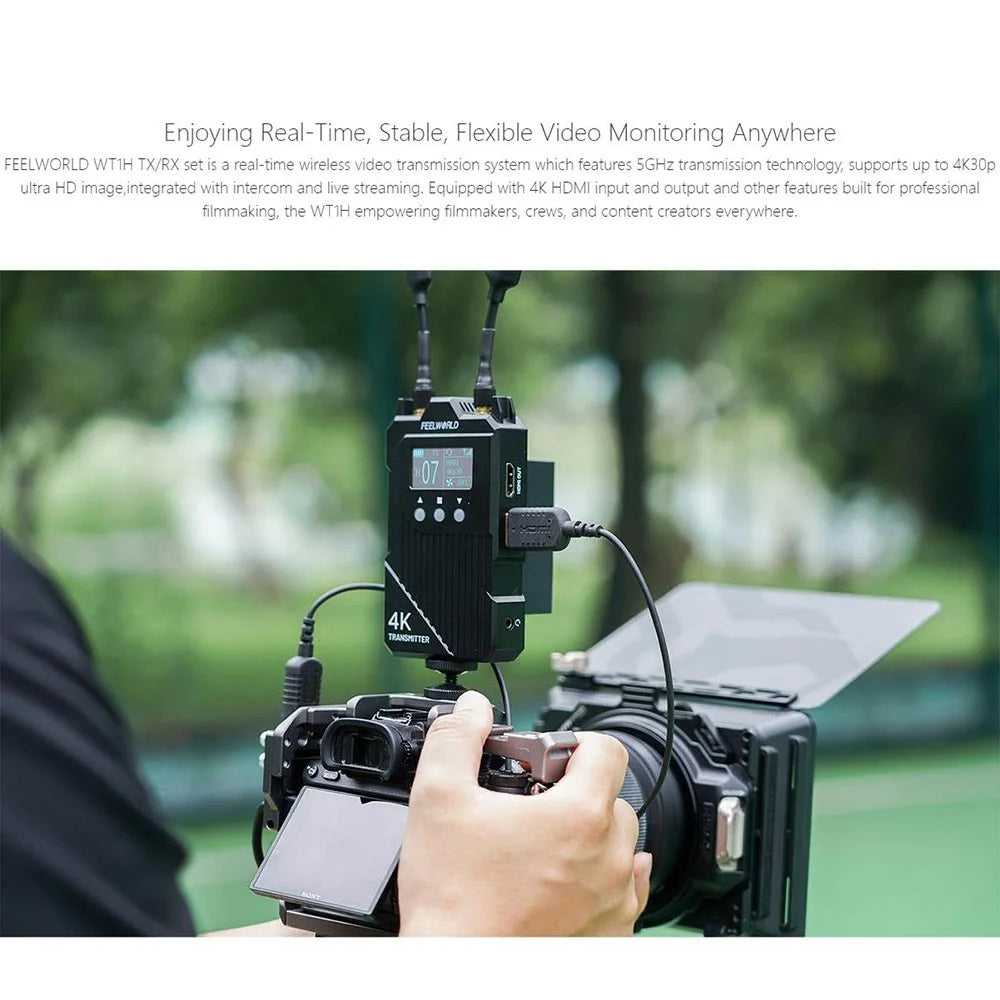

- 【4K Resolution Support】 Delivers crystal-clear, lifelike images with up to 4K 30Hz resolution for professional-grade video quality.
- 【Wireless Full-Duplex Intercom】 Enables real-time communication between directors and camera operators for seamless coordination.

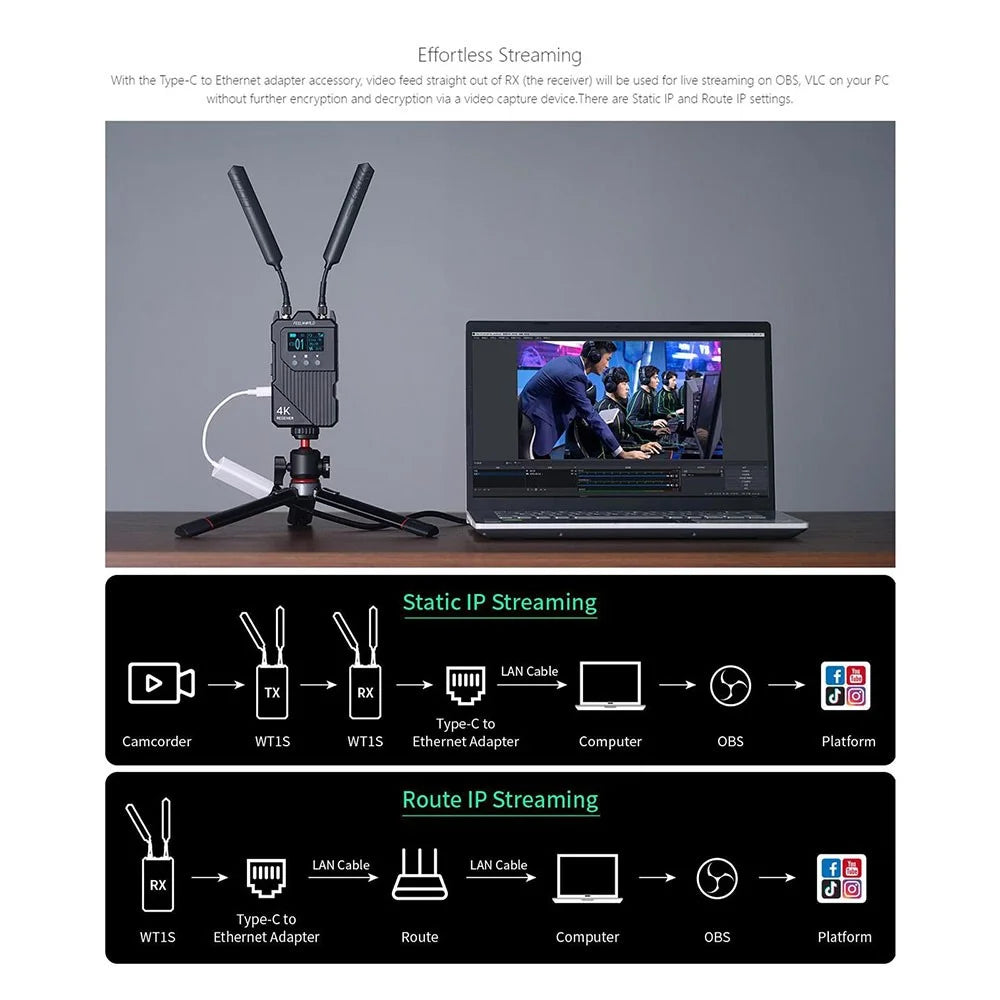

- 【Versatile Connectivity】 Equipped with a Type-C to Ethernet adapter for real-time streaming capabilities.

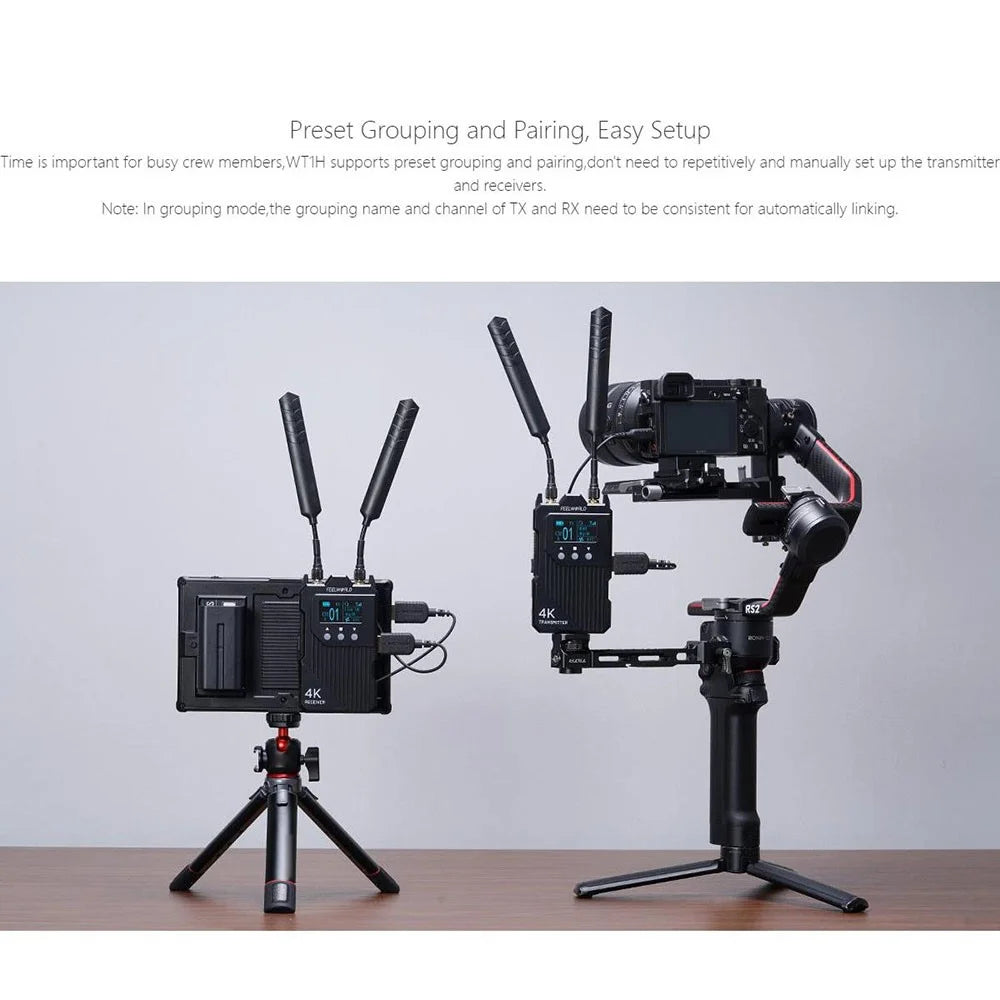

- 【Multi-Device Compatibility】 One transmitter can pair with up to 4 receivers, providing monitoring for the entire crew on set.
- 【Flexible Device Roles】 Transmitter can easily switch to receiver mode, offering adaptability in various shooting scenarios.
- 【Mobile App Integration】 Compatible with both Android and iOS systems for real-time monitoring and recording.
Specifications:
- Transmitter:
- Display: OLED
- Interfaces:
- 1 x HD Input
- 1 x HD Output
- 2 x Antenna Ports (RP-SMA Male)
- DC Power Input
- 3.5mm Headphone Jack
- Type-C Port
- Power Supply / Voltage:
- NP-F Battery Slot
- Type-C Port: 5V / 1.5A
- DC Adapter: 6–16V
- Power Consumption: < 5.5W
- HD Format:
- 480P60, 576P60
- 720P60 / 59.94 / 50
- 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
- 1080I60 / 59.94 / 50
- 2160P30 / 25 / 24
- HD Type-A
- Frequency Range: 5.1–5.9GHz
- Modulation: OFDM
- Transmission Power: 22dBm
- Bandwidth: 20 / 40MHz
- Latency: Minimum 0.08s
- Intercom Frequency Response: 20Hz–20KHz
- Operating Temperature: 0℃ – 40℃
- Storage Temperature: -20℃ – 60℃
- Dimensions (mm): 77.1 x 30 x 118.6 (excluding antenna)
- Weight: 138.8g
- Receiver:
- Display: OLED
- Interfaces:
- 2 x HD Outputs
- 2 x Antenna Ports (RP-SMA Male)
- DC Power Input
- 3.5mm Headphone Jack
- Type-C Port
- Power Supply / Voltage:
- NP-F Battery Slot
- Type-C Port: 5V / 1.5A
- DC Adapter: 6–16V
- Power Consumption: < 6W
- HD Format:
- 480P60, 576P60
- 720P60 / 59.94 / 50
- 1080P60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
- 1080I60 / 59.94 / 50
- 2160P30 / 25 / 24
- HD Type-A
- Frequency Range: 5.1–5.9GHz
- Modulation: OFDM
- Receiving Sensitivity: -87dBm
- Bandwidth: 20 / 40MHz
- Latency: Minimum 0.08s
- Intercom Frequency Response: 20Hz–20KHz
- Operating Temperature: 0℃ – 40℃
- Storage Temperature: -20℃ – 60℃
- Dimensions (mm): 77.1 x 30 x 118.6 (excluding antenna)
- Weight: 138.8g
In the box
- 1 x Transmitter
- 1 x Receiver
- 5 x Antennas
- 1 x Cold Shoe Mount
- 1 x USB-A to USB-C Converter
- 1 x USB-C to Ethernet Converter
- 1 x English Manual
