Description
- 【Professional 10X Optical Zoom】10X optical zoom professional conference camera makes you feel like you're face-to-face in the same room, enabling clear capture of distant subjects and detailed close-ups for various meeting scenarios.
- 【Plug and Play USB2.0 Output】Simple setup with USB2.0 video output, plug and play functionality with no driver installation required, compatible with Windows, Mac OSX, and Linux systems.
- 【High-Definition Video Quality】Supports 1080P@30fps delivering clear and realistic high-definition video with 2D & 3D noise reduction technology that reduces noise while maintaining image clarity.
- 【Auto Focus Performance】Advanced auto focus function accurately and quickly captures every shot, ensuring consistently sharp images throughout your presentations or meetings.
- 【Silent PTZ Control】High-speed ultra-quiet pan-tilt-zoom rotation enables multi-angle comprehensive shooting with smooth, noise-free operation that won't disturb your meetings.
- 【Power Management】Low power sleep and wake function for energy efficiency and extended device lifespan.
- 【Versatile Applications】Suitable for conferences, live streaming, medical seminars, online education, and other professional video applications.
Specifications:
- Model: USB10X
- Image Sensor: 1/2.9 inch high-quality CMOS sensor
- Effective Pixels: 2.07 million, 16:9
- Video Signal: 1920×1080P@30fps/25fps; 1280×720P@30fps/25fps; 1024×576P@30fps/25fps; 960×540P@30fps/25fps; 800×448P@30fps/25fps; 640×360P@30fps/25fps; 320×176P@30fps/25fps
- Viewing Angle: 8.8°～70°
- Focal Length: f=4.34mm～41.66mm
- Aperture: F1.85 – F2.43
- Optical Zoom: 10X
- Minimum Illumination: 0.5 lux (F1.8, AGC ON)
- Digital Noise Reduction: 2D & 3D
- White Balance: Auto/Manual/One-key white balance/Specified color temperature (3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K)
- Focus: Auto/Manual/One-key focus
- Exposure: Auto/Manual
- Backlight Compensation: On/Off
- Video Adjustment: Brightness, Chromaticity, Saturation, Contrast, Sharpness, Black and White mode, Gamma curve
- Signal-to-Noise Ratio: >55dB

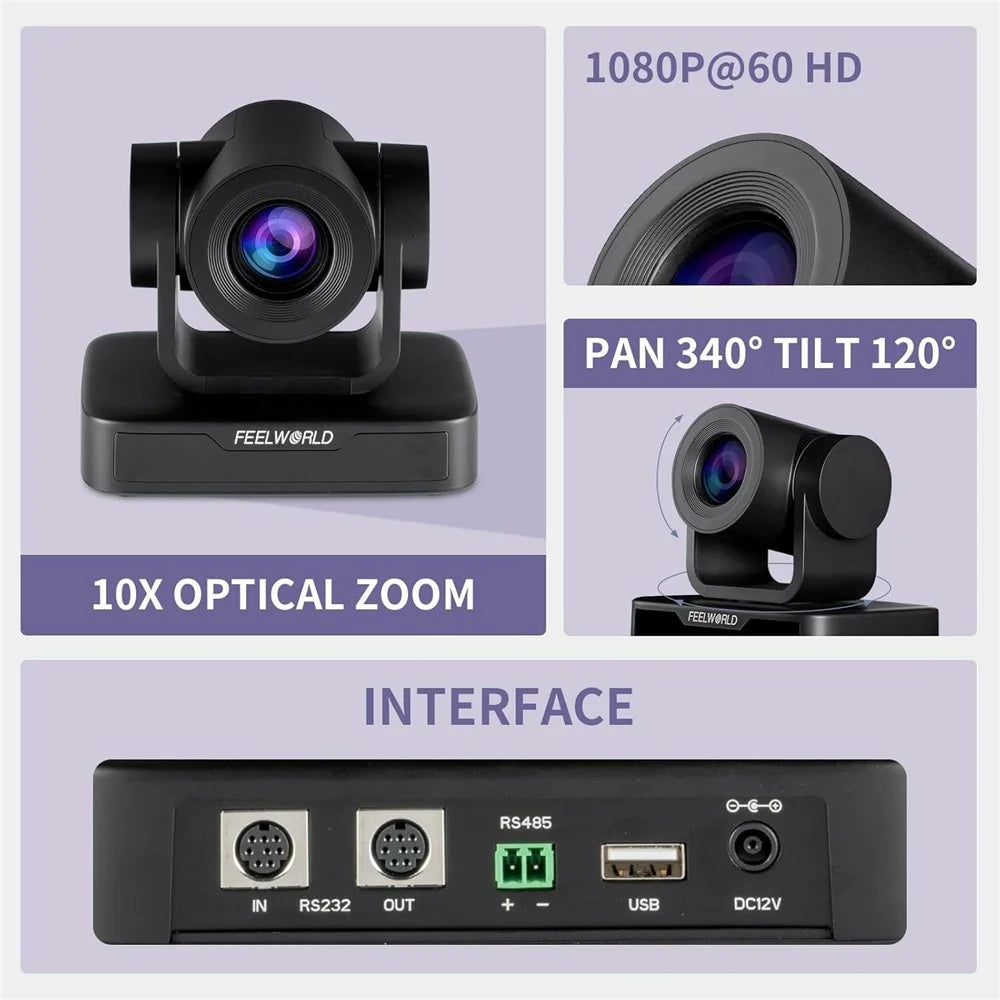

- Video Output Interface: USB2.0 (Type A)
- Video Compression Format: MJPG, H.264, H.265
- Control Interface: RS232 (Loop-through), RS485
- Control Protocol: VISCA/Pelco-D/Pelco-P
- Power Interface: HEC3800 power socket (DC12V)
- Supported Operating Systems: Windows 7, Windows 8, Windows 10, Mac OSX, Linux
- USB Communication Protocol: UVC
- Horizontal Rotation: -170°～+170°
- Tilt Rotation: -30°～+90°
- Horizontal Control Speed: 0.1～60°/sec
- Tilt Control Speed: 0.1～30°/sec
- Preset Position Speed: Horizontal: 60°/sec, Tilt: 30°/sec
- Preset Position Quantity: Up to 255 preset positions (10 via remote control)
- Working Voltage: 12V/0.5A
- Power Consumption: 2.5W (Maximum)
- Storage Temperature: -40℃～+70℃
- Storage Humidity: 20%～90%
- Working Temperature: -10℃～+50℃
- Working Humidity: 20%～80%
- Dimensions (W x H x D): 156.8mm x 112.6mm x 139.5mm
- Weight: 1kg
In the box
- 1 x Camera

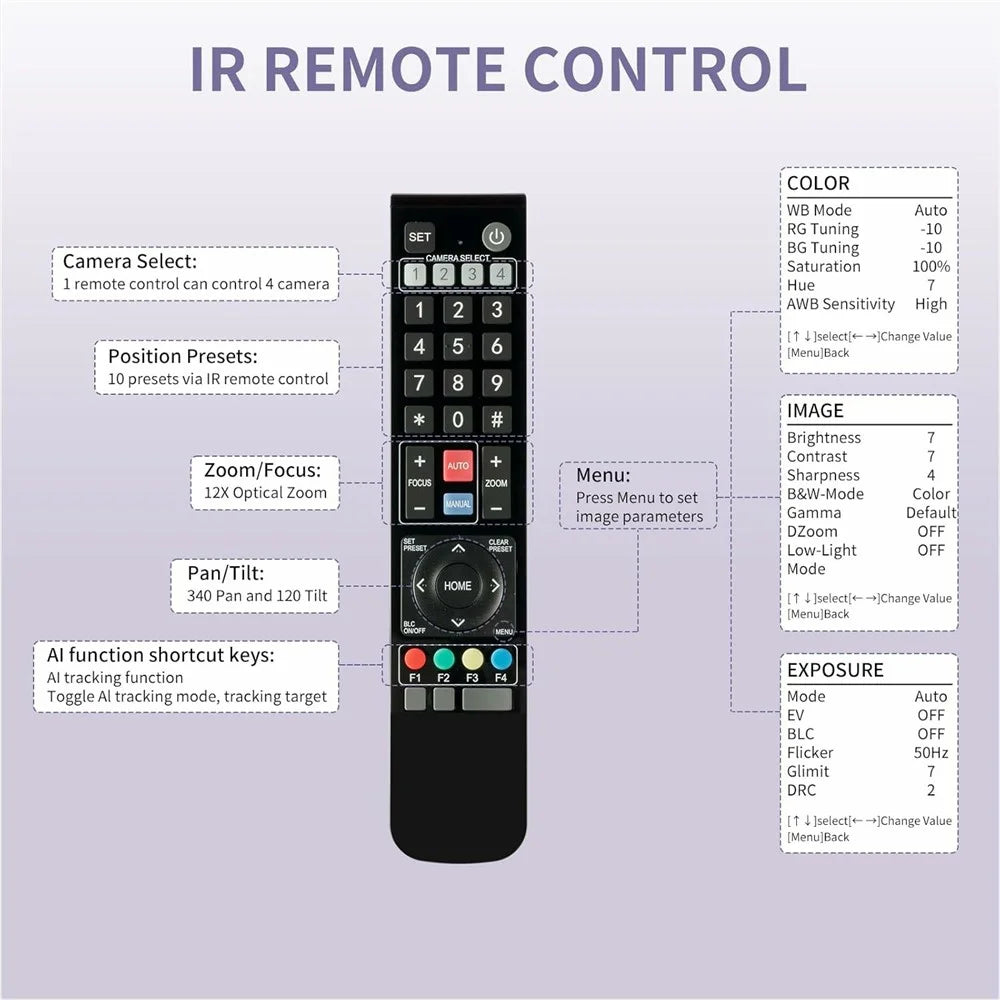

- 1 x Remote Control
- 1 x USB 2.0 Connection Cable
- 1 x RS232 Control Cable
- 1 x RS485 Terminal Block
- 1 x Power Adapter
- 1 x Lens Adapter Ring
- 1 x Power Cord
- 1 x English Manual
