Description

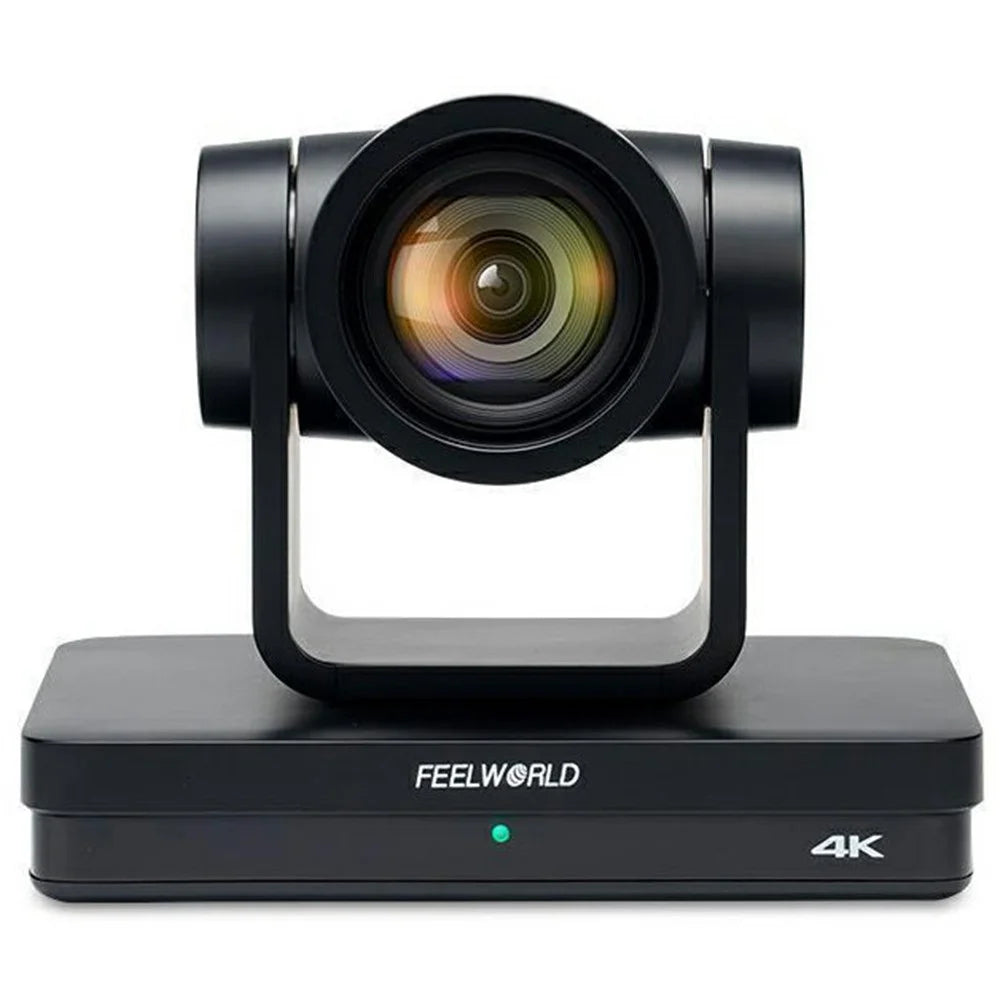

- 【4K Ultra HD Video Quality】Features 8.51 megapixel high-quality SONY CMOS image sensor with 4K@30fps video output, delivering crystal-clear ultra-high-definition video that vividly captures facial expressions and movements.
- 【12x Optical Zoom】Equipped with 12x 70° wide-angle optical zoom lens, meeting the demands of various scenarios and providing flexible shooting options for different distances.

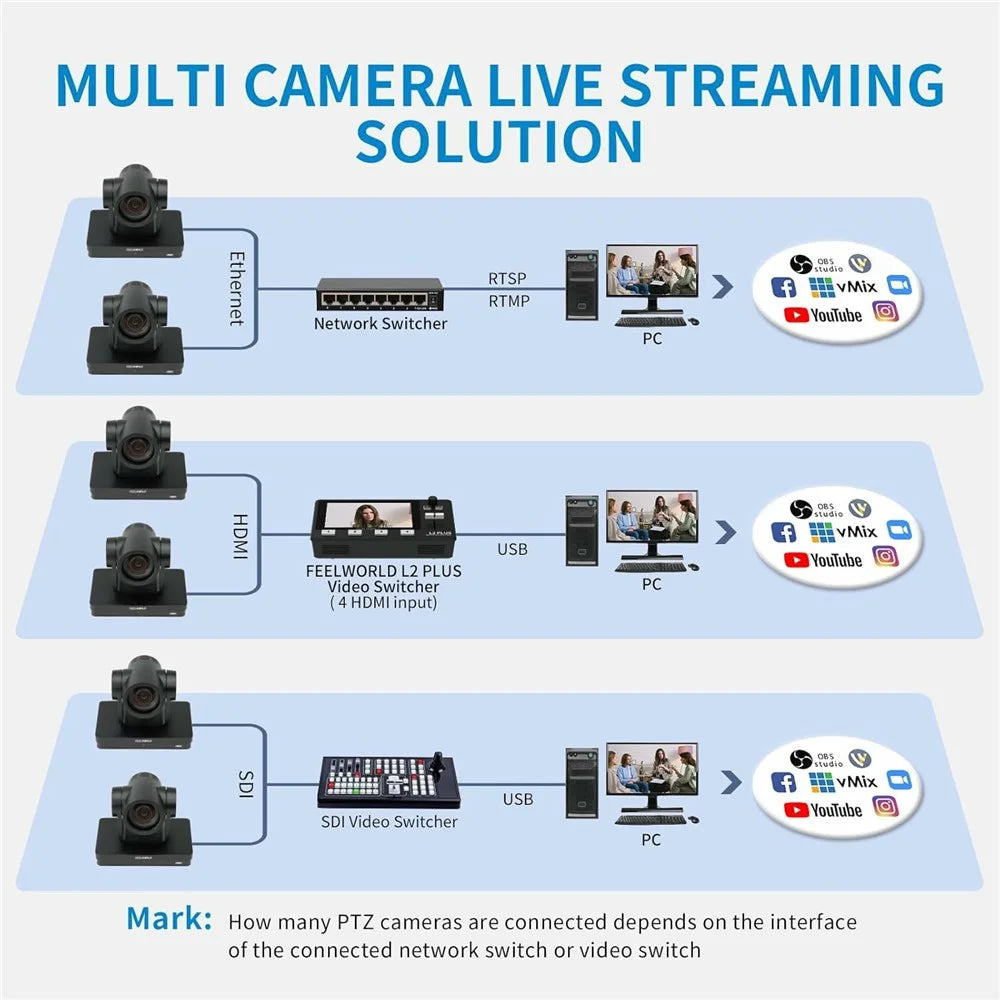

- 【Rich Video Output Interfaces】Multiple output options including HD/3G-SDI/USB3.0/IP network port, easily handling various video production requirements and ensuring compatibility with different equipment.
- 【PoE Support】Supports Power over Ethernet (PoE), eliminating complicated wiring installation for more convenient and faster setup.
- 【Auto Focus】Advanced auto-focus function accurately and quickly captures every shot, ensuring sharp and clear images at all times.
- 【High-Speed Silent PTZ】Ultra-quiet pan-tilt-zoom operation enables multi-angle comprehensive shooting without disturbing the environment.
- 【AI Tracking】Real-time AI portrait tracking and area tracking capabilities for automatic subject following and enhanced video production.

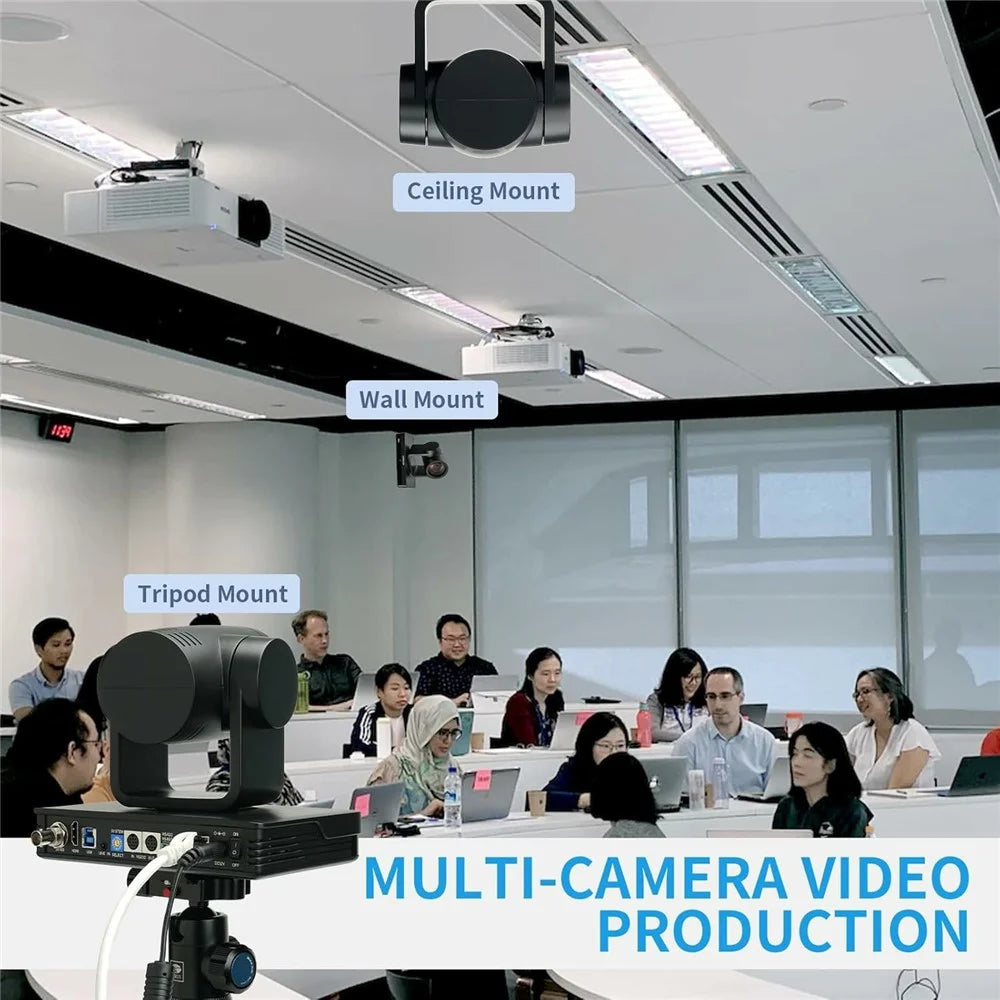

- 【Versatile Applications】Suitable for online education, live streaming, video conferencing, telemedicine, and other professional video applications.
Specifications:
- Model: UHD4K12X
- Image Sensor: 1/2.8 inch high-quality CMOS sensor
- Effective Pixels: 8.51M, 16:9
- Viewing Angle: Horizontal: 6.5° (narrow) ~ 70.9° (wide)
- Aperture: F1.6 ~ F2.8±5%
- Digital Zoom: 15X
- Optical Zoom: 12X
- Minimum Illumination: 0.5Lux (F1.8, AGC ON)
- Digital Noise Reduction: 2D & 3D
- White Balance: Auto/Manual/One-key white balance/Specified color temperature
- Focus Mode: Auto/Manual/One-key focus
- Exposure Mode: Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority
- Aperture Range: F1.8 ~ F11, CLOSE
- Shutter Speed: 1/25~1/20000
- Signal-to-Noise Ratio: >50dB

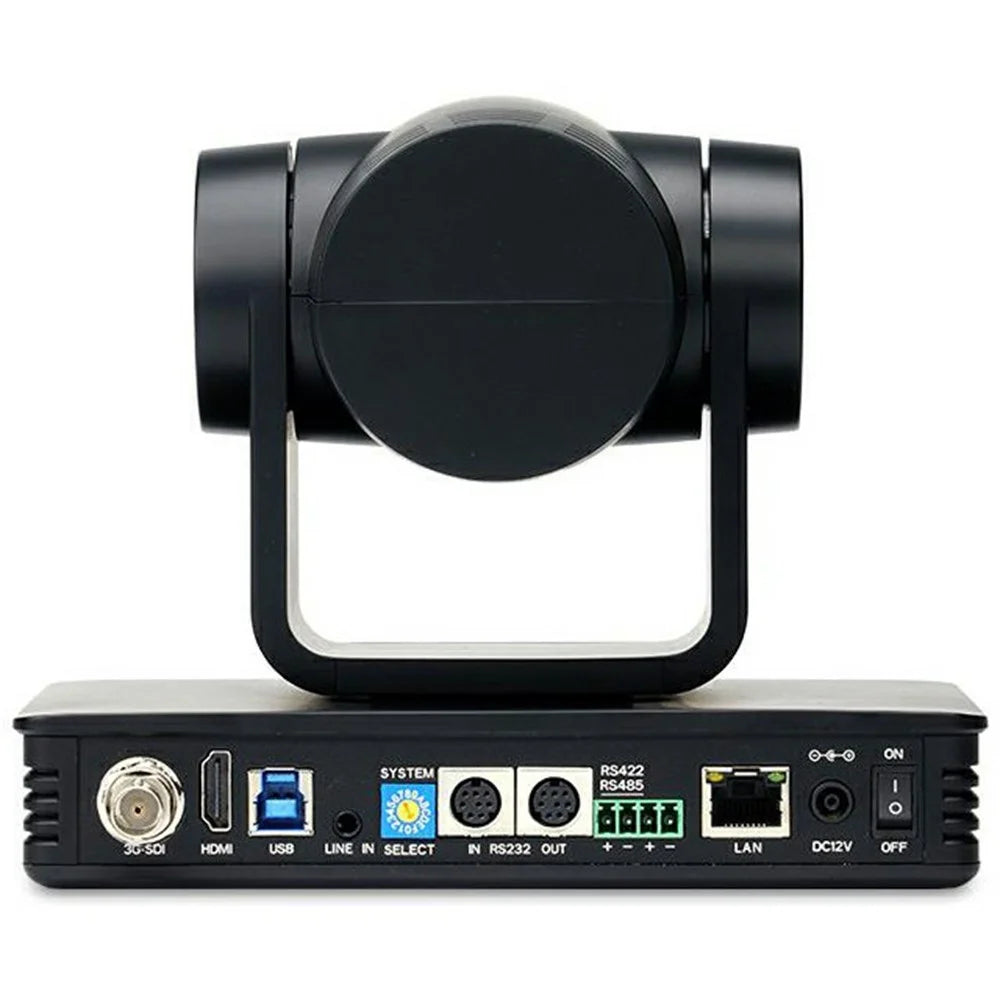

- Video Output Interfaces: HD, SDI, LAN, USB3.0
- Video Compression Format: LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12
- Audio Interface: Dual-channel 3.5mm linear input
- Audio Compression Format: AAC, MP3, G.711A
- Network Interface: 10M/100M/1000M adaptive Ethernet port, supports PoE power supply
- Control Interface: RS232-IN, RS232-OUT, RS422 compatible with RS485
- Control Protocol: VISCA/Pelco-D/Pelco-P
- Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT
- Power Interface: HEC3800 power socket (DC12V)

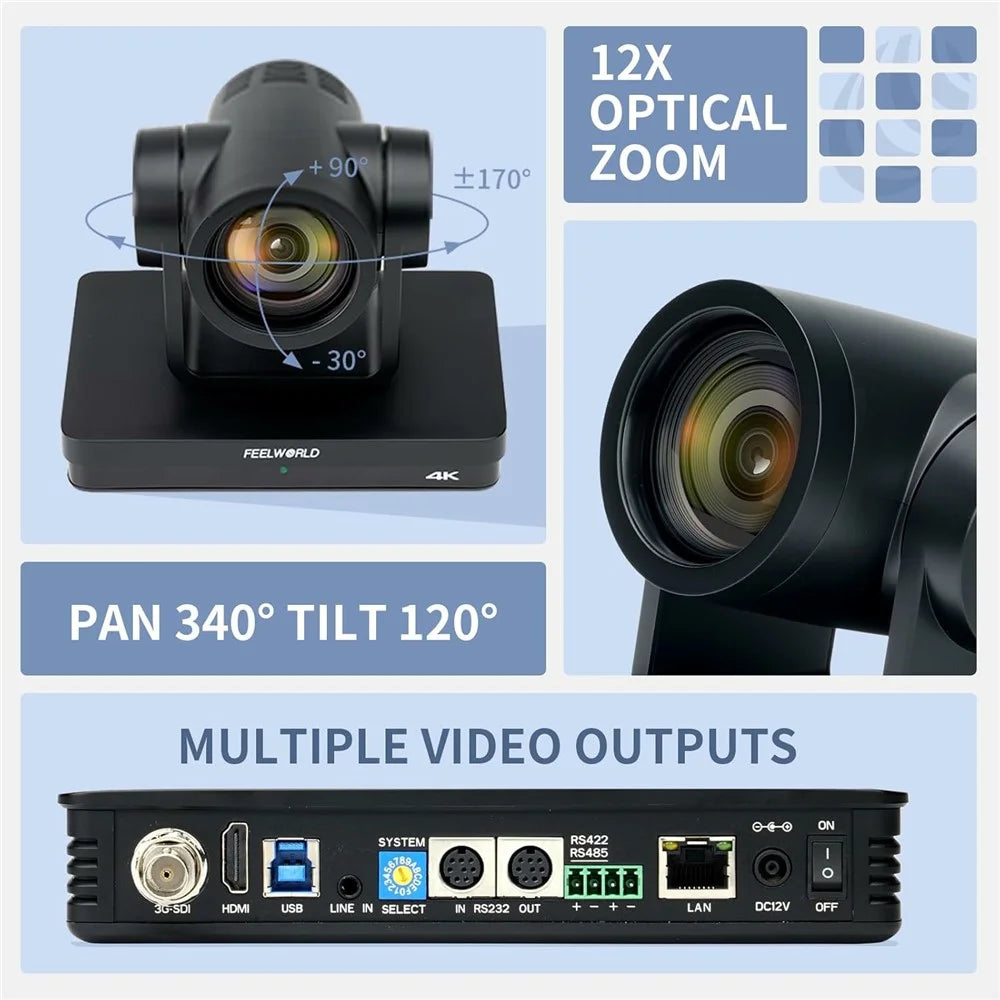

- Horizontal Rotation: -170°~+170°
- Tilt Rotation: -30°~+90°
- Horizontal Control Speed: 0.1~60°/sec
- Tilt Control Speed: 0.1~30°/sec
- Preset Speed: Horizontal: 60°/s, Tilt: 45°/s
- Preset Positions: Up to 255 user-configurable presets (10 via remote control)
- HD Output: 4KP30/25, 1080P60/59.94/50/30/29.97/25, 720P60/59.94/50
- SDI Output: 1080P30/29.97/25
- Input Voltage: DC12V±10%
- Input Current: <1A
- Power Consumption: ≤12W
- Storage Temperature: -10℃~+70℃
- Storage Humidity: 20%~95%
- Working Temperature: -10℃~+50℃
- Working Humidity: 20%~80%
- Dimensions (WxHxD): 181mm x 115mm x 149mm
- Weight: 1.2kg
In the box
- 1 x Camera
- 1 x Remote Control
- 1 x RS232 Control Cable
- 1 x RS422 Terminal Block
- 1 x Power Adapter
- 1 x USB 3.0 Cable
- 1 x English Manual
