Description
- 【Ultra-Bright 7-inch 4K Display】Featuring a 7-inch IPS screen with 1920x1200 resolution and 2200 nits brightness, the LUT7S PRO ensures clear visibility even in bright outdoor conditions.

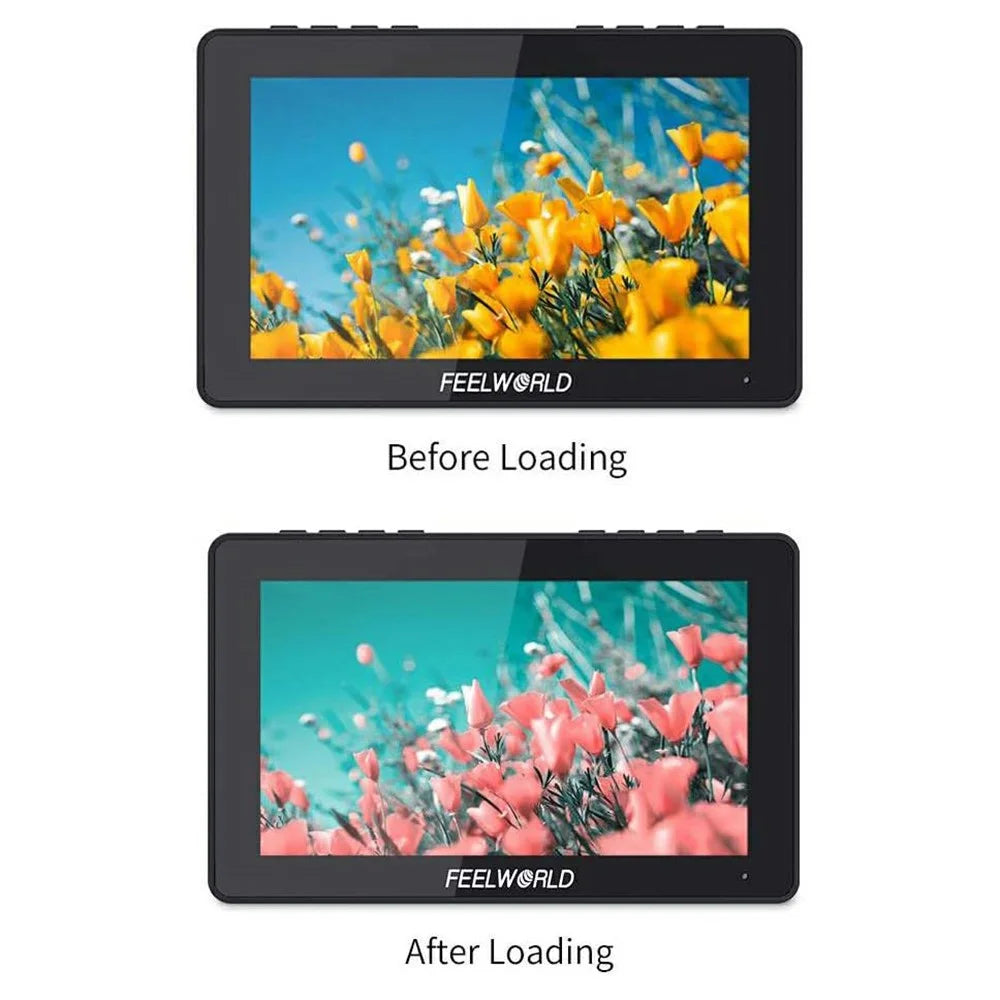

- 【Professional Color Management】Support for 3D LUT and Log to Rec.709 conversion, along with customizable LUT uploads, enables precise color grading and monitoring.

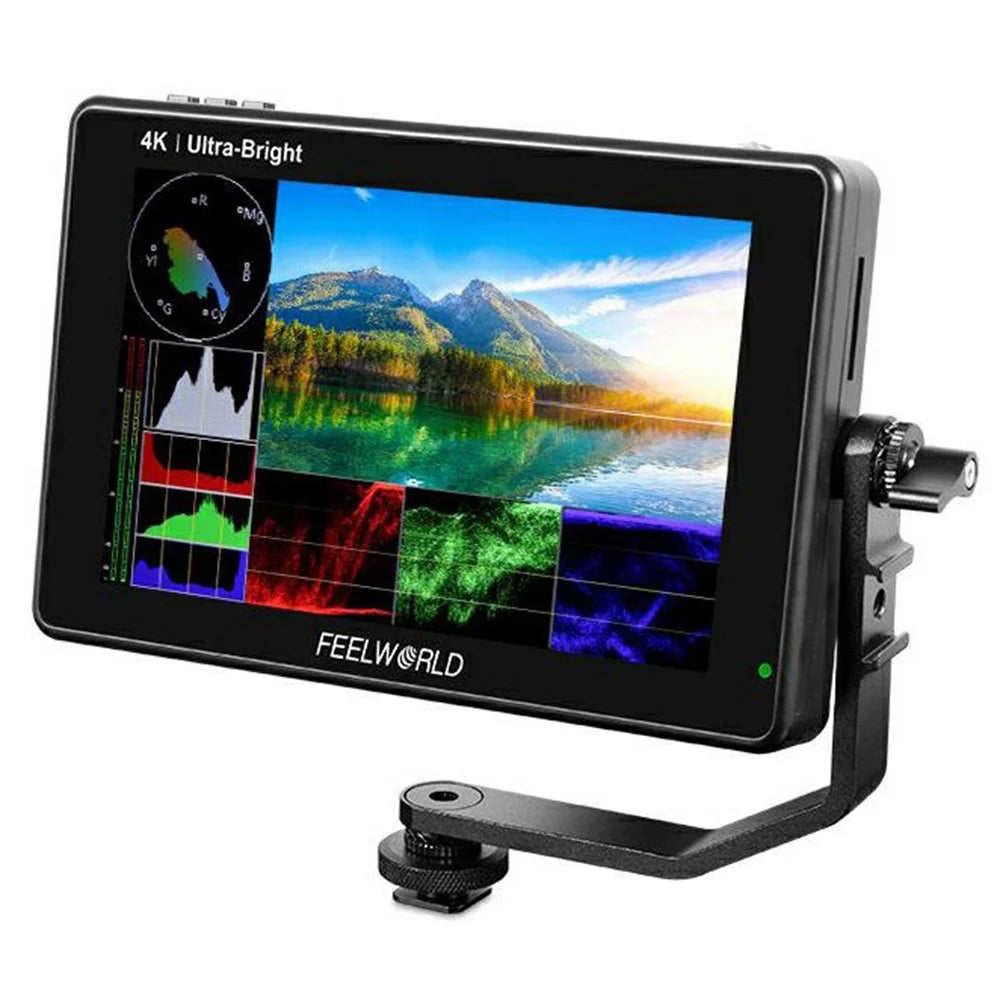

- 【Comprehensive Monitoring Tools】Equipped with waveform, vectorscope, histogram, focus assist, zebra, and false color functions for precise image analysis and exposure control.
- 【Versatile Input/Output Options】Includes HD and 3G-SDI inputs and outputs, supporting various video formats up to 4K UHD (3840x2160p) at 30fps.

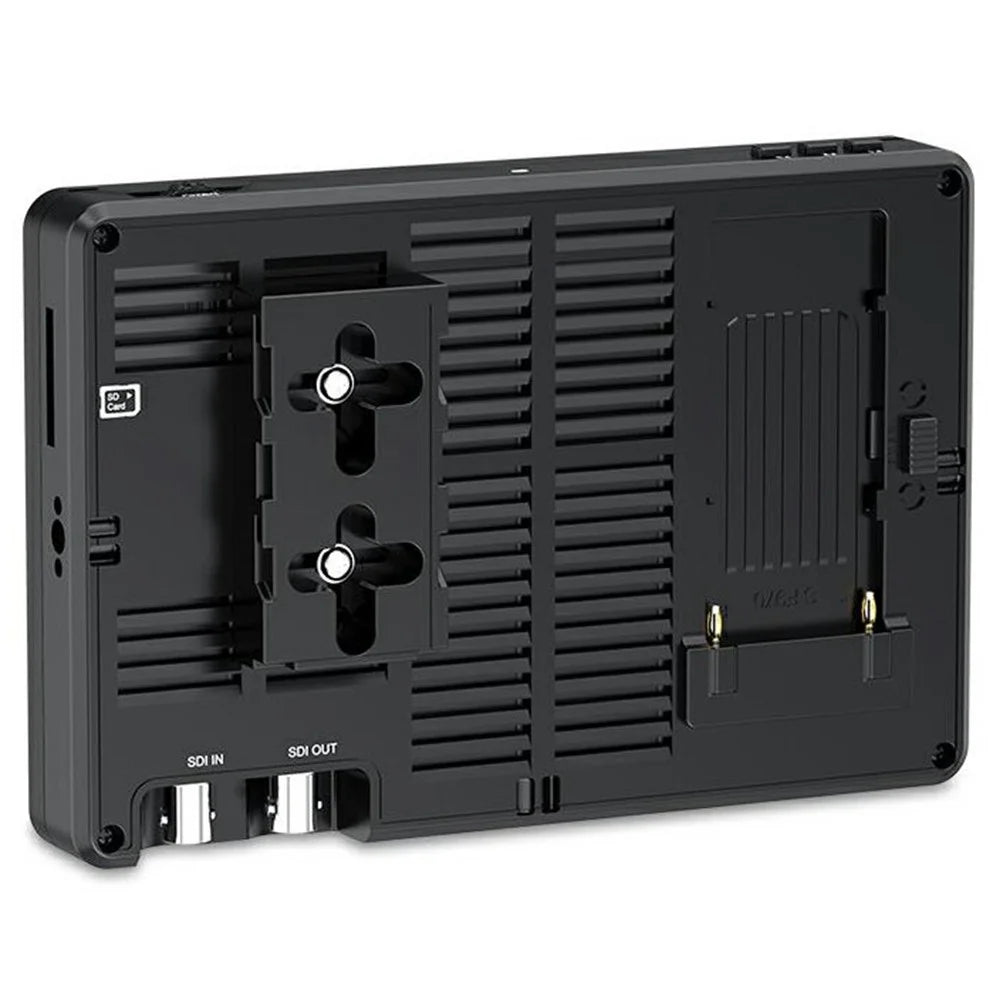

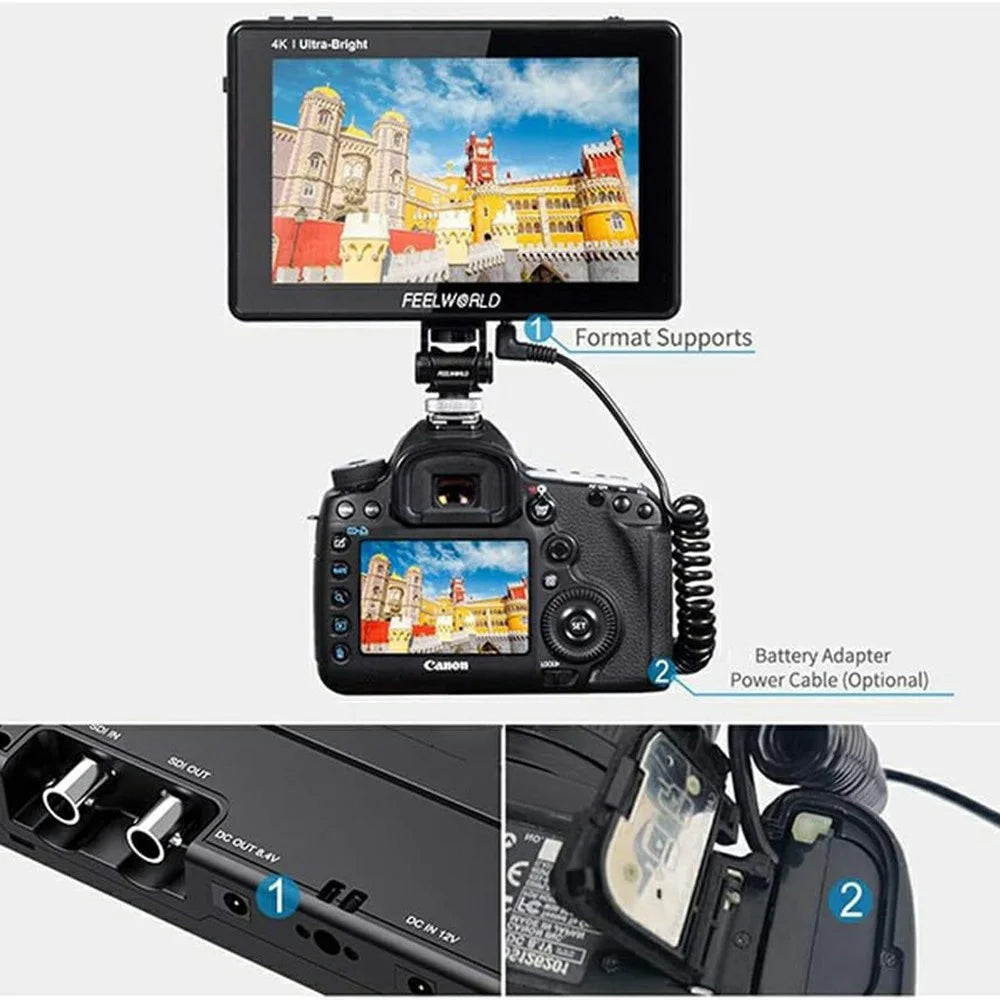

- 【Innovative Power Solution】Features for Sony F970 battery plate design on the back, allowing for powering wireless transmitters, lights, or other accessories directly from the monitor.

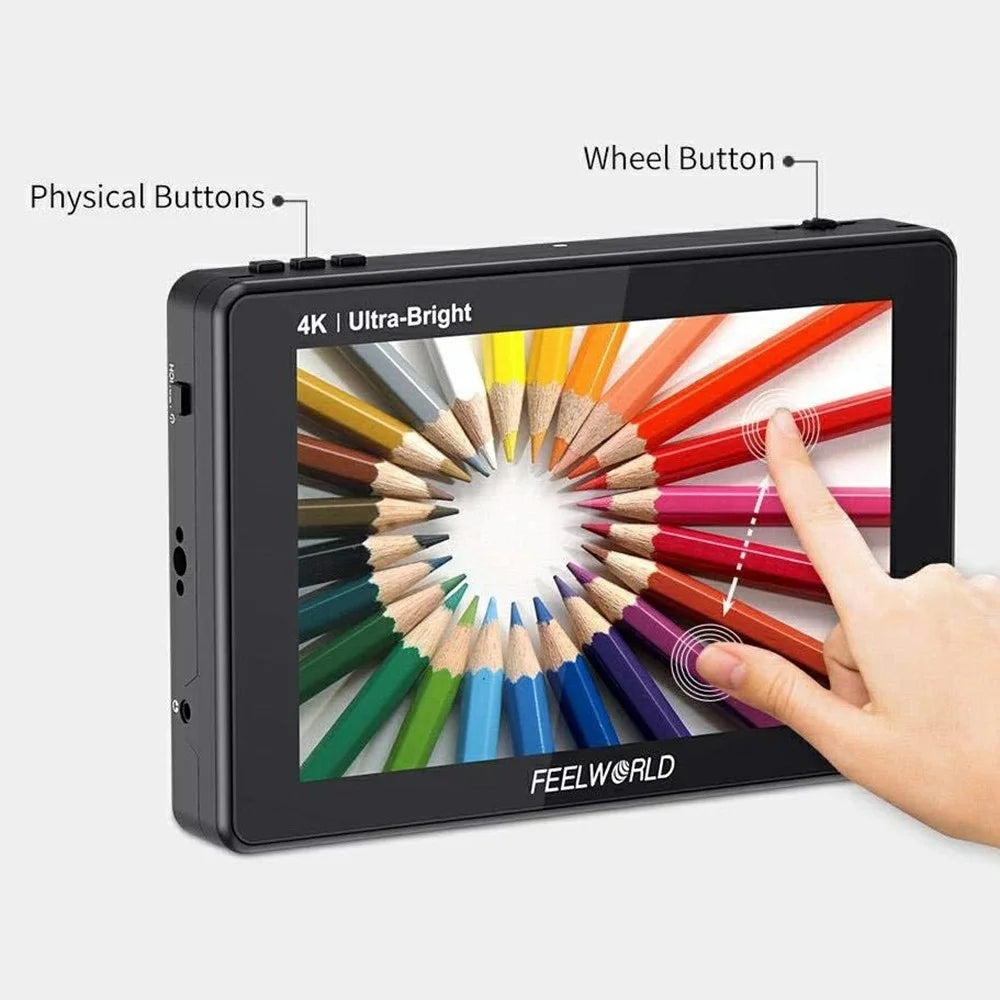

- 【Touch Screen Interface】Intuitive touch screen menu system for easy navigation and quick access to all monitoring tools and settings.
- 【Durable Design】With a wide operating temperature range and multiple mounting options, the LUT7S PRO is built for professional field use in various environments.
Specifications:

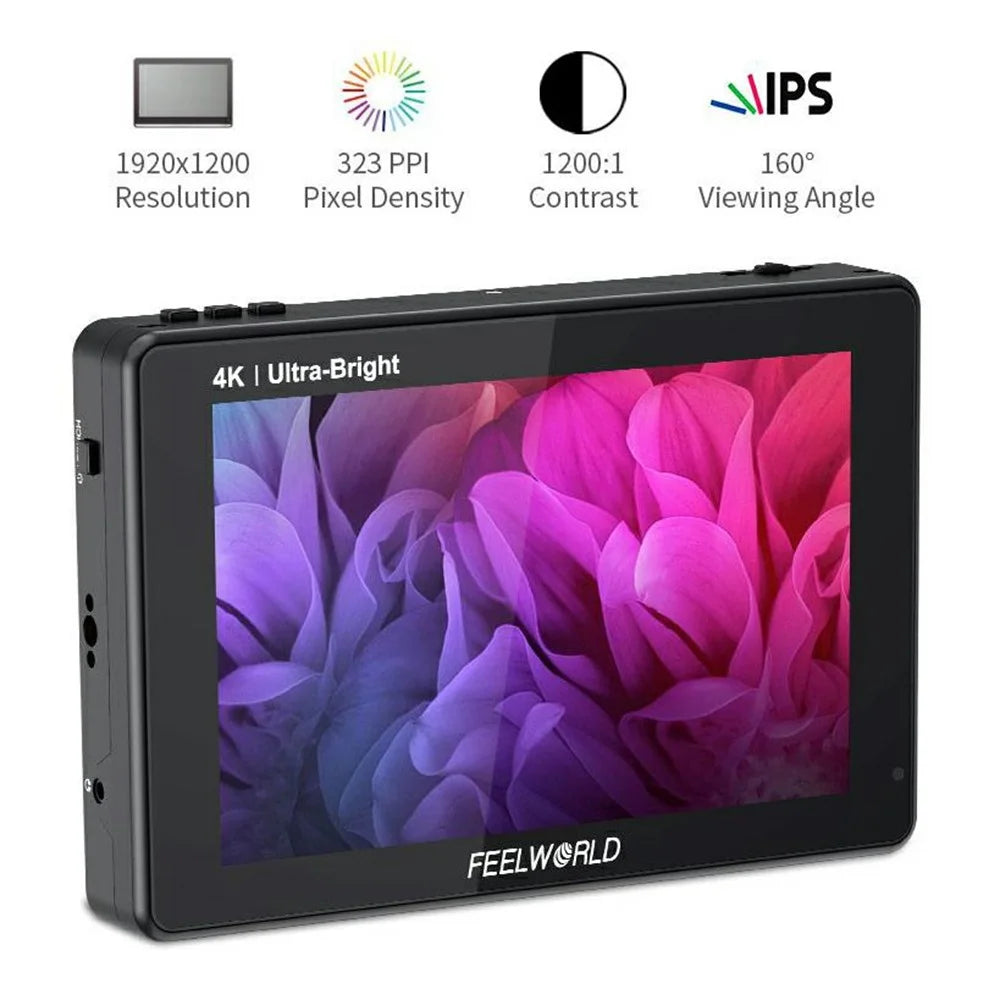

- Screen Size: 7-inch IPS
- Resolution: 1920x1200 pixels
- Brightness: 2200 cd/m² (with light sensor)
- Contrast Ratio: 1200:1
- Viewing Angle: 80°/80° (L/R) 80°/80° (U/D)
- Inputs: 1x 3G-SDI, 1x HD
- Outputs: 1x 3G-SDI, 1x HD, 1x DC OUT 8V
- Audio: Headphone jack, Speaker
- Supported Formats: Up to 4K UHD 3840x2160p (30fps), 4096x2160p (24Hz)
- Power Input: DC 7-24V
- Power Consumption: ≥20W
- Operating Temperature: -20℃ to 50℃
- Dimensions: 190(L) x 126(H) x 27(D) mm
- Weight: 450g
- Mounting: 1/4-20 thread (left, right, bottom)

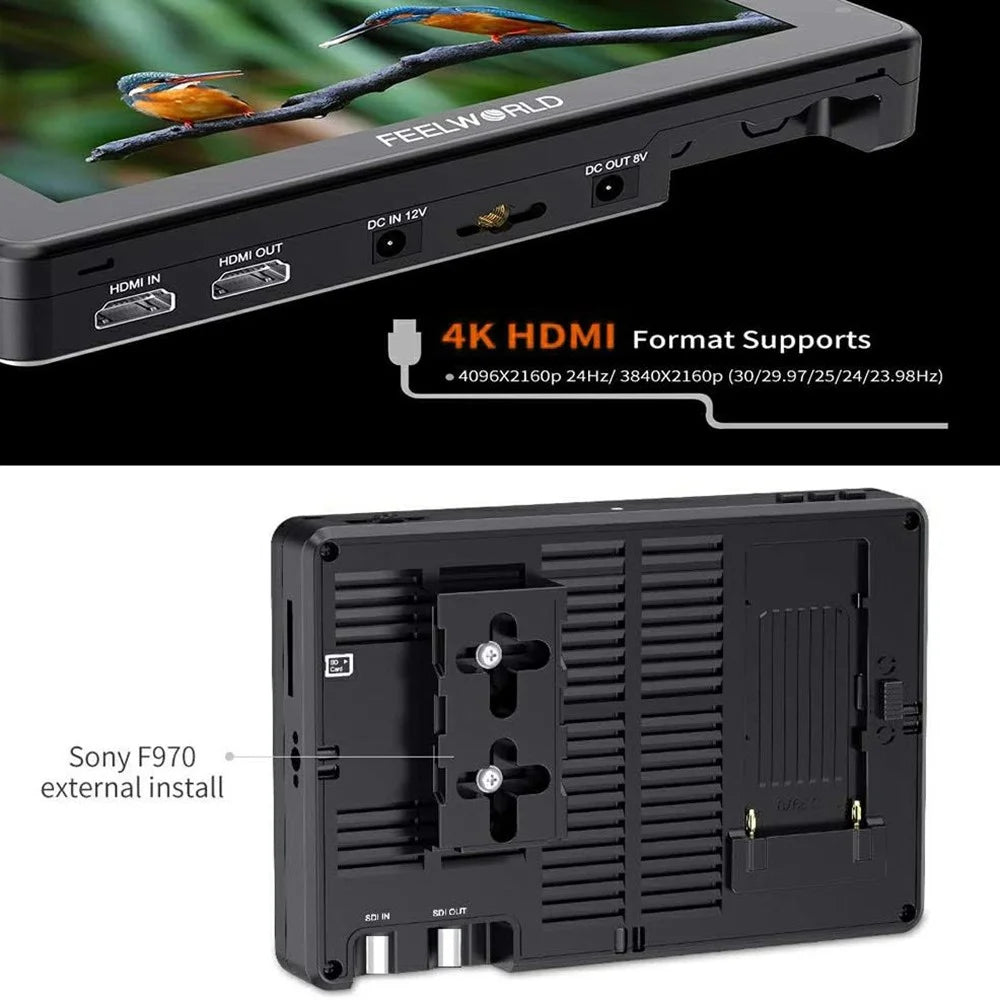

- Battery Plate: Sony F970 compatible
In the box
- 1 x Camera Field Monitor
- 1 x HD 1-to-2 Cable
- 1 x Tilt Stand
- 1 x English Manual
