Description
- 【Compact and Portable】 Small and lightweight design for easy transport and on-the-go video production.

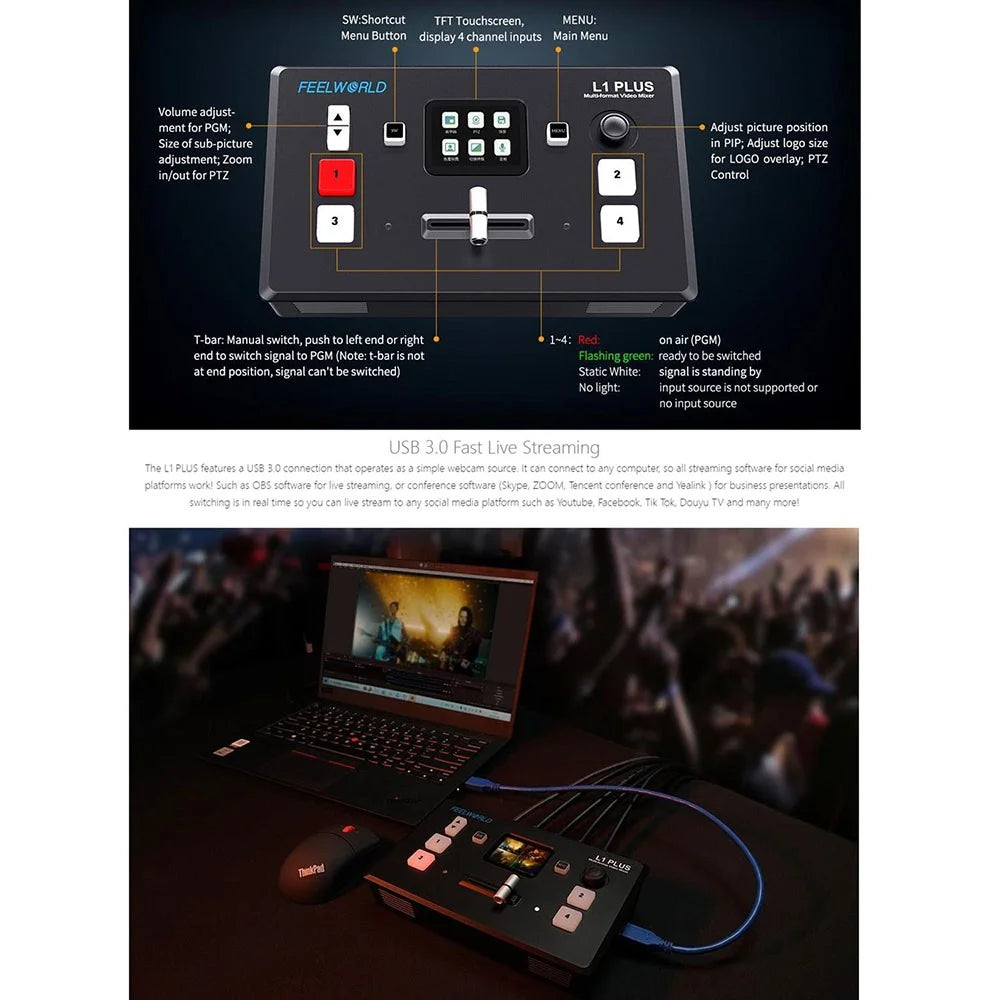

- 【Intuitive Touch Interface】 Icon-based touch operation allows for quick mastery and efficient control.
- 【Versatile Control】 Joystick enables smooth PTZ camera movement, PIP positioning, and logo overlay resizing.

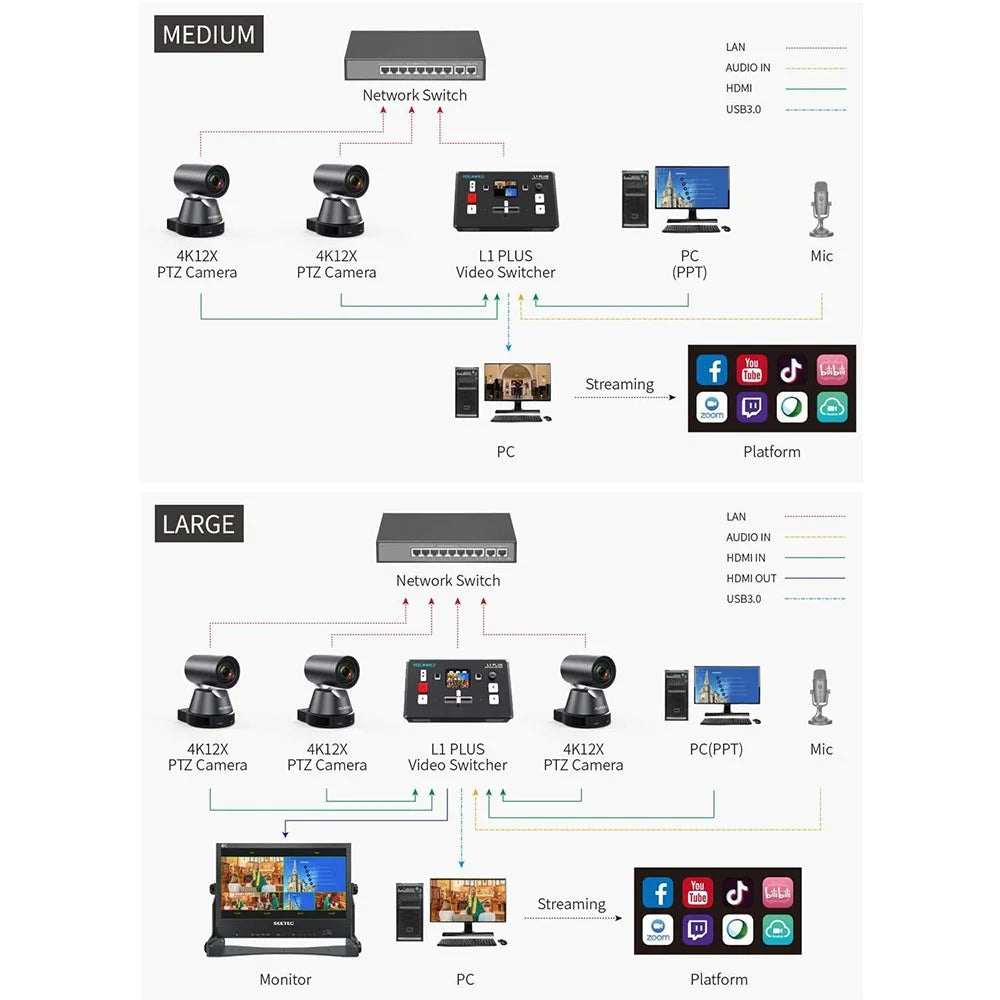

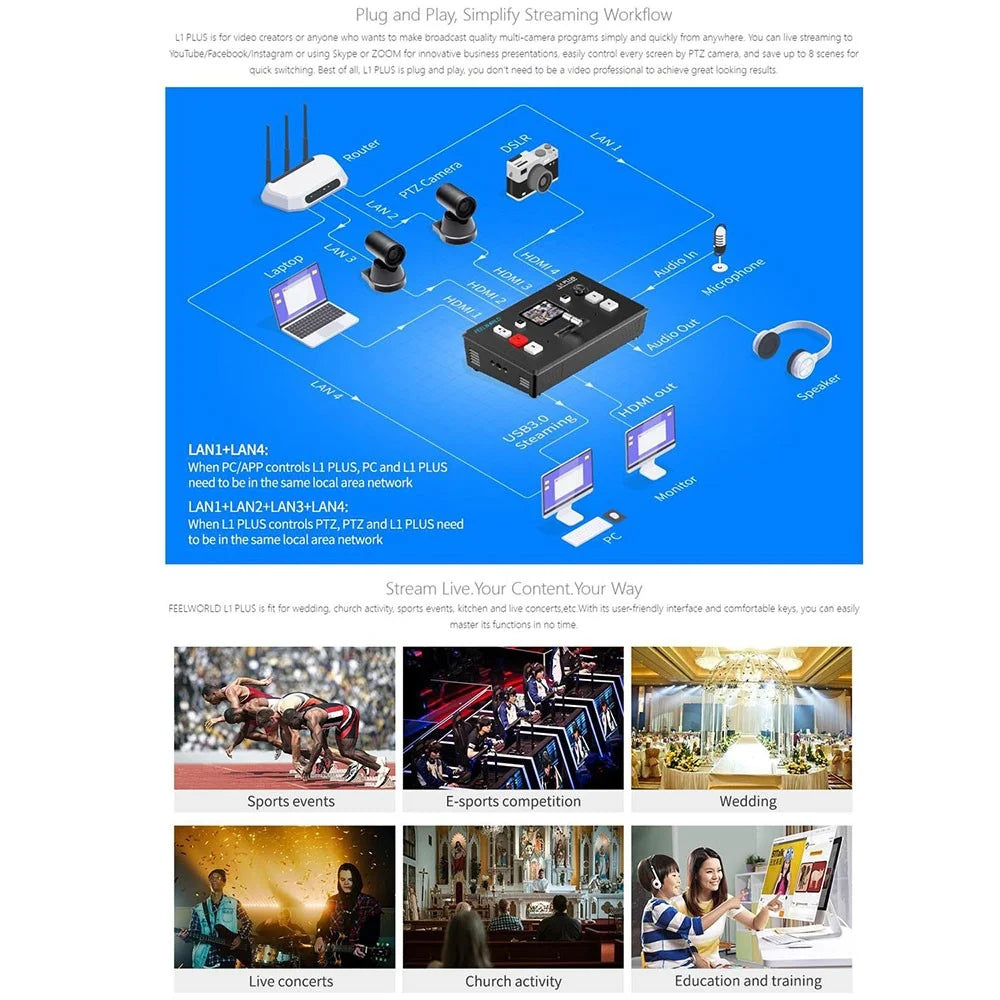

- 【Extensive Connectivity】 Supports up to 60 signal inputs with 4K capability and USB 3.0 for fast live streaming.
- 【Professional Features】 Includes chroma key, logo overlay, T-Bar transitions, and 14 transition effects for dynamic live production.
Specifications:

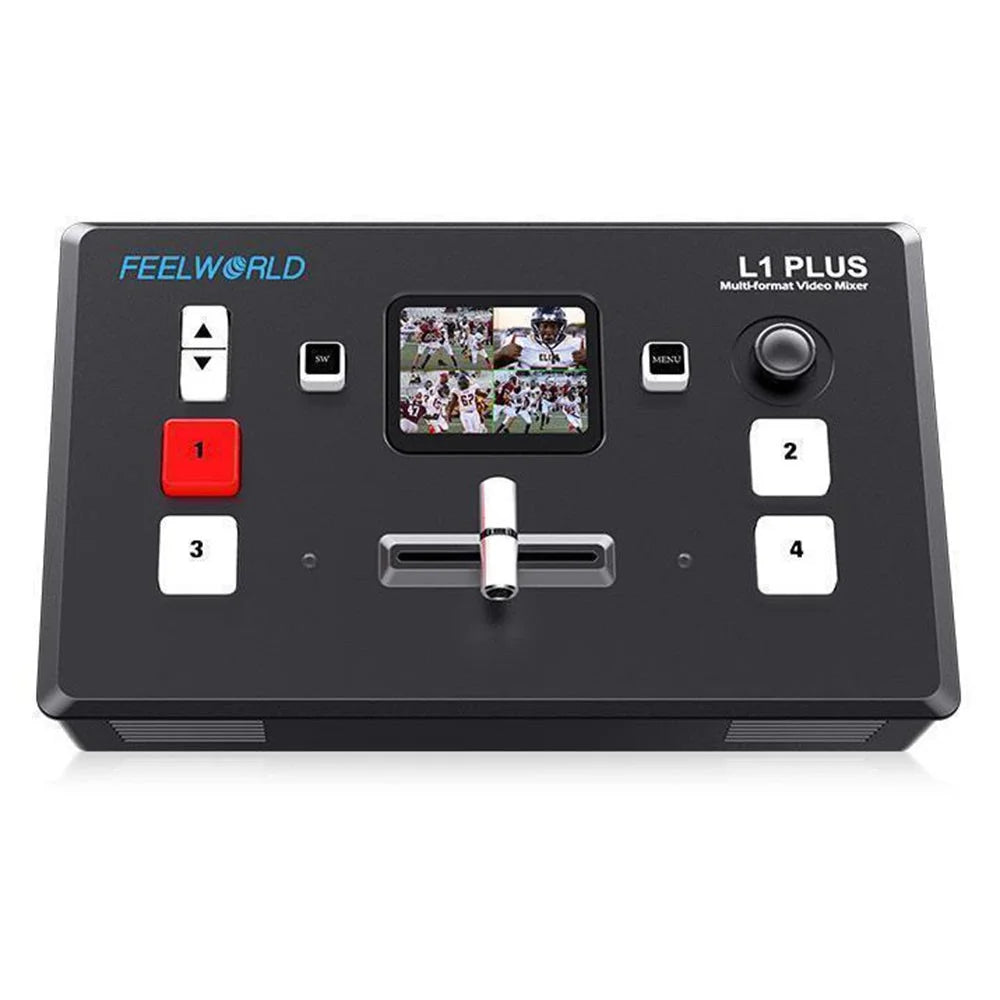

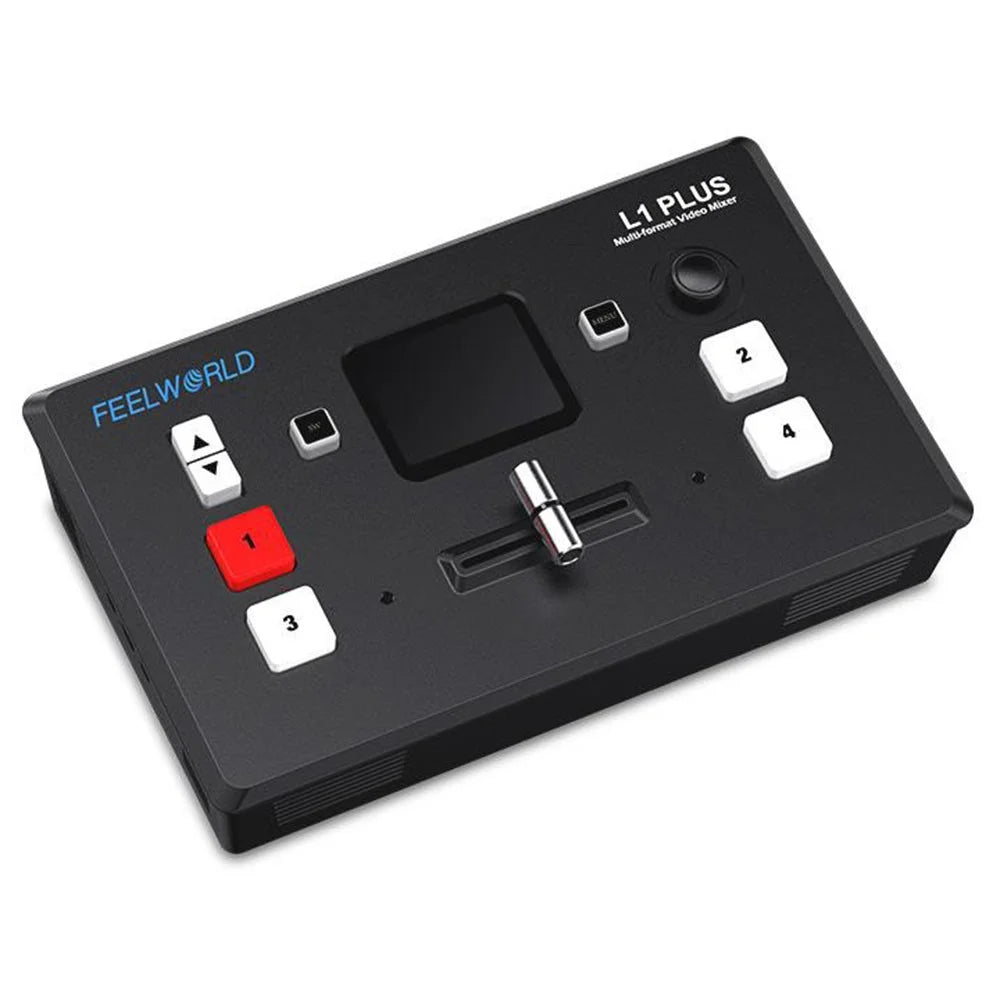

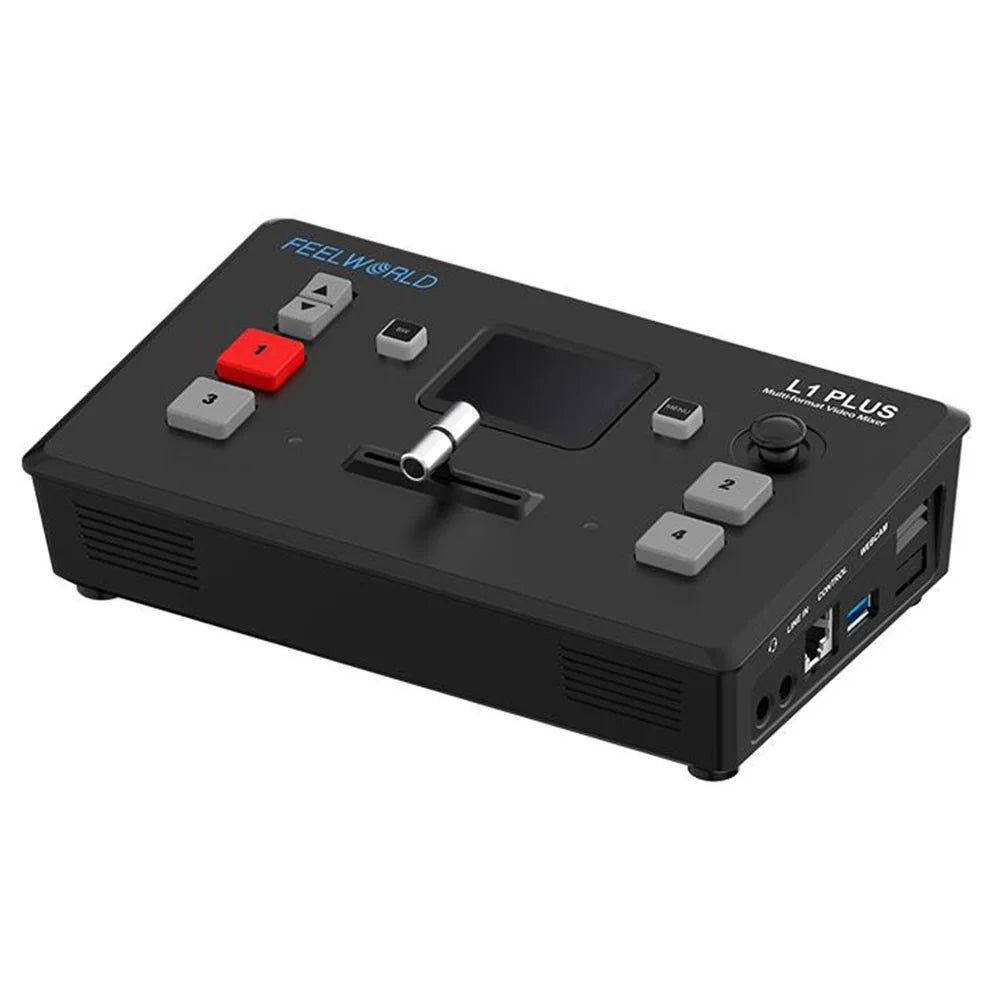

- Model: L1 PLUS
- Display: 2.0-inch touchscreen with LED backlight
- Inputs: 4 x HD-A (HD 2.0)
- Outputs: 1 x HD-A (HD 1.3), 1 x USB Type-A (USB 3.0)
- Communication: 1 x RJ45 LAN (for CAT6 cable)
- Audio: 2 x 3.5mm stereo jack inputs, 1 x 3.5mm stereo jack output
- Power Input: PD 12V/1.5A
- Power Consumption: 20W
- Operating Temperature: 0°C - 50°C
- Humidity: 10% - 85%
- Dimensions: 194 x 109.6 x 47.8 mm
- Weight: 468g
- Supported Video Formats: HD 2.0, HDCP 2.2
- Streaming Format: ITU-T H.265, ISO/IEC 23008-2
- Audio Format: LPCM/2ch/24bit/16bit/48kHz
- Latency: Less than 4 frames
In the box
- 1 x Video Switcher
- 1 x PD Power Adapter
- 1 x Type-C Cable
- 1 x Audio Cable
- 1 x USB3.0 Cable
- 1 x English Manual
