Description

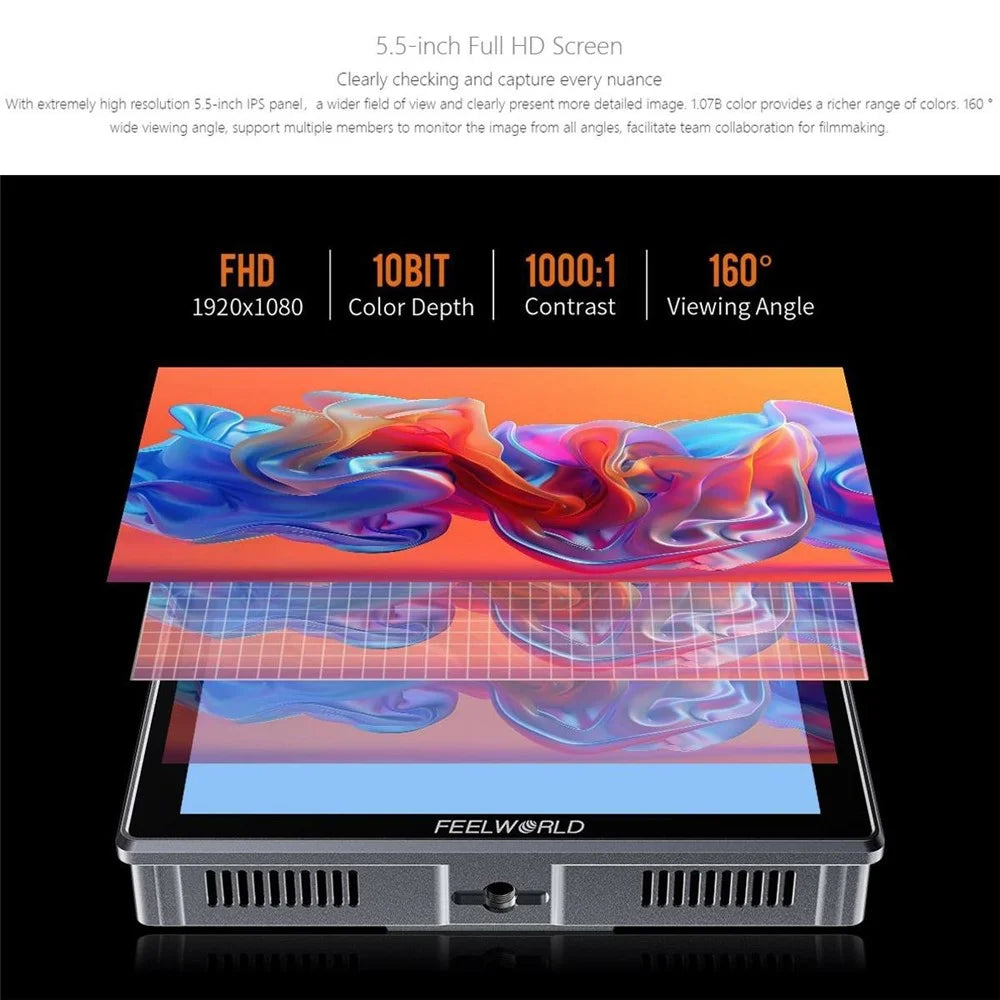

- 【High Brightness Display】5.5-inch IPS screen with 1200cd/m2 brightness for clear visibility in various lighting conditions.

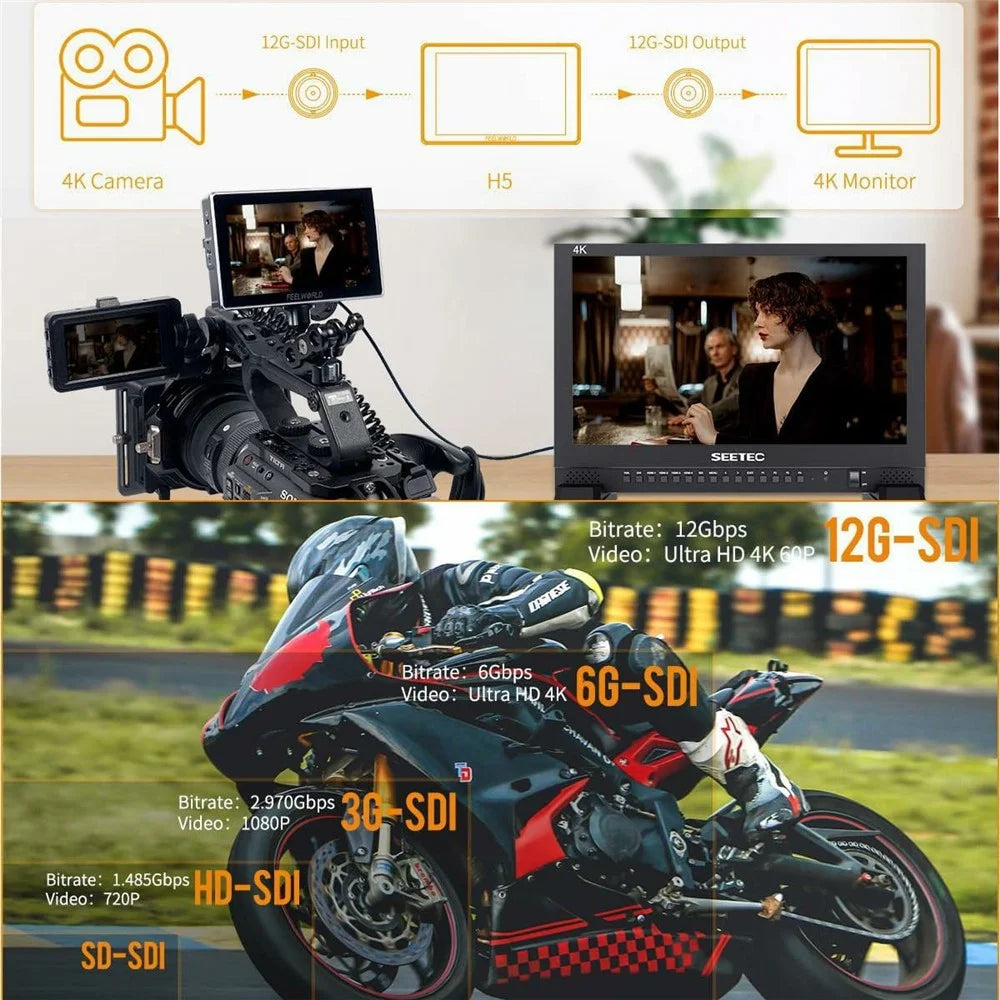

- 【Professional Inputs】Equipped with 12G-SDI and HD 2.0 inputs, supporting up to 4K 60fps video formats.

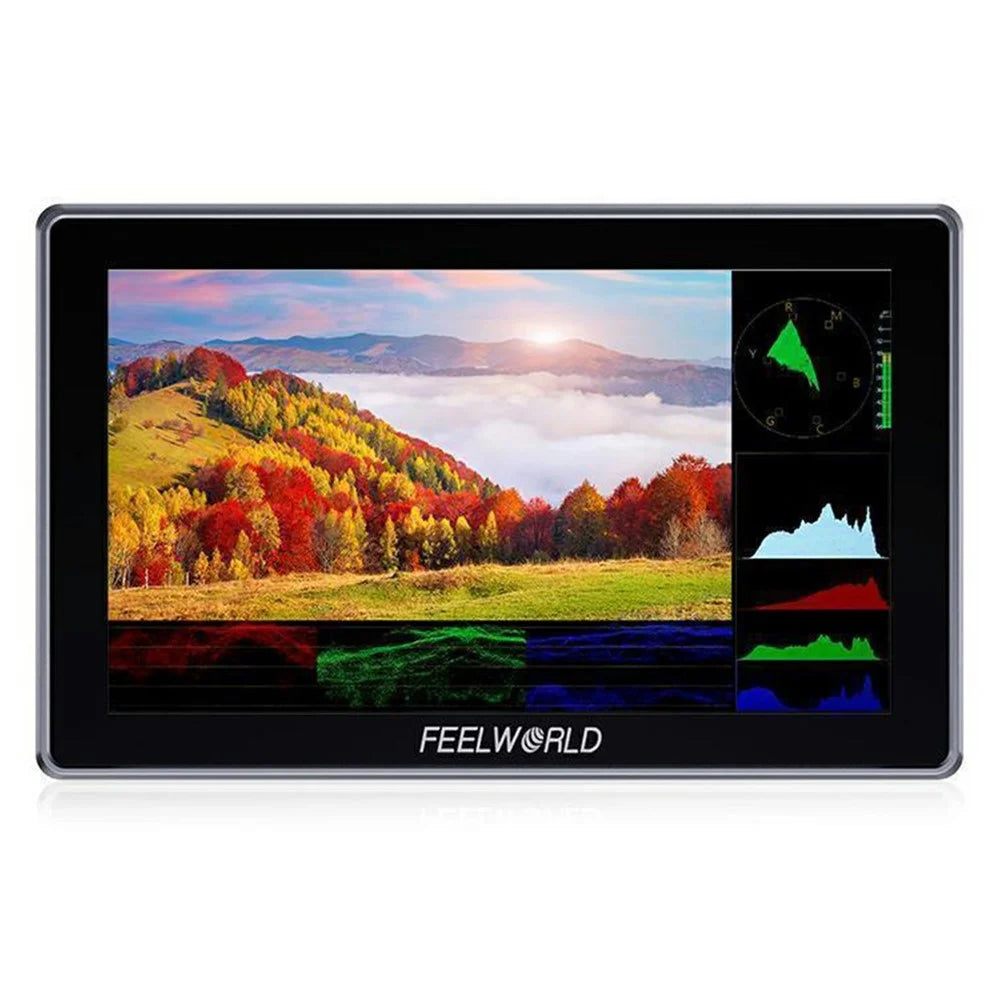

- 【Advanced Monitoring Features】Includes 3D LUT support, waveform, vectorscope, histogram, and focus assist for precise image analysis.

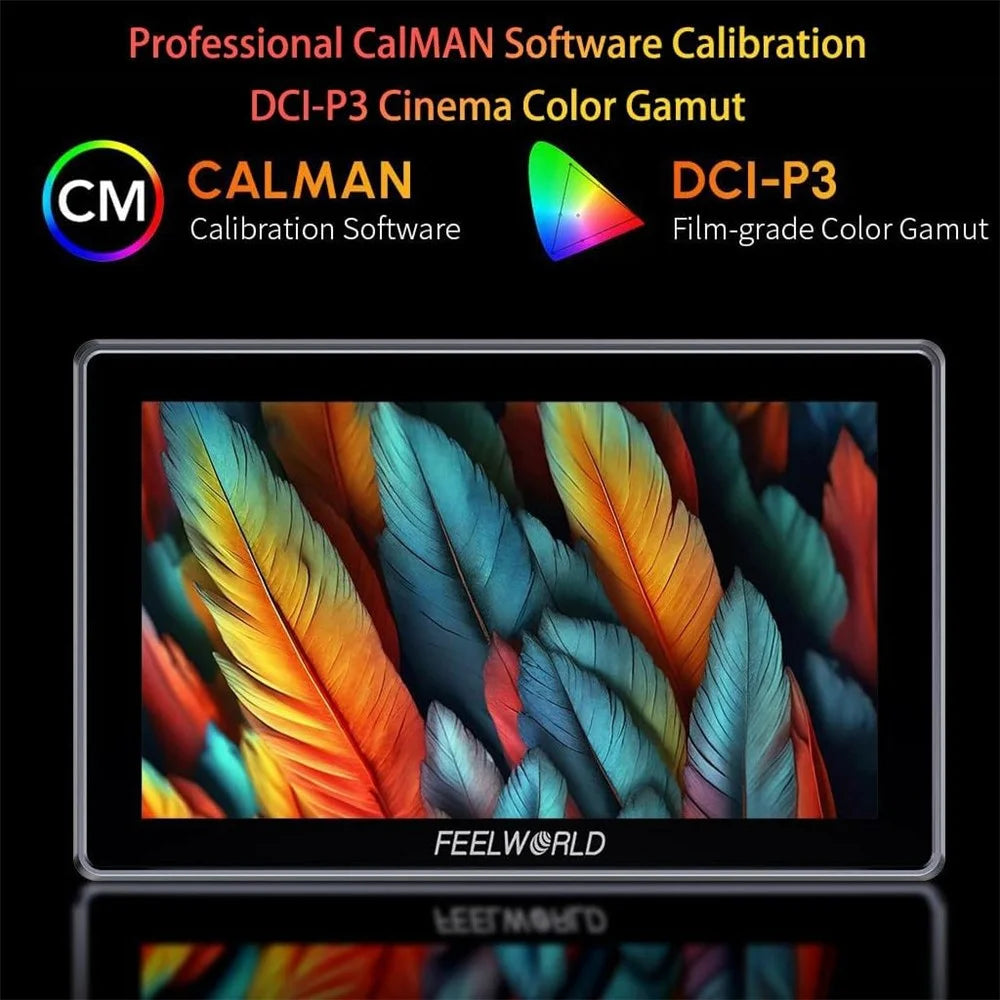

- 【HDR and Color Management】Supports HDR display and offers DCI-P3 and REC709 color gamuts for accurate color reproduction.
- 【Versatile Mounting Options】Features 1/4-inch-20 thread mounts on left, right, and bottom for flexible positioning.

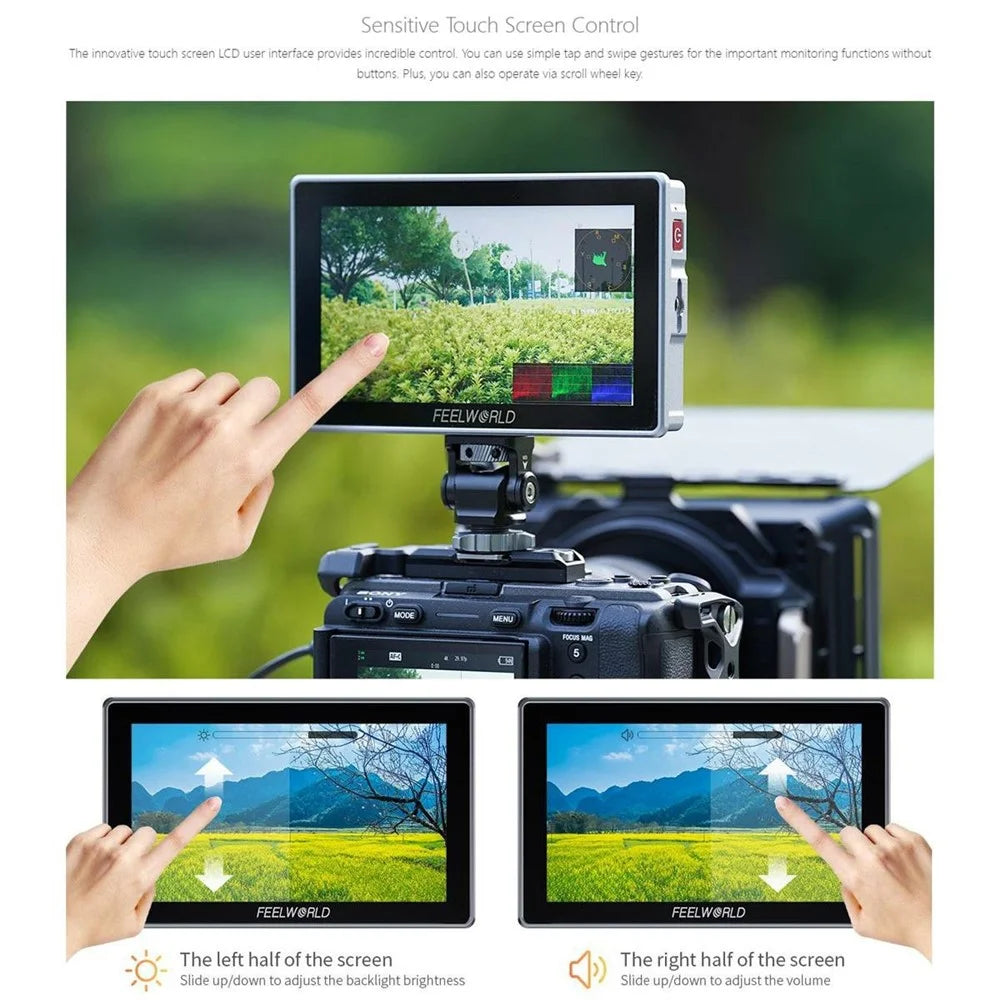

- 【Touchscreen Interface】User-friendly touchscreen control for easy navigation and adjustment of monitor settings.
- 【Compact and Lightweight】Weighing only 306 grams, it's ideal for on-set and field use without adding significant bulk to your setup.
Specifications:
- Model: H5
- Screen Size: 5.5 inches IPS
- Resolution: 1920x1080 pixels
- Aspect Ratio: 16:9
- Brightness: 1200cd/m2
- Contrast Ratio: 1000:1
- Color Depth: 10bit (8+2bit)
- Viewing Angle: 80°/80° (Left/Right), 80°/80° (Up/Down)

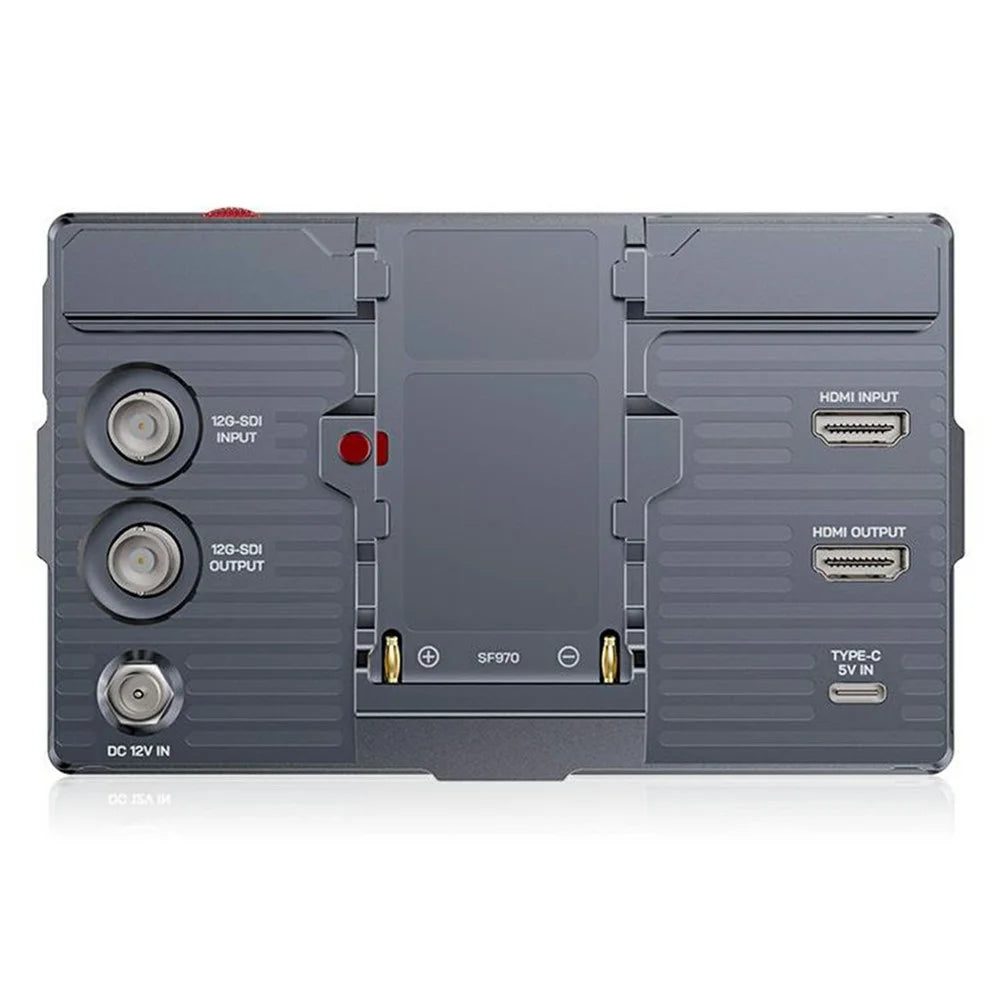

- Inputs: 1x 12G-SDI, 1x HD 2.0, 1x USB-C
- Outputs: 1x 12G-SDI, 1x HD 2.0
- Audio: 3.5mm stereo headphone jack
- Power Input: DC 7-24V
- Power Consumption: ≤12W
- Operating Temperature: -20℃ to 70℃
- Dimensions: 145.25 x 90.3 x 30.85 mm
- Weight: 306 grams
- 12G-SDI input and output supported formats:
- 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
- 2. 1080i (60/59.94/50)
- 3. 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 4. 2048 x 1080 (30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
- 5. 4K 3840 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
- 6. 4K 4096 x 2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
- HD Input and Output Supported Formats
- 1. 720p (60/59.94/50/30/29.97/25/24/23.98)
- 2. 1080i (60/59.94/50)
- 3. 1080p (60/59.94/50)
- 4. 4K 3840 x 2160p (60/50/30/29.97/25/24/23.98)
- 5. 4K 4096 x 2160p (60/50/30/29.97/25/24/23.98)
In the box
- 1 x Monitor
- 1 x Mirco HD Cable
- 1 x HD Cable
- 1 x Snail Gimbal
- 1 x USB to Type C Adapter
- 1 x Magic Tape Cable Tie
- 1 x English Manual
