Description

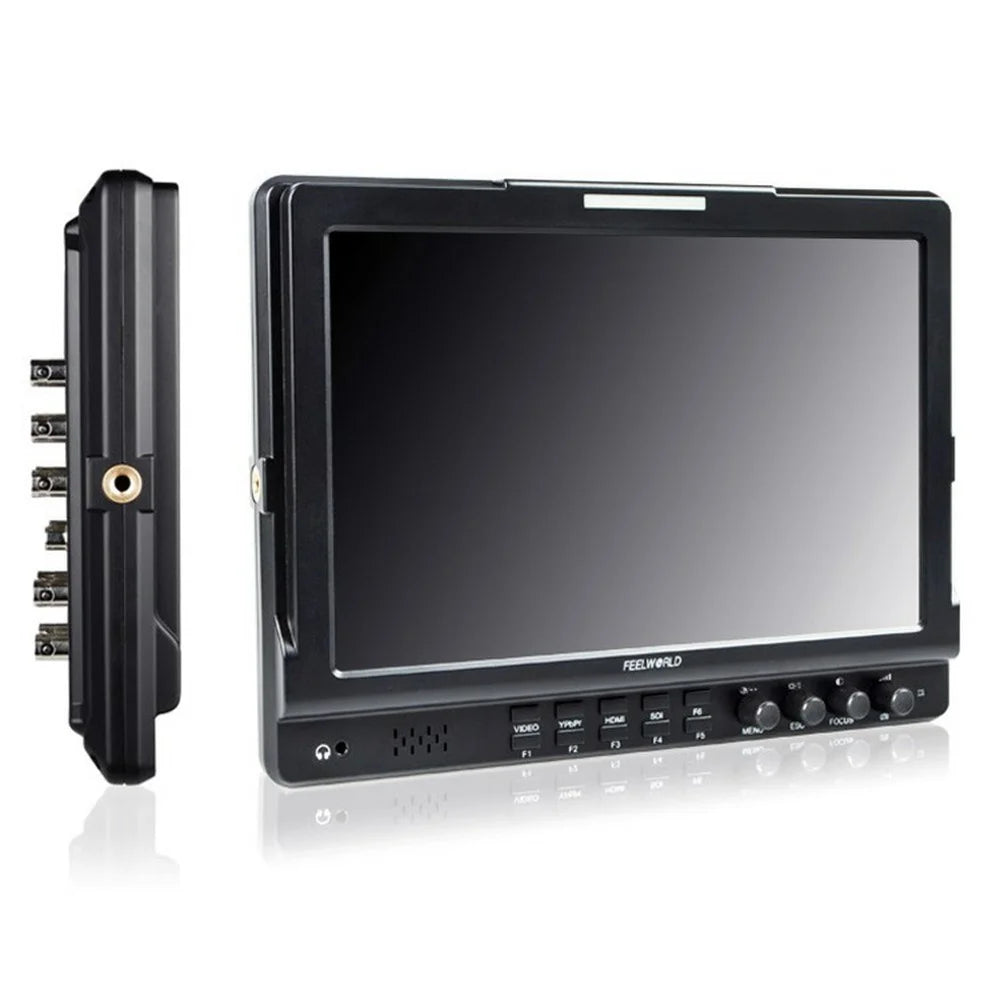

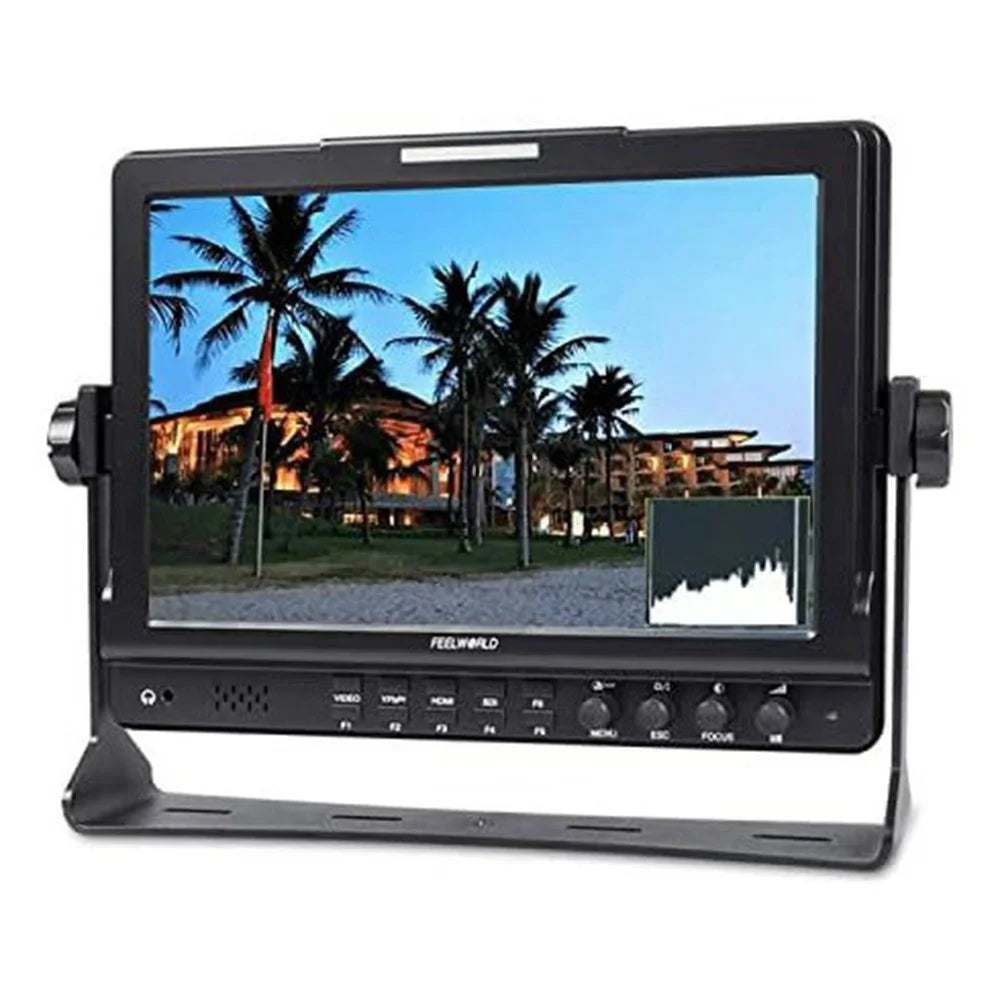

- 【Large 10.1-inch Display】Offers clear viewing of shooting scenes without straining your eyes, eliminating the need to rely on small camera screens.
- 【High-Quality Image】Features 320 cd/m² brightness, 800:1 contrast ratio, and 170° wide viewing angle, with 1920x1200 pixel resolution for accurate color reproduction and rich detail.

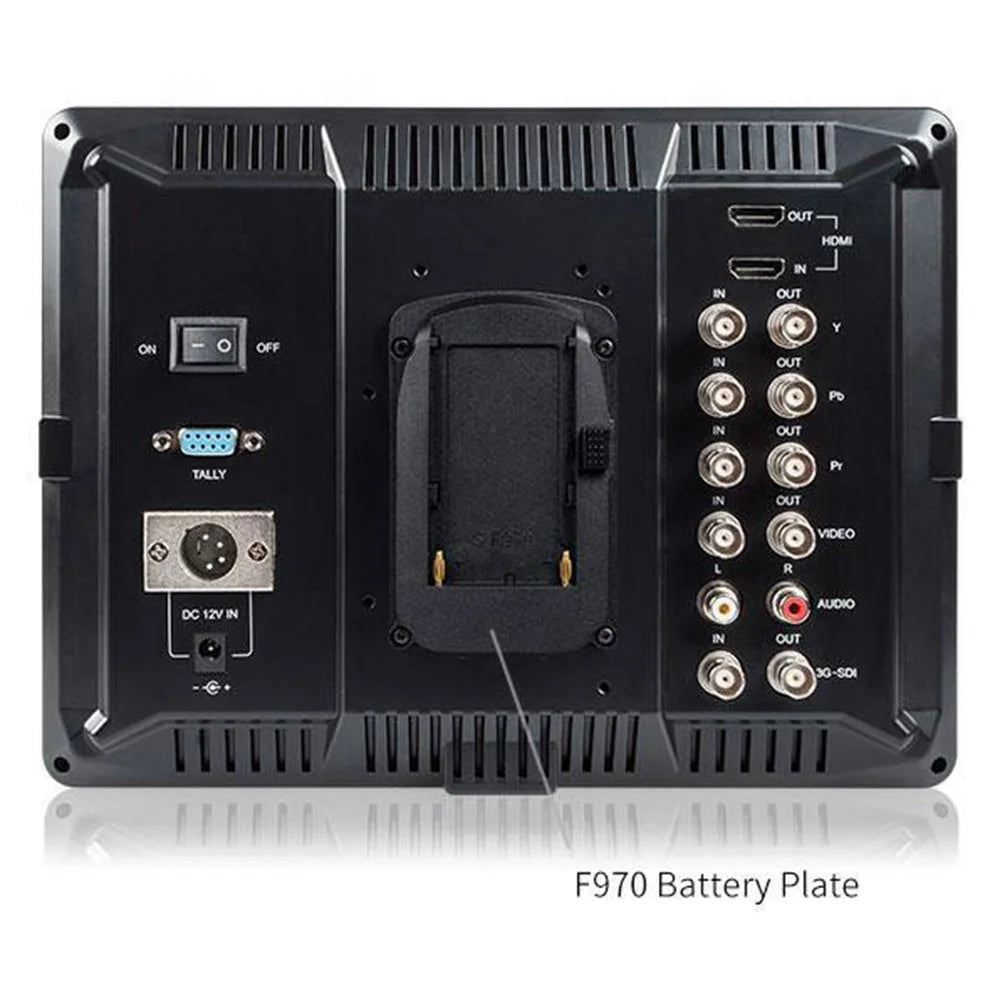

- 【Versatile Connectivity】Supports multiple input signals including HD, 3G-SDI, YPbPr, Video, and Audio (L/R), with loop-out for HD, 3G-SDI, YPbPr, and Video.

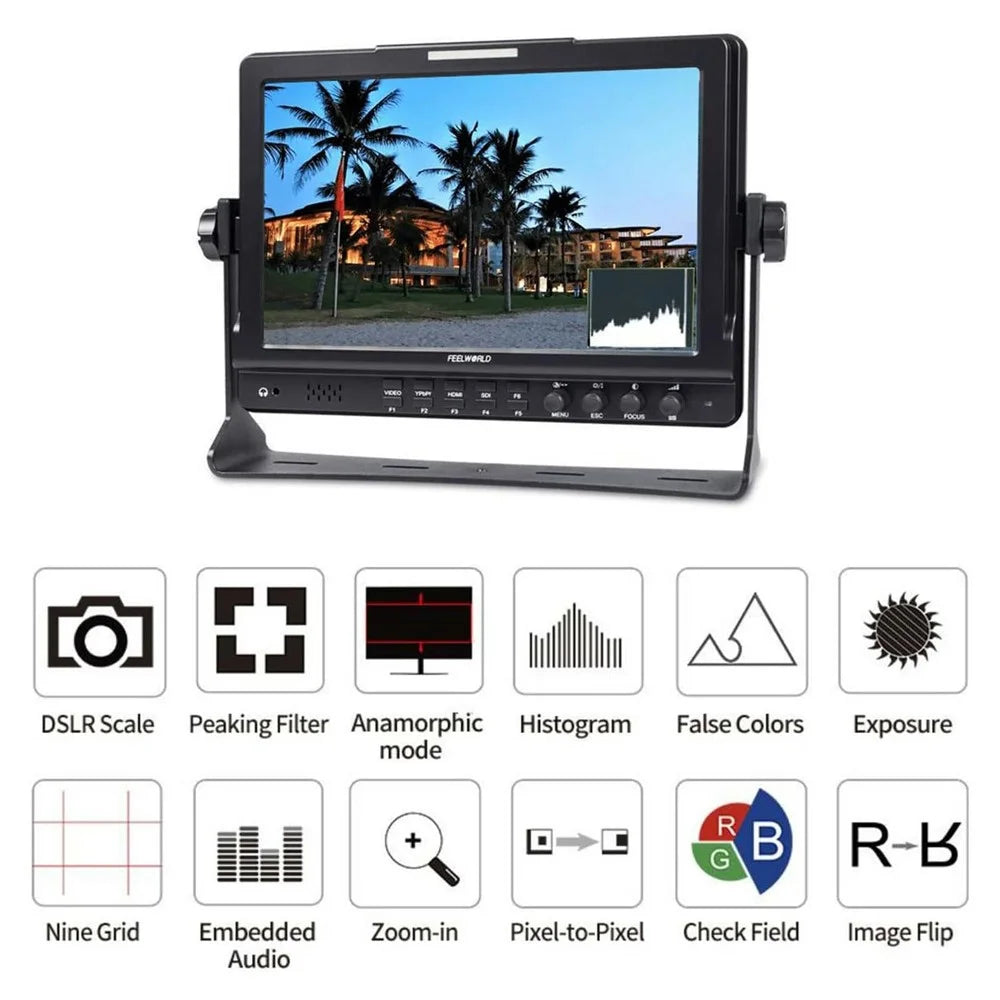

- 【Professional Monitoring Tools】Includes focus assist, brightness histogram, false color, zebra exposure, center marker, safety frame, monochrome display, camera mode, image flip, pixel-to-pixel, and image freeze functions.
- 【User-Friendly Controls】Features a rotary knob for function settings and 6 shortcut buttons for quick adjustments.

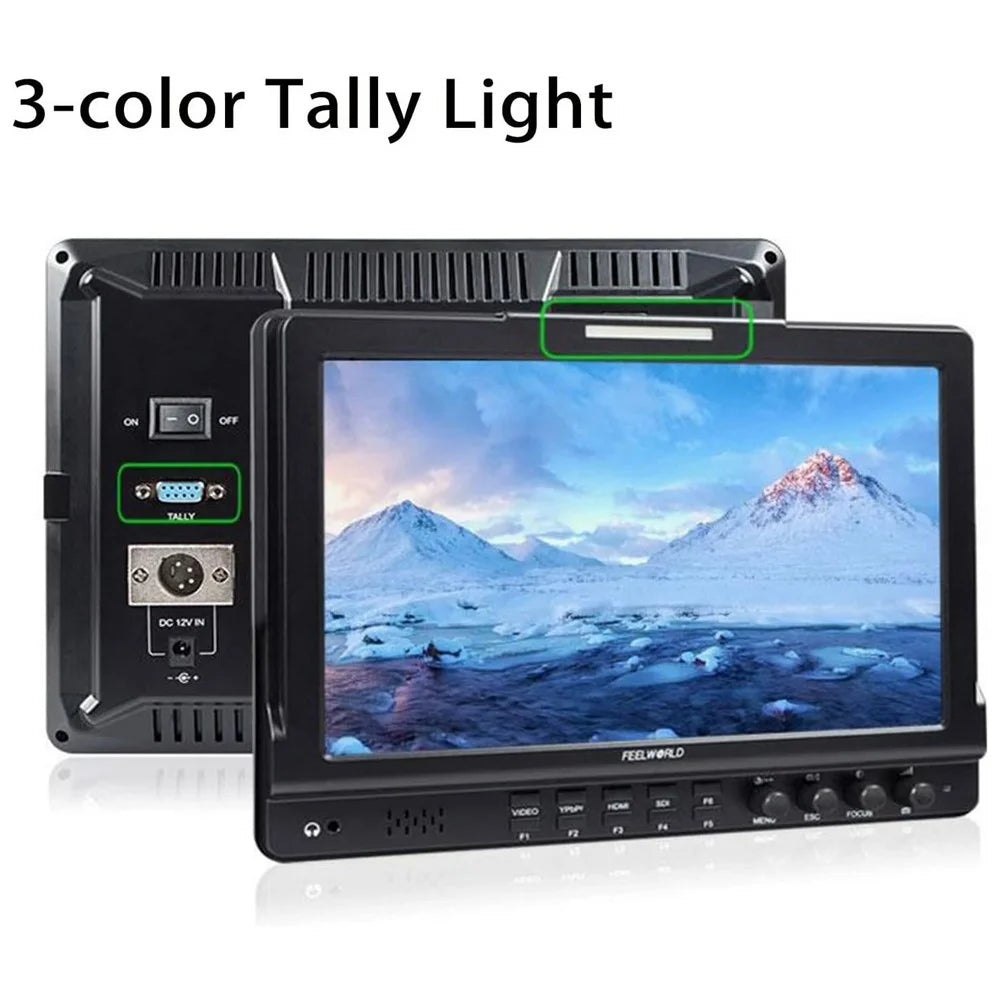

- 【Tally Light System】Equipped with a 3-color TALLY light on the front panel, controllable via the DB9 interface on the back.
- 【Flexible Power Options】Compatible with F970, D28S, V-mount, E6, and Anton Bauer batteries, with XLR and 12V DC power inputs.
Specifications:
- Screen Size: 10.1 inches
- Resolution: 1920x1200 pixels
- Brightness: 320 cd/m²
- Contrast Ratio: 800:1
- Viewing Angle: 170°
- Aspect Ratio: 16:10
- Input Signals: HD, 3G-SDI, YPbPr, Video, Audio (L/R)
- Output Signals: HD, 3G-SDI, YPbPr, Video

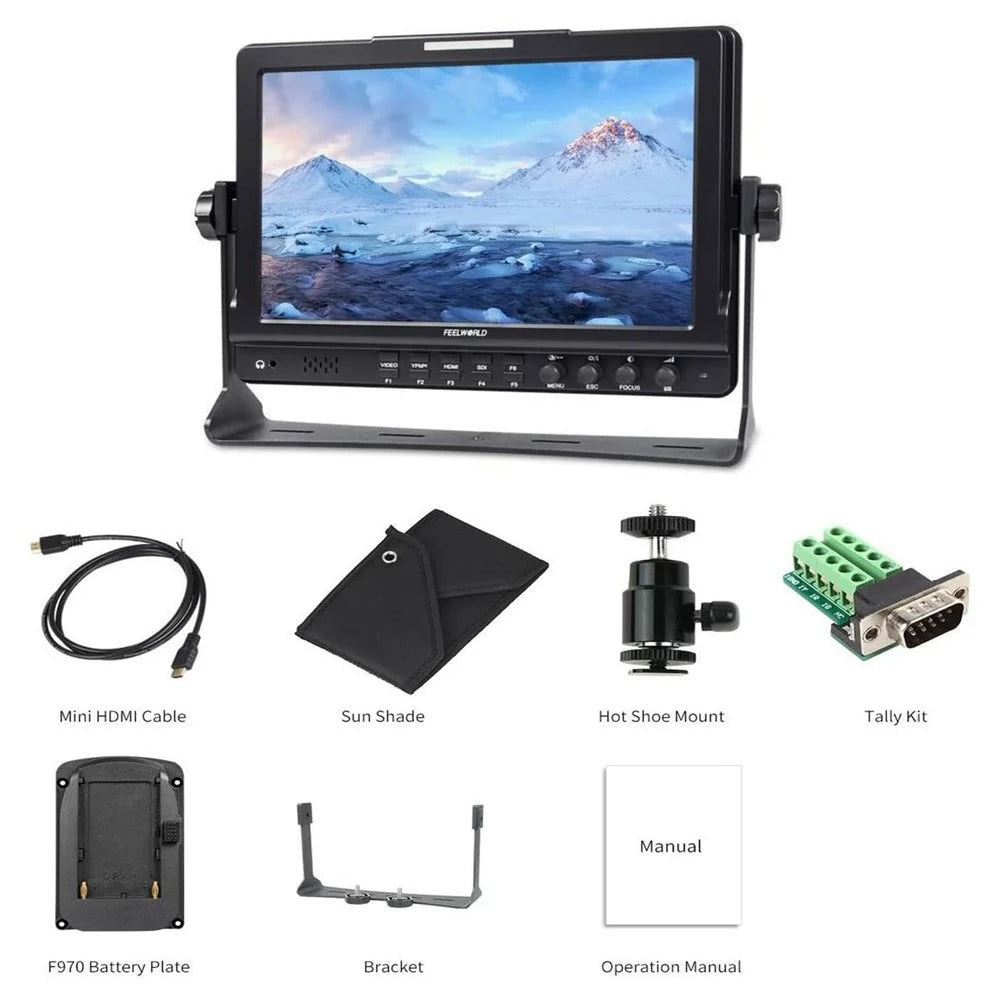

In the box
- 1 x Camera Field Monitor
- 1 x Mini HD Cable
- 1 x Sunshade
- 1 x Mini Gimbal
- 1 x F970 Battery Plate
- 1 x Tally Adapter Kit
- 1 x 10 Inch U-shaped Stand
- 1 x English Manual
