Description

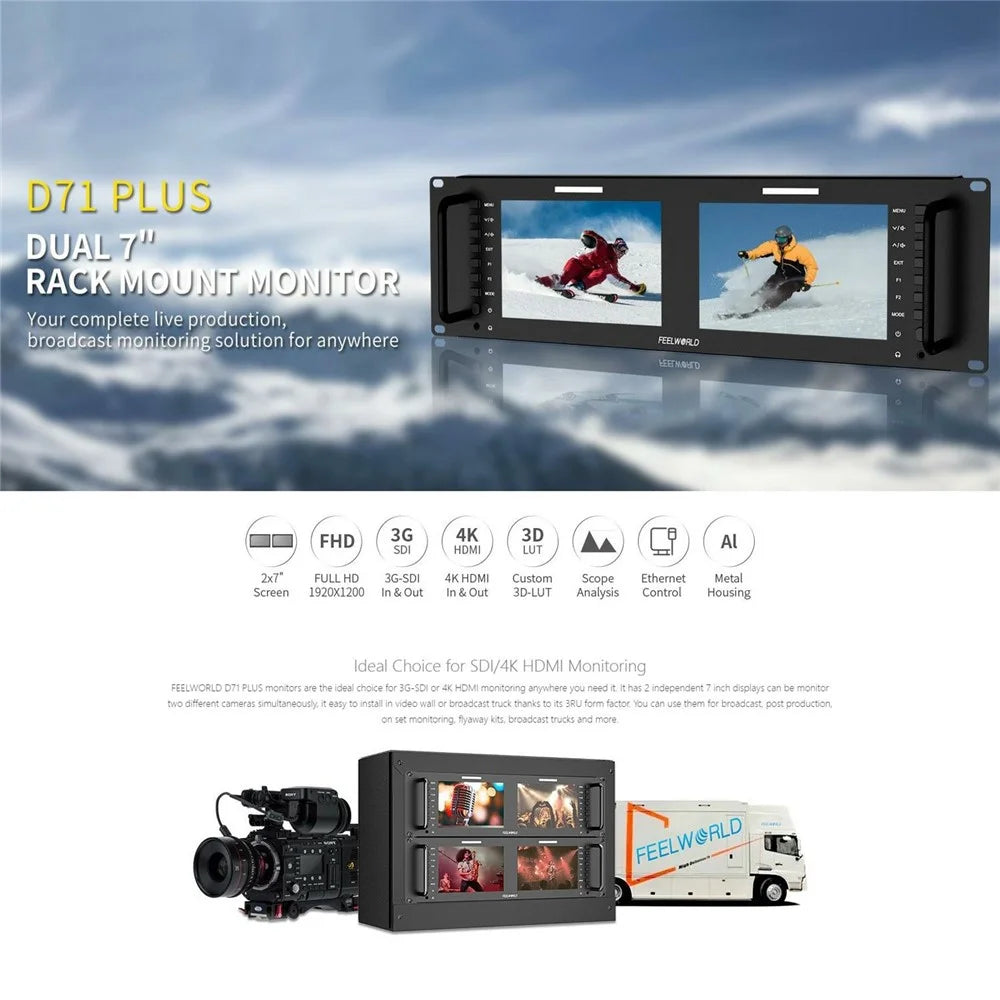

- 【Dual 7" Full HD IPS Displays】Two 7-inch 1920x1200 Full HD IPS screens provide exceptional image quality and wide viewing angles for precise monitoring.

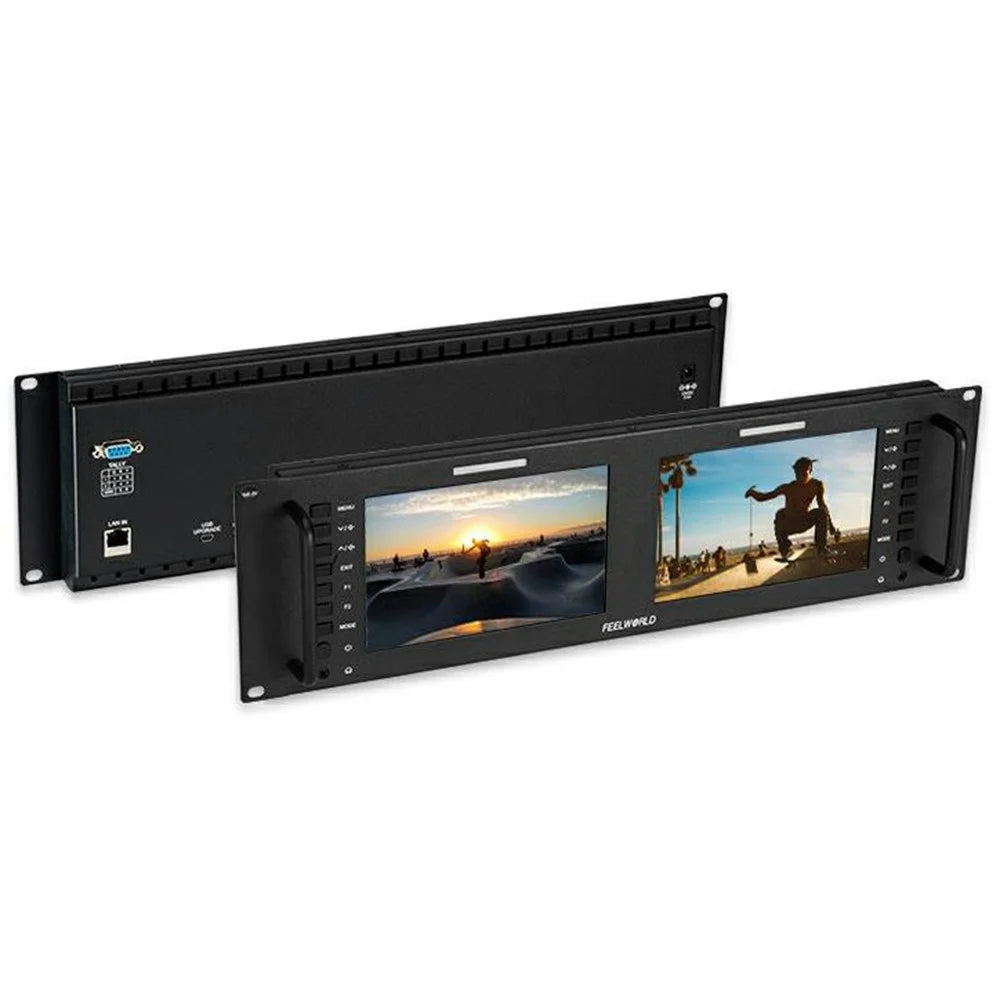

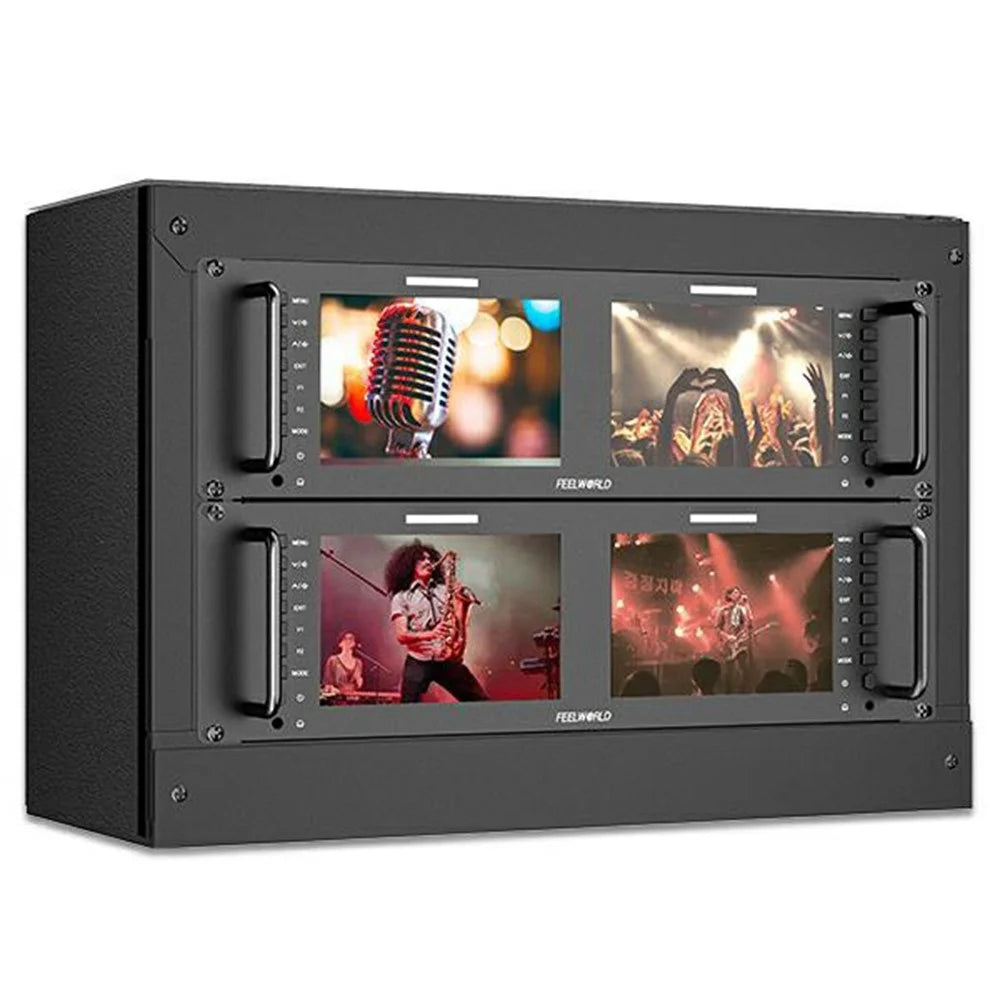

- 【3RU Rack Mount Design】Easily integrates into TV walls or broadcast vehicles with its 3RU rack-mountable form factor, ideal for professional setups.

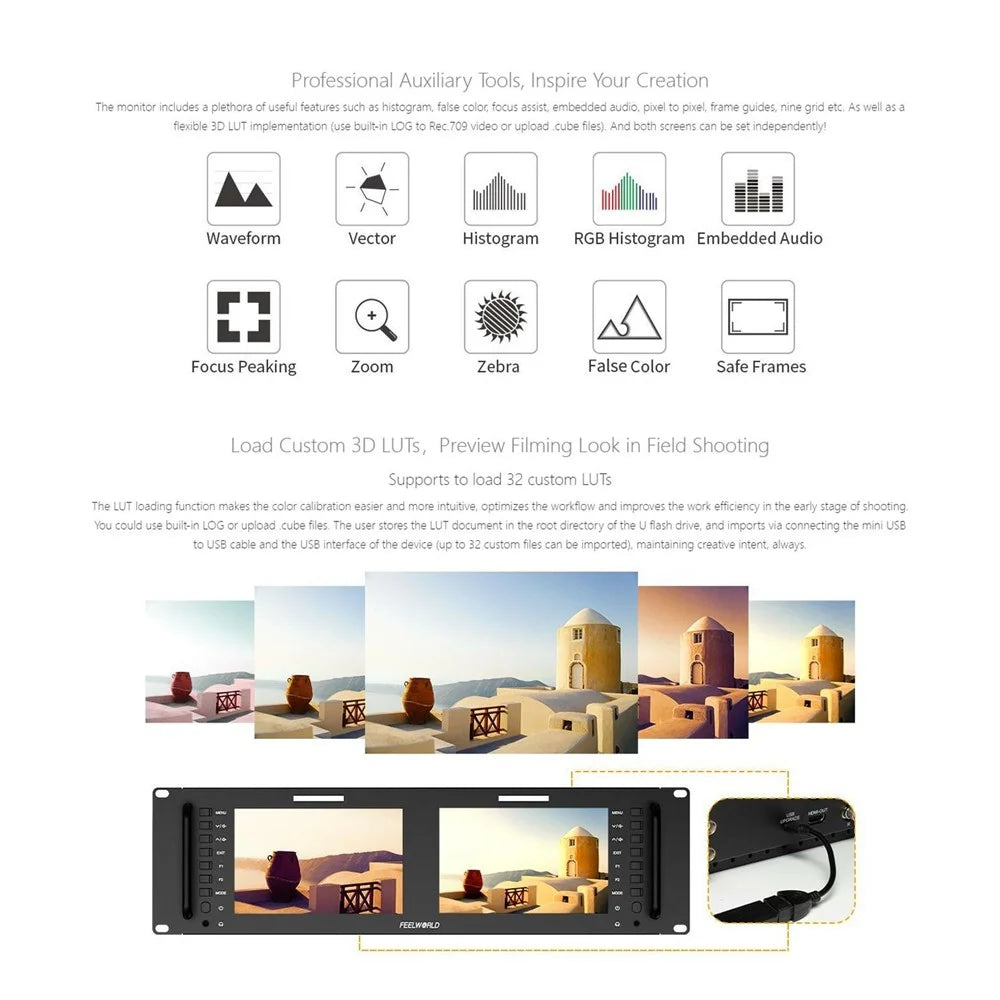

- 【Advanced Monitoring Tools】Features waveform, vectorscope, RGB histogram, focus assist, and monochrome modes to ensure accurate exposure and focus for every shot.
- 【Versatile Connectivity】Multiple input/output options including SDI, HD, and CVBS, catering to various production needs and equipment compatibility.
- 【Remote Control Capability】Connect to Ethernet for remote monitor adjustment via software, enhancing operational flexibility in complex setups.
- 【3-Color Tally Indicator】Built-in front panel tally lights in three colors improve shooting coordination in multi-camera productions.
- 【Custom 3D-LUT Support】Upload custom 3D-LUTs to preview cinematic looks directly on the monitor, streamlining the color grading process.
Specifications:
- Model: D71 PLUS

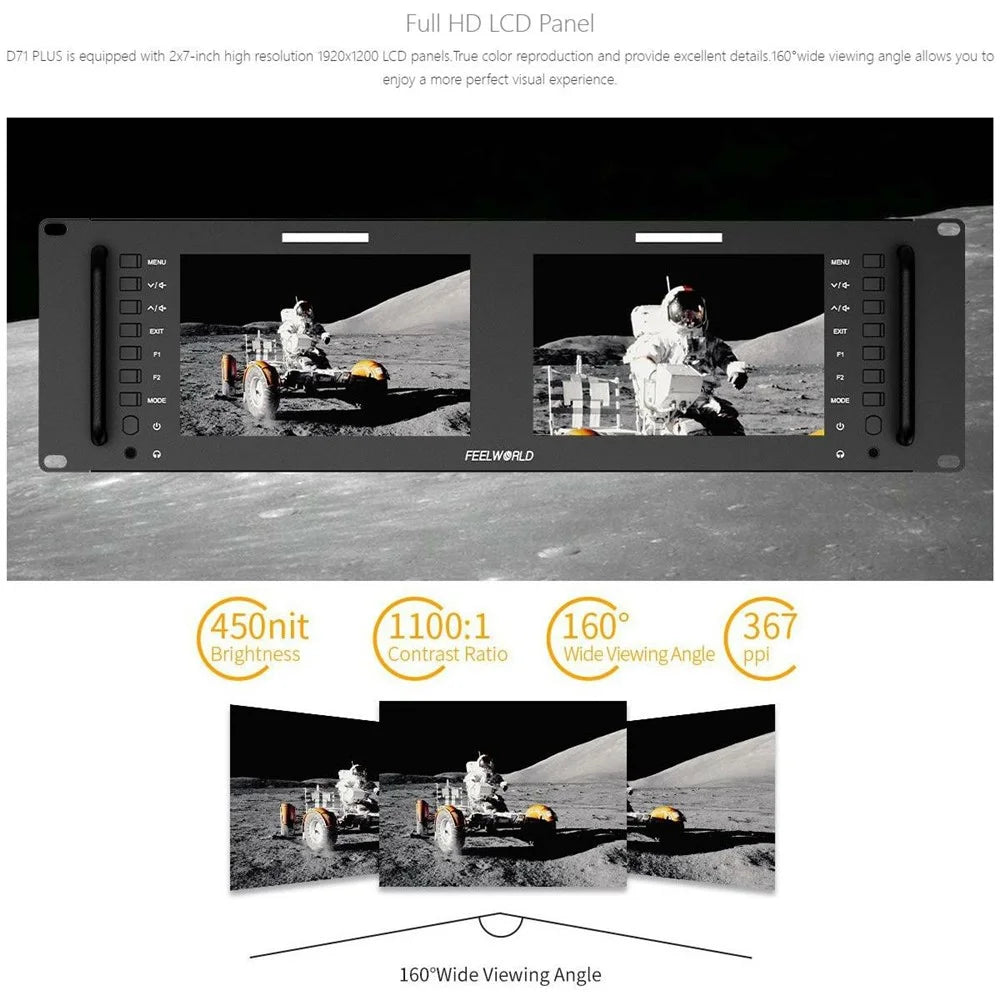

- Display: 2 x 7-inch IPS screens
- Resolution: 1920 x 1200 pixels
- Aspect Ratio: 16:10
- Brightness: 450cd/m2
- Contrast Ratio: 1100:1
- Viewing Angle: 80°/80° (L/R), 80°/80° (U/D)

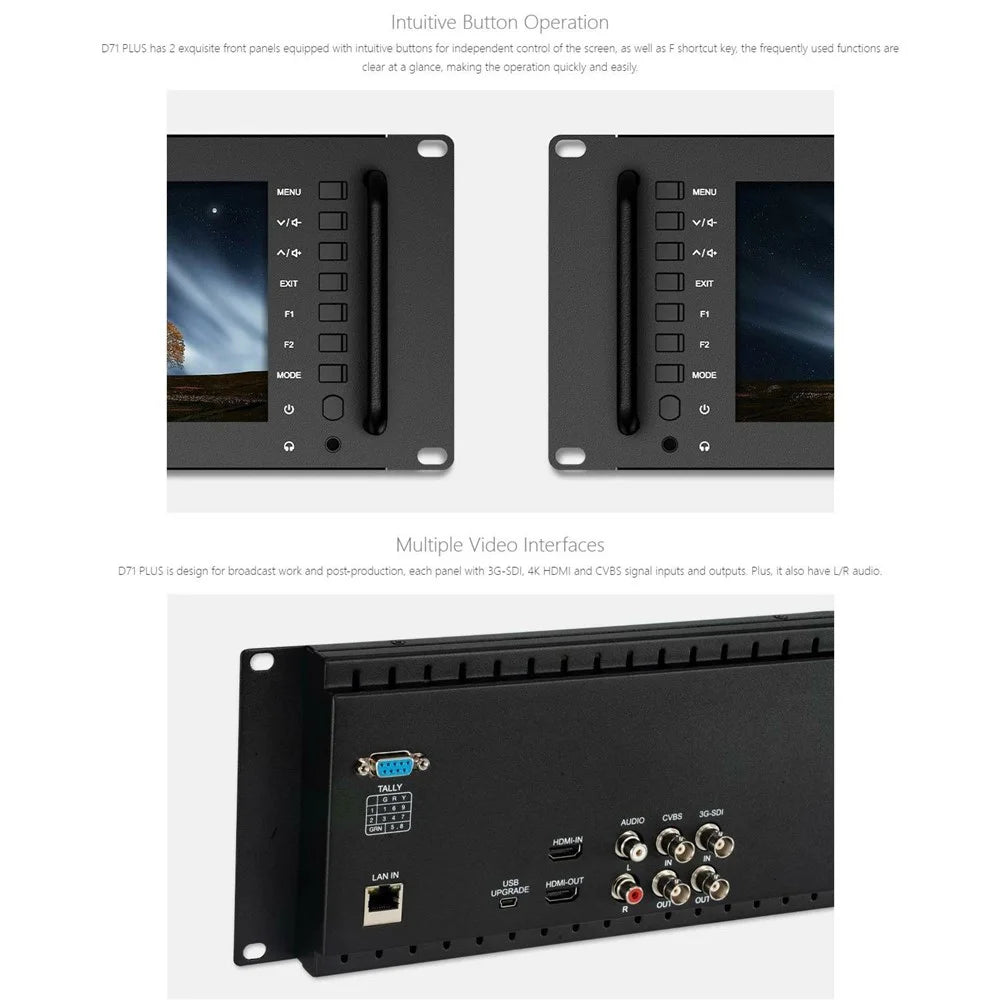

- Inputs (per LCD): 1x 3G-SDI, 1x HD, 1x CVBS, 2x RCA Audio
- Outputs (per LCD): 1x 3G-SDI, 1x HD, 1x CVBS
- Audio Output: 1x Stereo Headphone Jack
- SDI Support: Up to 1080p60
- HD Support: Up to 4K UHD (3840x2160p30) and DCI 4K (4096x2160p24)
- CVBS Support: PAL/NTSC Auto Detection

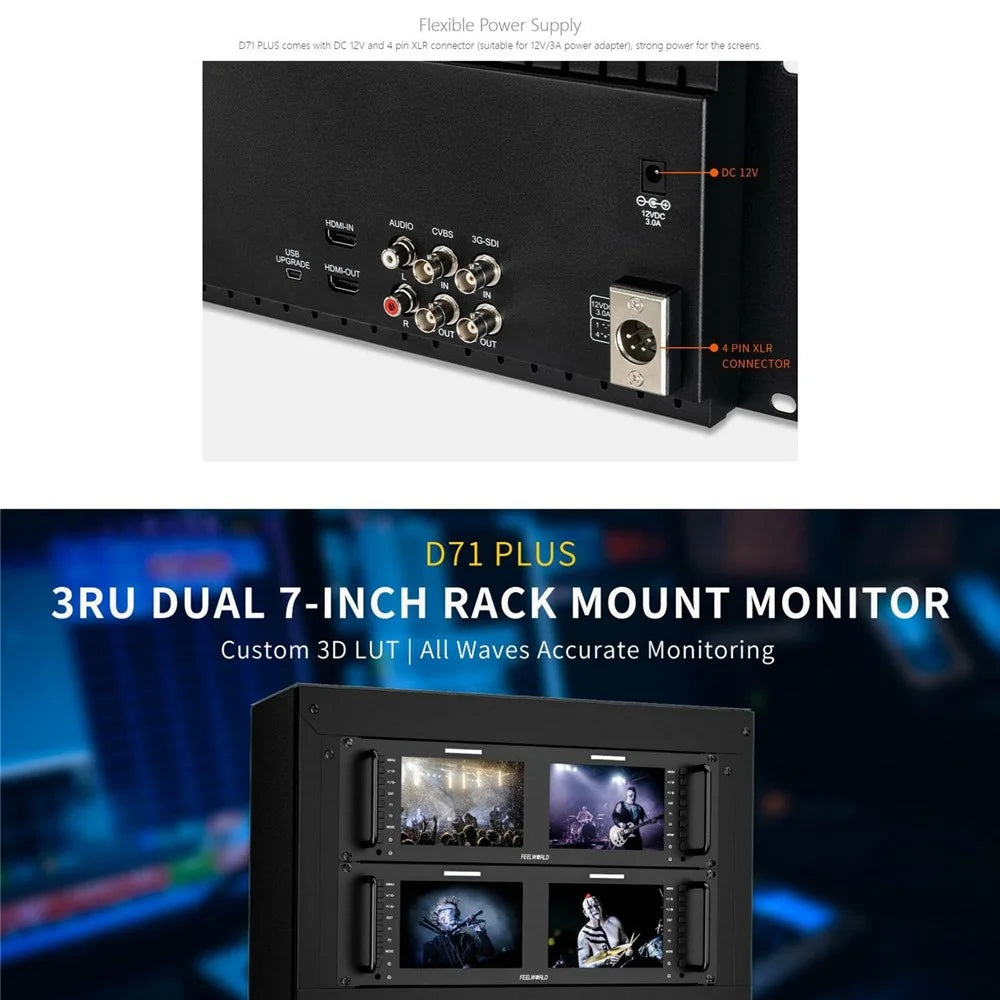

- Power Input: DC 9-24V
- Power Consumption: ≤21W
- Operating Temperature: -10℃ to 60℃
- Mounting: Rack Mount
- Dimensions: 482.6(L) x 132(H) x 30.5(D) mm
- Weight: 1890g
In the box
- 1 x Monitor
- 1 x Tally Adapter Kit
- 1 x Mini USB to USB Cable
- 1 x 3A Power Adapter
- 1 x English Manual
