Description
- 【Powerful Outdoor WiFi Coverage】Dual-band 2.4/5.8G with 6 antennas provides 360-degree coverage, perfect for large outdoor areas.
- 【High-Speed Performance】Supports 802.11ac protocol with transmission speeds up to 750Mbps for fast and stable connections.
- 【Robust Triple-Core CPU】Equipped with Qualcomm QCA9557+AR9582+AR9582 chip solution for superior processing power.
- 【Enhanced Signal Strength】6 external high-gain fiberglass antennas (6dBi) ensure strong, unbreakable WiFi signals with improved aesthetics and durability.
- 【All-Weather Protection】IP67-rated enclosure withstands harsh outdoor conditions, housed in a sturdy cast aluminum alloy for longevity.

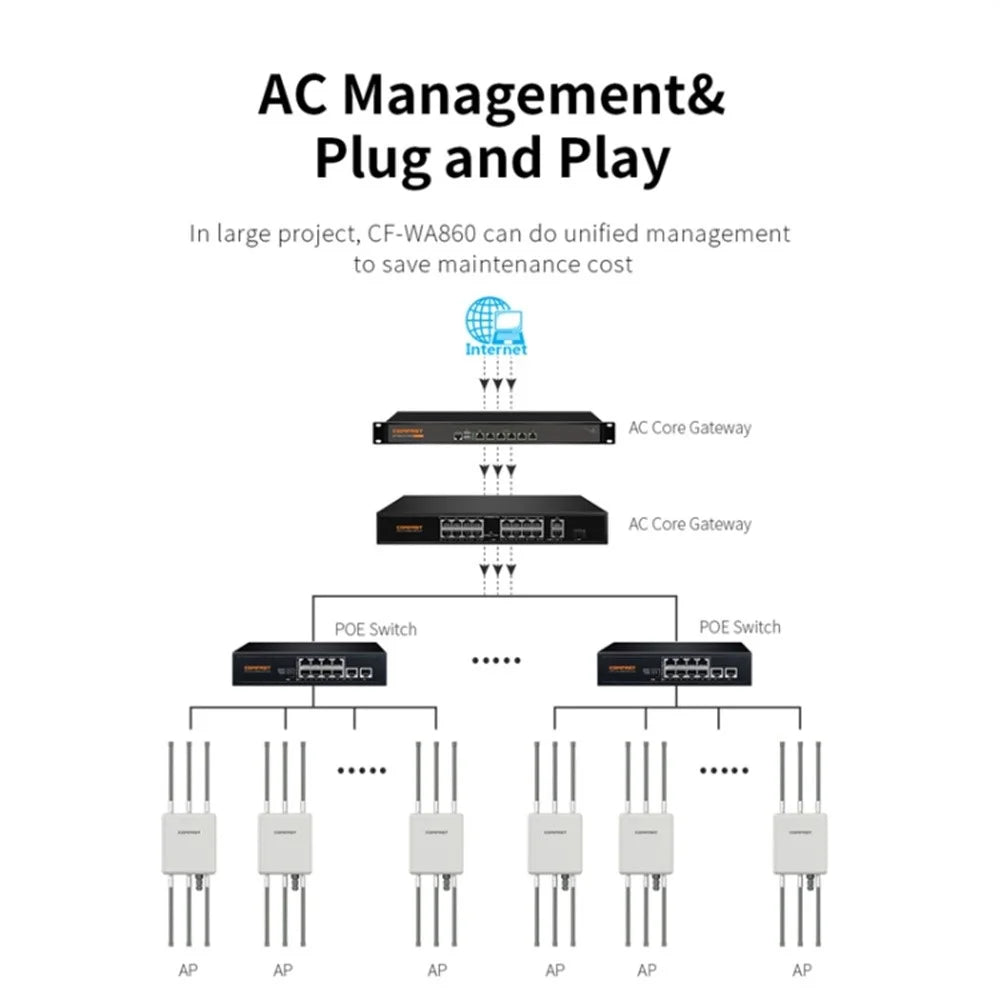

- 【Advanced Management Features】Supports AC centralized management, intelligent load balancing, seamless roaming, SSID, and PoE for efficient and eco-friendly operation.
- 【High-Capacity Connectivity】Capable of supporting 100+ simultaneous user connections, ideal for extensive wireless coverage requirements.
Specifications:
- Model: CF-WA860
- Hardware: QCA9557+AR9582+AR9582 chip solution
- Memory: 128MB RAM, 128MB Flash
- Antennas: 6 x 6dBi external omnidirectional antennas
- Wireless Speed: 2.4GHz: 300Mbps; 5.8GHz: 450Mbps
- Maximum Transmit Power: 24dBm (200mW)
- Minimum Receive Sensitivity: -96dBm
- Frequency: 802.11b/g/n: 2.412GHz-2.472GHz; 802.11an/a: 5.180GHz-5.825GHz
- Interface: 1 x Gigabit WAN/LAN, N-type antenna connectors
- Power Supply: 48V/0.5A PoE
- Power Consumption: Less than 18W
- IP Rating: IP67
- MTBF: Greater than 250,000 hours
- Installation: Pole mount
- Enclosure: Cast aluminum shell
- Dimensions: 290 x 245 x 67mm (excluding antennas), single antenna length 330mm
In the box
- 1 x Wireless AP Router
- 1 x PoE Power Supply
- 1 x Ethernet Cable
- 1 x Installation Accessories Kit
- 1 x English and Chinese Manual
