Description
-
【3MP HD Resolution & 135° Wide Angle】Equipped with GC2083 1/3-inch CMOS sensor delivering crystal-clear 1296P video quality with 135° diagonal viewing angle for comprehensive coverage.
-
【Intelligent Night Vision】Features 940nm invisible infrared LEDs with automatic light sensor switching, providing clear black and white night vision up to 3 meters without red glow exposure.
-
【PIR Human Detection & Smart Alerts】Advanced AI-powered PIR human body detection identifies abnormal movement and sends instant push notifications to your smartphone for enhanced security.
-
【Extended Battery Life】Built-in 1400mAh rechargeable battery provides up to 8 hours of continuous operation with Type-C charging support for 3-4 hours charging time.
-
【Multi-User Access & Dual Storage】Supports up to 4 simultaneous online viewers with both local TF card storage (up to 256GB) and cloud storage options for flexible data management.
-
【Wireless Connectivity Options】Multiple pairing methods including AP hotspot configuration, QR code setup, and Bluetooth-compatible connection for easy installation and setup.
Specifications:
- Model: B01
- CPU: T23 Processor
- Image Sensor: GC2083, 1/3-inch CMOS
- Resolution: 1296P/15fps (Main Stream), 360P/15fps (Sub Stream)
- Lens Focal Length: 10mm
- Viewing Angle: 135° Diagonal
- Night Vision: 940nm Infrared, 3-5m Range
- IR Light: 940nm Invisible Infrared LEDs
- WiFi Standard: IEEE 802.11 b/g/n
- Microphone: Built-in -38dB Microphone
- Cloud Storage: Supported (Paid Activation Required)
- TF Card Storage: Up to 256GB
- Power Supply: DC 5V ±5%, 1400mAh Battery
- Detection Function: PIR Human Detection, Motion Detection
- Motion Detection Alarms: Smart Push Notifications
- Working Temperature: -10°C to 55°C
- Product Dimensions: 44.5mm × 53.5mm × 42.5mm
- Memory: 512MB
- Operating System: Linux
- Compression Standard: H.264 / MJPEG / JPEG
- Network Protocols: TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P, IPV4
- Wireless Frequency: 2.4 ~ 2.4835GHz
- Wireless Security: 64/128-bit WEP/WPA-PSK/WPA2-PSK
- Audio Sampling: 8KHz / 16bit
- Audio Compression: G711A
- Bitrate Control: CBR/VBR, 128~4096kbps
- Working Humidity: <90%

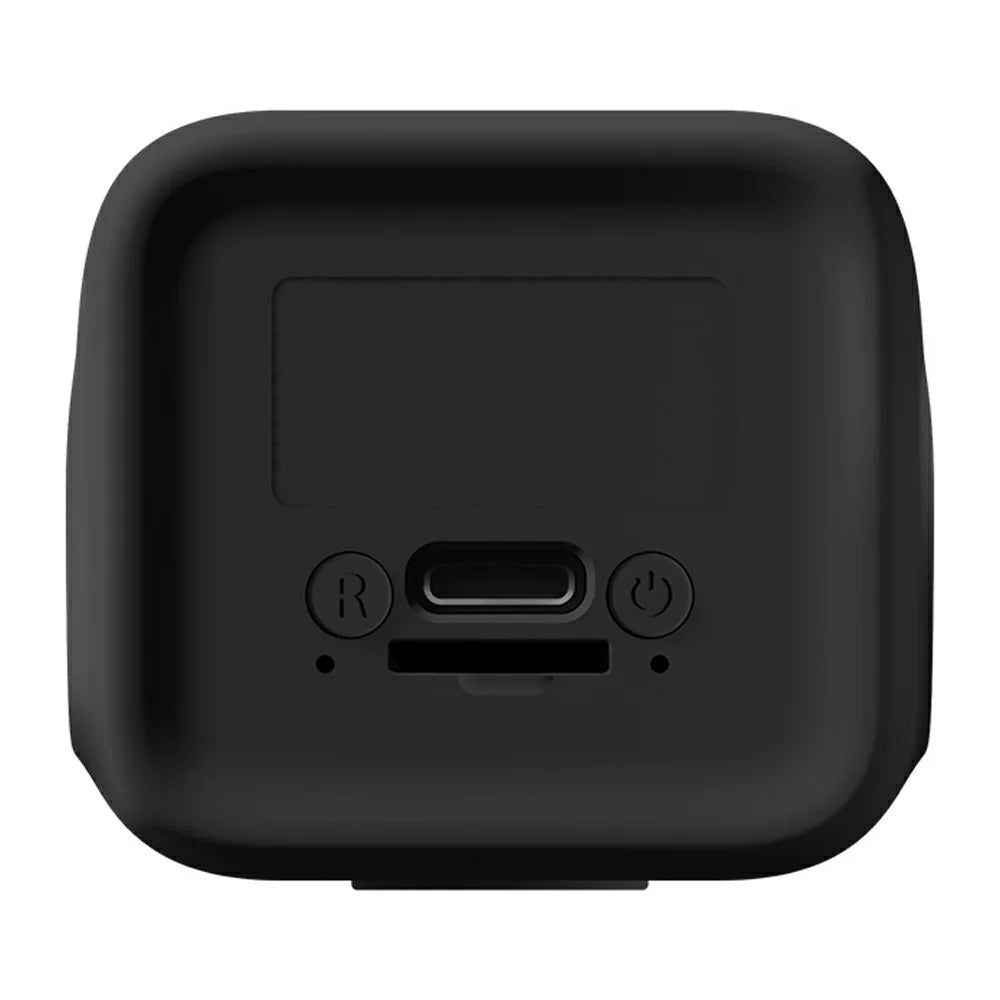

- Charging Interface: Type-C
- Standby Current: 5mA
- Working Current: 400~600mA
In the box
- 1 x Security Camera
- 1 x 1/4 Mounting Base
- 1 x Type-C Cable
- 1 x English User Manual
- 1 x Screw Pack
