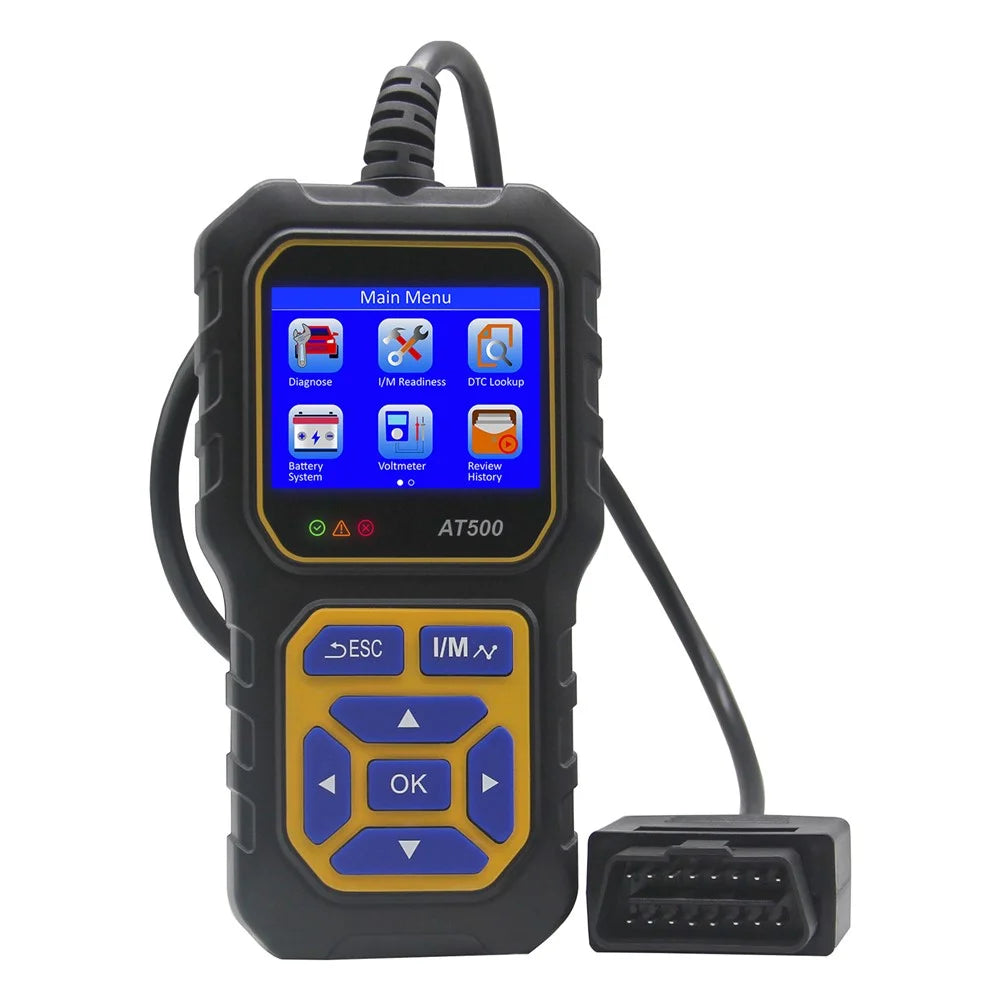

AT500 OBD2 Scanner 2.4 Inch Color TFT Screen Automotive Diagnostic Tool Battery Test for Cars - Black / Yellow

• 【2.4 Inch Color TFT Display】High-resolution color screen provides clear visibility of diagnostic data, graphs, and system information for enhanced user experience.

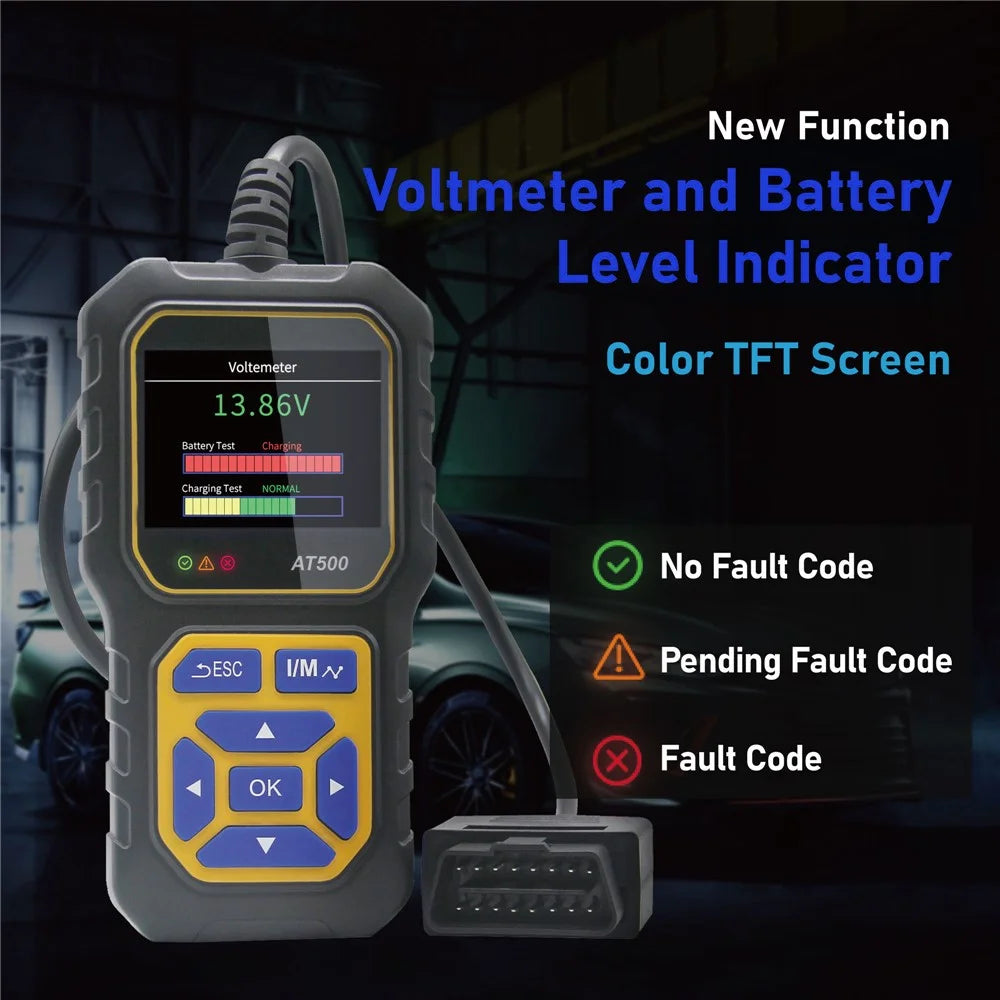

• 【Enhanced Battery & Charging System Test】Features advanced battery testing with voltage measurement, cranking system analysis showing startup voltage and timing, plus charging system evaluation with ripple analysis.

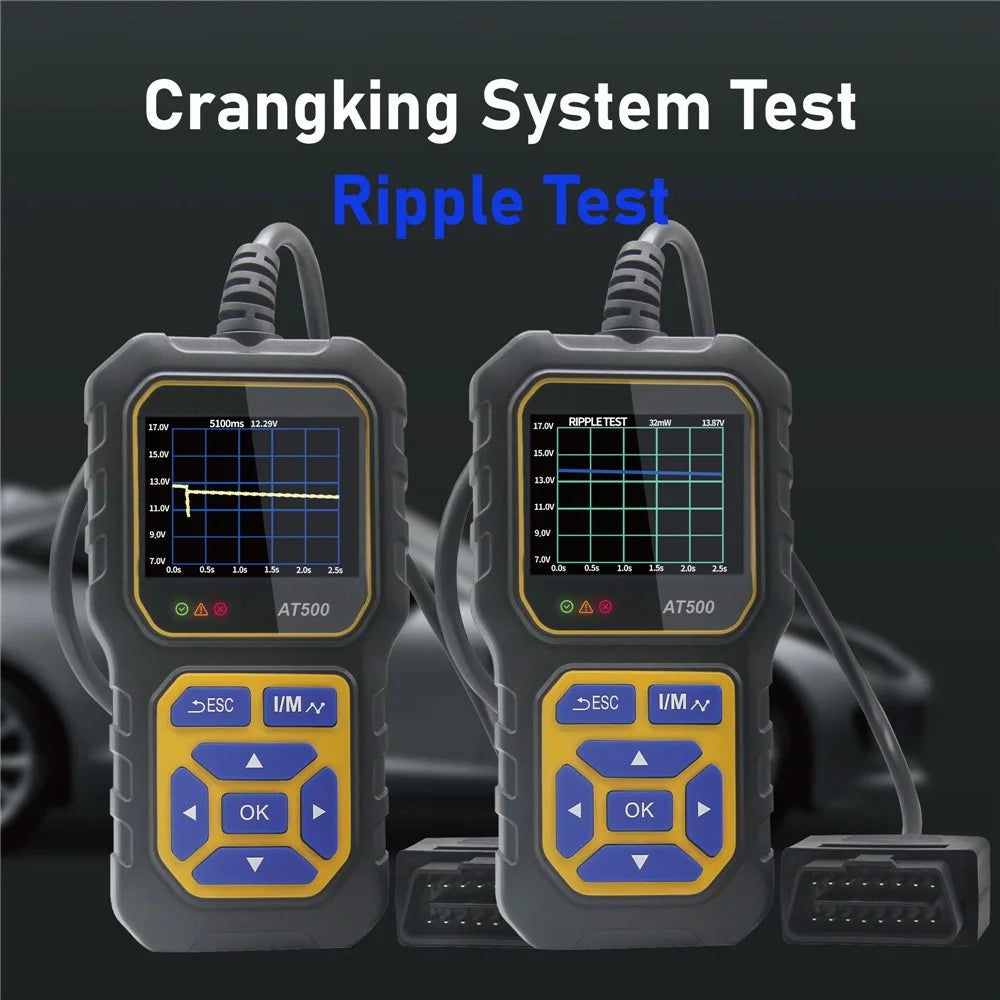

• 【Real-Time Waveform Display】Displays detailed waveform graphs including ripple test curves for charging system analysis and startup system performance monitoring.

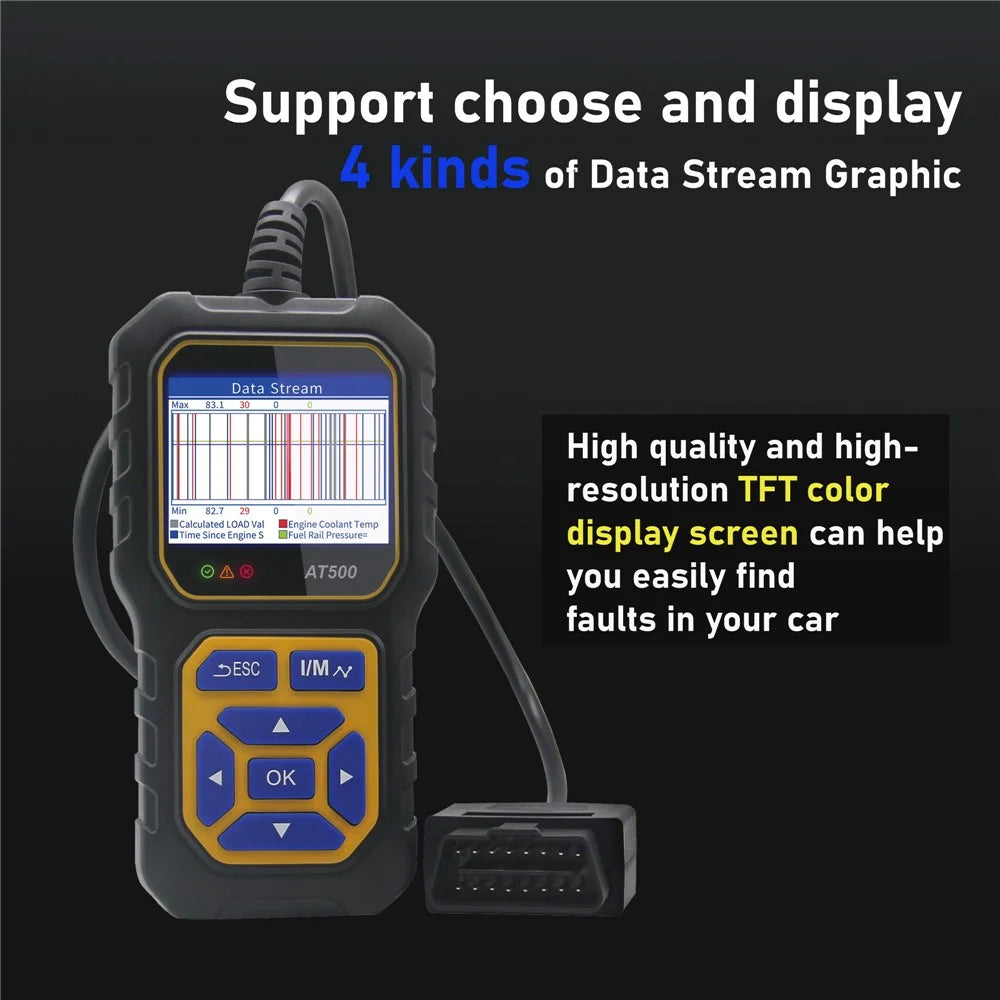

• 【4-Mode Data Stream Graphics】Offers four different data stream display modes with graphical representation for comprehensive vehicle performance monitoring.

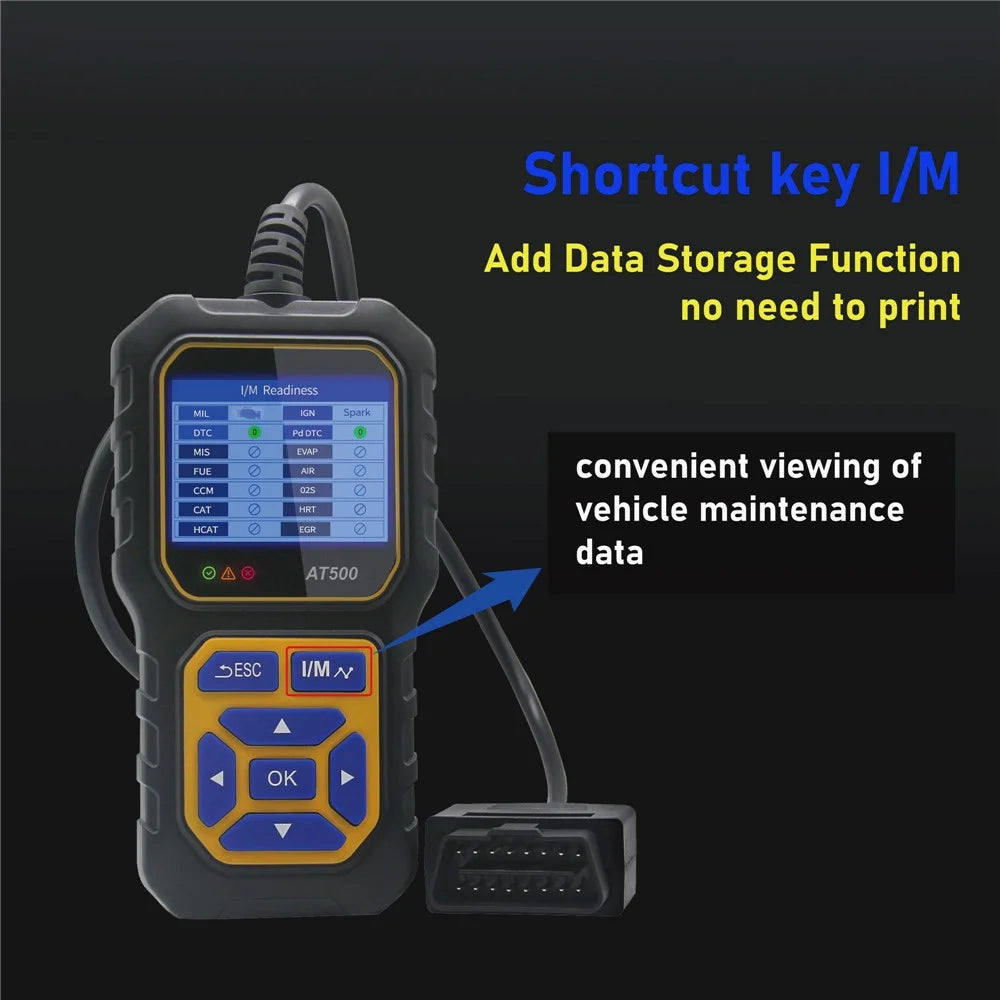

• 【Data Storage Function】Built-in memory stores diagnostic results and historical data without requiring external printing, enabling convenient record keeping.

Specifications:

• Model: AT500
• Display: 2.4 inch Color TFT Screen
• Interface: OBD2 16-pin Connector

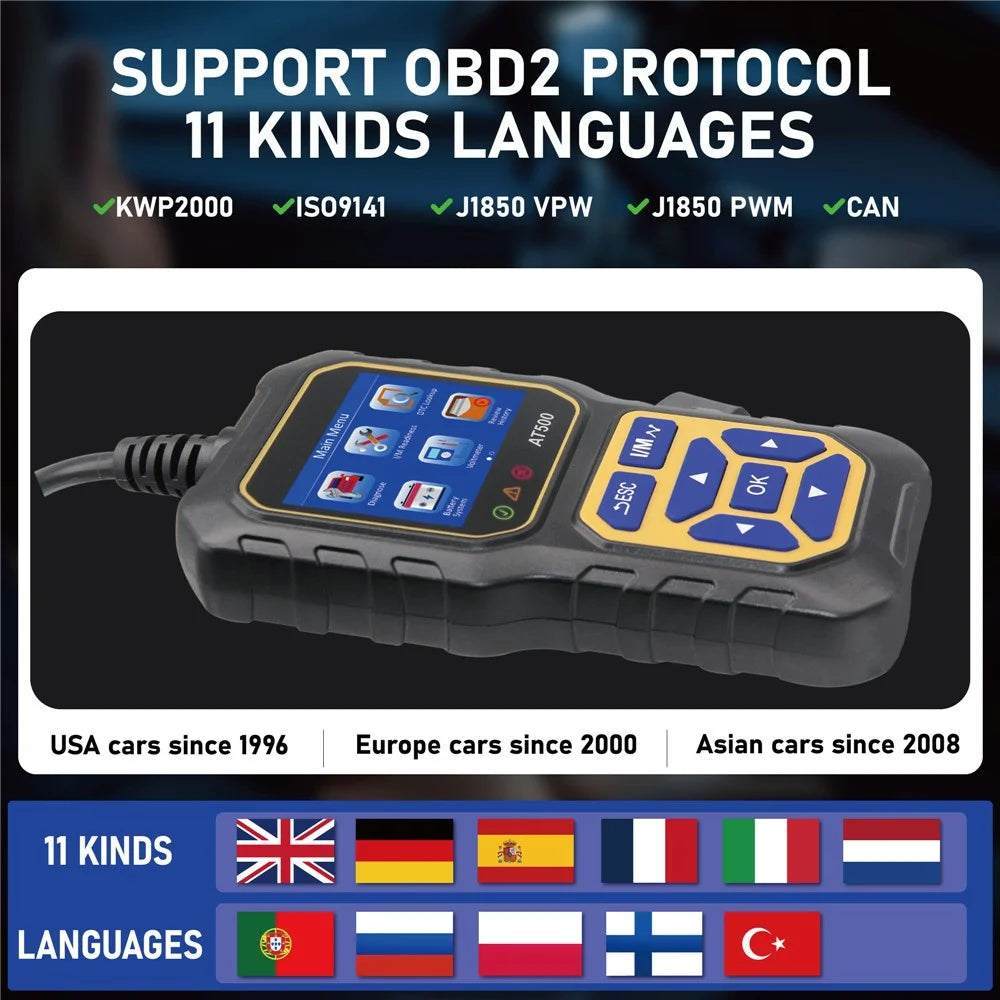

• Supported Languages: 11 Languages
• Vehicle Coverage: USA cars since 1996, Europe cars since 2000, Asian cars since 2008
• Supported Protocols:
• SAE J1850 PWM (41.6Kbaud)
• SAE J1850 VPW (10.4Kbaud)
• ISO9141-2(5 baud init, 10.4Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11bit ID, 500 Kbaud)
• ISO15765-4 CAN (29bit ID, 500 Kbaud)
• ISO15765-4 CAN (11bit ID, 250 Kbaud)
• ISO15765-4 CAN (29bit ID, 250 Kbaud)

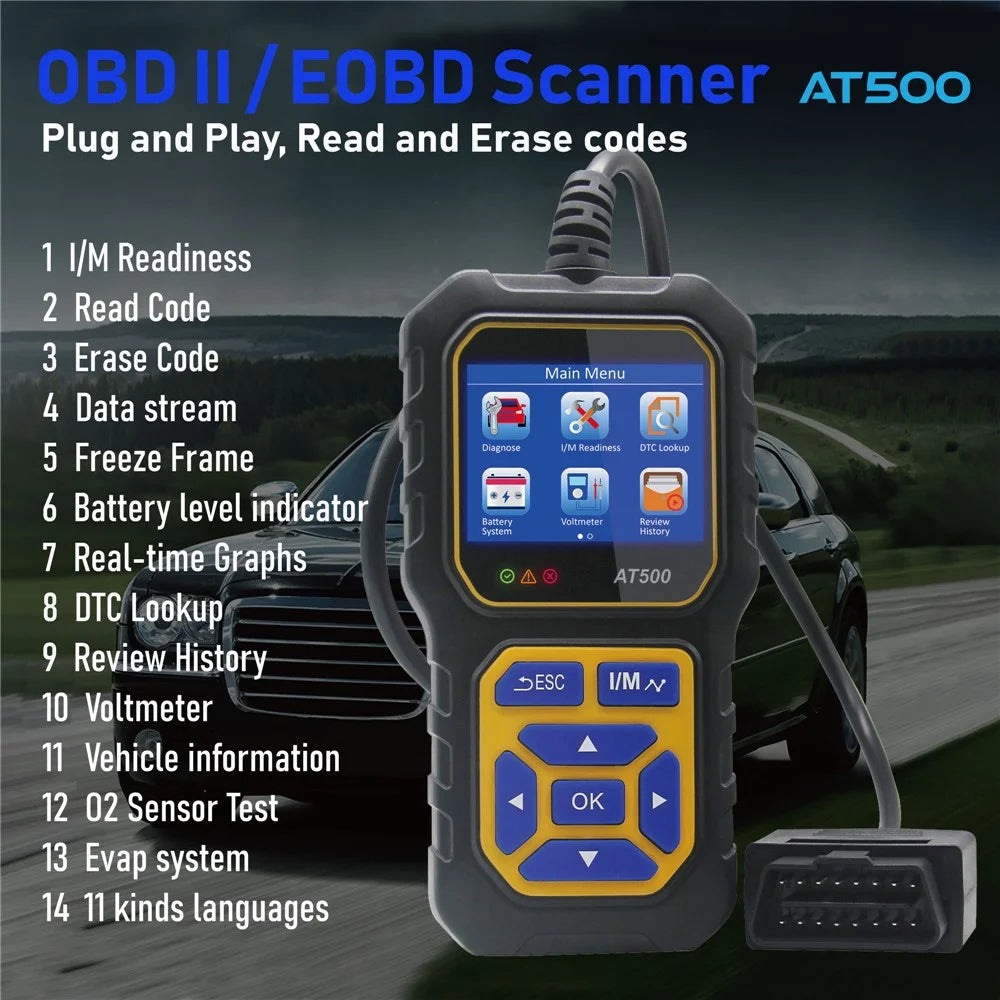

• Functions: Read/Clear Codes, Live Data, Freeze Frame, I/M Readiness, Battery Test, Voltmeter, O2 Sensor Test, EVAP Test, Cranking System Test, Charging System Test
