Description

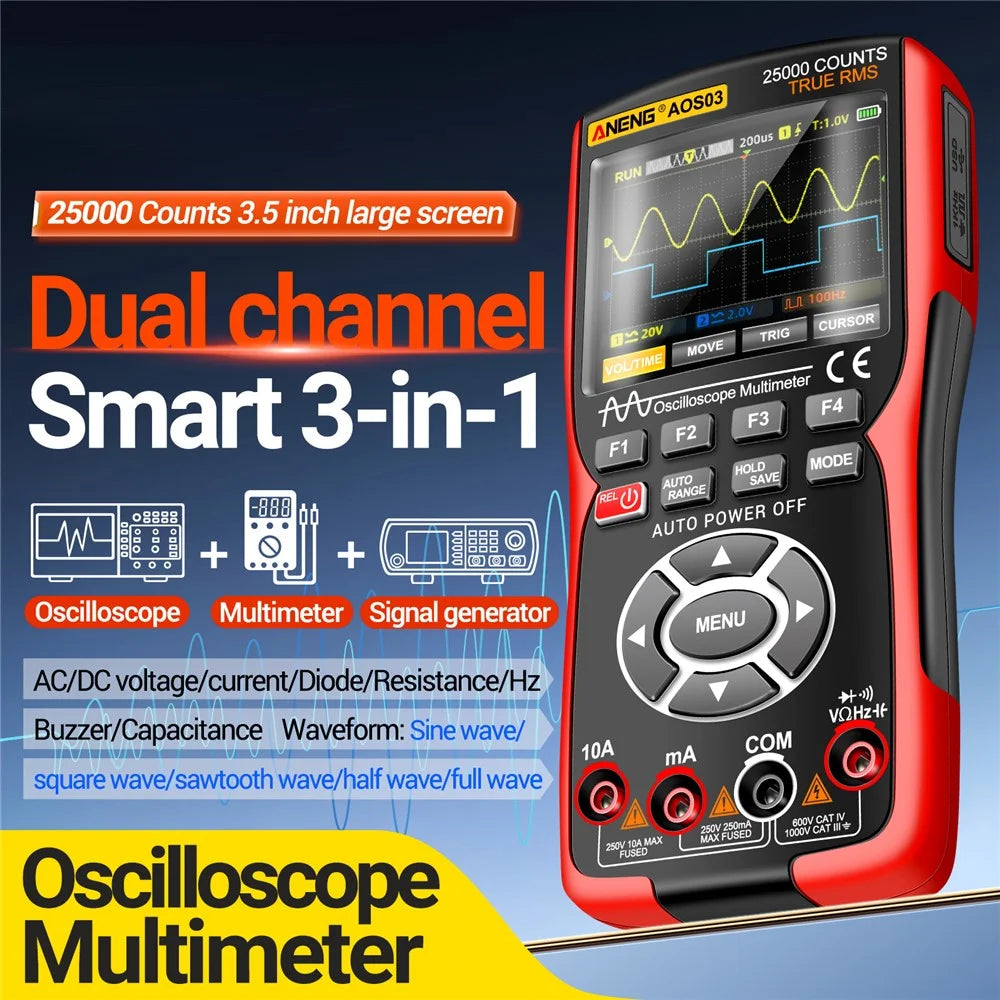

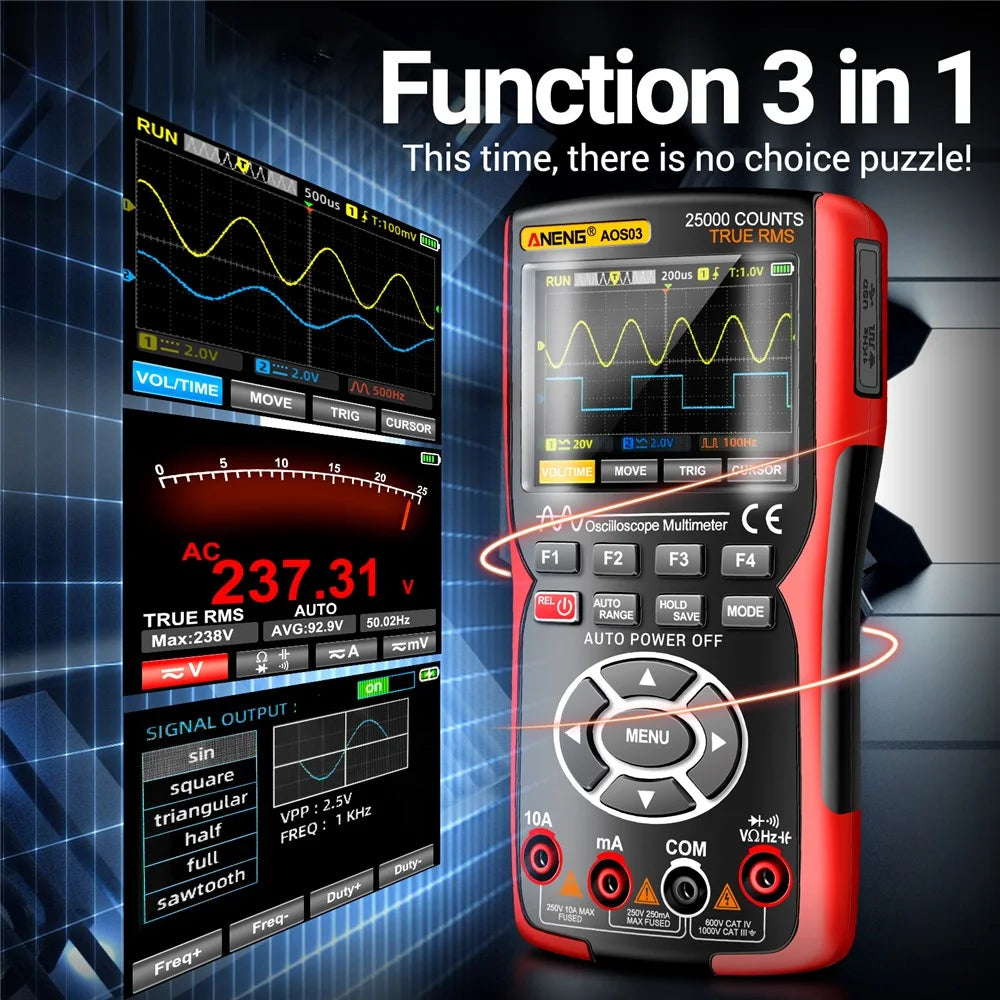

- Two channel 3-in-1 digital oscilloscope multimeter: multimeter + oscilloscope + signal generator function
- 3.5-Inch high-resolution large-screen display, allowing you to read clearly under strong light

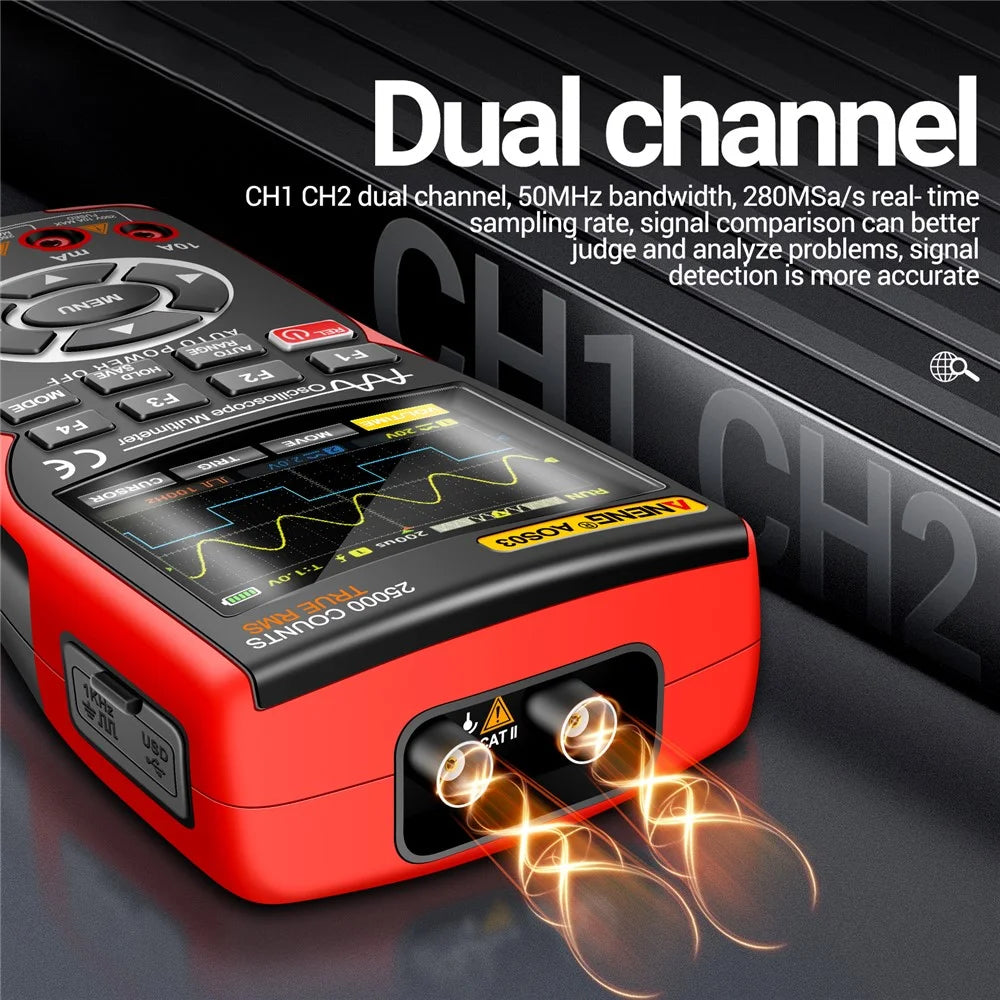

- CH1 CH2 dual channel, 50MHz bandwidth, 280MSa/s real-time sampling rate, signal comparison can better judge and analyze problems, signal detection is more accurate

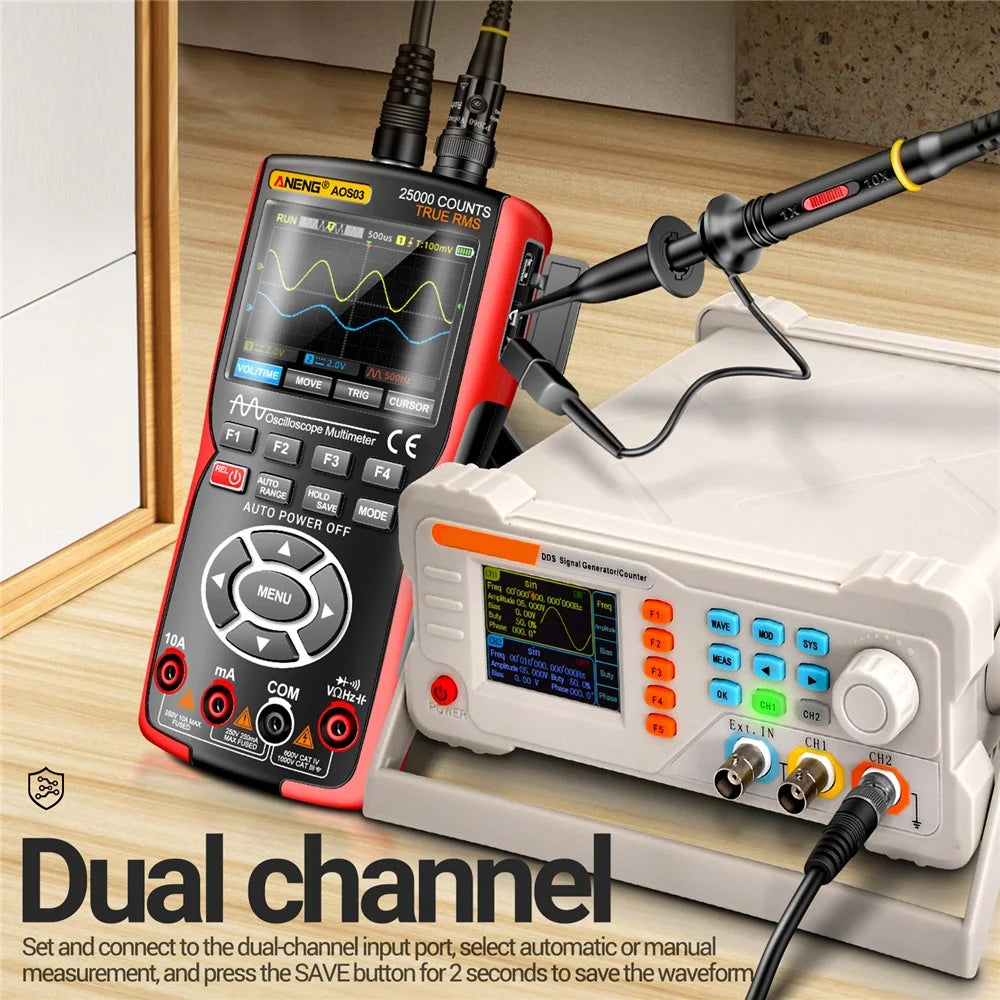

- Set and connect to the dual-channel input port, select automatic or manual measurement, and press the SAVE button for 2 seconds to save the waveform

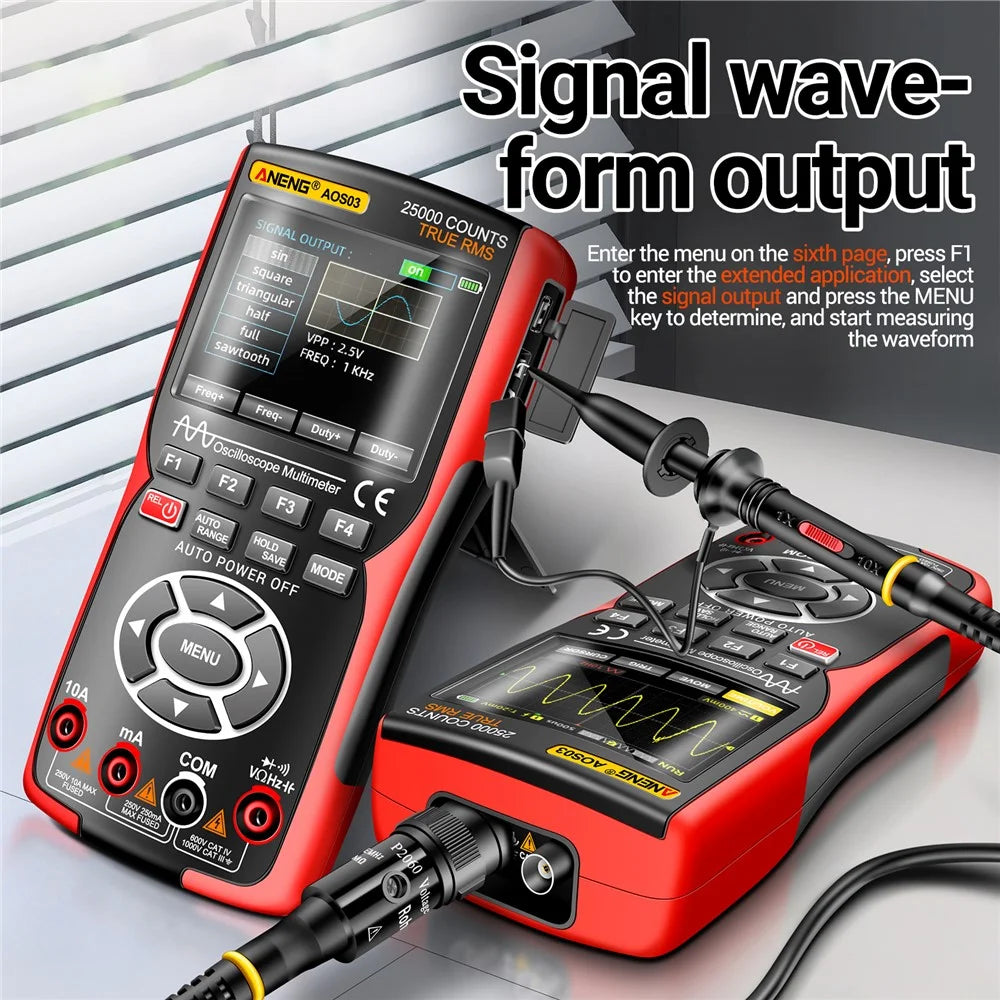

- 7 signal waveforms can be selected: sine wave, square wave, triangular wave, half wave, full wave, sawtooth wave
- Arbitrary waveforms: a variety of waveform measurements to meet your daily needs
Specifications:
- Oscilloscope function:
- Bandwidth: 50MHz dual channel
- Sampling method: real-time sampling
- Real-time sampling rate: 200M/280MSa/s
- Number of channels: dual channels
- Input coupling: DC, AC
- Input impedance: 1M0,@16pf
- Probe attenuation: X1, X10
- Maximum input voltage: X1 gear <150V, X10 gear <300V (DC+AC peak)
- Sampling rate range: 1.5Sa/s-280MSa/s
- Waveform interpolation (sinx): x
- Scan speed range: 10ns/div-20s/div
- Time base accuracy: 20ppm
- Record length: up to 128Kbyte
- Sensitivity: 20mV/div-10V/div
- Displacement range: 4 grids (plus or minus)
- Analog bandwidth: 50MHZ
- Low frequency response: greater than 10HZ
- Rise time: less than 10ns
- DC gain accuracy: ±3%
- Automatic measurement: period/frequency/maximum value/minimum value/root mean square/duty cycle/number of pulses
- Trigger mode: automatic, normal, single
- Trigger edge: rising edge, falling edge
- multimeter:
- AC voltage (V): 0V-750.0V
- DC voltage (V): 0V-1000.0V
- AC and DC voltage (mV): 25.000mV-250.00mV
- AC and DC current (A): 0A-10.000A
- AC current (μA/mA): 25.000mA-250.00mA
- DC current (mA): 25.000mA-250.00mA
- Resistance: 0-250.0MΩ
- Capacitance: 0nF-99.99mF
- Hz: can only measure 100kHz 0Hz-999.9kHz at the AC voltage range
- Diode/Buzzer: √
- Low battery indication: √
- USB charging: √
- Battery model: 3.7V 18650 battery*1 3400 mAh (included)

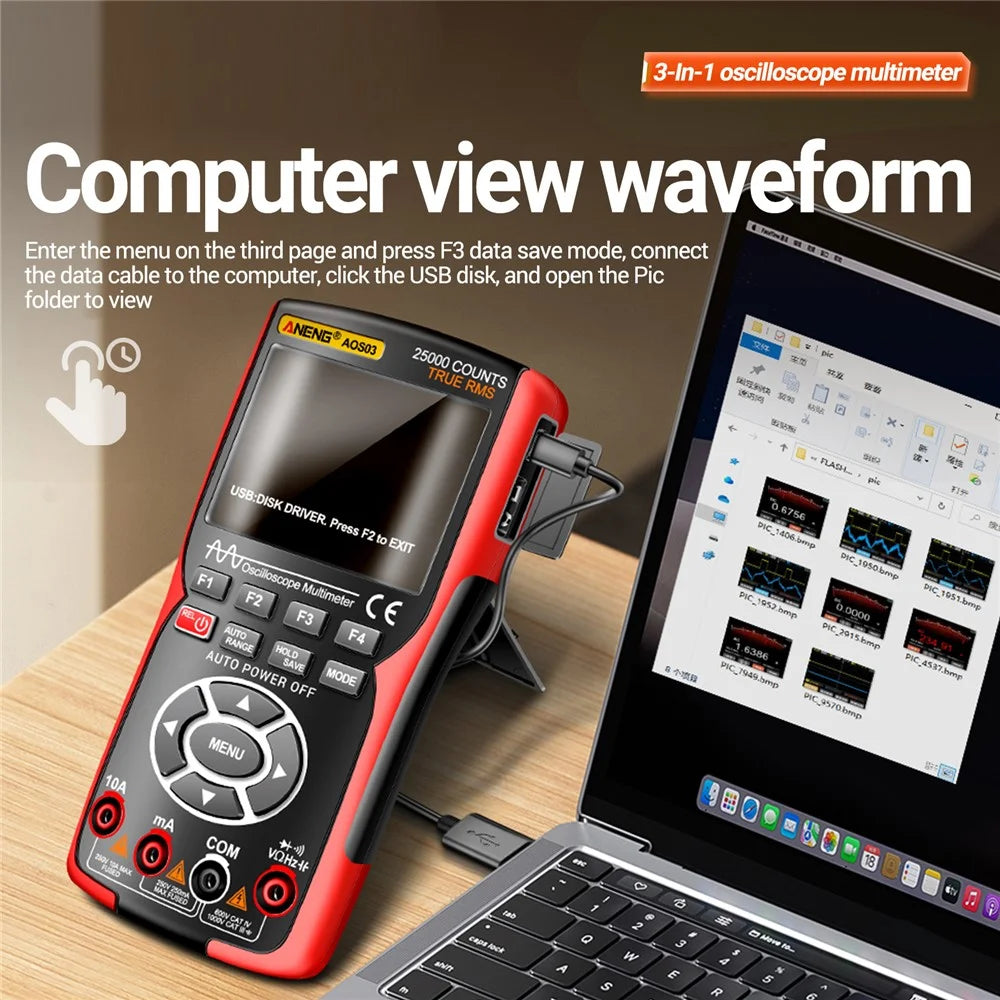

- Data storage/viewing: USB connection to computer
- Sampling rate: 3 times/second
- Screen display: VA reverse display color screen
- Screen brightness is adjustable: 30% 50% 80% 100%
- Data retention: √
- Back support frame: √
- True valid value: √
- Material: ABS/TPE
- Language options: Simplified Chinese/English
- Maximum count: 25000 counts
In the box

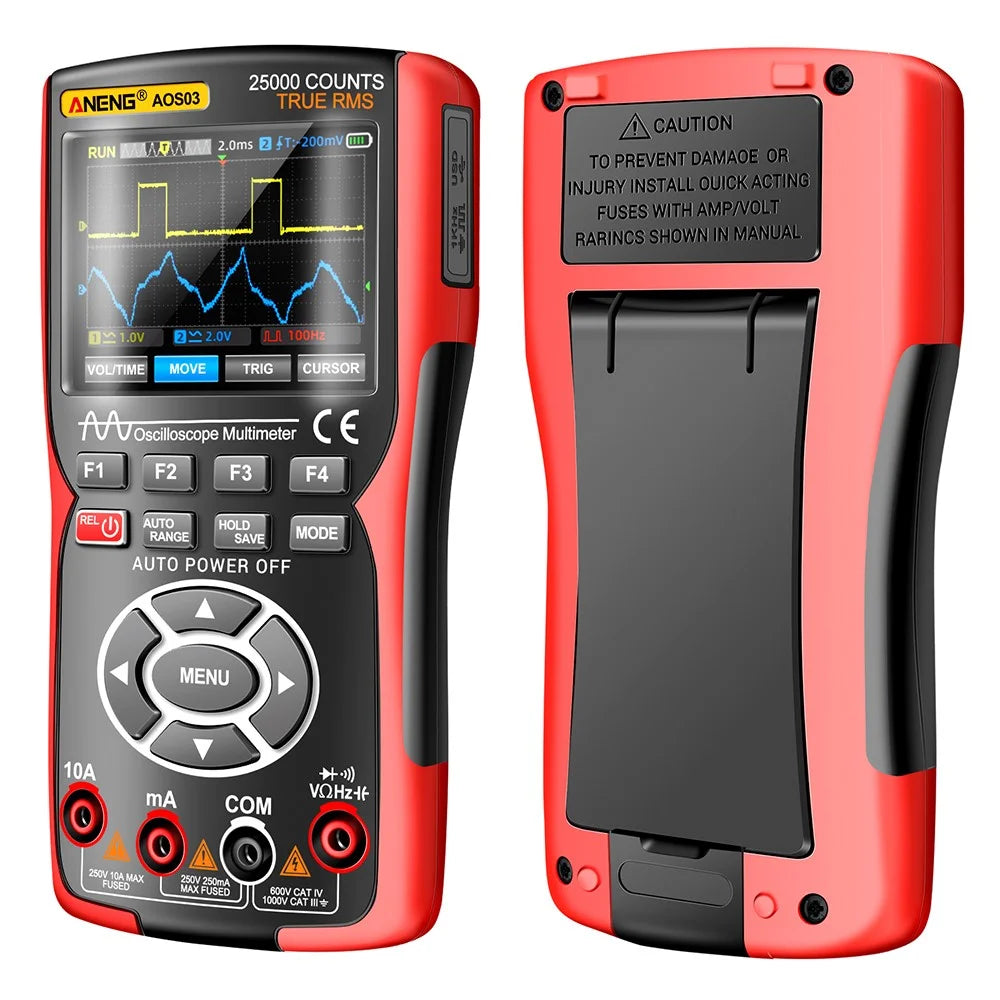

- 1 x Oscilloscope Multimeter
- 2 x Test Lead
- 1 x Set of Oscilloscope Pen Kit
- 1 x Type-C Cable
- 1 x Storage Bag
- 1 x English User Manual
