Description

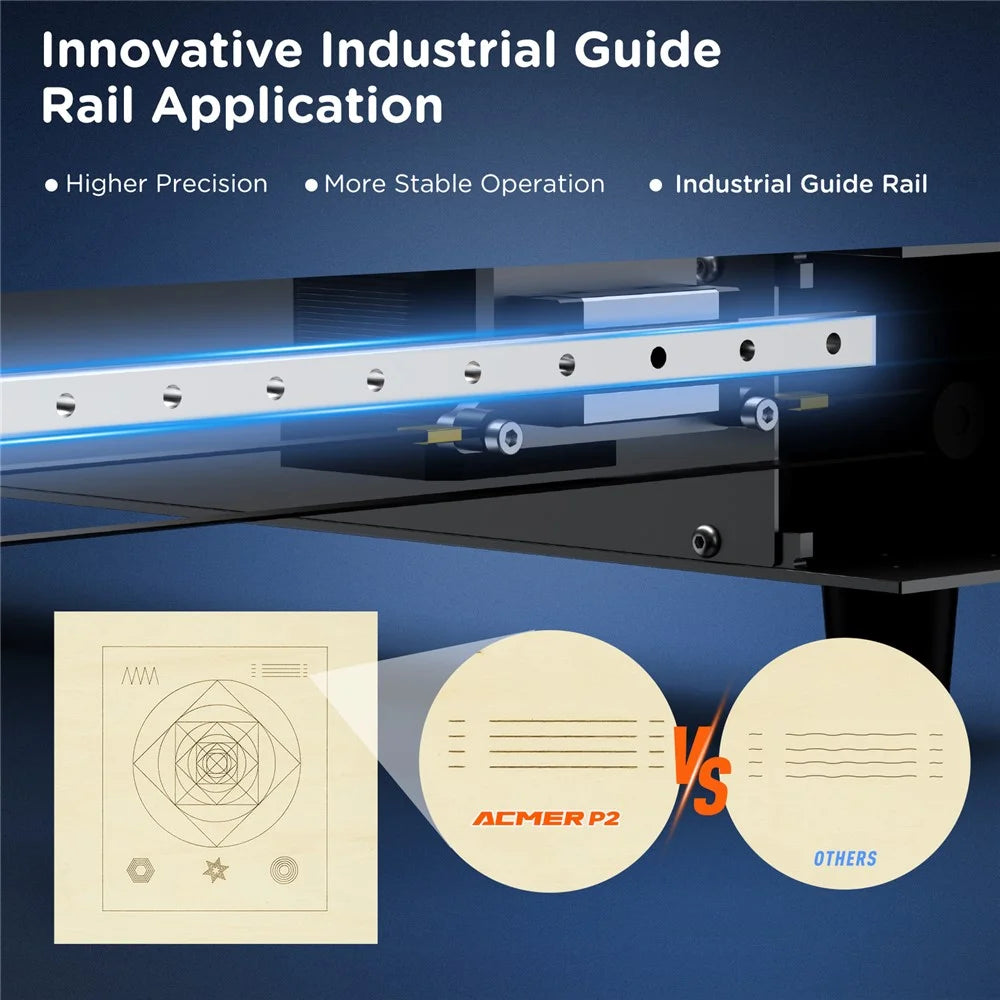

- Industrial Rail Drive: The X and Y axes are equipped with industrial-grade linear guides, featuring superior structural design for enhanced stability and precision in engraving. Achieve a photo-quality experience with ultra-high pixel resolution
- Unbox and start using instantly: With ACMER P2 Pre-Assembled Edition, the machine is already assembled and rigorously tested before leaving the factory, ensuring a superior user experience
- Safety Features: Emergency stop button, gyroscope detection (tilt 15 degrees to automatically turn off the laser), motherboard over-temperature protection, child safety lock, flame detector
- Gyroscope Tilt Detector: Automatically stops working when tilted more than 15°, to prevent the laser from causing injury to the human body or damaging objects, good protection for your safety
- Child Safety Lock: Unauthorized use is strictly prohibited to prevent any accidents caused by unauthorized use
- Incredibly Fast: With a blazing speed of up to 30,000 mm/min, this engraving system inherits the proven motion control technology from ACMER Lab. Its robust mechanical structure ensures faster engraving times for artworks, without compromising on stability or ultra-high precision
- Upgradeable is Important: Supports replacement of multiple power diode lasers (10w/20w/33w/1064) to accompany your growth from beginner to laser master. It also supports 1064 laser, making jewelry and metal ornaments engraving more professional
Specifications:

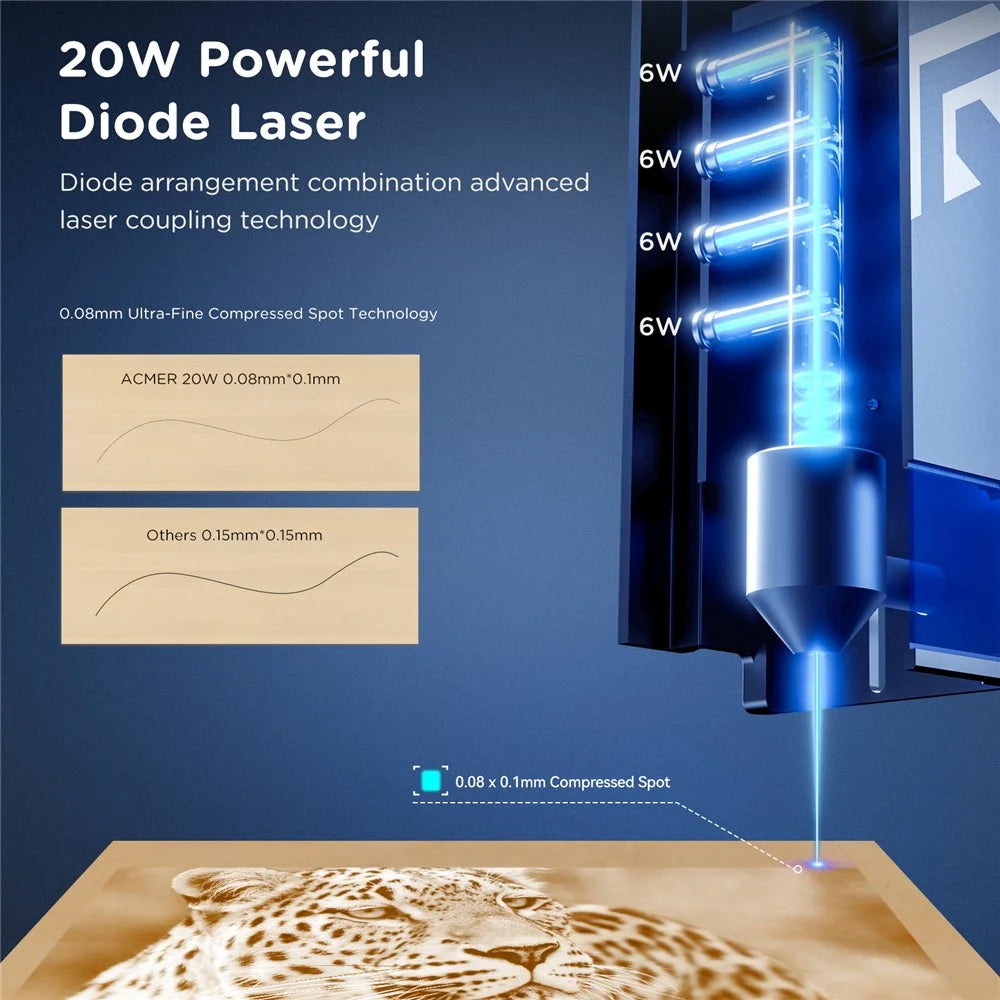

- Laser Output Power: 20000mw
- Laser Type: Diode laser/Upgradeable 1064 laser
- Machine Power: 120W
- Laser Wavelength: 450±5nm
- Power Supply: 24V/5A

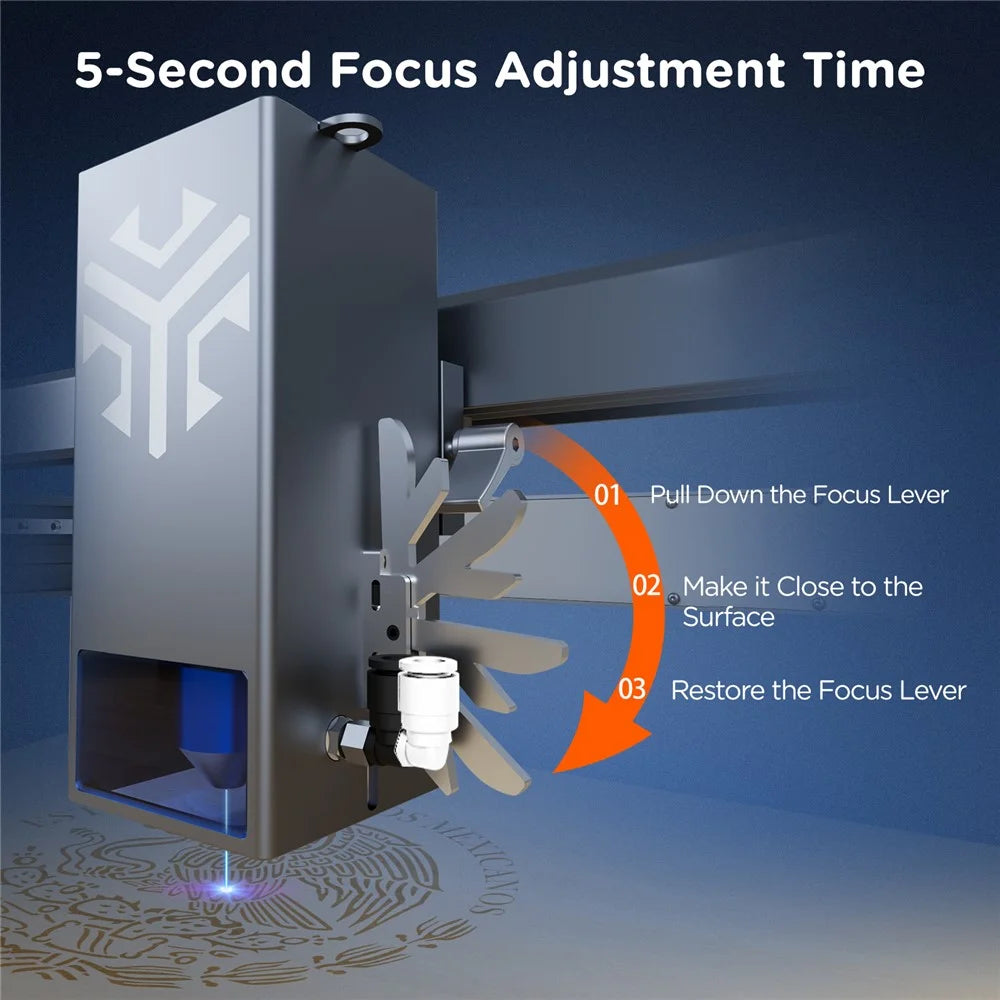

- Focal Length: 5mm
- Engraving Accuracy: 0.01mm
- Laser Module Design Life: 10000 hours
- Maximum Engraving Speed: 30,000 mm/min
- Working Area Size: 420*400mm
- Assembly Method: Pre-assembled
- Machine Size: 650*597*200mm
- Machine Weight: 6.5kg
- Movement structure: Industrial guide rail
- Certification: FCC/CE/RoHS/FDA
- Control Software: LightBurn/LaserGRBL/ACMER App(Android)/MKS(iOS)
- Compatible Accessories: 1064 laser module, ACMER P2 Engraving Area Expansion Kit, Honeycomb Laser Bed , R10 Laser Enclosure Box, ACMER M2 Rotary Roller, ACMER C4 Air Assist
- File Format Supported: JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc.
- Engraving materials: Basswood, Leather, Kraft Paper, MDF, Carton, Stainless Steel, Anodized Aluminum, Wrench (galvanized iron), Glass, Ceramics, Acrylic

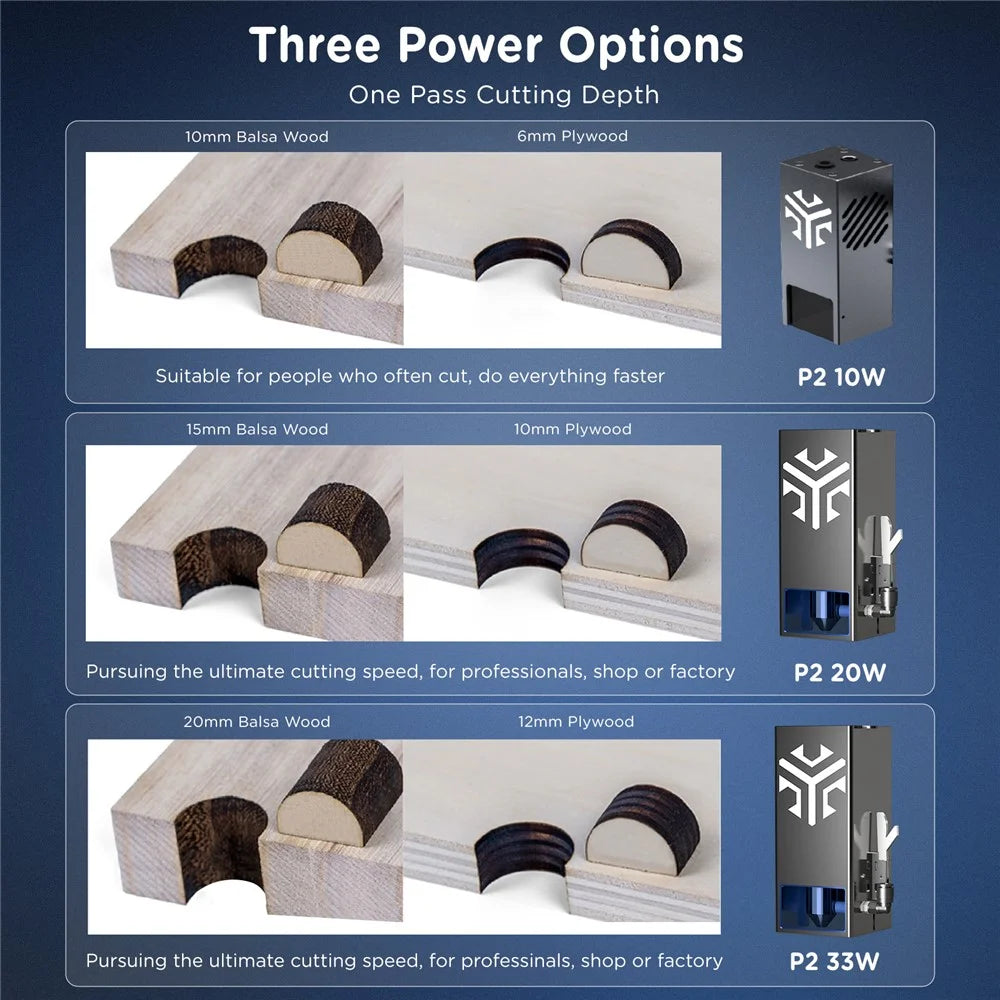

- Cutting ability: Cut through 25mm wood, 20mm acrylic, 0.1mm metal
In the box

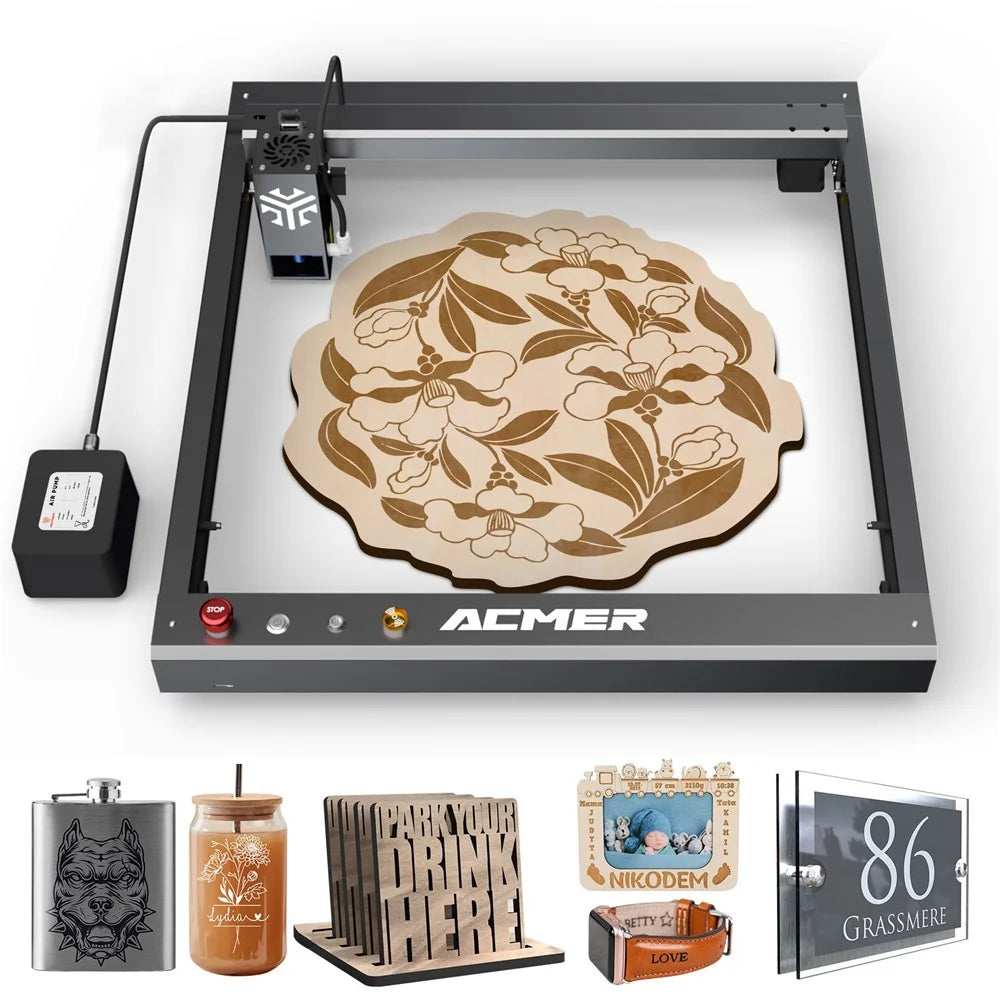

- 1 x Laser Engraving Machine
- 1 x Laser Module

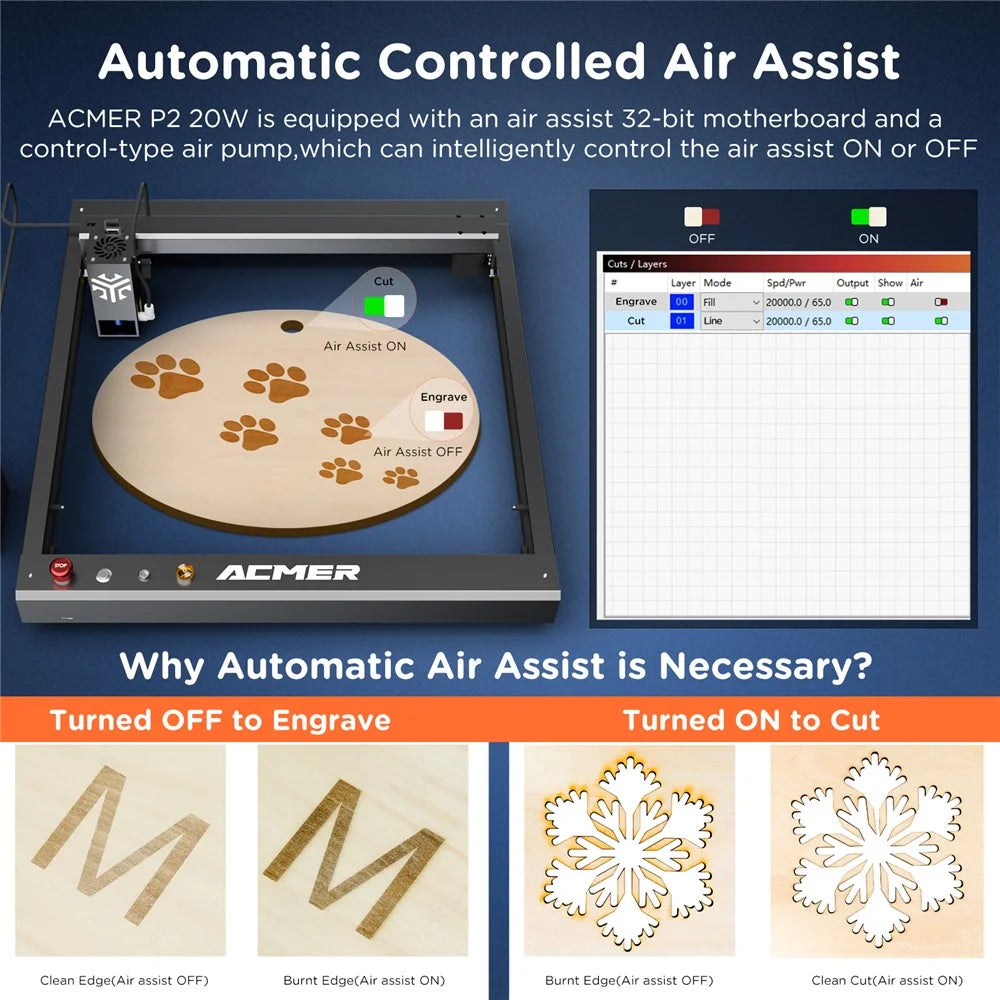

- 1 x Air Assist
- 1 x Power Adapter
- 2 x Machine Key
- 1 x Laser Goggle
- 1 x Card Reader & TF Card
- 1 x Power Cable
- 1 x Rotary Axis Wire
- 1 x USB Cable
- 1 x Brush
- 1 x Wrench
- 4 x Screwdriver
- 1 x Plywood Material
- 1 x English User Manual
