Description
- Zero Assembly, Starting in One Minute: No need for complicated assembly troubles, convenient user experience. Enjoy laser engraving now

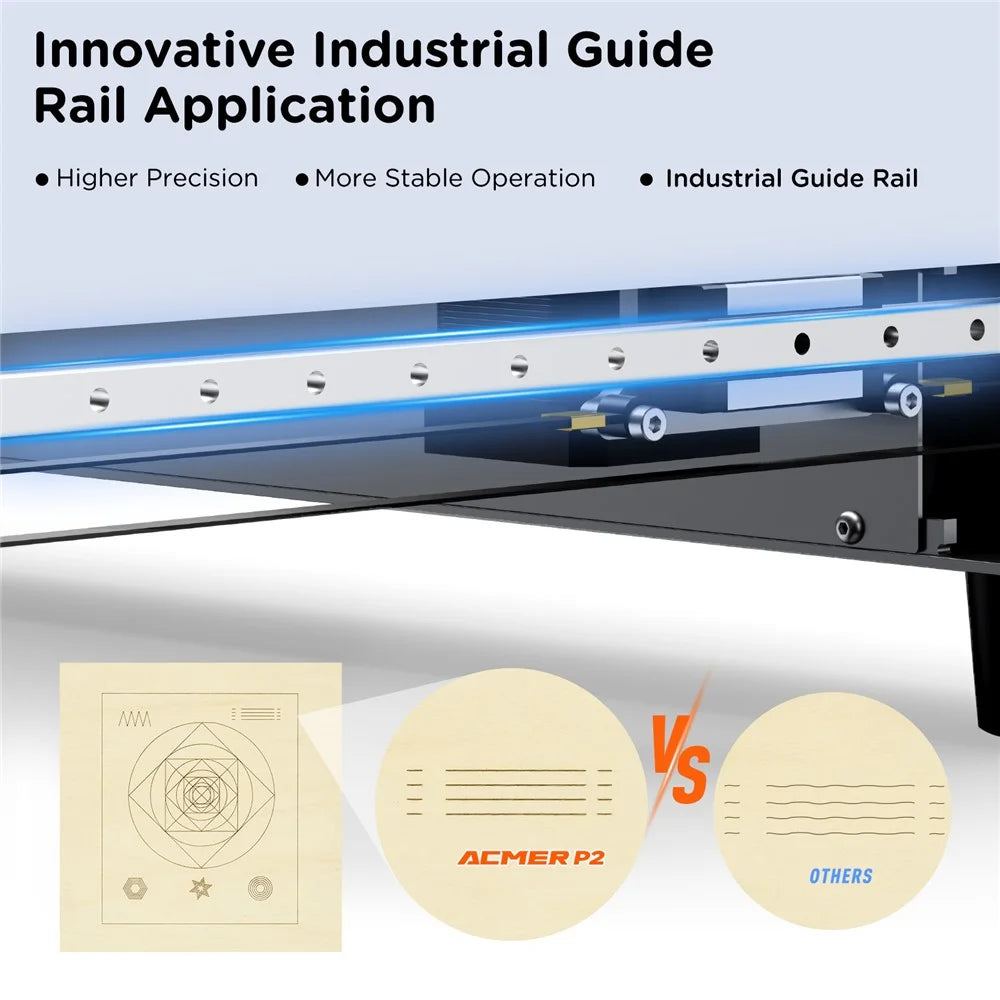

- Industrial Guide Rails: The X and Y axes are equipped with industrial-grade linear guides, featuring superior structural design for enhanced stability and precision in engraving. Achieve a photo-quality experience with ultra-high pixel resolution
- Incredibly Fast: With a blazing speed of up to 30,000 mm/min, this engraving system inherits the proven motion control technology from ACMER Lab. Its robust mechanical structure ensures faster engraving times for artworks, without compromising on stability or ultra-high precision
- Upgradeable is Important! Supports replacement of multiple power diode lasers (10w/20w/33w/1064) to accompany your growth from beginner to laser master. It also supports 1064 laser, making jewelry and metal ornaments engraving more professional
- Expansion Kit Enables Larger Creations: Carving area no longer limits your creativity. A simple upgrade can increase the working area by 100%, allowing you to create larger puzzles and models. The possibilities are endless
Specifications:
- Laser Output Power: 10000mw
- Laser Type: Diode laser/Upgradeable 1064 laser
- Machine Power: 96W
- Laser Wavelength: 450±5nm
- Power Supply: 24V/4A
- Focal Length: 5mm
- Engraving Accuracy: 0.01mm
- Laser Module Design Life: 10000 hours
- Maximum Engraving Speed: 30,000 mm/min
- Working Area Size: 420*400mm
- Assembly Method: Pre-assembled
- Machine Size: 613*590*200mm
- Machine Weight: 6.5kg
- Movement structure: Industrial guide rail
- Certification: FCC/CE/RoHS/FDA
- Control Software: LightBurn/LaserGRBL/ACMER App(Android)/MKS(iOS)

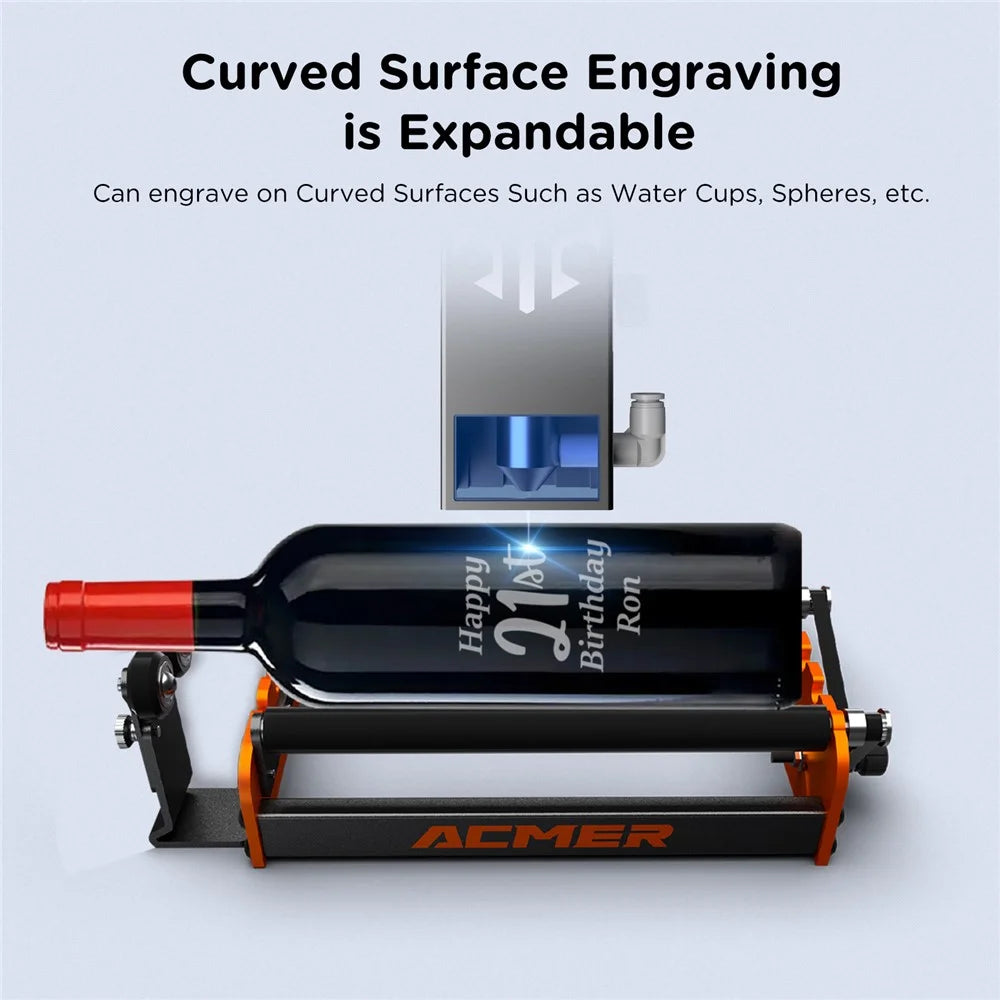

- Compatible Accessories: 1064 laser module, ACMER P2 Engraving Area Expansion Kit, Honeycomb Laser Bed , R10 Laser Enclosure Box, ACMER M2 Rotary Roller, ACMER C4 Air Assist
- File Format Supported: JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc.
In the box

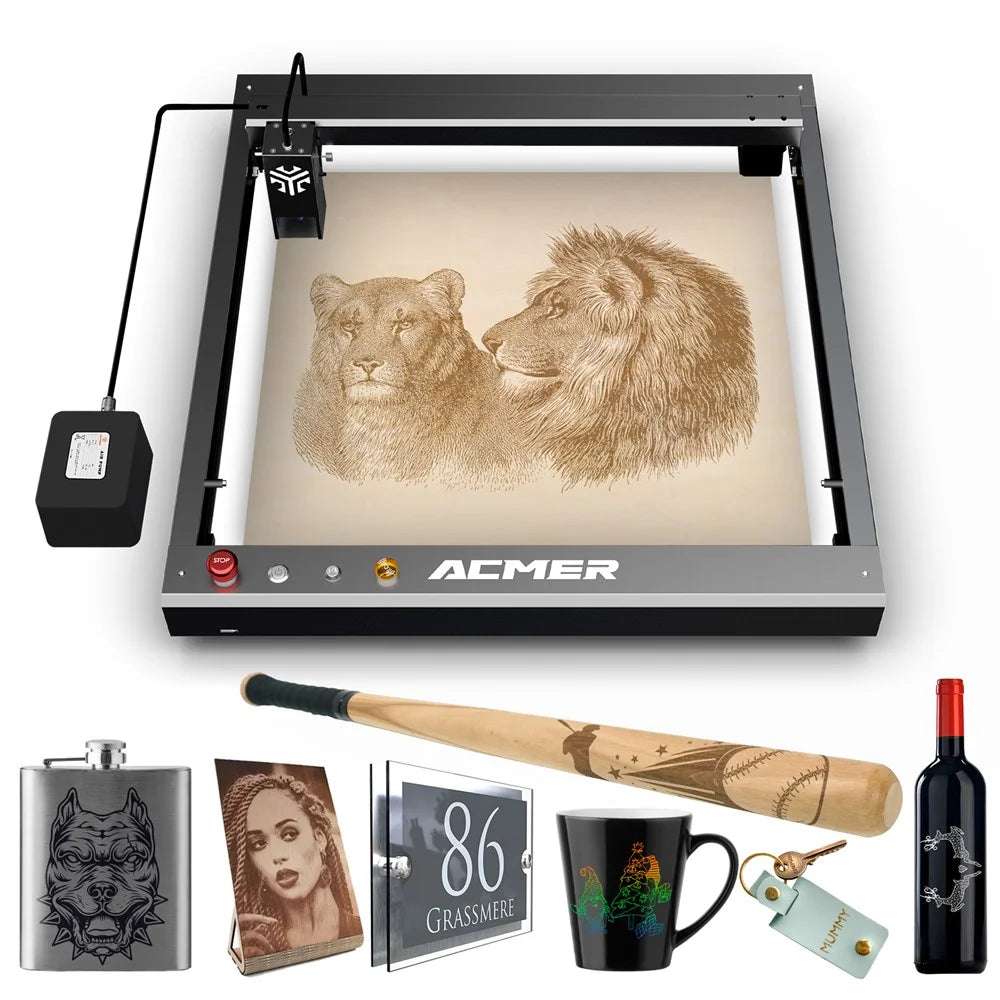

- 1 x Laser Engraving Machine
- 1 x Laser Module
- 1 x Air Assist
- 1 x Power Adapter
- 2 x Machine Key
- 1 x Laser Goggle
- 1 x Card Reader & TF Card
- 1 x Power Cable
- 1 x Rotary Axis Wire
- 1 x USB Cable
- 1 x Brush
- 1 x Wrench
- 4 x Screwdriver
- 1 x Plywood Material
- 1 x English User Manual
