Description

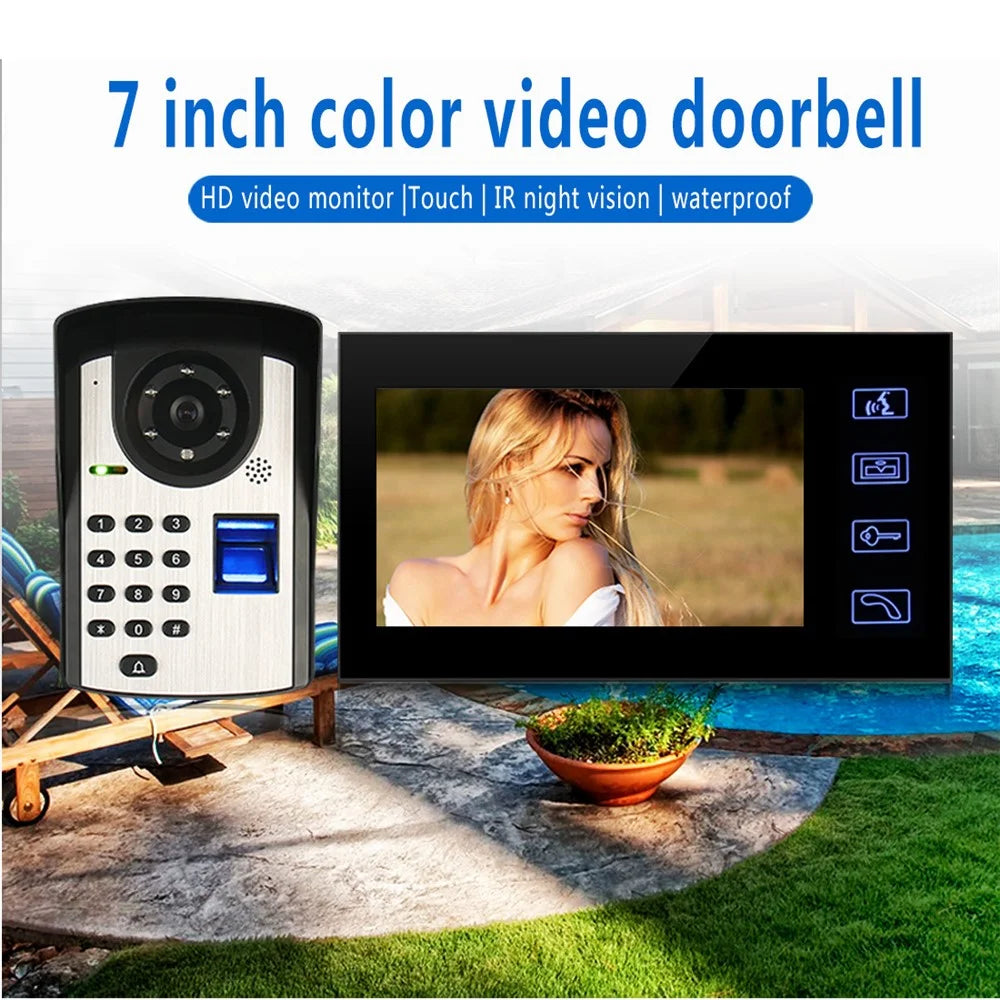

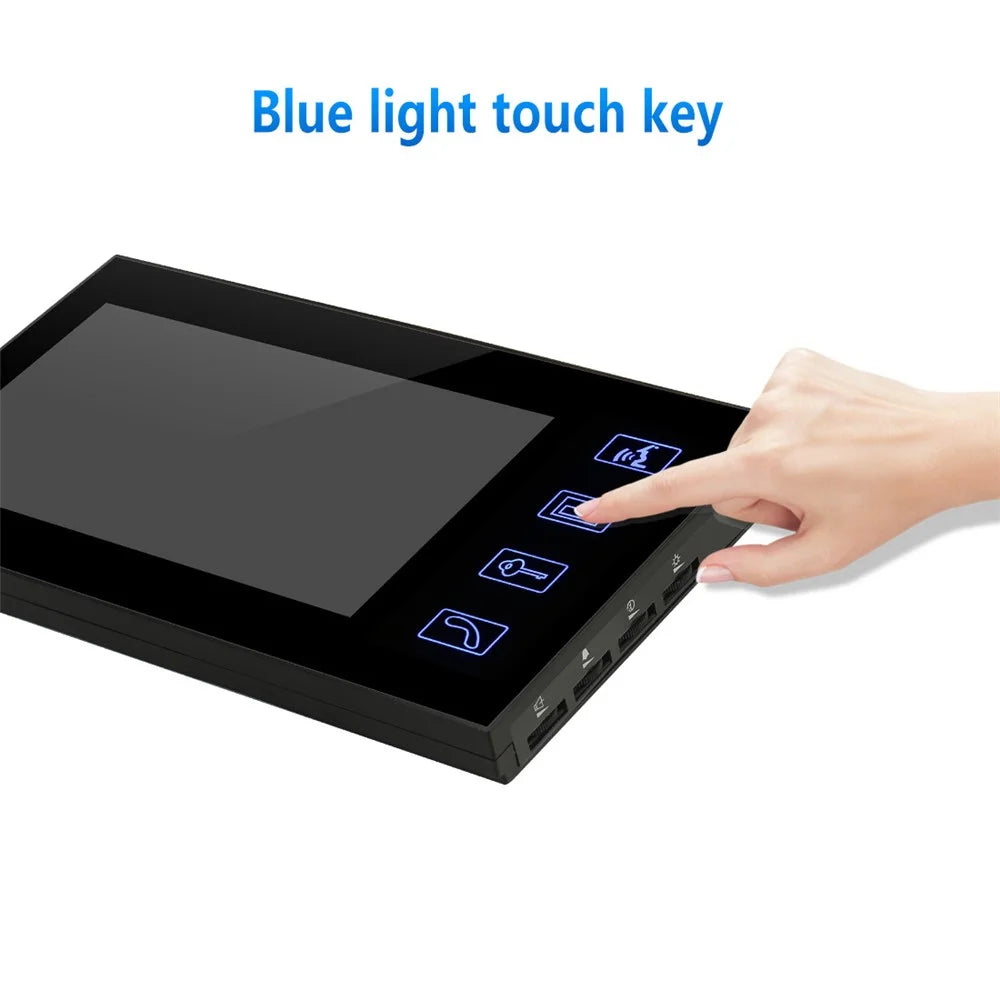

- 7-inch high-definition digital display, blue light touch key
- Support for recording 1000 fingerprints, 1 set of passwords, 8 remote controls
- Three unlocking methods, fingerprint + password + remote unlock

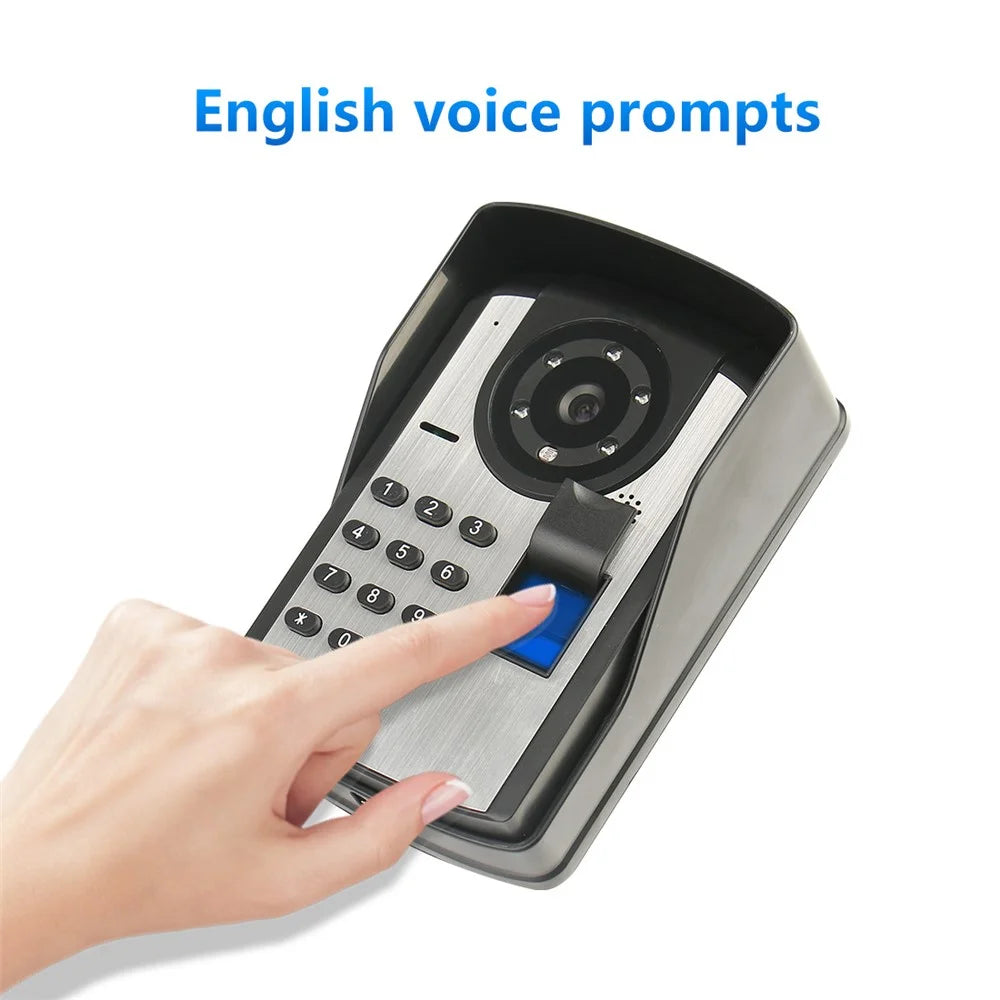

- English voice operation tips
- Outdoor camera IP55 rated dustproof and waterproof
- 12 types of polyphonic ringtones can be unlocked
- The outdoor unit is designed with a rain cover
Specification:
- Model: 806FD11
- New camera resolution: 1000 lines
- Audio distortion rate: ≥50mW
- Talk time: 120 seconds, monitoring time: 60 seconds
- Power supply input voltage: AC110-220V 50Hz - 60Hz
- Power supply output voltage: DC15V 2A
- Display: A-class 7-inch color LCD display
- Operating voltage: DC15V ± 10%
- Resolution: 960 (H) x 234 (V) point
- Power consumption: static <0.5W, speech state <6W
- Installation method: fixed to the wall
- Outdoor unit size: 155*100*55mm
- Monitor size: 128mm*225mm*23mm
- Remote control battery: 12V 27A (not included)
- Outdoor Unit:
- Power supply: 15V DC 2A
- Ambient temperature: - 20 to +55℃
- Material: ABS + metal drawing board
- Camera/lens: 3.6mm SHARP-CCD camera (700TV line)
- Viewing angle: 92°
- Photosensitivity: 0.05 lux

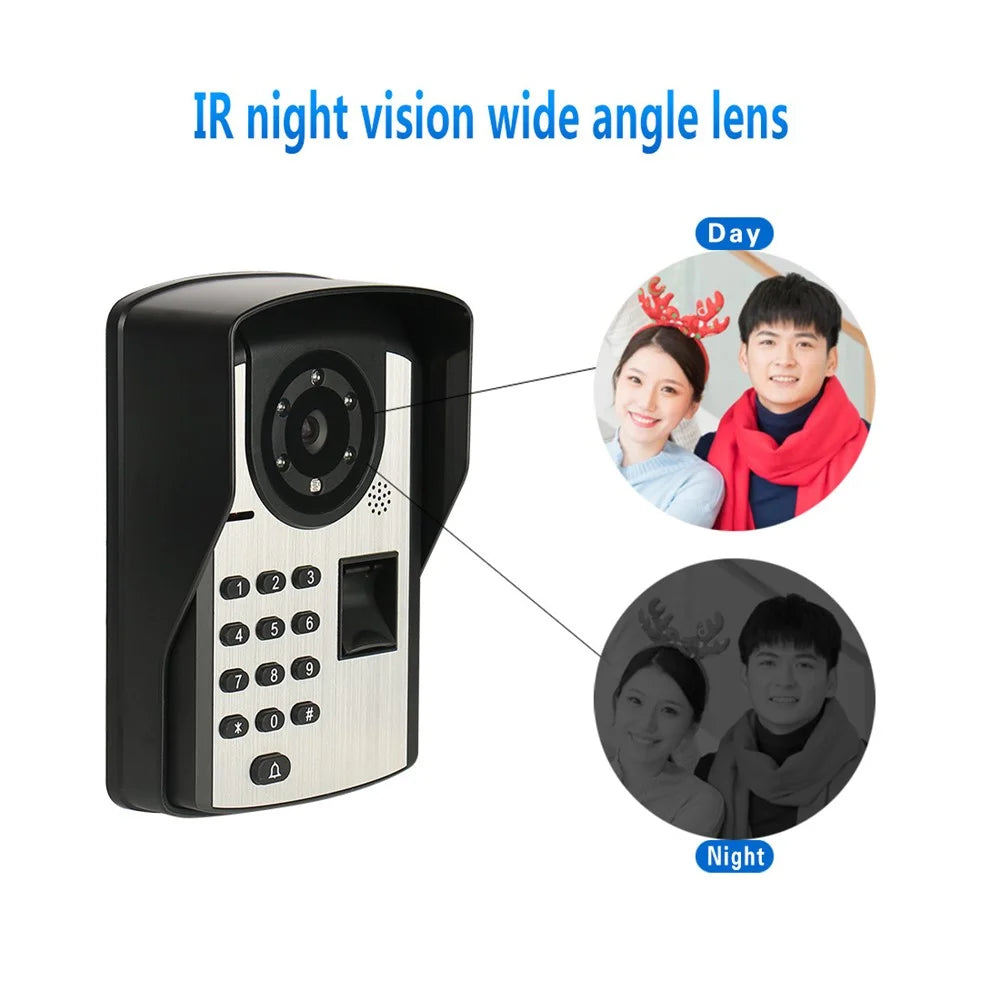

- Night vision: Yes, 5LED diodes (automatic connection)
- Storage capacity: 1000 fingerprints
- Scanner: full-size scanner, blue scanner illumination
- Scanner resolution: 500dpi
- Built-in microphone/speaker: Yes
- Protection class: IP55 (dustproof/water resistant)
- Installation: on-wall
Note: Does not include built-in rechargeable battery or memory card.

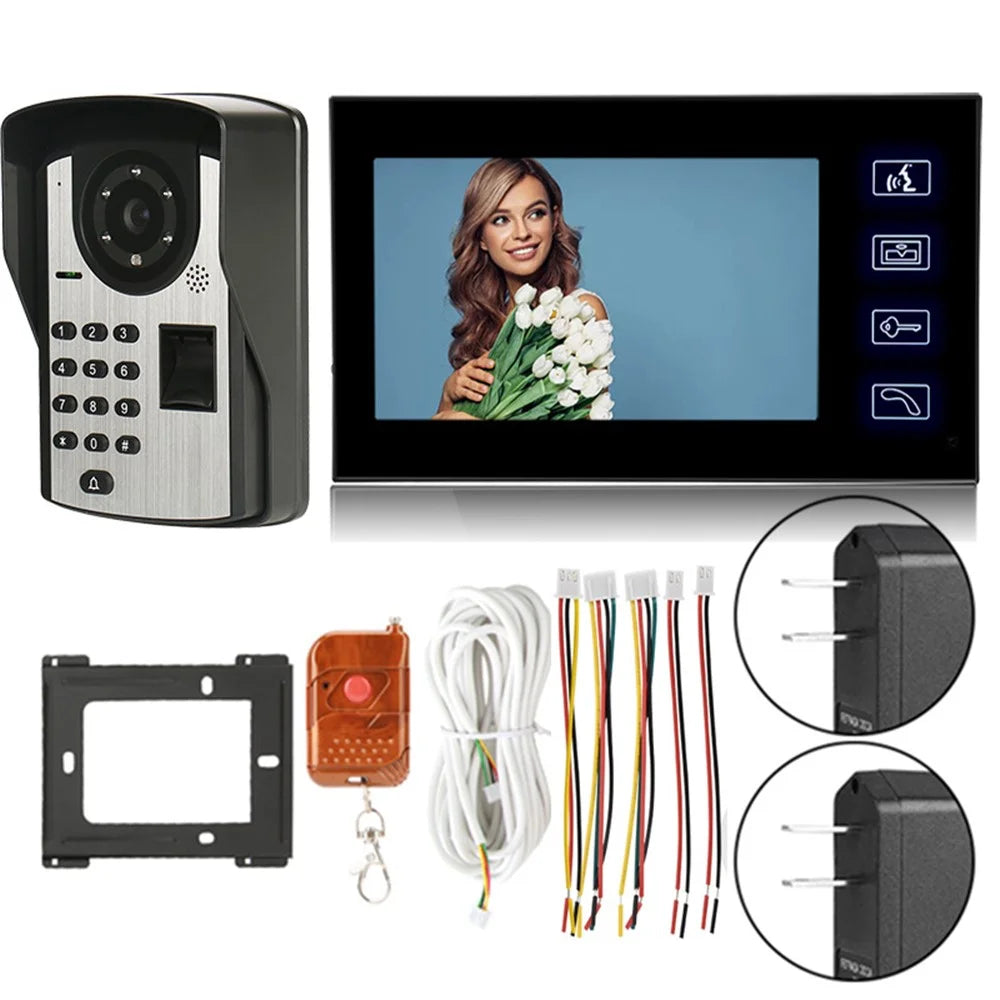

In the box
- 1 x Outdoor Camera
- 1 x Indoor Monitor
- 2 x Power Adapter (US Plug)
- 1 x 4-pin 5m Cable
- 2 x 2-pin Cable
- 1 x Mounting Plate
- 1 x Screw Pack
- 1 x Remote Controller (without Battery)
- 1 x English User Manual
