Description
- Compliant with PCI Express Base Specification 1.1
- Supports 4-channel 5.1CH surround sound output for home entertainment or gaming
- Support full duplex 44.1k/48khz sampling rate playback, 16bit recording
- Analog mixer supporting Line-in, Mic-in, Aux, CD input
- DB15 MIDI MPU-401 port/game port
- Supports A3D and DS3D, Directsound 3D and EAX sound compatible
Specification:
- Main controller: C-MEDIA CMI8738
- Bus Type: PCI Express Rev 1.1
- Audio channel: 4.1 CH audio system
- Interface : MIC: microphone input, LINE: line output, FRONT: front output
- REAR: Rear Out, C/SUB: Bass/Out
- Features: Rich input/output interface DB15 MIDI MPU-401 port/game port
- Application areas: home theater, audio playback and other entertainment
- Sampling rate: 44.1~48 kHz / 16bits
- Signal-to-noise ratio: 100db
- Harmonic Distortion: -85dB playback / -90db recording
- Audio mode: A3D, DS3D, Direct sound 3D, EAX sound
- Operating system: Windows 98 SE /Server 2000/XP/Server 2003/Vista/7/8/10
- Hardware requirements:
- At least 1G Intel/AMD CPU
- 1GB random memory
- 1 free PCI-E slot
- 1 free digital expansion slot
In the box

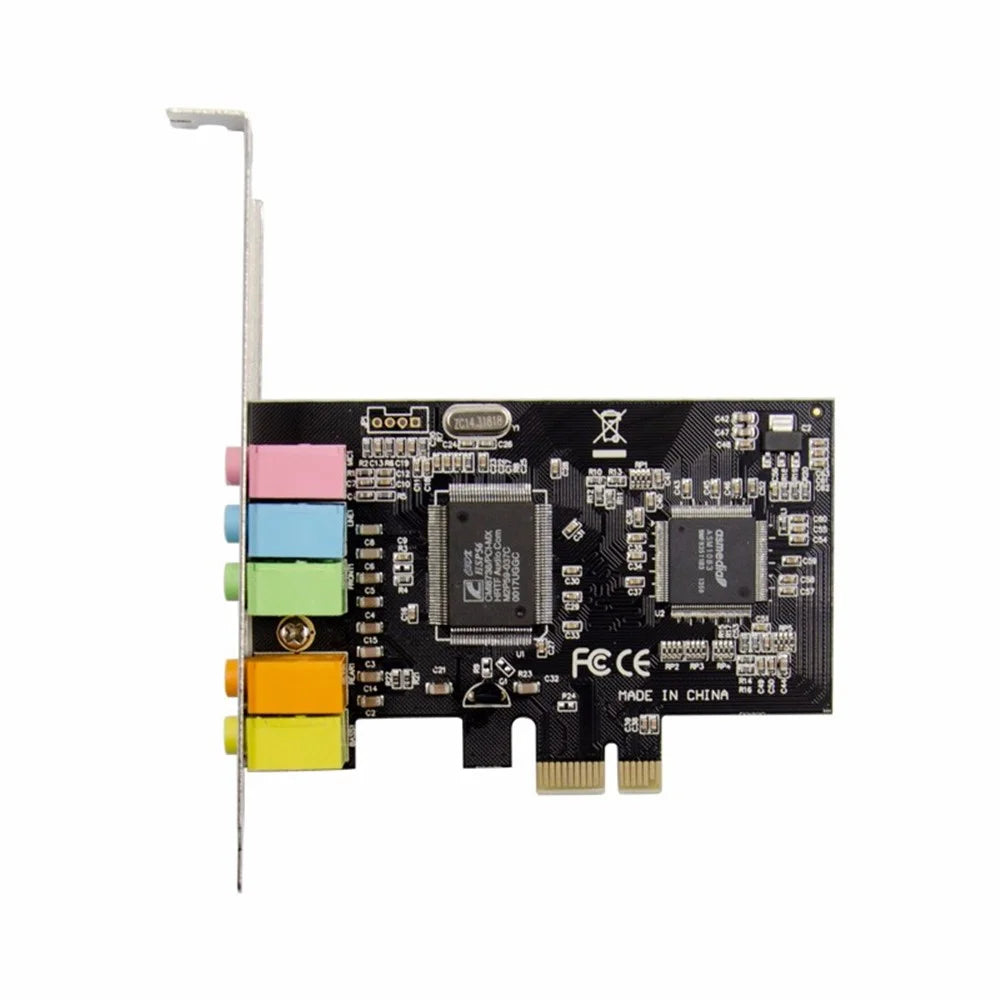

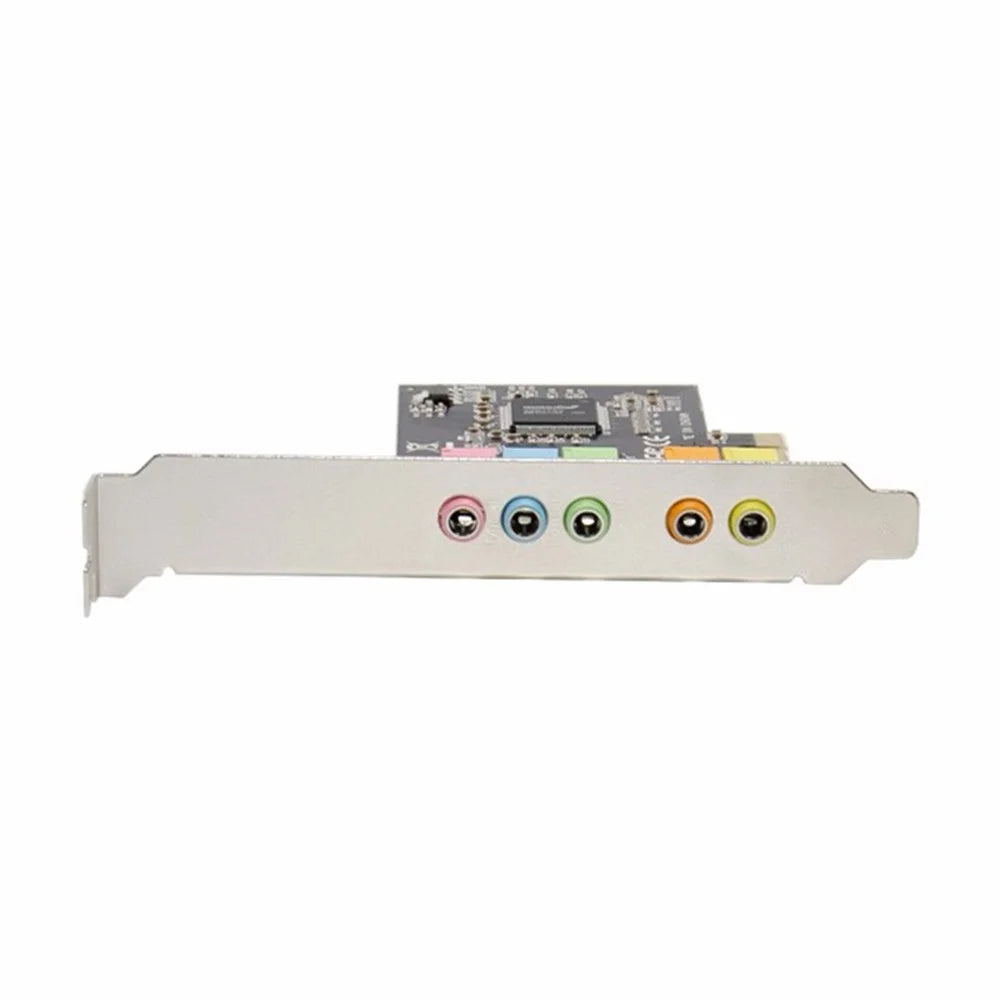

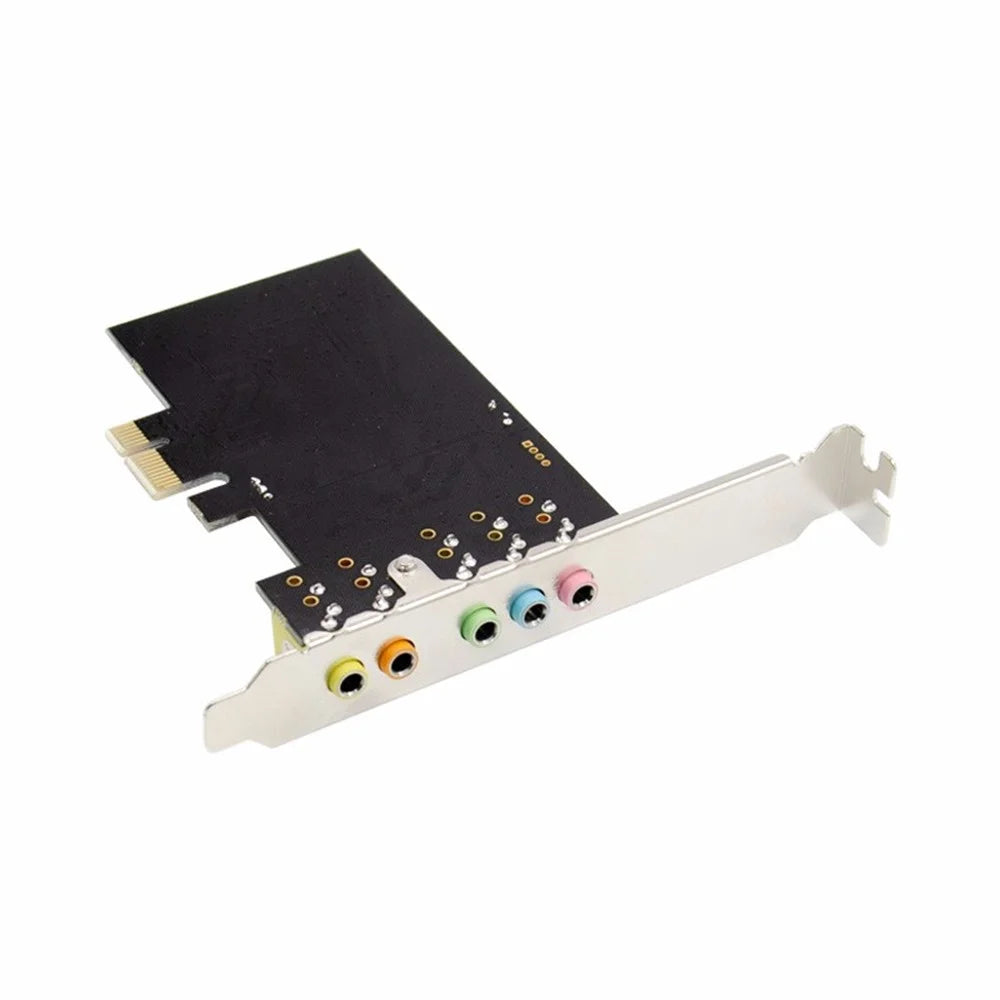

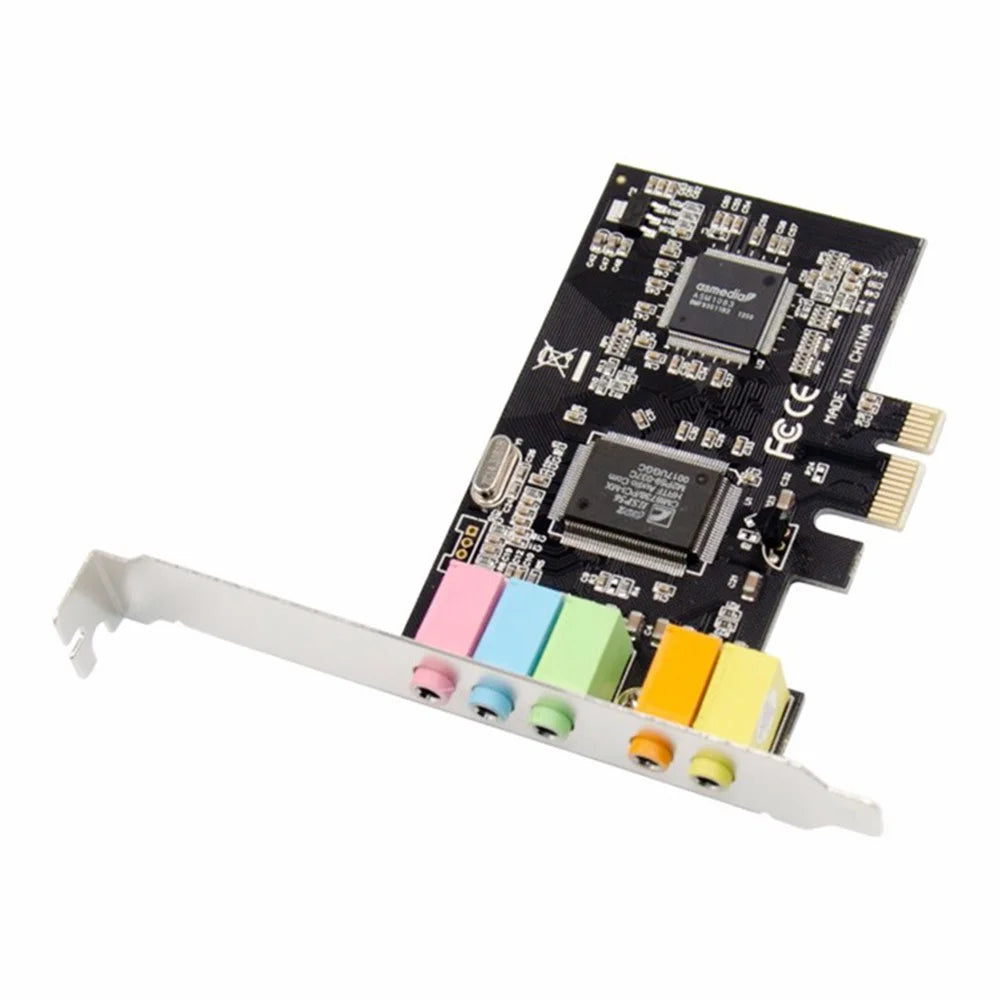

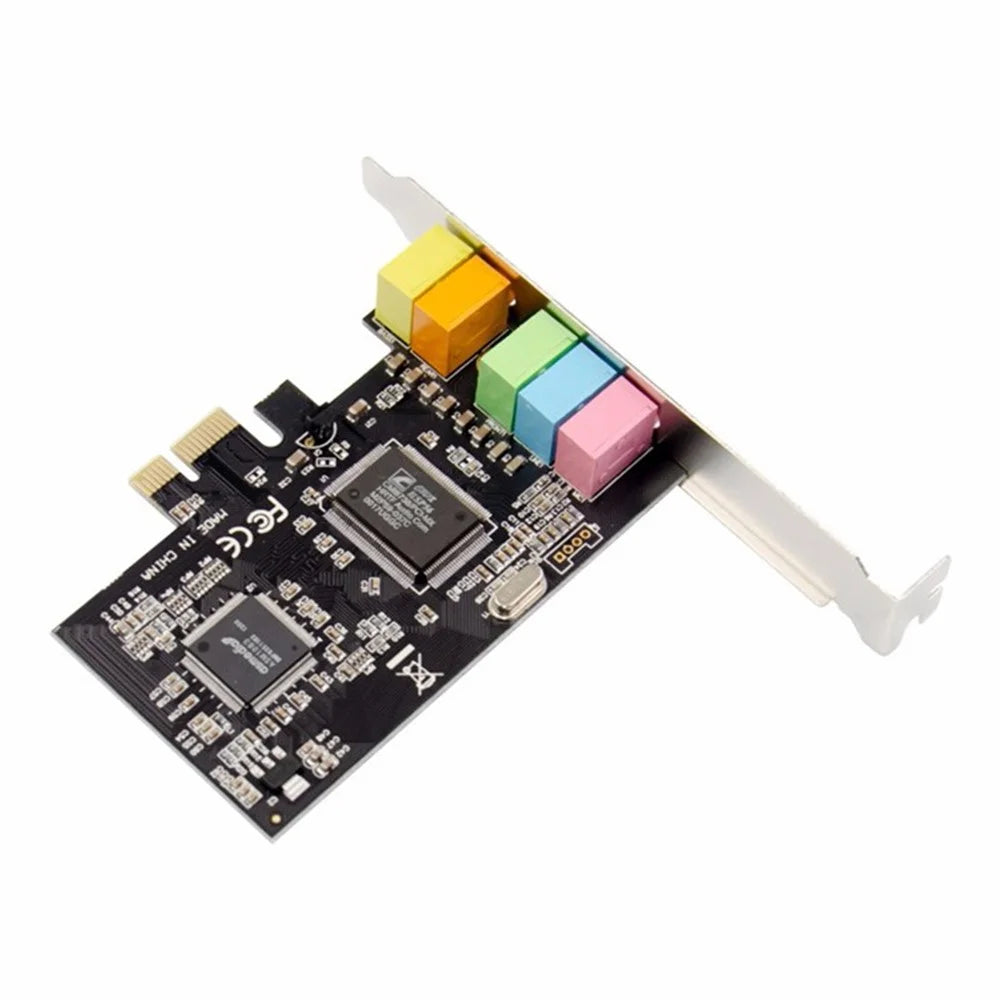

- 1 x PCI Express 5.1 Channel Stereo Surrounding Sound Card
- 1 x English User Manual
