Description
- Designed for users who need to control many system fans
- It can expand 1 motherboard PWM fan interface, and support up to 5 fans
- Support PWM function, speed control, to meet your control needs
- Compatible with 3-pin/4-pin fan (Since there is no PWM controller for 3-pin, the 3-pin fan will run at full speed)
- Support cable management
Instruction:
- Since a motherboard interface can only read one RPM signal, the CPU Fan channel of the PWM distributor has only one RPM signal; therefore, the motherboard will only read the RPM signal of the PWM device connected to the channel 1 of the distributor.
Specifications:

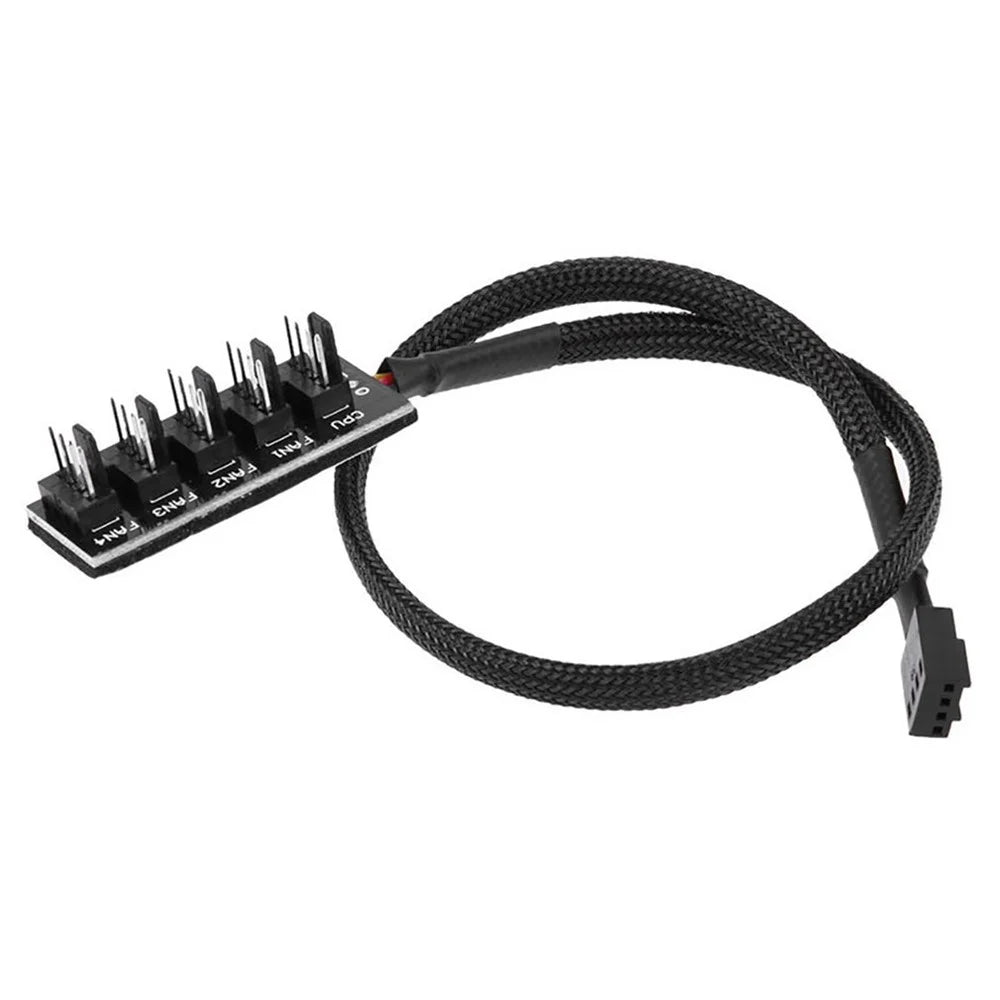

- Product Type: 5-port fan hub
- Material: Nylon + Plastic + Metal
- Length: about 39.5cm/15.55inches

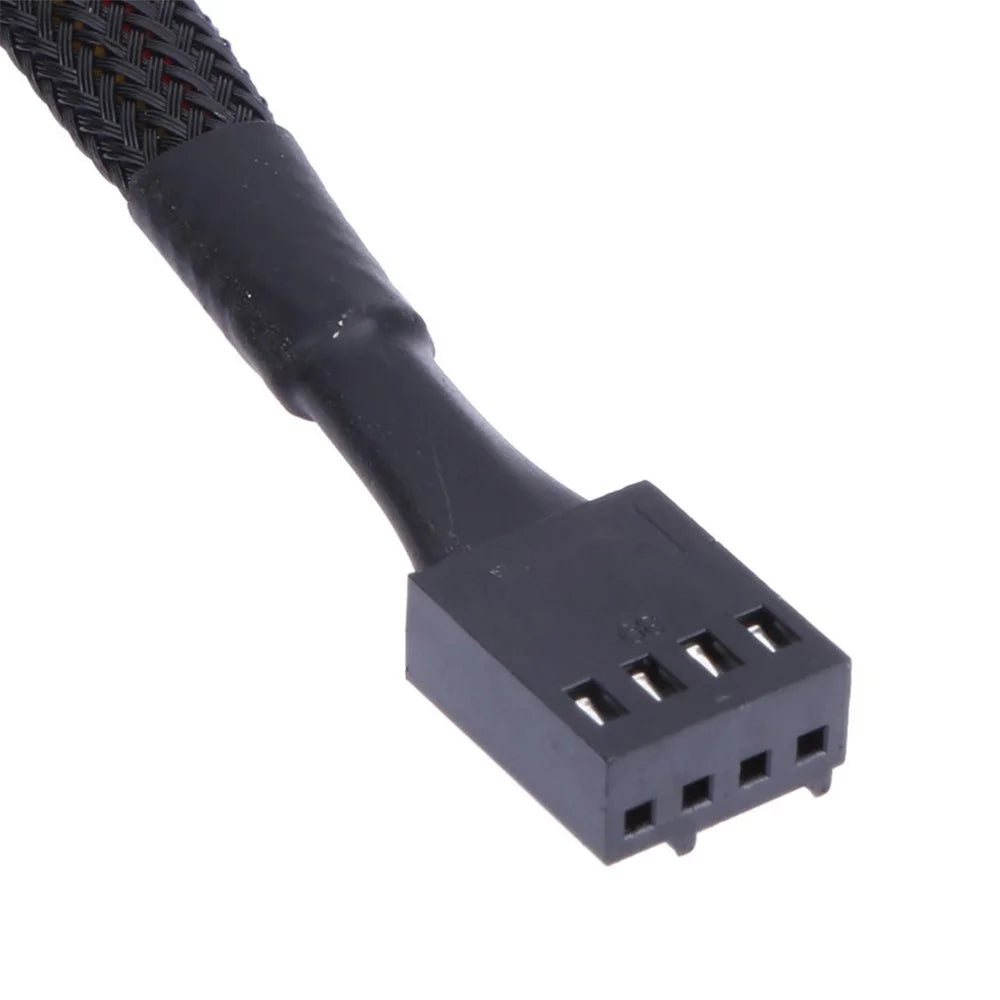

- Connector A: 1-TX4 4-pin female

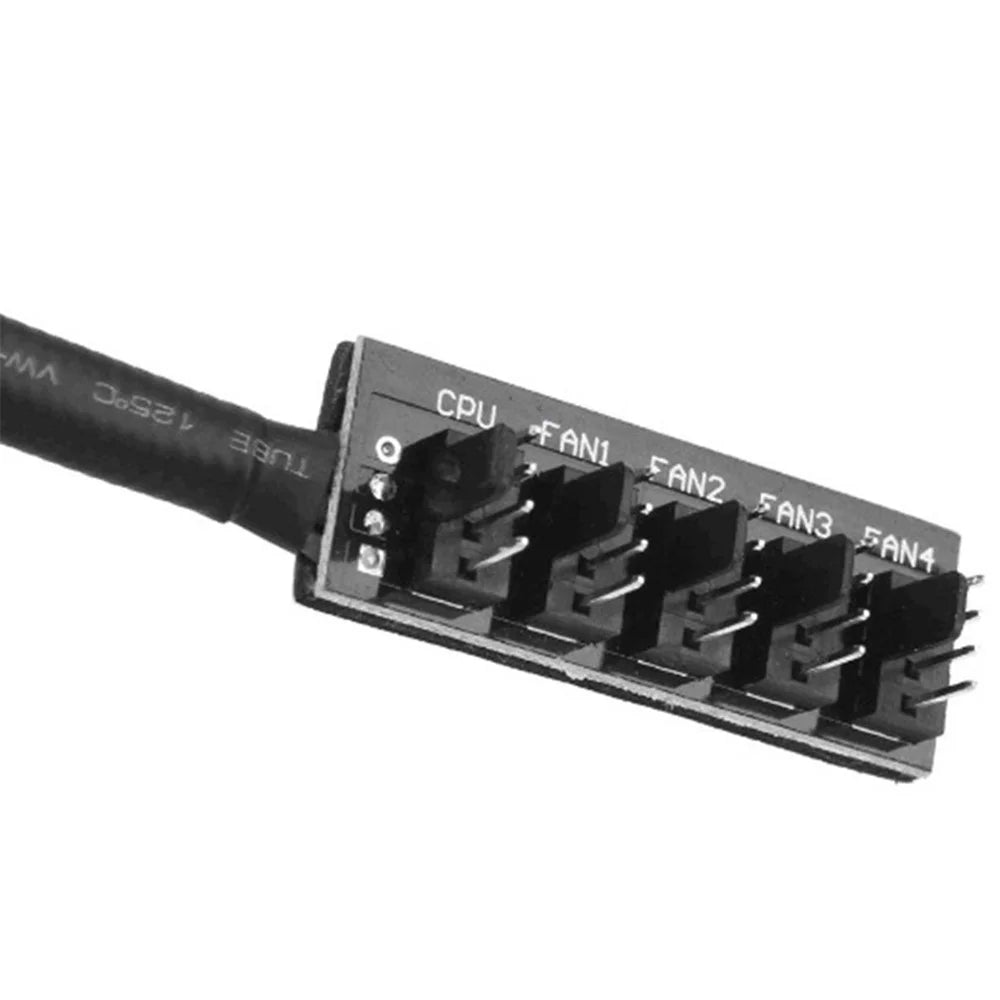

- Connector B: 1-TX4 4-pin male connector, used for CPU fan (including tachometer pin); 4-TX4 4-pin male connector, used for chassis fan
- Voltage: DC 12V
In the box
- 1 x 1 to 5 4-Pin Molex TX4 PWM CPU Fan Hub
- Other items not included
