Description

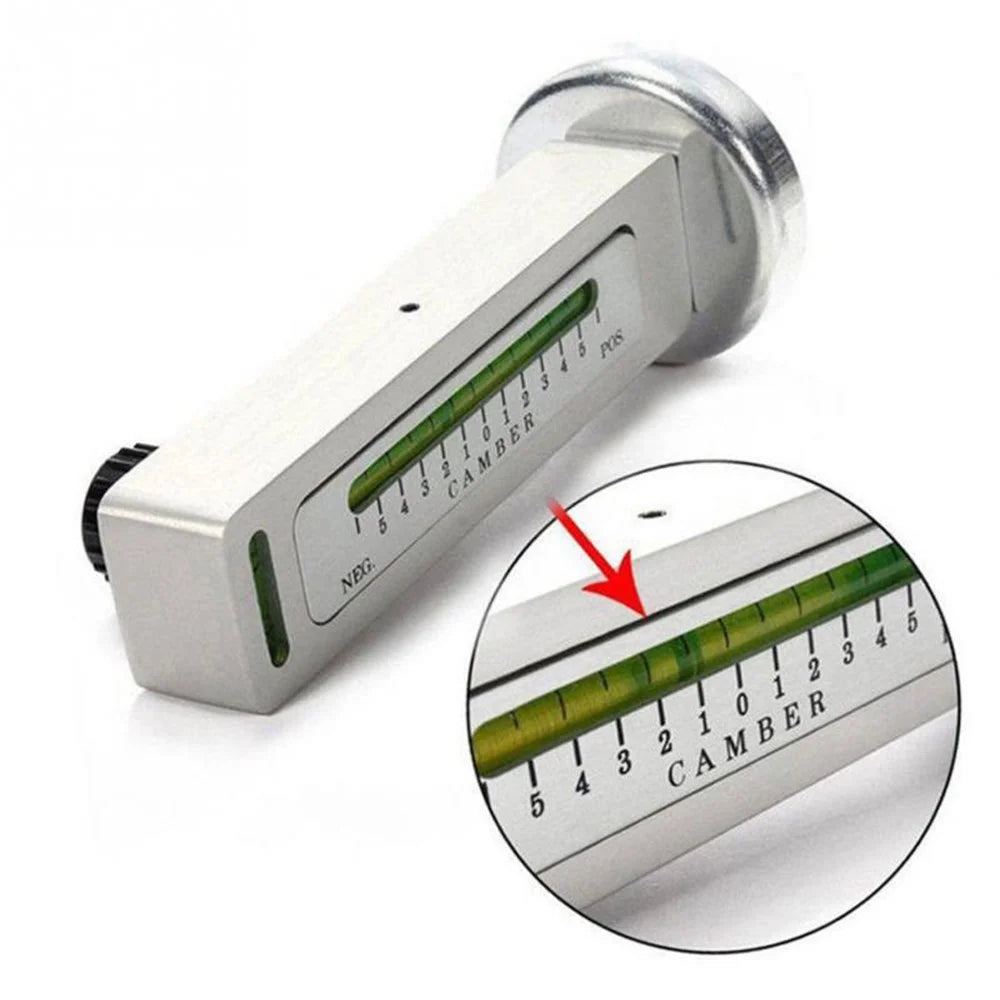

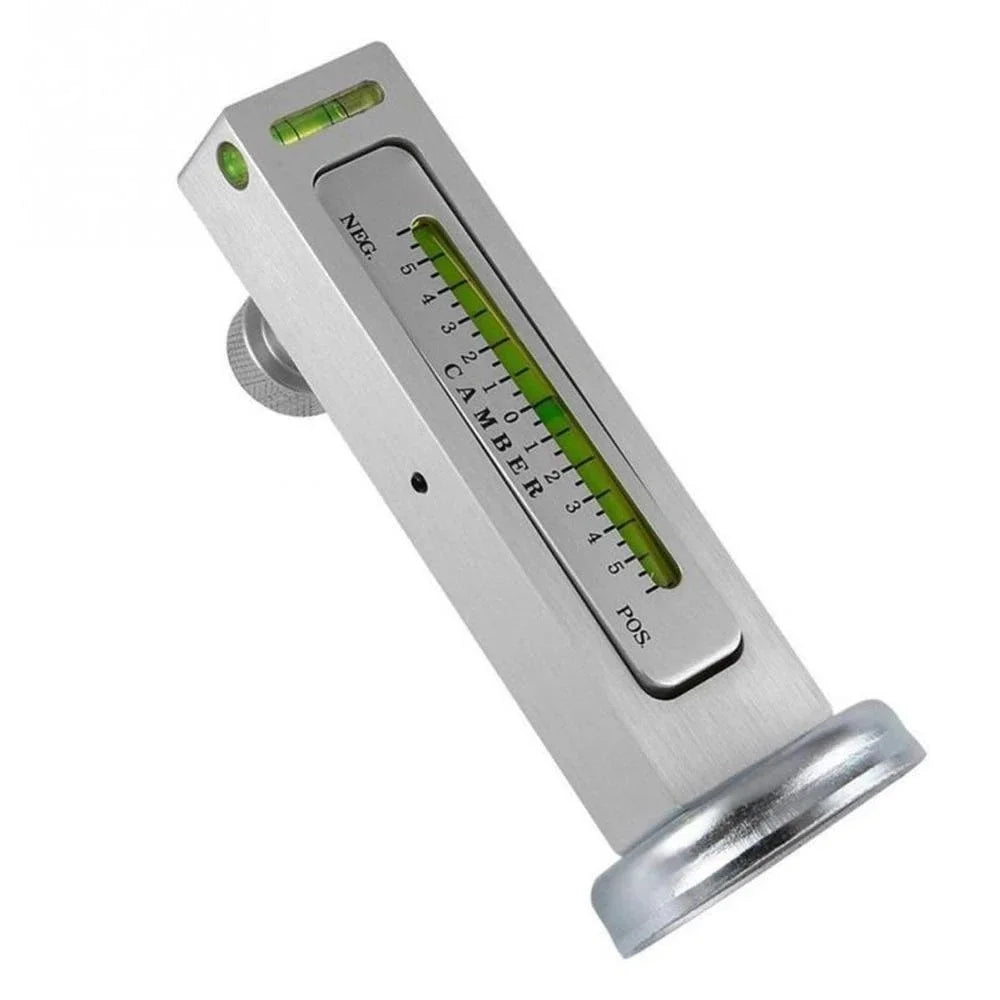

- Measure the Camber and Caster angle on the wheel hub or brake disc
- Suitable for accurate checking of the castor and camber angle
- Has a simple leveling adjustment from -5 degrees to 5 degrees
- Allows adjustment to maintain correct wheel alignment and even tire wear
- Allows you to return the strut to the original camber position after dismantling and re-assembling the suspension or to check the amount of camber change before re-installing
- Easy to read and convenient to operate
- Time and money saving
Instructions for use:

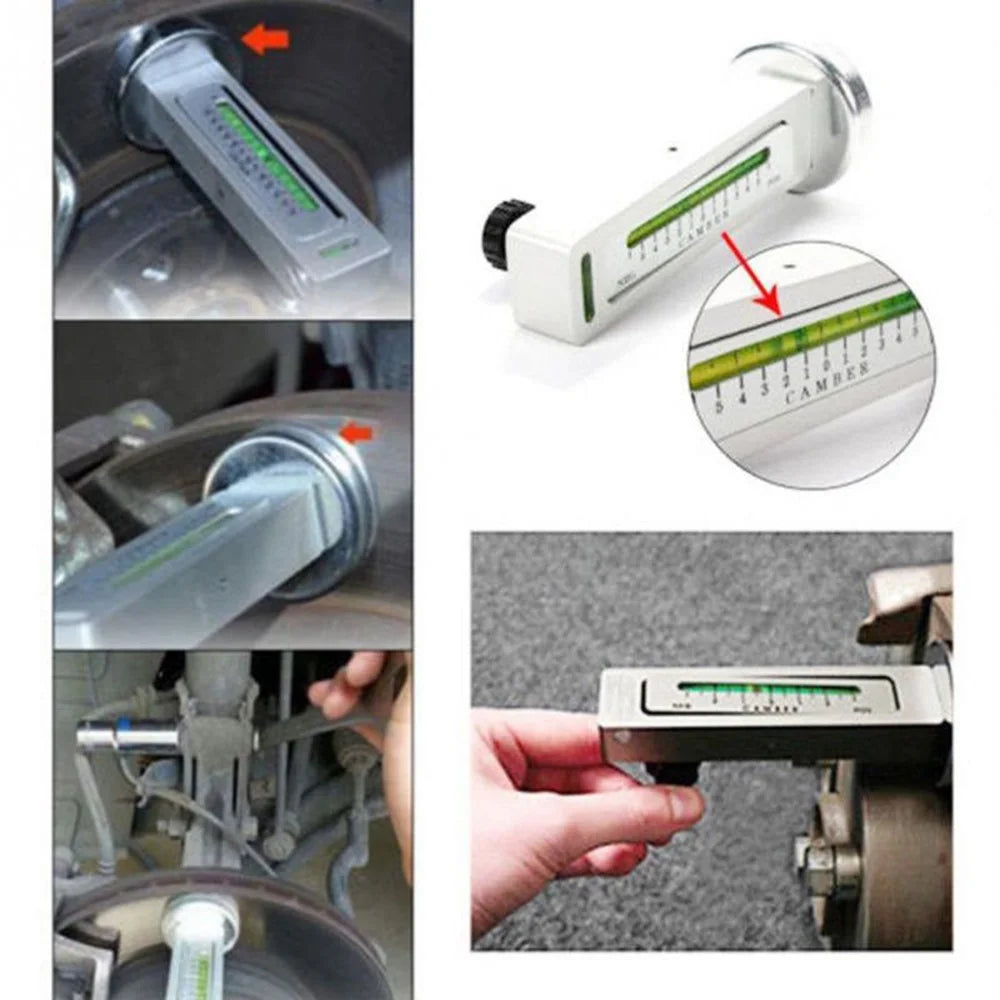

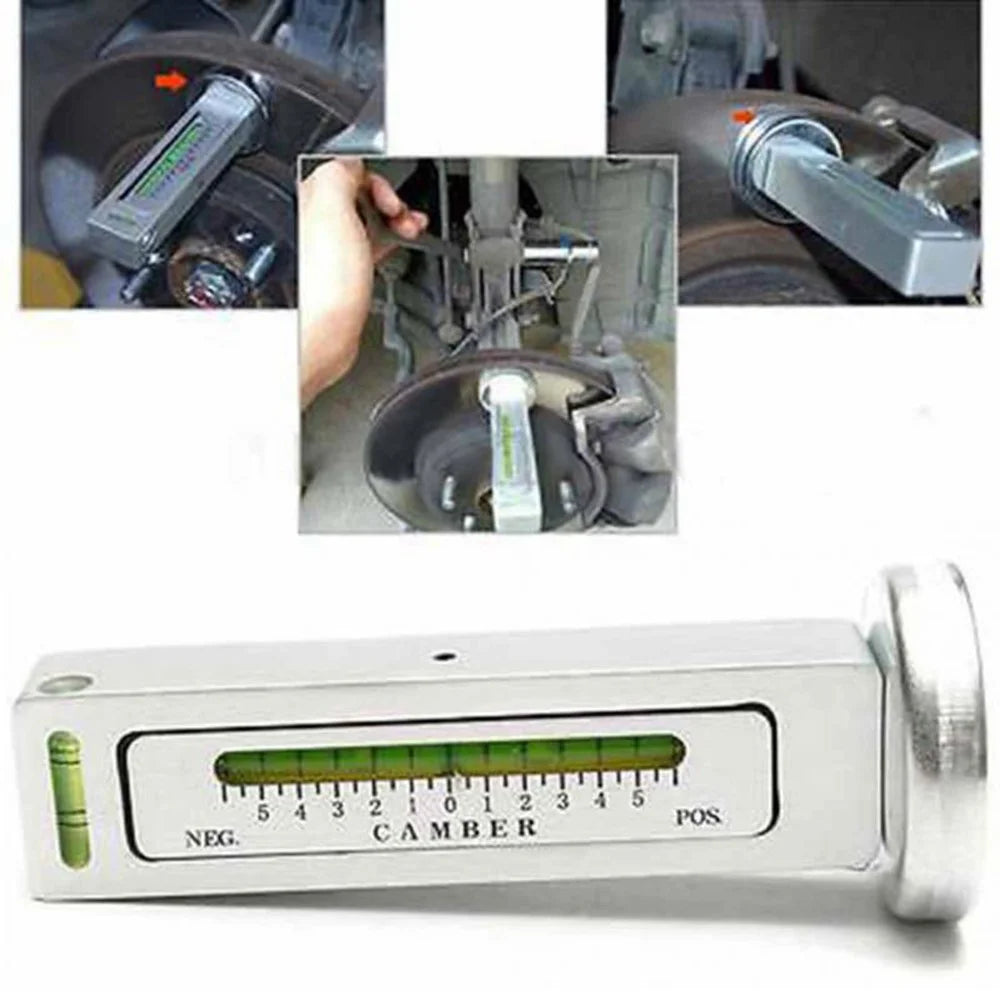

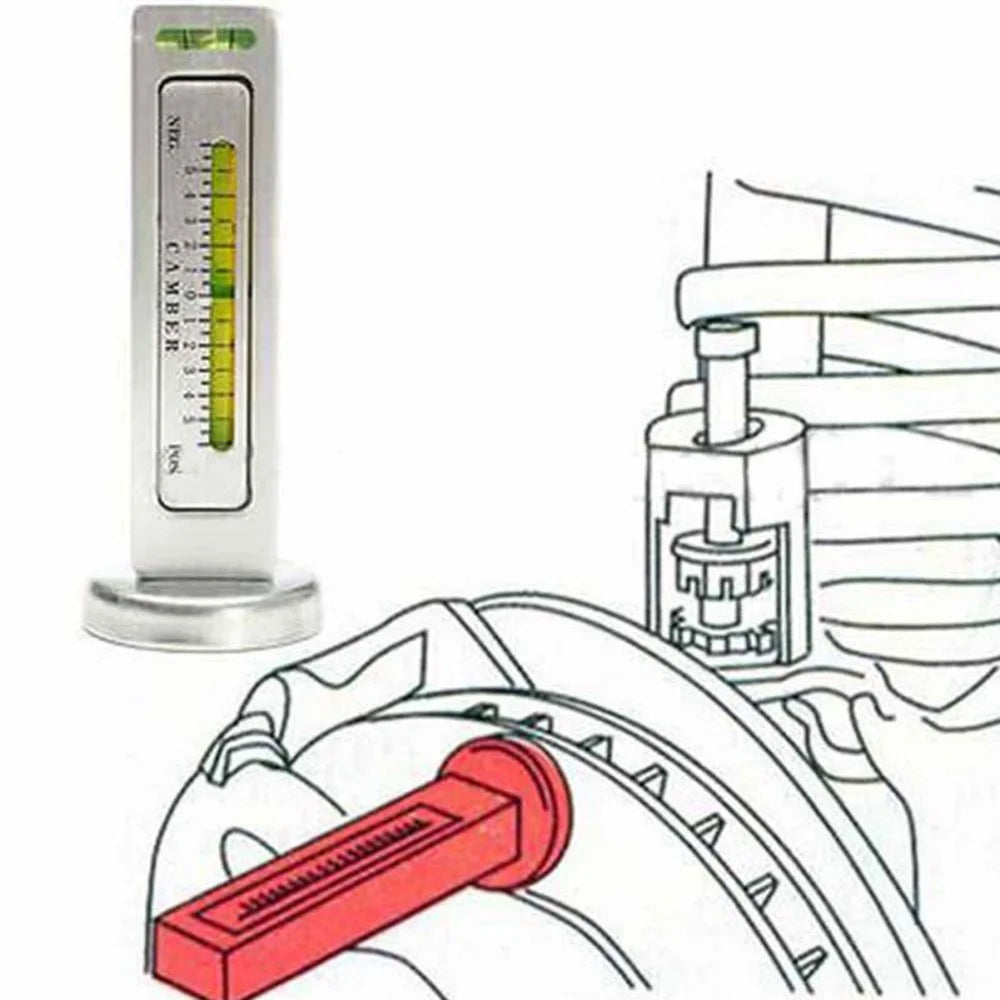

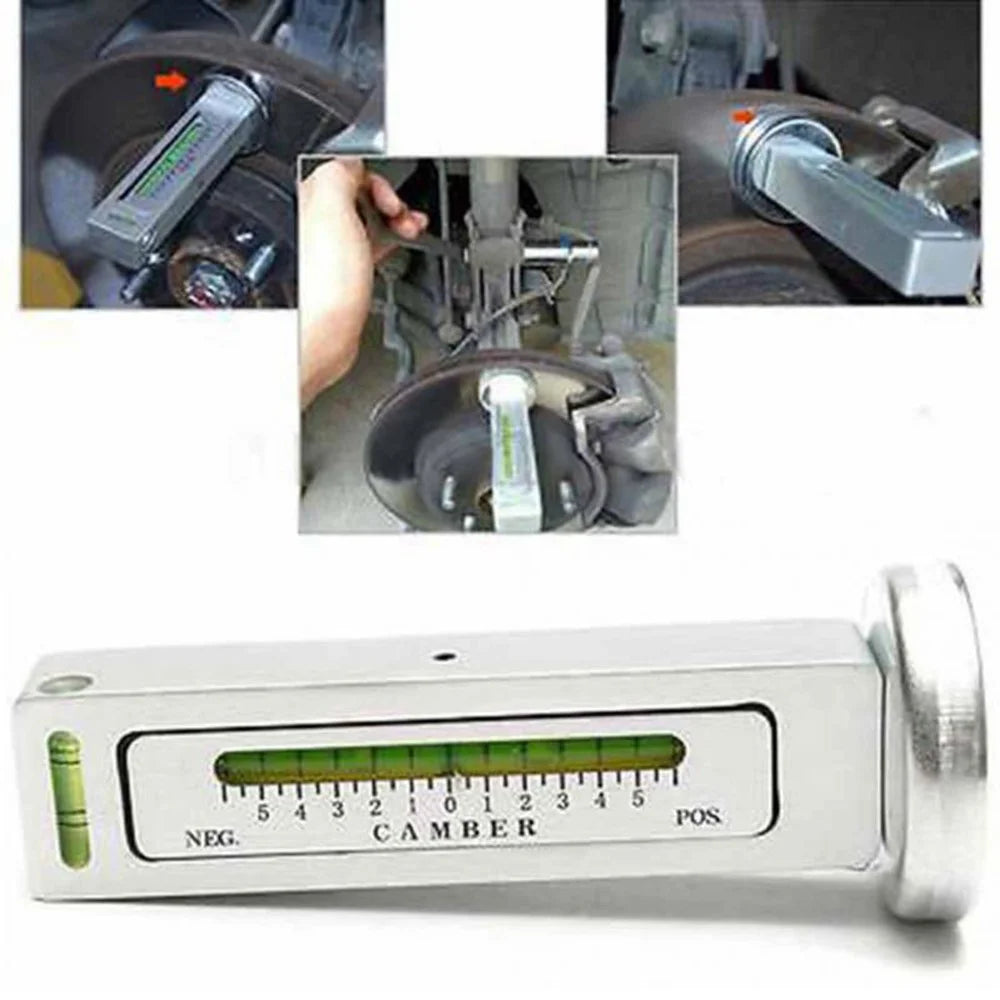

- Remove the four-wheel alignment sensor (fixture), remove the tire
- Carefully attaching the magnetic level to the side of the brake wheel disc.
- adjusting the level to the zero position
- Attaching the required special parts for positioning
- Using the special tool, adjust the positioning parts to the required measuring angle with the help of the magnetic level indicator
- If a small deviation is found in the remeasurement with the level, it is only necessary to make a fine adjustment under the car. (Generally, a small deviation will not cause positioning failure)

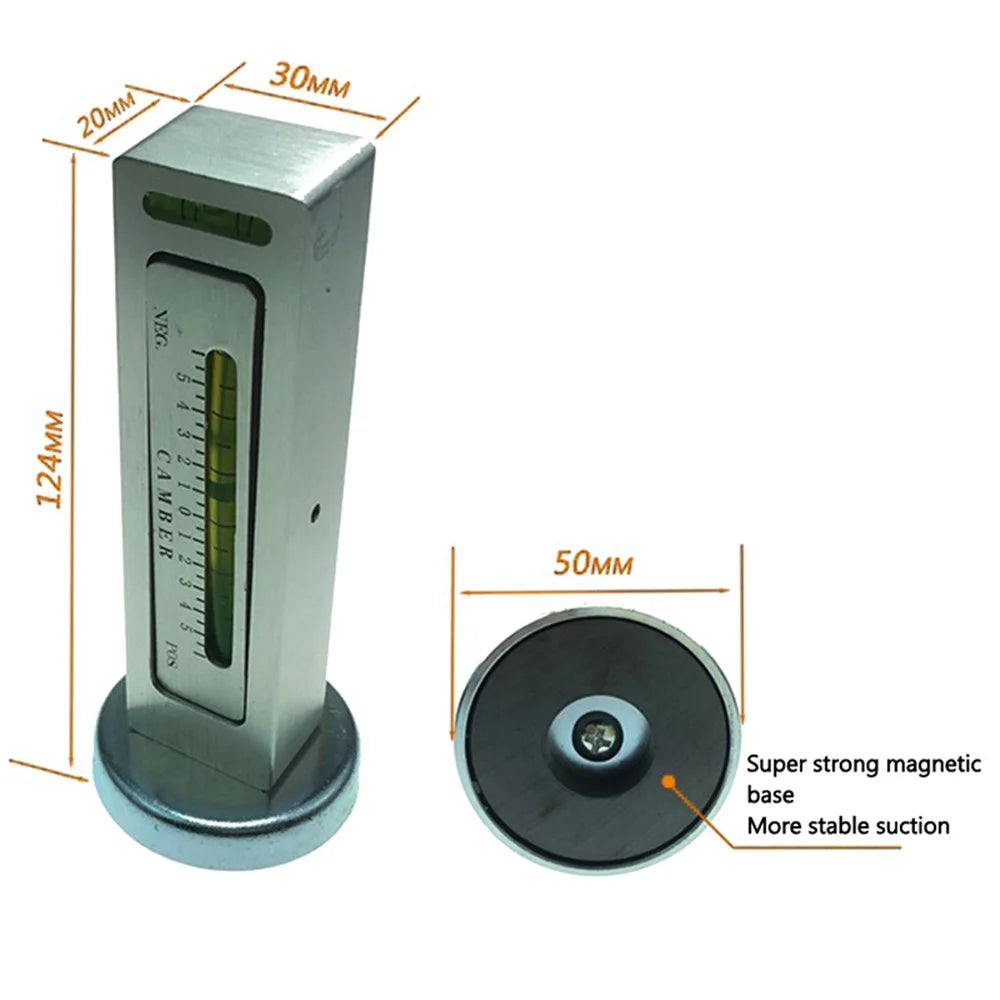

Specifications:
- Length: about 1500mm
- Bubble number: 5
- Height: 13cm
- Size: about 12.7 x 5cm/5 x 1.97" (L*D)
- Measurement range: 1.5mm
- Measurement accuracy: 99
In the box
- 1 x Magnetic Wheels Hub Level
