Description

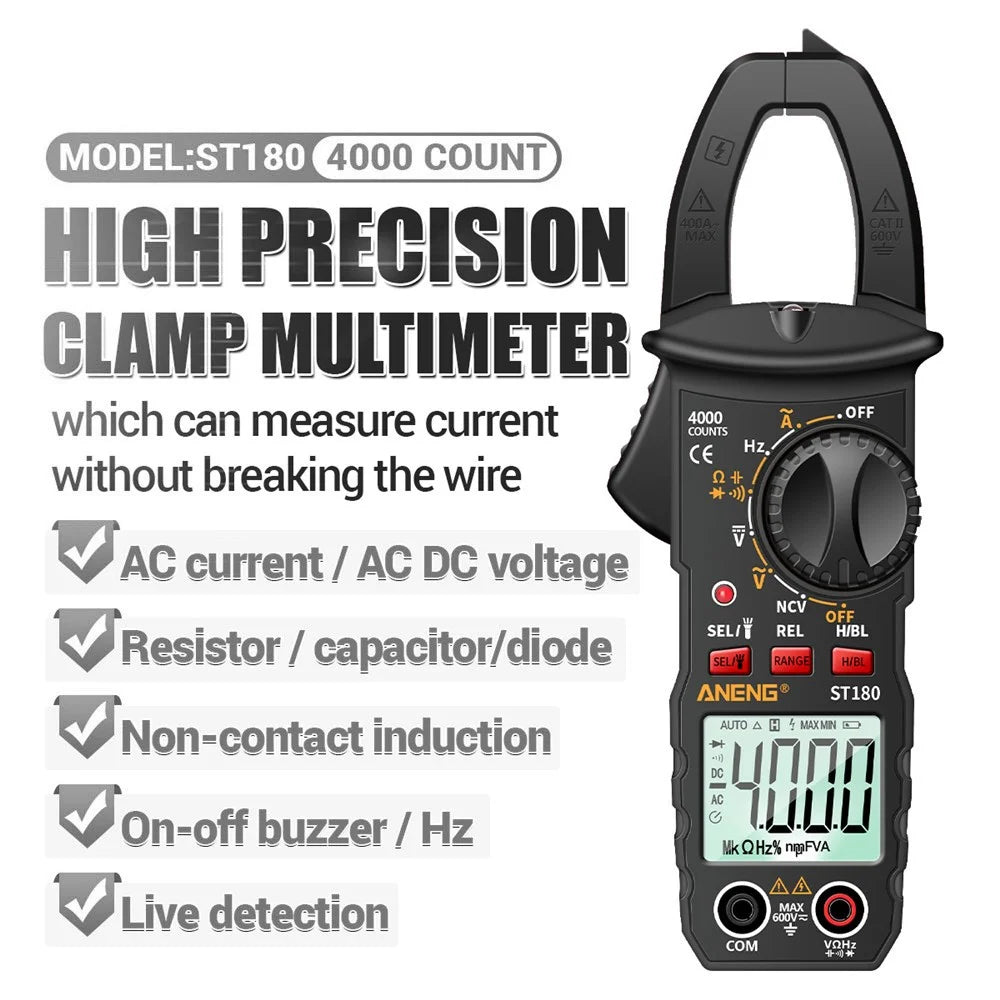

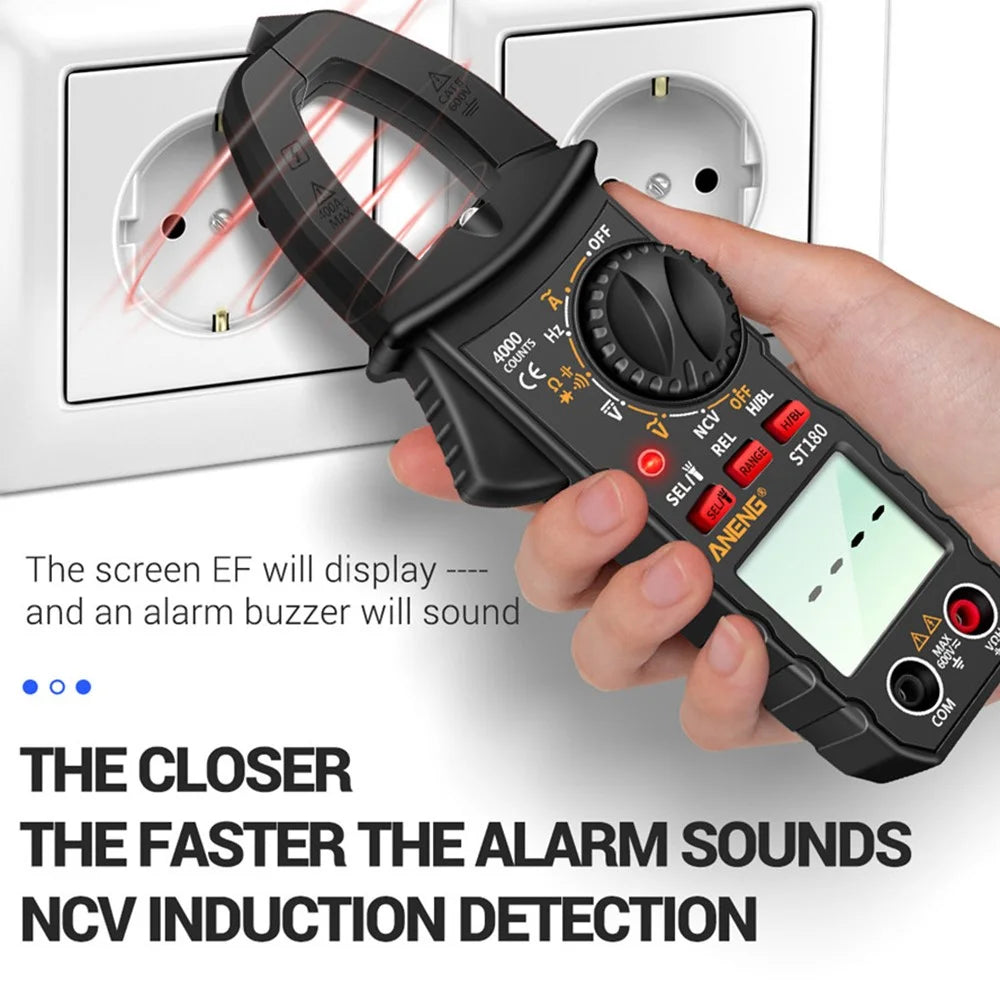

This mini-size digital instrument performs ac/dc voltage, ac current, resistance, audible continuity, diode, temperature measurements and non-contact ACV detect (NCV) as well as capacitance, Hz etc.
This is an auto ranging DMM with ac current clamp meter function
High precision clamp multimeter: intelligent auto-ranging clamp-on multimeter, which can measure current without breaking the wire
Backlit bright screen clear reading: the screen is bright and the backlight is also clear
Flashlight lighting eliminate the risk of electric shock
Specifications:

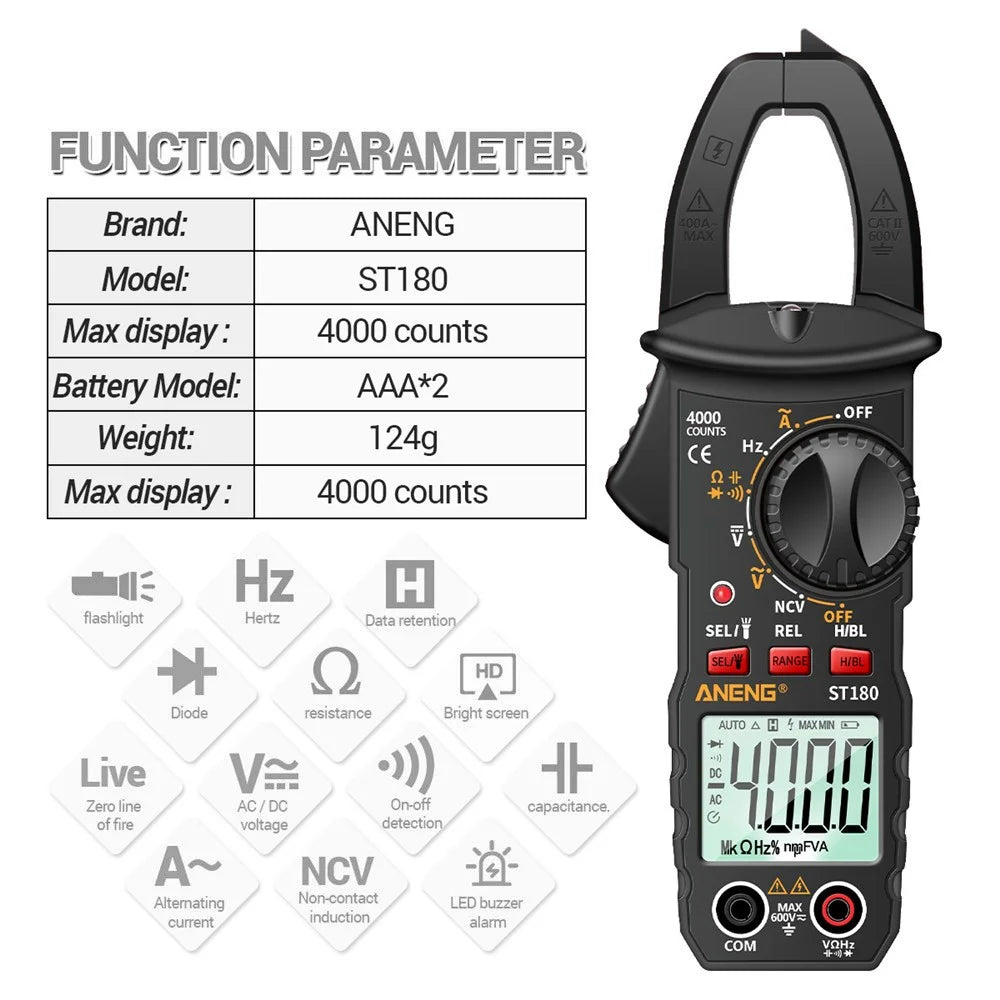

| Model | ST180 | |
| Display | 4000 counts | |
| Functions |
Range | Accuracy |
| AC voltage | 4V/40V/400V/600V | ±(1.5%+3) |
| DC voltage | 400mV | ±(1.5%+5) |
| 4V/40V/400V/600V | ±(1.0%+3) | |
| Resistance | 400/4k/40k/400k/4M omh | ±(1.2%+3) |
| 40M omh | ±(1.5%+5) | |
| AC current | 40A/400A | ±(2.5%+3) |
| Frequency | 10Hz~400kHz | ±(1.0%+5) |
| 400kHz~4MHz | ±(2.0%+5) | |
| Capacitance | 1nF~4uF | ±(2.5%+10) |
| 4uF~400uF | ±(4.0%+20) | |
| 4mF | ±(5.0%+30) | |
| Temperature | 0~400℃/32~752℉ | ±(2.0% + 1℃) |
| 400~750℃/752~1382℉ | ±(2.5% +1 ℃) |
In the box

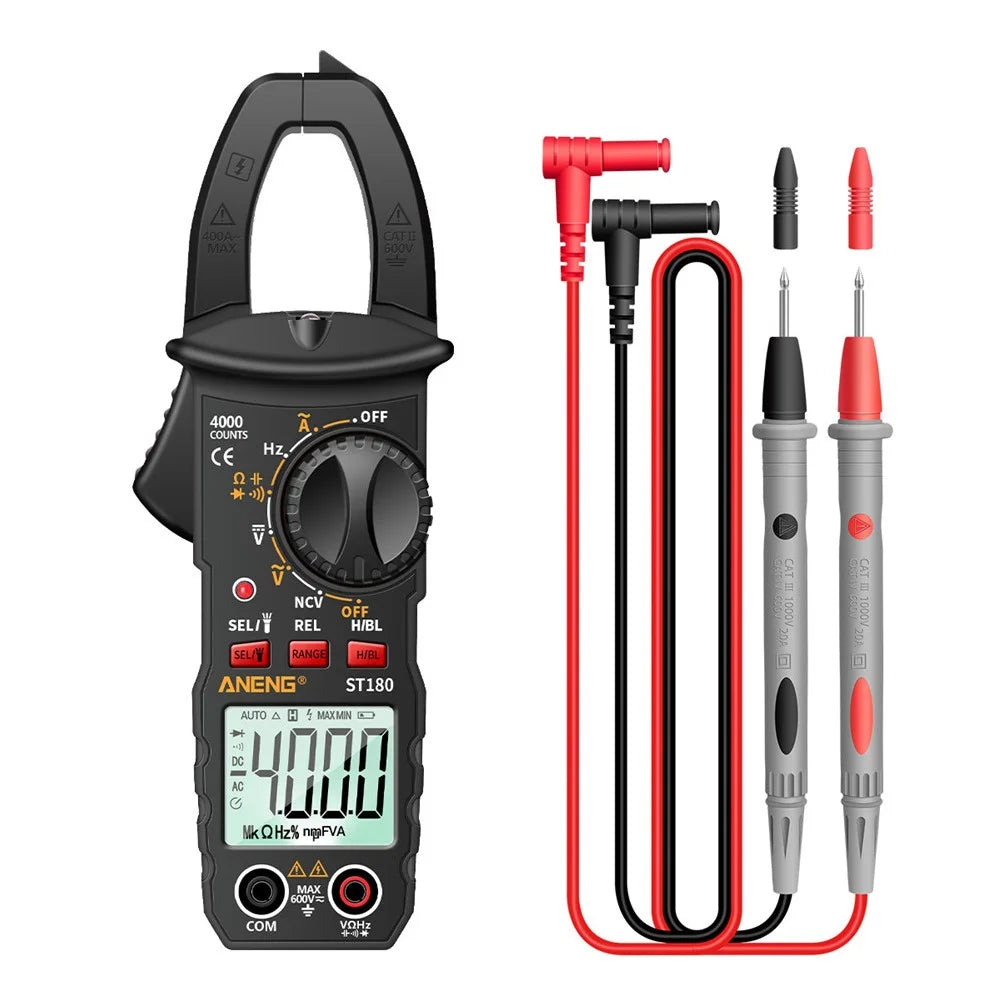

- 1 x ANENG ST180 Clamp Meter (without Battery)

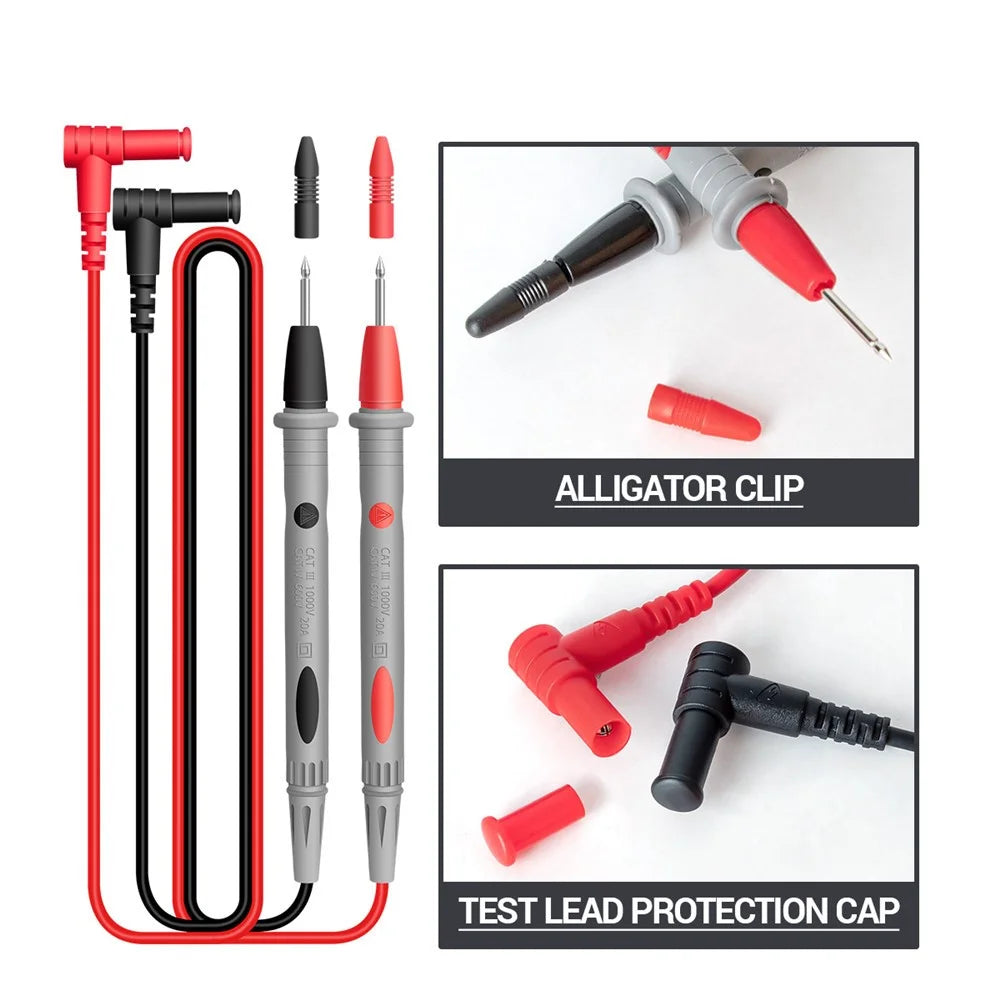

- 2 x Test Probes
- 1 x English User Manual
