Description

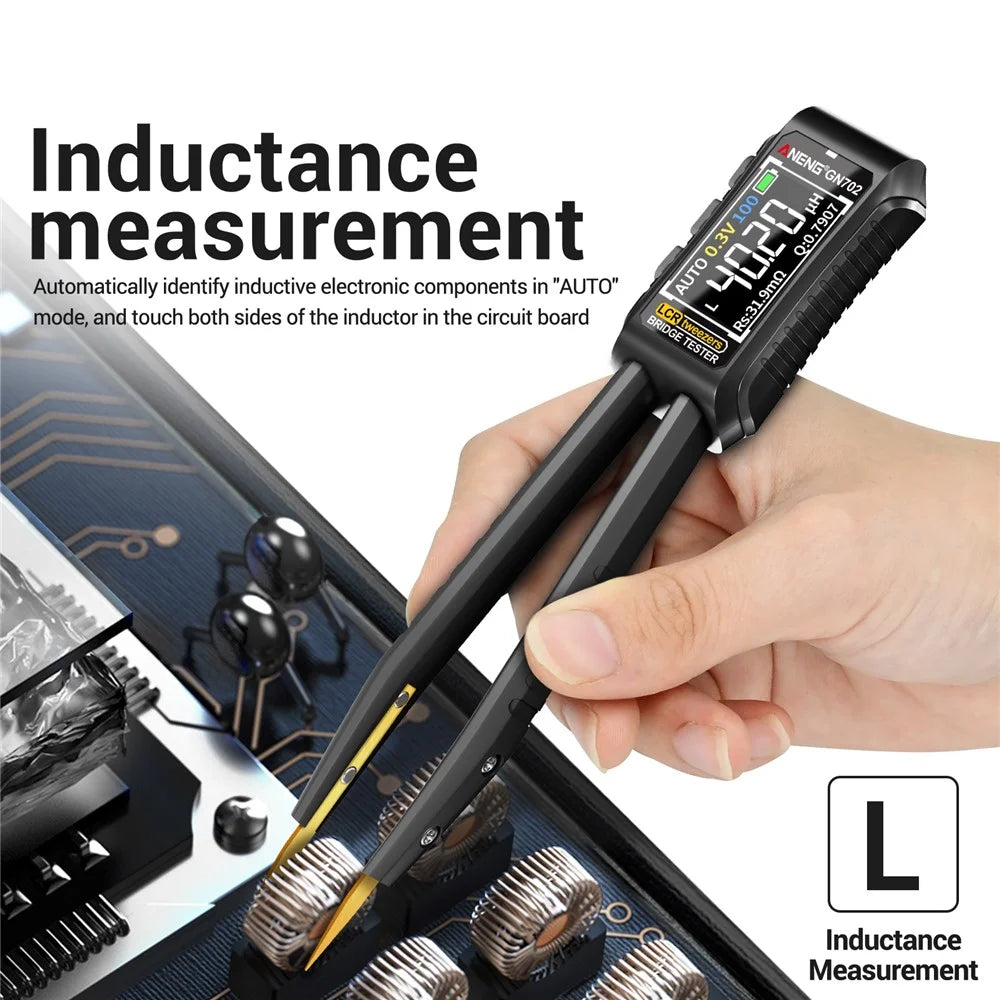

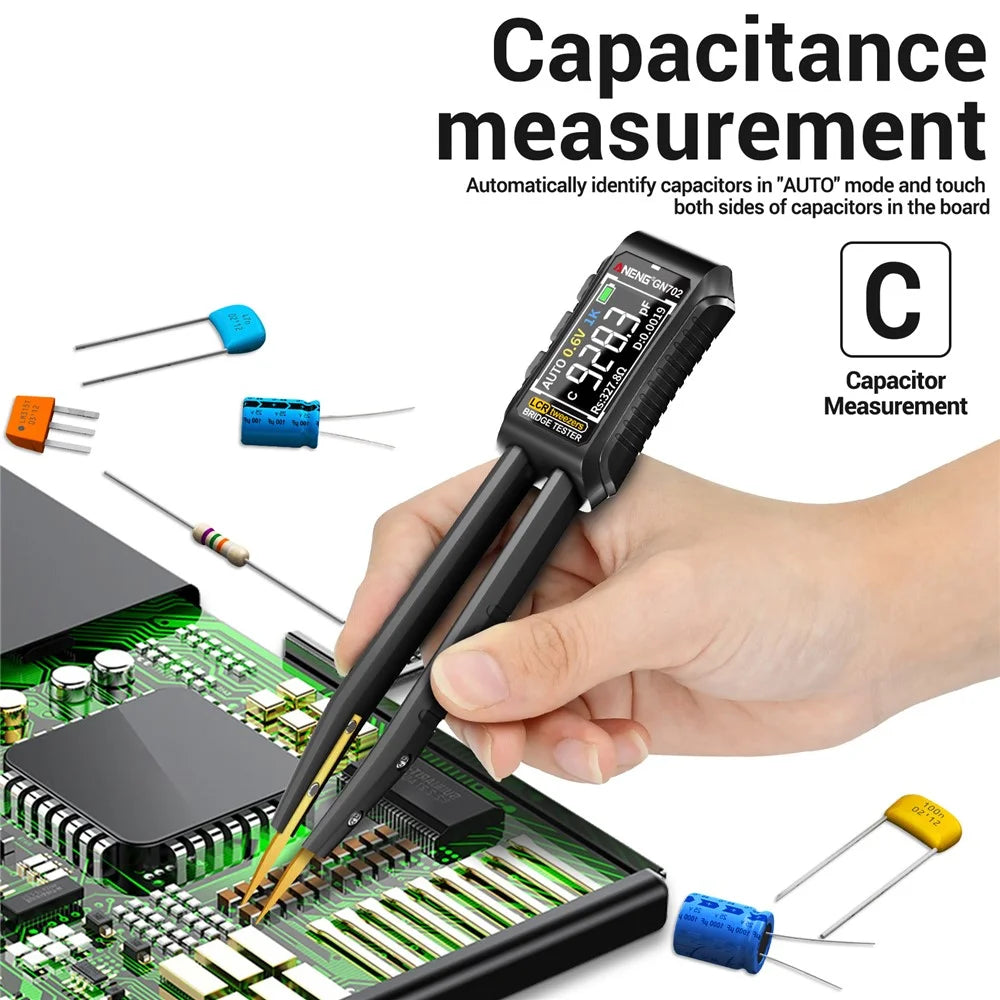

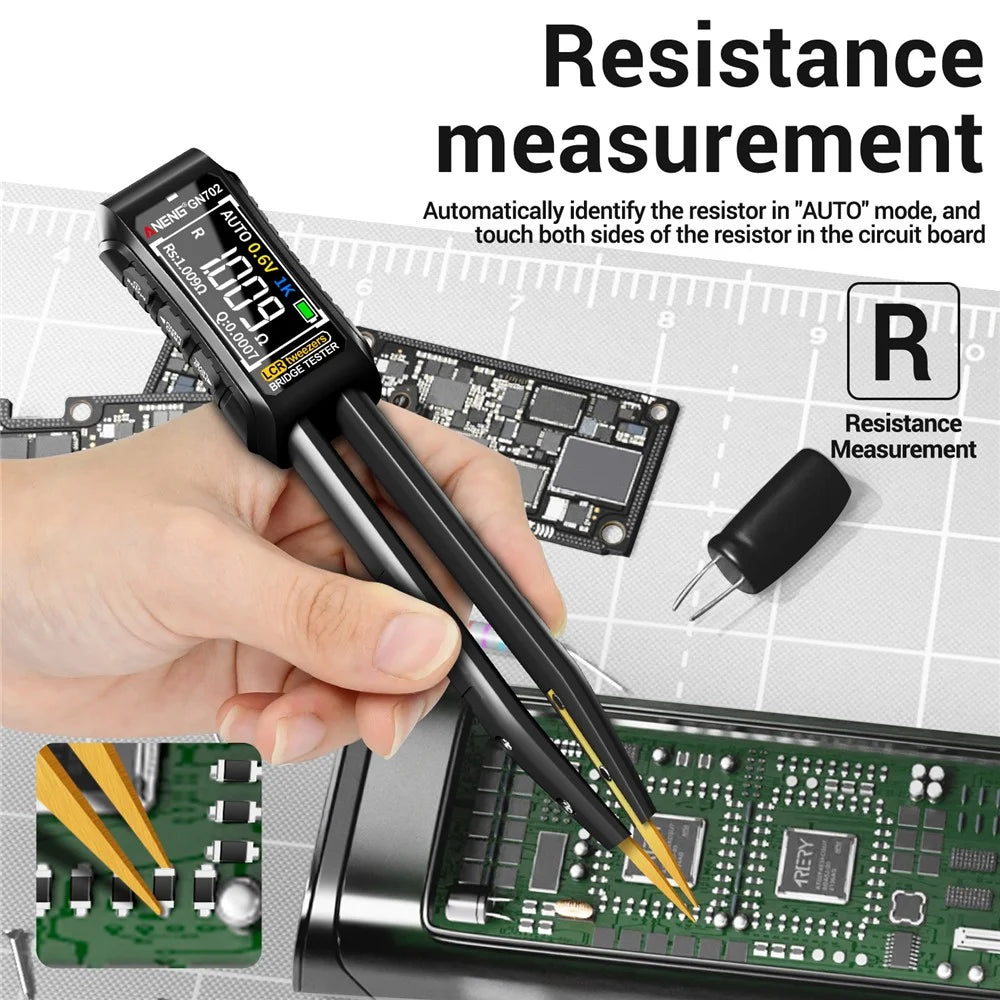

- 【Versatile Measurement】Capable of measuring resistance, capacitance, and inductance across a wide range of values, making it suitable for various electronic components.

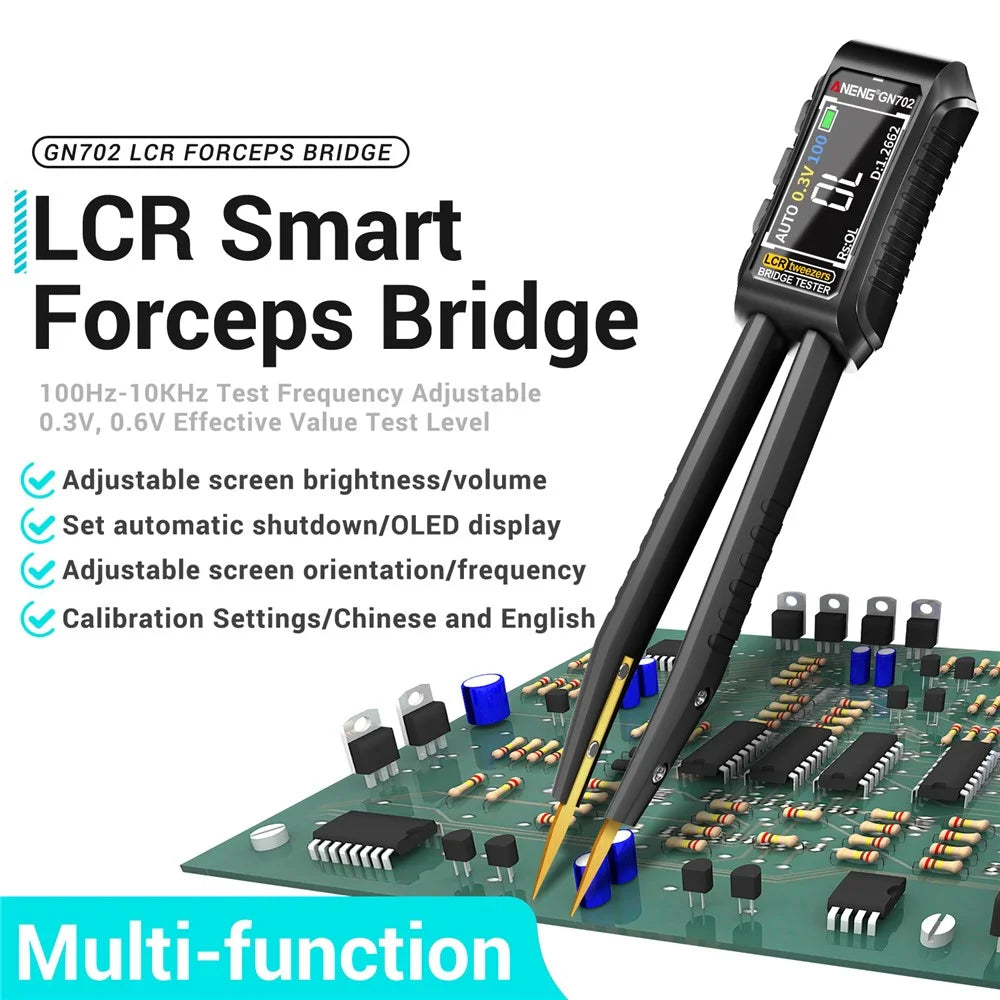

- 【Multiple Frequency Options】Offers measurement frequencies of 100Hz, 1KHz, and 10KHz for comprehensive component analysis.

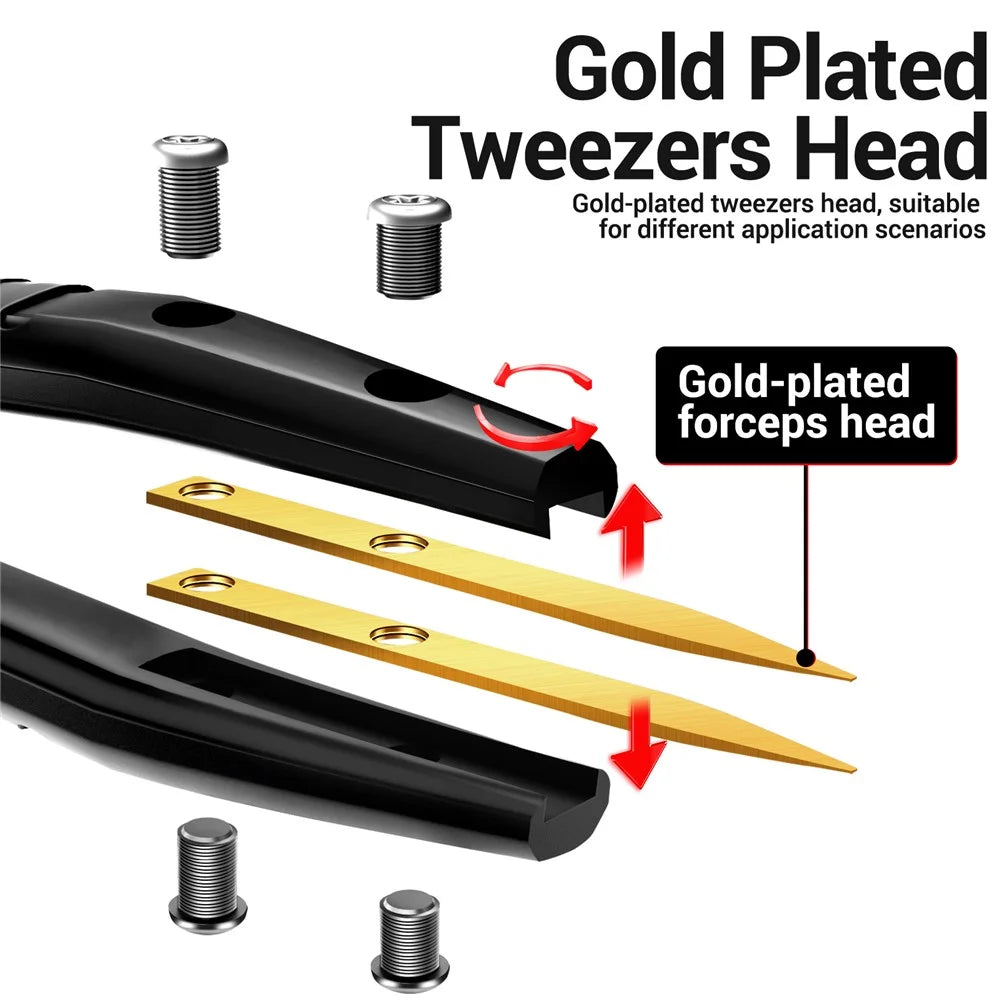

- 【Precision Gold-Plated Tips】Features gold-plated probe tips for accurate measurements and enhanced durability.

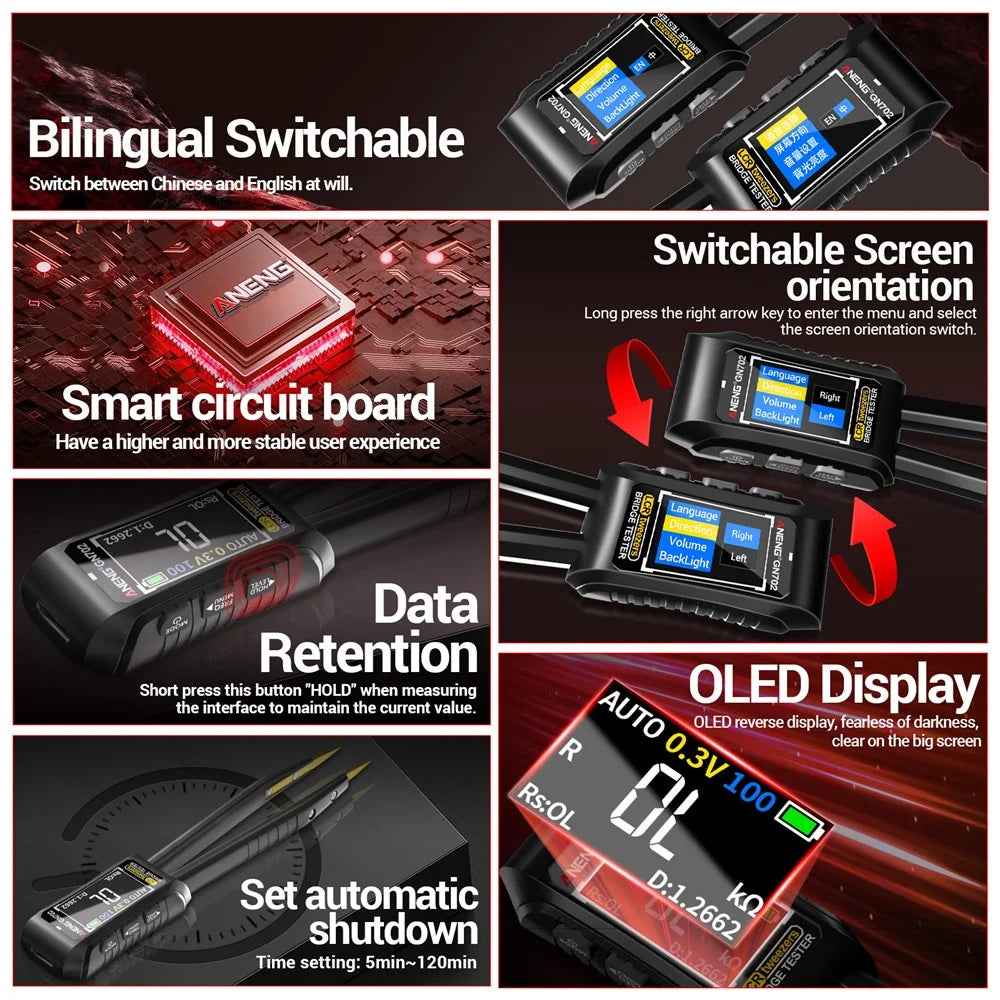

- 【OLED Display】Equipped with an OLED screen that provides clear visibility even in dark environments.
- 【Rechargeable Battery】Powered by a 3.7V 500mAh lithium battery for extended use and easy recharging.
- 【User-Friendly Features】Includes auto-ranging, data hold, low battery indication, and adjustable auto power-off functions for convenient operation.
Specifications:
- Resistance:
- 1MΩ-10MΩ
- 1KΩ-1MΩ
- 1Ω-1KΩ
- 10mΩ-1Ω
- Capacitance:
- 1mF-20mF
- 1uF-1mF
- InF-1uF
- 1pF-1nF
- Inductance:
- 1H-60H
- 1mH-1H
- 10uH-1mH
- 1uH-10uH
- Frequency: 100Hz,1KHz,10KHz
- Voltage: 0.3V, 0.6V
- Weight: 36g
- Calibration settings: 00~10M0,OPEN
- Language selection: Chinese, English
- Screen direction: left, right
- Volume setting: 0%~100%
- Backlight brightness: 10%~100%
- Diode: Support
- On/off: Support
- Auto range: Support
- Data retention: Support
- Low power prompt: Support
- Auto shutdown : Support
- Off: 5 minutes ~ 120 minutes
- Screen display: OLED display
- Battery type: Lithium battery 3.7V 500mAh
In the box
- 1 x Multimeter
- 2 x Gold-plated Angled Tweezers
- 1 x USB Cable
- 1 x English User Manual
- 1 x Storage Bag
